Adler AD 3087 Waffle Maker with LED Display User Guide

Adler AD 3087 Waffle Maker with LED Display User Guide

Safety Instructions

1. The device is for domestic use only. Do not use it for other purposes incompatible with its intended use.
2. Connect the device only to a grounded outlet 220-240V ~ 50-60Hz.
3. Do not allow children or people who are not familiar with the appliance to use it.
4. Always remove the plug from the power outlet after use by holding the outlet with your hand.
5. Do not immerse the cord, plug, or the entire device in water or other liquid.
6. Periodically check the condition of the power cord.
7. Do not repair the device yourself, as there is a risk of electrocution.
8. Return a damaged device to a competent service center for inspection or repair.
9. Any repairs may be made only by authorized service centers.
10. Improper repair may cause danger to the user.
11. Do not use the device near flammable materials.
12. The power cord must not hang over the edge of the table or touch hot surfaces.
13. Do not leave the device or the power supply to the outlet unattended.
14. The temperature of the accessible surfaces of the operating device can be high.
15. Do not touch the hot surfaces of the device.
16. The device has a heating function. The device should be used with care.

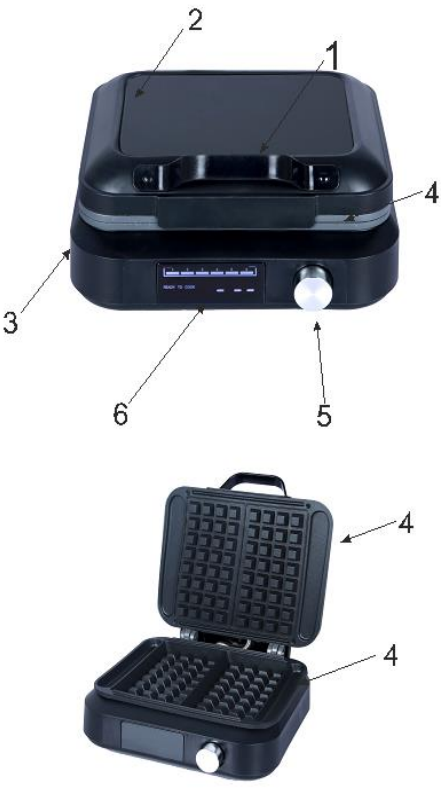

Description

1. Handle
2. Top housing
3. Bottom housing
4. Heating plates
5. Knob for selecting the baking degree / turning the machine off and on
6. LCD


• Waffle baking degree indicator from 1 to 6
• “PREHEATING” – information about the heating up of the device
• ” READY TO COOK” – information about the heating
• “COOKING” – start of cooking
• “COOKING COMPLETED” – completion of cooking
• Timer – baking time

Before First Use

1. Remove the packaging and any stickers and accessories that are on the outside and inside the device.
2. Wipe the hotplates with a damp cloth and then a dry cloth.
3. The appliance will turn on, and the display will show “PREHEATING” (B) “PREHEATING”.
4. The device will begin to heat up.
5. Leave the device on for a few minutes to get rid of the factory smell.
6. During this time, the device may emit a small amount Adler AD 3087 Waffle Maker with LED Display of smoke. This is a normal phenomenon.
7. Clean the device according to the “Cleaning” section.

USING THE DEVICE

Prepare a cake according to your favorite recipe.

1. Plug the closed device into a grounded outlet. Turn the Adler AD 3087 Waffle Maker with LED Display the knob (5) to the right, and the display will show the baking degree indicator (A)
2. By turning the knob (5) to the right, select one of the 6 waffle baking degrees according to your taste preference: from 1 to 6, where 1 (Light) is for light waffles and 6 (Dark) is for darker waffles.
3. Each degree (1-6) is assigned a baking time:
   • 1′, 2:30 minutes
   • 2′, 3:00 minutes
   • 3′, 3:30 minutes
   • 4′, 4:00 minutes
   • 5′, 4:30 minutes
   • 6′, 5:00 minutes
4. After selecting the desired baking step, the appliance will begin to heat up, and the LCD (6) will show “PREHEATING” (B).
5. Wait for about 3 minutes. After this time, the appliance should reach the required temperature, and the LCD (6) will indicate that the appliance is ready ” READY TO COOK” (C).
6. Fully open the device. Pour the previously prepared batter onto the lower heating plate.
7. Close the device. Do not close the upper housing (2) by force.
8. After pouring the dough and about 20 seconds, the device will automatically start timing (F) according to the selected browning level (see point 2), the LCD (6) will show “COOKING” (D) After the time has counted down, the device will beep 12 times, the LCD (6) will indicate that the baking is complete “COOKING COMPLETED” (E)
9. Fully open the upper housing (2) and remove the baked waffle, using only a wooden or plastic spatula.
10. Before baking the next batch, close the top Adler AD 3087 Waffle Maker with LED Display housing so that the hotplates warm up to the right temperature.

Cleaning

1. After use, remove the plug from the outlet and wait for the device to cool down before you start cleaning.
2. Wipe the cooktops first wet and then dry with a cloth (you can also use a paper towel).
3. Lubricate the most difficult to clean cake with oil and leave it. After a few minutes, gently remove the residue with a wooden spatula.
4. Do not use any metal or hard abrasive tools to wipe the inside/outside of the unit to avoid scratching the surface of the unit.
5. Do not immerse in water.

Specifications

• Power supply: 220-240V ~ 50-60Hz
• Nominal power: 1500W
• Maximum power: 2200W

Environmental Instructions

• Dispose of cardboard packaging and polyethylene (PE) bags in the appropriate containers for separate collection of municipal waste according to their description.
• If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment.
• Waste electrical equipment is waste that contains substances harmful to humans, animals, and the environment.
• These substances can lead to contamination of the soil, water, or air, and through this they can get into the human body and lead to numerous health ailments, such a vision, hearing, and speech disorders; they can also lead to kidney, liver, and heart damage, and cause skin diseases.
• Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the contaminated soils, and products made from them, may risk the above-mentioned health effects.
• Do not dispose of the device in the municipal waste container!!! Service: If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt directly.

Customer Service

• Website:  service@adlerglobal.com.
• Ph: 0800 9753 003
• Timings:  Mo – Fr, 8:30 am – 5:00 pm

FAQs

What makes the Adler AD 3087 Waffle Maker special?

With the Adler AD 3087’s digital LED display, you can precisely track the cooking process, temperature, and time. Every time, its non-stick plates guarantee uniform frying and effortless waffle removal.

What kind of waffles can I make with this appliance?

Depending on your batter recipe and chosen browning level, you can make soft morning waffles, crispy thin waffles, or classic Belgian-style waffles. Try a variety of batters, including savoury and sweet ones, for mouthwatering results!

How long does it take to heat up before cooking?

Preheating the waffle maker typically takes three to five minutes. When it’s ready for usage, an indicator light or LED display will signal.

How do I know when my waffles are ready?

You can choose how long you want to cook using the LED timer and display.

Can I open the lid during cooking to check the waffles?

Avoid opening the lid too soon as this could shred the waffles or possibly stop them from cooking. Before checking for doneness, wait until the LED timer has finished, or at least two to three minutes.

Do I need to use oil or butter on the plates?

Since the plates are non-stick, there is no need for oil or butter.

Can I use pancake or crepe batter in the waffle maker?

Yes, but outcomes might differ. Waffle batter has more fat for crispiness and is thicker. Waffles made with pancake batter could be softer and thinner, making them perfect for on-the-go munchies.

What is the size of the waffles produced?

Depending on the model design, the Adler AD 3087 usually produces either four smaller portions or two huge square waffle every batch. The diameter of each waffle is roughly 10–12 cm (4–5 inches).
