Adler AD 6316 Air Fryer with Glass Bowl Instruction Guide

Adler AD 6316 Air Fryer with Glass Bowl

IMPORTANT SAFETY INSTRUCTIONS

1. Before using the device, read the instruction manual and follow the instructions contained therein.
2. The device is for domestic use only.
3. Do not use it for other purposes incompatible with its intended use.
4. Connect the device only to a grounded outlet 220-240V ~ 50/60 Hz.
5. Be especially careful when using the device when children are around.
6. Do not allow children to play with the appliance.
7. Do not allow children or persons unfamiliar with the appliance to use it.
8. Do not immerse the cable, plug, or the entire device in water or other liquid.
9. Do not repair the device yourself, as there is a risk of electrocution.
10. Return a damaged device to a competent service center for inspection or repair.
11. Any repairs may be made only by authorized service centers.
12. Improper repair may cause danger to the user.
13. The power cord must not hang over the edge of the table or touch hot surfaces.
14. Extension cords that do not meet this requirement may overheat.
15. Arrange the cable to avoid accidental pulls or tripping over it.
16. Do not allow the motor part of the device to get wet.

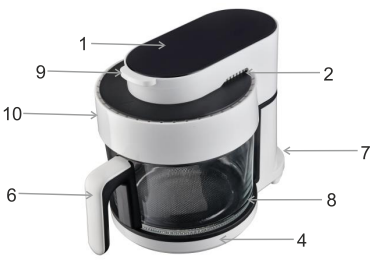

Description

1. Control panel
2. Air outlet
3. Silicone pad
4. Housing
5. Grate
6. Glass container handle
7. Power cord
8. Glass container
9. Top cover handle
10. Top lid

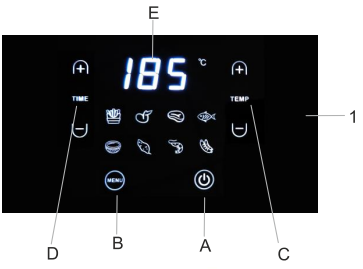

Control Panel

• On/off button
• Function selection button
• Temperature adjustment buttons “+” “-“
• Time adjustment buttons “+” “-“
• Temperature and time display

Programs

1. French fries
2. Chicken wings
3. Steak
4. Fish
5. Tart
6. Sweat potatoes
7. Shrimp
8. Sausage

Before First Use

1. Remove the packaging and any stickers and accessories that are on the outside and inside the device.
2. Thoroughly clean the grate (5) and the glass container (8) with hot water, with a small amount of dishwashing liquid and a sponge, then wipe them with a clean, soft cloth.
3. Place the appliance on a stable horizontal surface, plug in the power cord, and select the first program (as indicated in the appliance use section) to remove factory odors from the appliance.
4. When the program is finished, unplug the power cord and repeat step 2 to clean it again after it has cooled completely.
5. The glass container (8) is dishwasher safe. Do not wash the grate (5) in the dishwasher.

Use of the Appliance

1. Lift the top cover of the appliance (10) by holding the handle (9) to an upright position.
2. Holding the handle of the glass container (6), pull the container (8) together with the grate (5) from the housing (4) and place it on the silicone Adler AD 6316 Air Fryer with Glass Bowl pad (3) placed on a stable surface. The grate (5) can be removed from the container (8).
3. Place the previously prepared products on the grate (5) located on the bottom of the container (8). Then insert the container (8) into the housing (4). When filling the container, do not exceed 2/3 of the container’s capacity. Then lower the top cover (10), holding the handle (9).
4. Connect the closed device to a grounded power outlet. The device will turn on and emit an audible alarm. To turn the device on, press the button (A) “ON/OFF”.

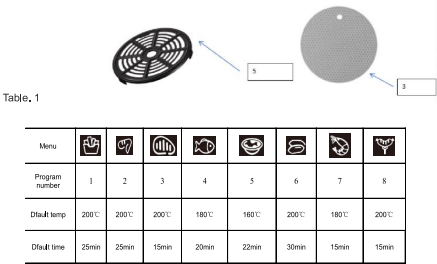

5. Using the function selection button (B) “MENU”, select the desired program (Table 1). After selecting the program, you can change the temperature and time by pressing the temperature control selection button (C) “+” “-, and then the time adjustment button D “+”, “-“. It is recommended to add 3 minutes to the cooking time, relative to the programmed menu, if the device is cooled.
6. After selecting the appropriate program, press the button (A) “ON / OFF “. The device will begin to operate, the display will show the set temperature, and the elapsed time. During the operation of the device, the halogen heater will turn on and off; this means that the thermostat maintains the correct temperature inside the glass container.
7. When the device is finished working, it will beep 5 times. To terminate the device early, hold down the (A) “ON / OFF” button for 3 seconds.

Cleaning

1. Before cleaning the appliance, unplug it from the power outlet and wait for the appliance to cool down.
2. Clean with a damp, then dry cloth (or a paper towel).
3. Brush the more difficult-to-remove residues with a small amount of edible oil, and after a few minutes, gently remove them with a wooden spatula.
4. Do not clean with sharp, abrasive rags or sponges, or use scouring powders, as they can damage the smooth, non-stick coating\ of the basket and container.
5. Do not immerse the unit in water.

Technical Specifications

• Heater type: Halogen
• Temperature range: from 80 ˚C to 200 ˚C Time range from 1 minute to 30 minutes Capacity 3 L
• Voltage: 220-240V ~ 50/60Hz
• Nominal power: 1200W
• Maximum power: 1400W

FAQs

What makes the Adler AD 6316 air fryer different from traditional air fryers?

The AD 6316 has strong hot air circulation technology for crisp, oil-free cooking, as well as a transparent glass bowl that lets you see how the food is cooked without opening the lid.

What is the capacity of the glass bowl?

With its capacity of almost 12 litres, the glass bowl is perfect for preparing meals for larger gatherings or families.

How do I start cooking with the air fryer?

Press start after placing your food in the glass bowl and using the digital buttons to adjust the temperature and timer. The food will cook quickly and healthily since the hot air will circulate evenly around it.

What temperature range does the air fryer support?

With the ability to be adjusted between 65°C and 250°C (149°F and 482°F), a wide range of foods can be prepared.

Can I cook frozen food directly in the air fryer?

Indeed. The AD 6316 saves time and preserves crispiness by cooking frozen foods like fries, nuggets, and veggies without thawing.

Does the air fryer have an automatic shut-off function?

Yes, in order to protect safety, it automatically turns off when the timer goes off or if the lid is opened during cooking.

Is the glass bowl heat-resistant and safe to touch?

Despite being composed of heat-resistant borosilicate glass, the outside of the glass bowl could get heated while cooking. When touching the bowl, always wear handles or oven mitts.

Can I open the lid during cooking?

Yes, but the heating element will be turned off and cooking will be immediately paused when the lid is opened. The procedure is restarted by closing the lid.
