General Guidelines

• Please read the following instructions carefully and use the product accordingly.
• Please keep this manual and hand it over when you transfer the product.
• This summary may not include every detail of all variations and considered steps. Please contact us when further information and help are needed.

Electrical Safety

This product is equipped with a REGION-SPECIFIC power strip

• US/CA model: NEMA 5-15P plug (15A/125V/1800W)
• EU model: Schuko Type F plug (16A/250V/3600W)
• UK model: BS 1363 plug (13A/230V/2950W).
• Do not simultaneously connect high-power devices (e.g, space heaters + projectors).

LED Light Band Operation

• The LED controller is IP20 rated (for indoor dry use only).
• Exposure to moisture/liquids will cause permanent damage.
• To change light modes: Press the included remote within a 5m range.
• Do not use sharp objects to touch LED strips.

Maintenance

• Clean sockets with dry compressed air only. Never insert metal objects into sockets.
• Wipe LED strips with a static-free microfiber cloth. Avoid alcohol or abrasive cleaners.

Overview

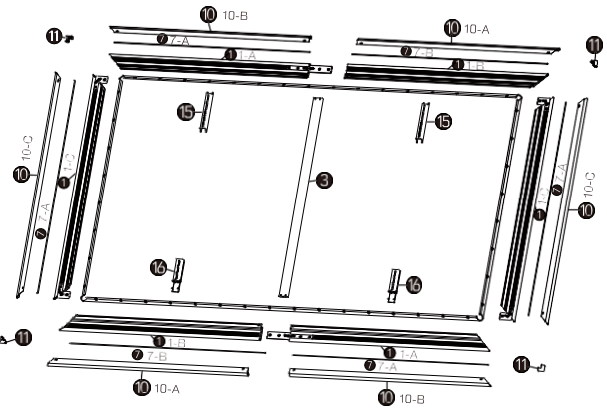

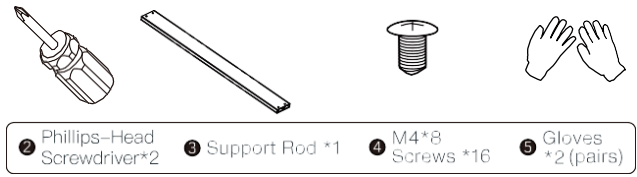

Package Contents

• Inner Frames *4
• Inner Frames *2

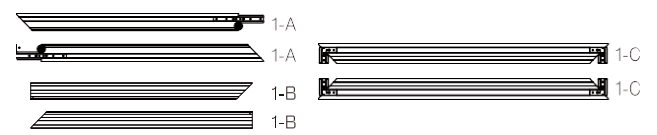

Inner Frames

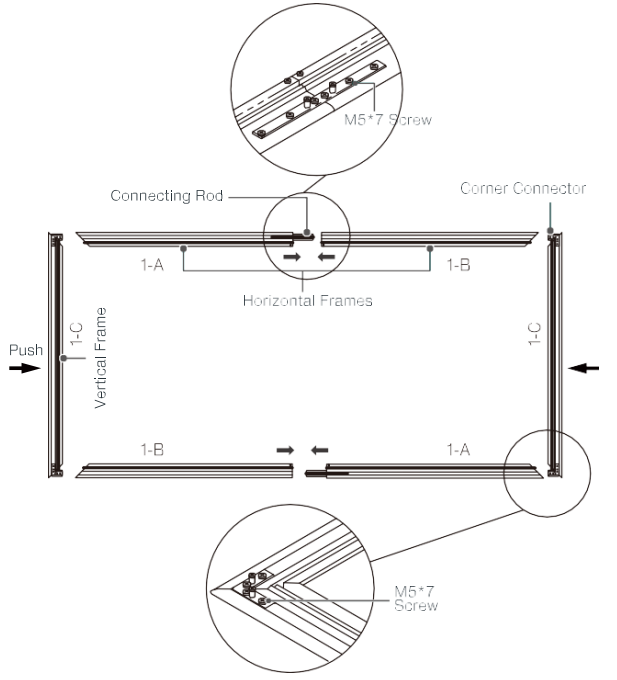

1. Connect the horizontal frames and fasten the M5*7 screws.
2. Insert the four corner connectors into the horizontal inner frames, and attachthe corners with M5*7 screws as shown below.

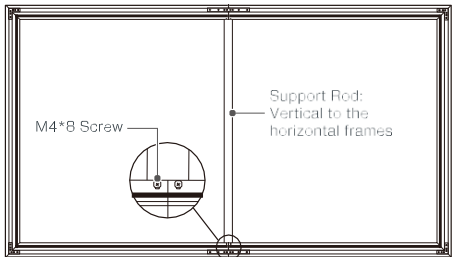

3. Install the support rod as shown below.

Assemble the Screen

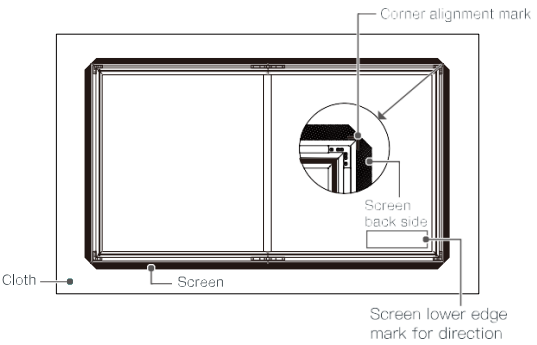

1. Put on gloves and place a clean cloth (or use the packaging material for the screen) on a flat, clean, and level surface.

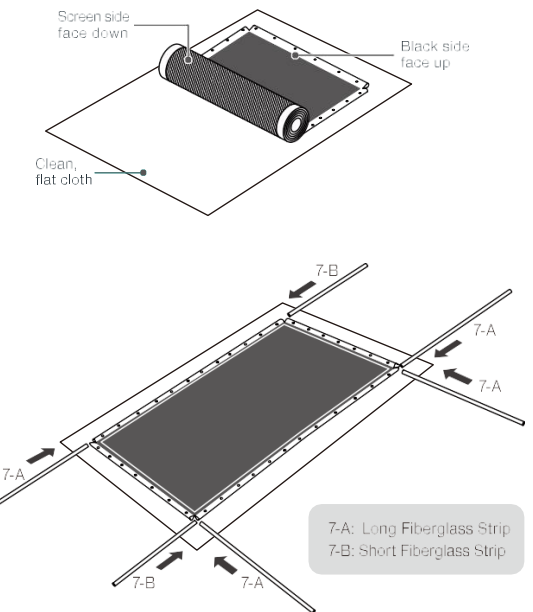

2. Unroll the screen, place it face down on the cloth, then insert the fiberglass strips into the screen sides.
3. Put the assembled frames on the back side of the screen.

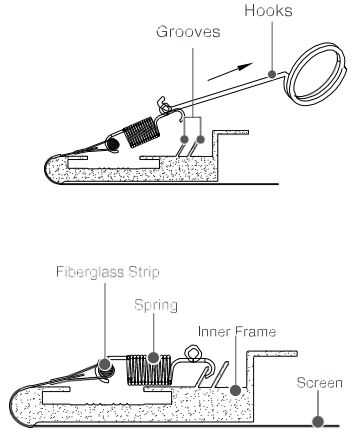

4. Fix the screen onto the frame with all the springs in order as indicated below (corners, short sides, then long sides).
5. Hold the screen upright and ensure that it is taut and flat. Adjust the springs until no creases are observed.

Outer Frames

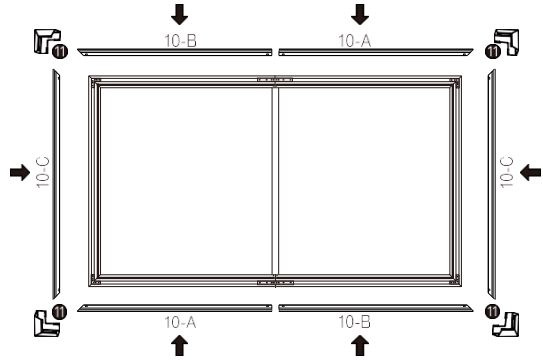

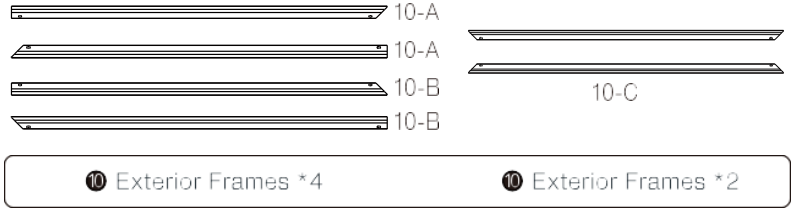

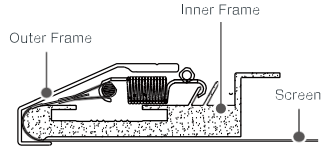

1. Place the outer frames against the inner frames, align the four corners, and attach with the included M4*8 screws.
2. Attach the plastic corner protectorstoo the four corners.

Mount on the Wall

1. Estimate the wall mount area for the screen. The height between the ground and the lower edge of the screen should be confirmed by your preferred UST projector throw distance using the throw distance chart. (As shown below).
2. Measure the distance between the spots where the wall brackets will be mounted with the included level ruler.

Recommended Distance

• Make sure the screen is correctly assembled, then wrap the screen front with the cloth to prevent it from being damaged or scratched.

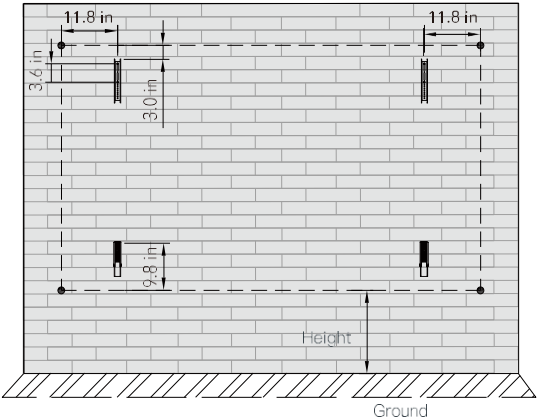

• Drill holes respectively and install the four wall brackets using the wall anchors with screws. Note: Make sure the brackets are level with the level ruler.
• Wall Drilling Templates
• Wall Anchors with Screws
• Upper Wall Brackets
• Lower Wall Brackets

Screen Height Adjustment

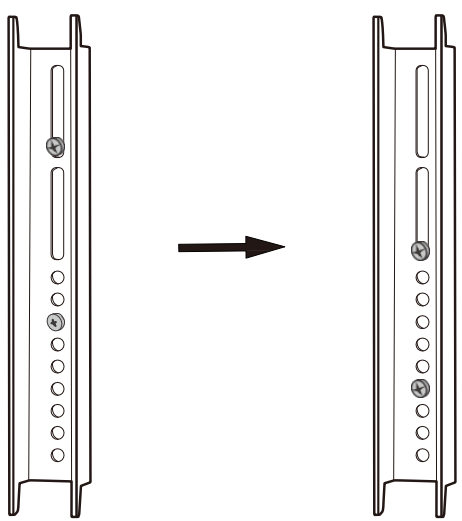

You can fine-tune the installation height of the screen without drilling new holes based on the screw holes in the upper wall bracket and the lower wall bracket spring range. ( Adjustable height range: 0-2.0 inches)

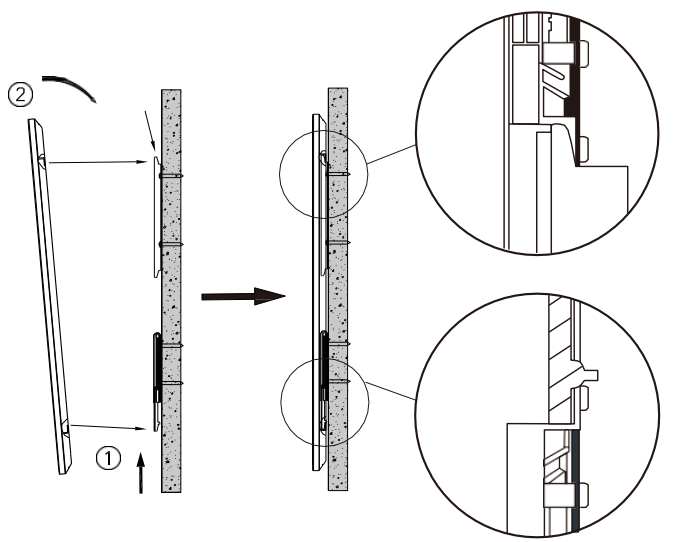

• Mount the screen onto the wall as shown below.
• Insert the lower side of the screen into the lower wall bracket, then push upwards to compress the lower wall bracket spring.
• Insert the upper side of the screen into the upper wall bracket, then release.

Maintenance

Dust, dirt, and scratches on the projection screen surfacewilll affecthehc quality and performance of the projection image. For optimal regultg we advise paying attention to the following instructions.

1. The screen surface has a horizontal structure.
2. DO NOT wipe the screen up and down or in a circular motion.
3. Wipe from left to right only. a microfiber cloth (rough towel or cloth may damage the screen’s surface).
4. Gently wipe the screen with a moistened microfiber cloth with mild soap diluted in water.
5. Don’t touch the screen material to avoid leaving fingerprints. Use gloves when handling the material.
6. Don’t scratch the material, as it will leave permanent markings on the screen’s surface.
7. Don’t use acetone, benzene, alcohol, or any other organic solvents to clean the screen material.
8. Using such chemicals will permanently damage the screen.
