Bose MA12 Panaray Modular Line Array Loudspeaker User Manual

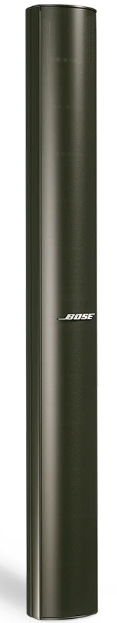

Bose MA12 Panaray Modular Line Array Loudspeaker

Safety Instructions

1. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
2. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
3. Only use attachments/accessories specified by the manufacturer.
4. Keep the product away from fire and heat sources.
5. Do not place naked flame sources, such as lighted candles, on or near the product.
6. Do not make unauthorized alterations to this product.
7. The FreeSpace FS4SE wall-mounting bracket is only for use with the model FS4SE.
8. Clean speakers using only a dry cloth. Do not expose the loudspeaker to soap, detergent, mineral oil, alcohol, or other cleaning agents or chemicals.
9. Do not mount on surfaces that are not sturdy or that have hazards concealed behind them, such as electrical wiring or plumbing.
10. Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage.

Product Ratings

• Input Voltage: 70V/100V
• Impedance: 8 Ω, 40 W
• Current or Power: (70V): 2.5W, 5W, 10W, 20W, 40W; (100V): 5W, 10W, 20W, 40W

Installation

This product conforms to all applicable EU directive requirements. This product conforms to all applicable Electromagnetic Compatibility Regulations 2016 and all other applicable UK regulations.

• Before using a custom-designed and fabricated mounting system, have a licensed professional engineer review the design and fabrication for structural integrity and safety in the intended application.
• Notice that all threaded attachment points on the rear of each loudspeaker cabinet have a metric M6 x 1 x 15 mm thread with 10 usable threads.
• Use a safety cable, separately attached to the cabinet at a point not in common with the load-bearing attachment points of the bracket to the loudspeaker.
• If you are unfamiliar with the proper design, use, and purpose of a safety cable, consult a licensed professional engineer, a rigging professional, or a theatrical lighting trades professional.

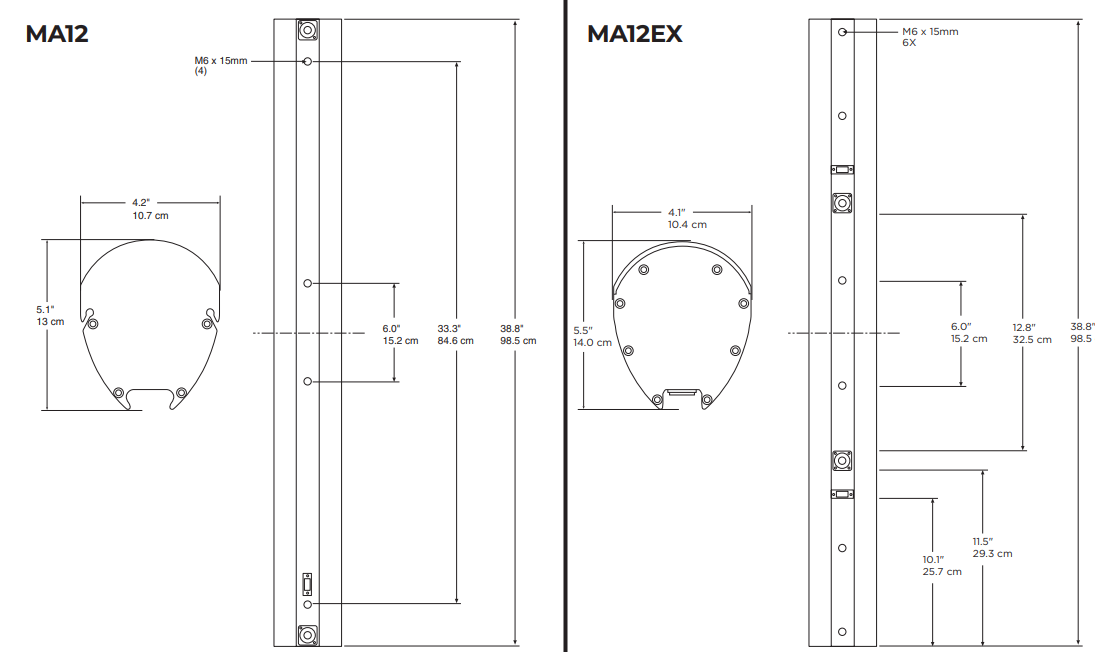

Dimensions

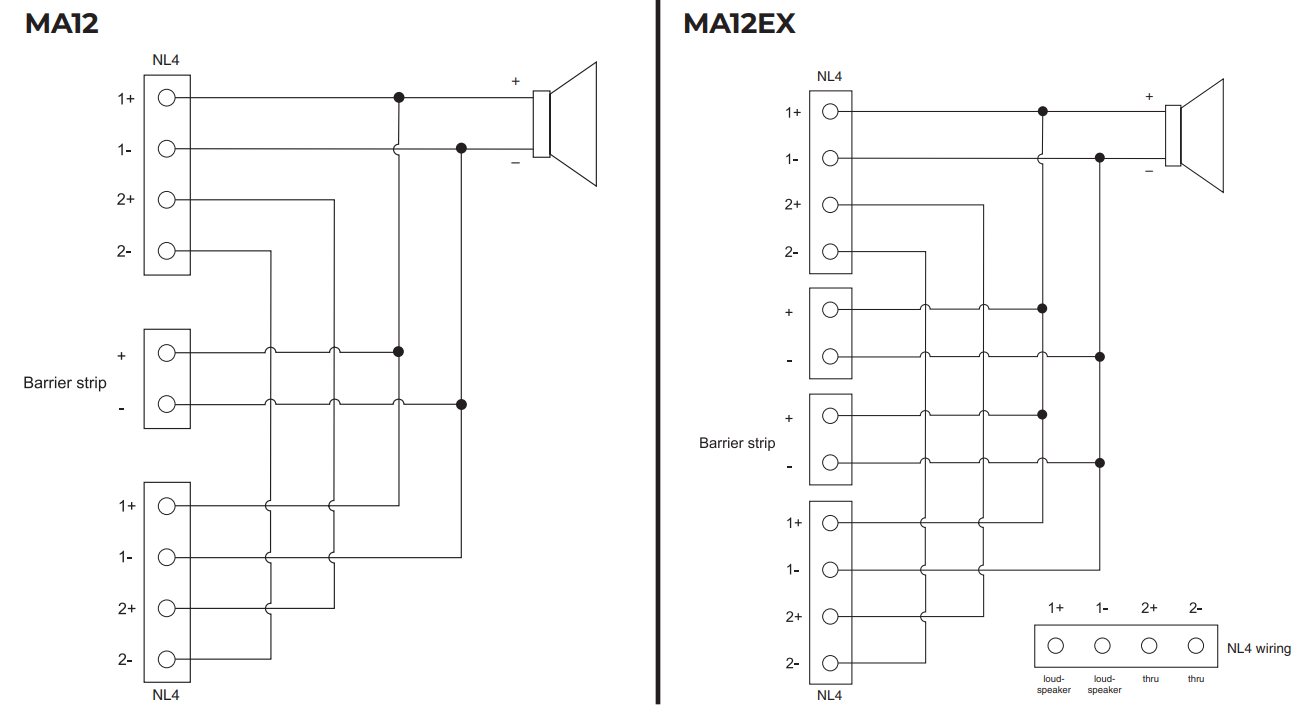

Wiring schematic

System Setup

Choices

Regulatory Compliance

Environmentally rated to IP55

• This product conforms to all applicable EU directive requirements.
• Proper disposal and recycling help protect natural resources, human health, a nd the environment.
• For more information on the disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Warranty

• This product is covered by a limited warranty.
• For warranty details, visit BoseProfessional.com/warrant.y
