Bowers & Wilkins CI 300 In-Ceiling Speakers User Manual

Bowers & Wilkins CI 300 In-Ceiling Speakers

Introduction

The three models in the new CI 300 Series have been specifically designed to cope with these more demanding environments, so whereas their cost effectiveness may lead them to being described as entry level, they also provide a point of entry to areas of the home that were previously off-limits for high-quality installation loudspeakers.

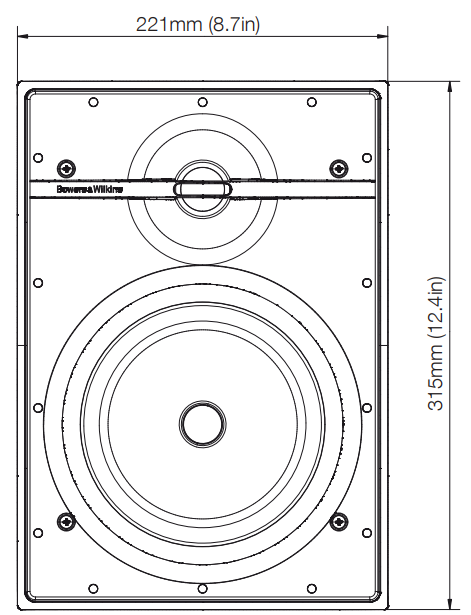

Dimensions

CWM362

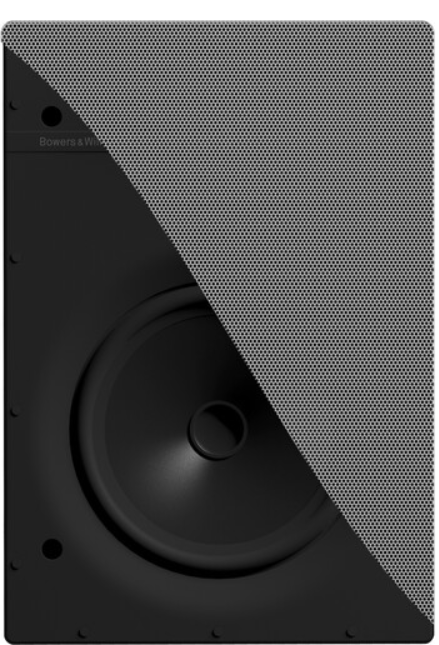

The CWM362 is a two-way in-wall loudspeaker. Like the in-ceiling models in the series, it features an elegant, minimal-width border design.

Technical Specifications

• Description: 2-way in-wall system
• Drive Units: 1x 160mm (6in) Polypropylene cone bass/midrange 1x 25mm (1in) soft dome tweeter
• Frequency Range (-6dB): 50Hz – 30kHz
• Sensitivity SPL (2.83V, 1m): 89dB
• Impedance Nominal (min): 8Ω (5.0Ω)
• Power Handling: 80W
• Pre-mount Kit: PMK W6
• Back Box: BB 6W

CCM362

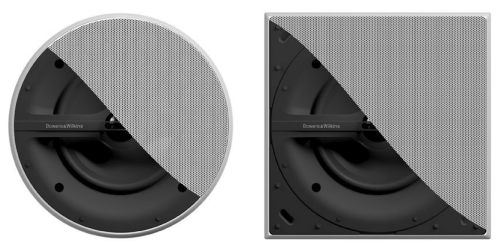

The coaxial CCM362 and CCM382 offer a choice of size dependent on the output level required. Both are balanced for wide-angle listening, commensurate with their in-ceiling placement, and both offer a choice of round or square aspect.

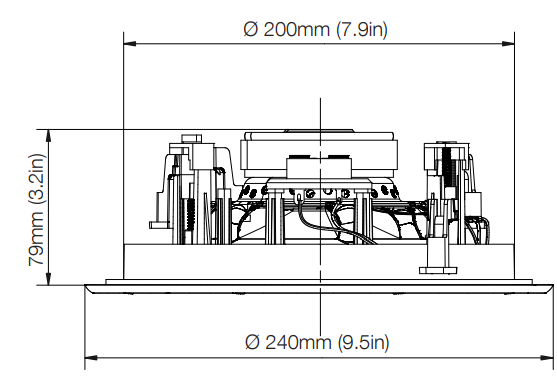

Dimensions

Technical Specifications (CCM362)

• Description: 2-way in-ceiling system
• Drive Units: 1x 160mm (6in) Polypropylene cone bass/midrange
  • 1x 25mm (1in) soft dome tweeter
• Frequency Range (-6dB): 50Hz – 30kHz
• Sensitivity SPL (2.83V, 1m): 89dB
• Impedance Nominal (min): 8Ω (5.0Ω)
• Power Handling: 80W
• Pre-mount Kit: PMK C6
• Back Box: BB 6C

CCM382

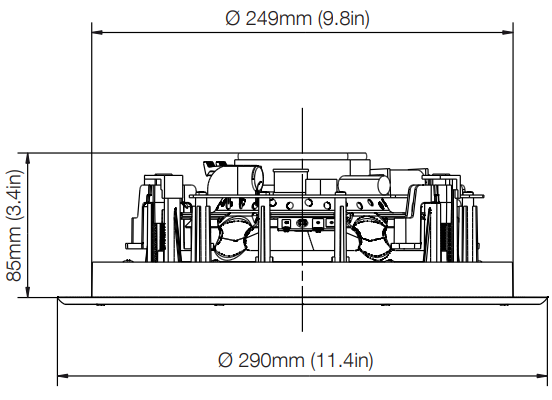

Dimensions

Technical Specifications (CCM382)

• Description: 2-way in-ceiling system
• Drive Units: 1x 200 mm (8in) Polypropylene cone bass/midrange
  • 1x 25mm (1in) soft dome tweeter
• Frequency Range (-6dB): 45Hz – 30kHz
• Sensitivity SPL (2.83V, 1m): 90dB
• Impedance Nominal (min): 8Ω (5.0Ω)
• Power Handling: 80W
• Pre-mount Kit: PMK C8
• Back Box: BB 6C

Environmental Information

• This product automatically manages its power state without the need for any interaction.
• This product complies with international directives, including but not limited to the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment, the Registration, Evaluation, Authorisation and restriction of Chemicals (REACH), and the disposal of Waste Electrical and Electronic Equipment (WEEE).
• Consult your local waste disposal authority for guidance on how to properly recycle or dispose of this product.

Customer Service

• • Ph:  800 370 3740
  • Website: https://www.bowerswilkins.com

FAQs

Q: What are the CI 300 speakers designed for?

They provide crisp conversation, intricate music, and immersive sound while remaining covertly placed, making them perfect for stereo or surround sound systems.

Q: What type of loudspeaker is the CI 300?

The CI 300 is a two-way in-ceiling speaker with a tweeter for high frequencies and a dedicated woofer for low and mid frequencies.

Q: What is the frequency response of the CI 300?

The user manual’s Specifications section has precise frequency response information.

Q: Can multiple CI 300 speakers be used together?

It is possible to include the CI 300 into surround or multi-room sound systems.

Q: Are the CI 300 speakers suitable for outdoor use?

No, the CI 300 series is exclusively intended for indoor use.

Q: What type of amplifier is recommended?

Make use of a top-notch amplifier capable of delivering 25–125 W RMS per channel at the rated impedance of the speaker. or enhanced bass performance, consider pairing your CI 300 speakers with a Bowers & Wilkins DB Series Powered Subwoofer User Guide.
