Dangbei Mars Pro 2 Smart Projector Instruction Guide

Dangbei Mars Pro 2 Smart Projector

Safety Introduction

Please read the product instructions carefully:

Thank you for purchasing and using these products. F. About the Product Instructions:

The trademarks and names mentioned in the Product Instructions are the property of their respective owners. All Product Instructions shown are for illustration purposes only. The actual. We shall not be liable for any personal injury, property damage, or other damages caused by the failure of the user to comply with the Product Instructions or precautions.

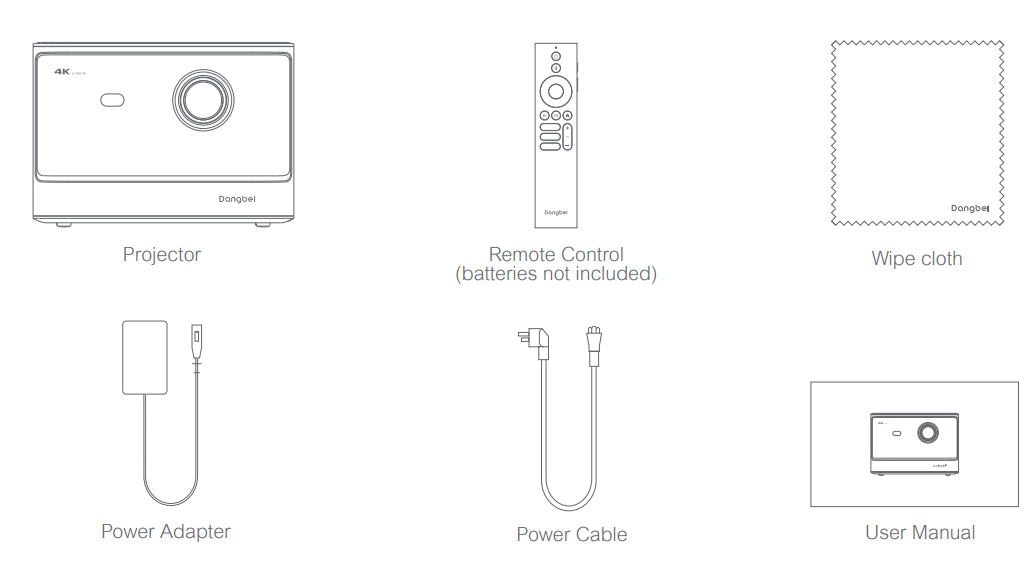

Packing List

Before using this product, please check that all items are included in the box.

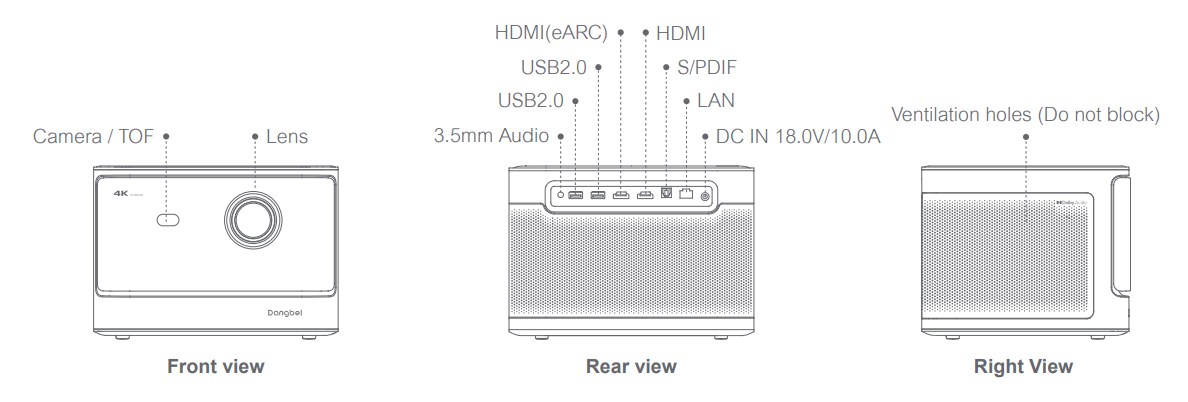

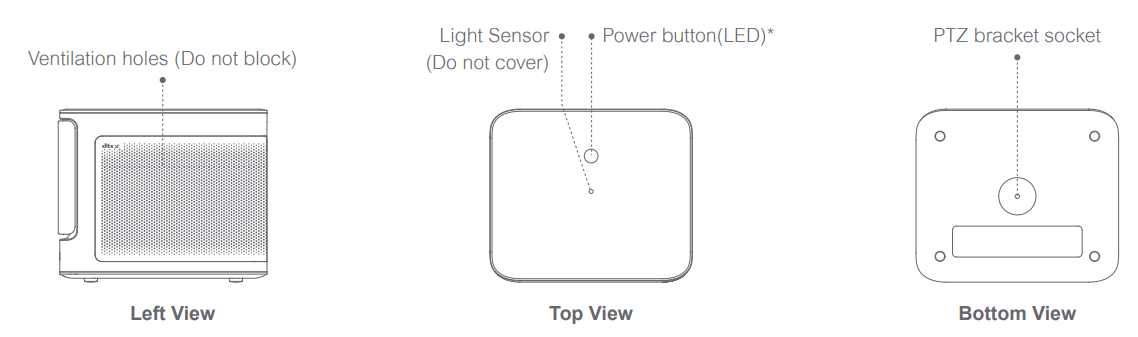

Projector Overview

Overview and interface description.

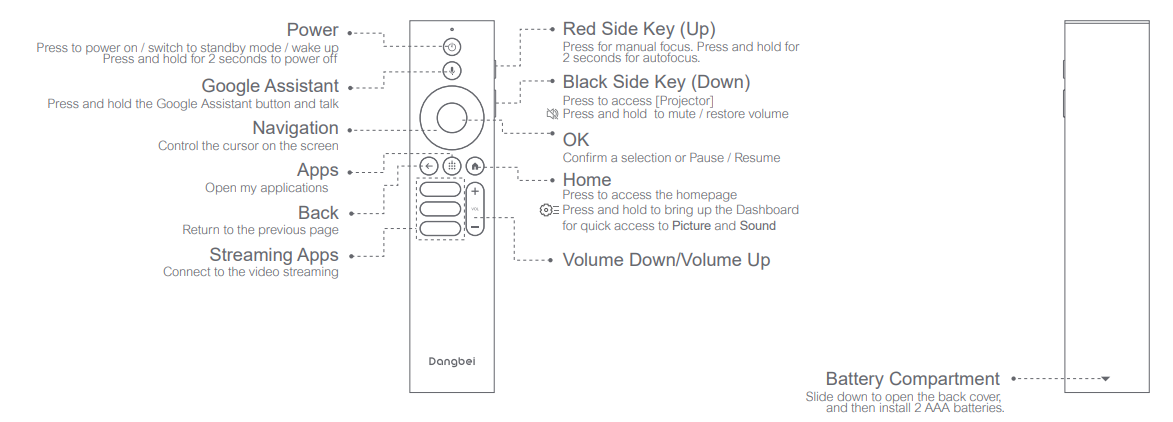

Remote Control Overview

• Open the battery compartment cover of the remote control. I
• Install 2 AAA batteries (not included). Put
• the battery compartment cover back

Getting Started

Placement

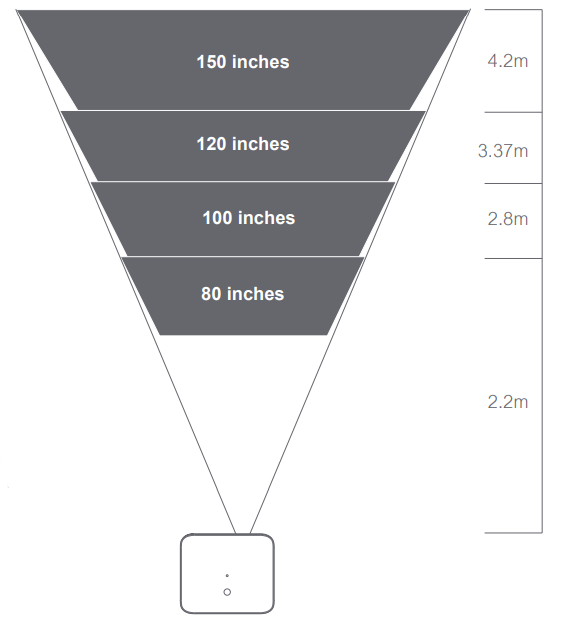

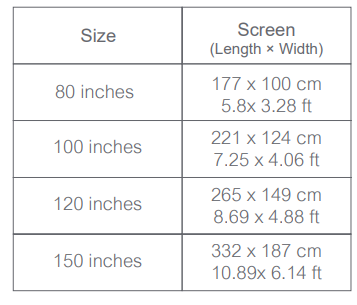

Position the projector on a stable, flat surface in front of the projection surface. A flat and white projection surface is recommended. Please follow the instructions below to determine the distance between the projector and the projection surface, and the corresponding projection size:

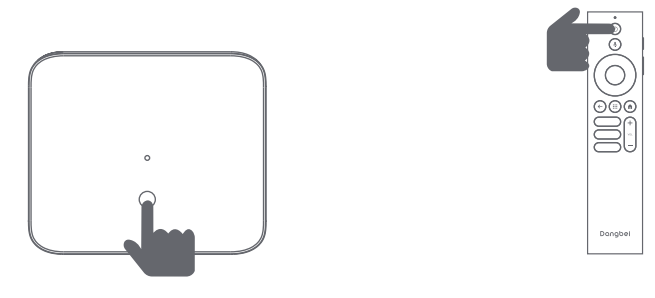

Power on

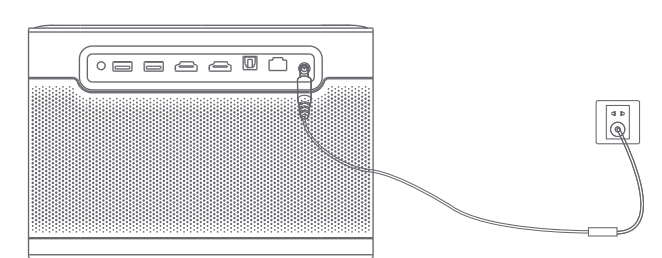

1. Connect the projector to the power outlet.
2. Press the power button on the projector or remote control to turn on the projector.

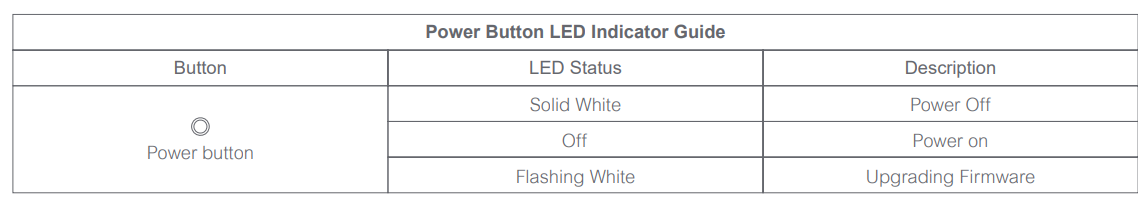

Standby Mode / Power off

Press the power button on the projector or remote control to enter standby mode. Press and hold the power button on the projector or remote control for 2 seconds to turn off the projector.

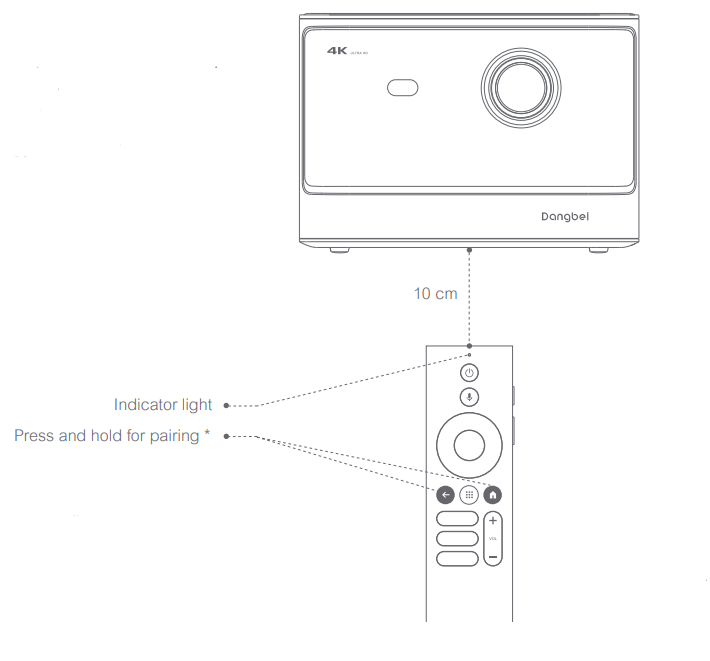

Remote Control Pairing

• Turn on the projector and wait for the Bluetooth pairing prompt on the screen.
• Bring the remote control within 10 cm / 0.33 ft of the projector.
• Release the keys after the indicator light starts flashing.

Network Settings

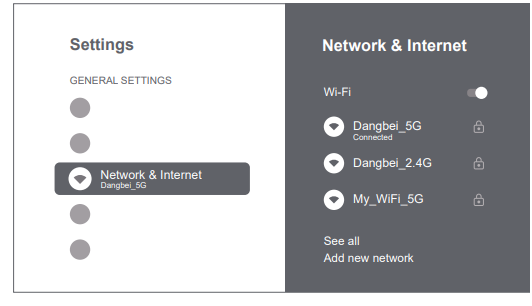

• Go to [Settings], select [Network & Internet], and turn on Wi-Fi.
• Choose your network and enter the correct password.

Focus Settings

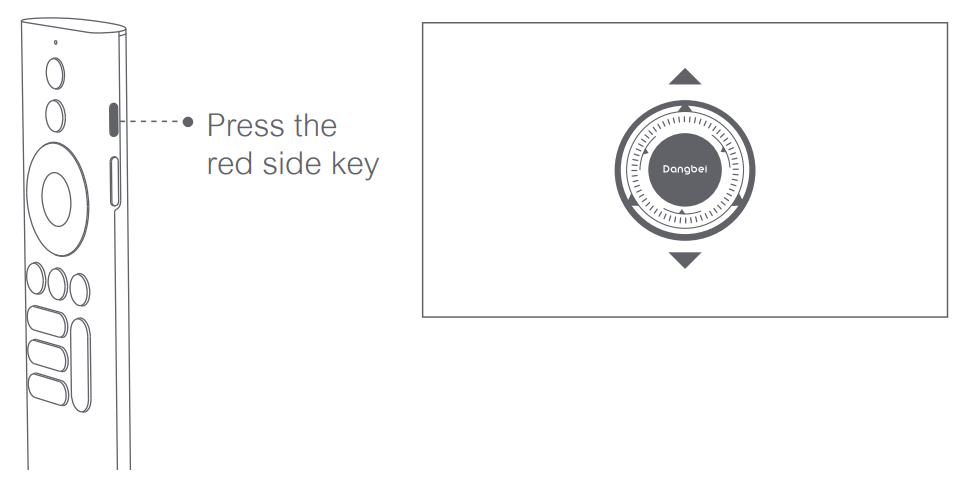

Method 1: Press the red side key (up) for manual focus. Press and hold for 2 seconds for autofocus. Method 2: Go to [Projector], select [Focus], and choose either manual focus or autofocus.

Autofocus

Select [Auto Focus] to trigger the autofocus function. The image will automatically become clear.

Manual focus

Select [Manual Focus] and use the navigation keys (up / down) on the remote control to adjust the focus distance and make the image clear.

Image Correction Settings

Keystone Correction

• Go to [ Projector] — [Image Correction].
• Select [Auto Keystone Correction], and the screen will automatically be corrected.

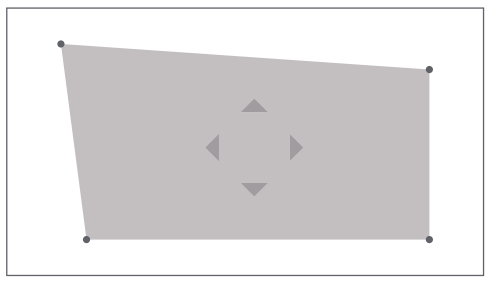

• Select [Manual Keystone Correction], and use navigation keys to adjust the four points and the image shape

Intelligent Screen Fit

• Go to [Projector] – [Image Correction], and turn on [Fit to Screen].
  Follow the on-screen instructions to automatically adjust the projected image to fit the screen.

Intelligent Obstacle Avoidance

• Go to [Projector] — [Image Correction] – [Advanced], and turn on [Avoid Obstacles].
• Follow the on-screen instructions to automatically adjust the projected image to avoid any objects on the projection surface. face

Bluetooth Speaker Mode

• Go to [Settings], select [Projector], and click on [Bluetooth speaker mode].
• Connect your phone to a device with the Bluetooth name containing “DBOD02”. After modifying the device name, the Bluetooth name will also be synchronized accordingly.
• When you hear “Bluetooth connection successful”, the projector can play music from your phone.
• Press and hold the key on the remote control for 2 seconds to exit the [Bluetooth speaker mode].

Google Assistant

Your TV is more helpful than ever. Use your voice to find movies, stream apps, play music, and control the TV. Ask Google Assistant to find a specific title, search by genre, or get personalized recommendations. Get answers on screen, control smart home devices, and more. Press the Google Assistant button on the remote to get started.

Chromecast built-in & Screen Mirroring

You can wirelessly cast movies, games, music, and your screen from your iOS, macOS, Android™, or Windows device to the projector. Please make sure that the projector and your device are connected to the same wireless network.

Chromecast built-in

To cast in-app content: You can cast content from Chromecast-enabled apps such as YouTube and other streaming apps.

1. Connect your device and the projector to the same wireless network.
2. Open the streaming app on your device.
3. Play a video and tap the casting icon AJ on the video screen.
4. Select “DBOD02” to connect. The projector will display the video from your device. *Due to copyright restrictions, certain content cannot be cast to the projector. You can stream the content on the projector by installing the same application on it.

Screen Mirroring via AirScreen

To cast the device screen: You can project the entire screen from your device to the projector.

1. Ensure that both your device and the projector are connected to the same wireless network.
2. Install the AirScreen app on the projector.
3. Open the AirScreen app and follow the on-screen instructions to complete the process.

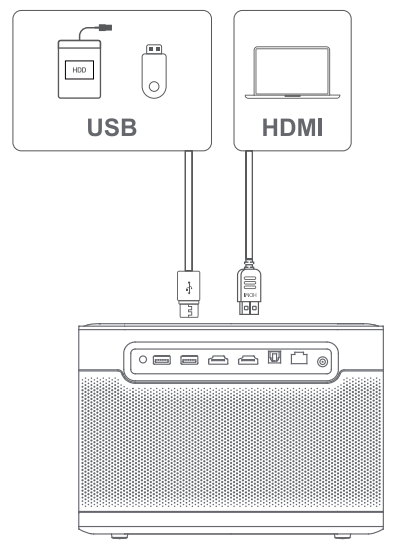

Inputs

• Go to [Inputs] – HDMI/HOME/USB. |
• Watch the content from the different signal sources.

More Settings

Projection Mode

Go to [Settings] – [Projector]– [Advanced Settings] —- [Projection Mode] to choose the placement method of the projector.

2.Z00m

Go to [Settings] – [Projector] – [Image Correction] — [Image Adaption] to decrease the image size from 100% to 50%.

Mode

Before enabling 3D mode, go to [Settings] – [Projector] – [Image Correction], and click [Reset to Default Image] to restore the image to its default state. Go to [Settings] – [Picture] – [3D Mode] to enable 3D mode. *It is recommended to disable the [Auto Keystone Correction After Movement] feature when enabling 3D mode to avoid altering the image from its default state after moving the projector, which could prevent the use of 3D mode.

System & Product Info

Go to [Settings] – [System] – [About] to check the System & Product information.

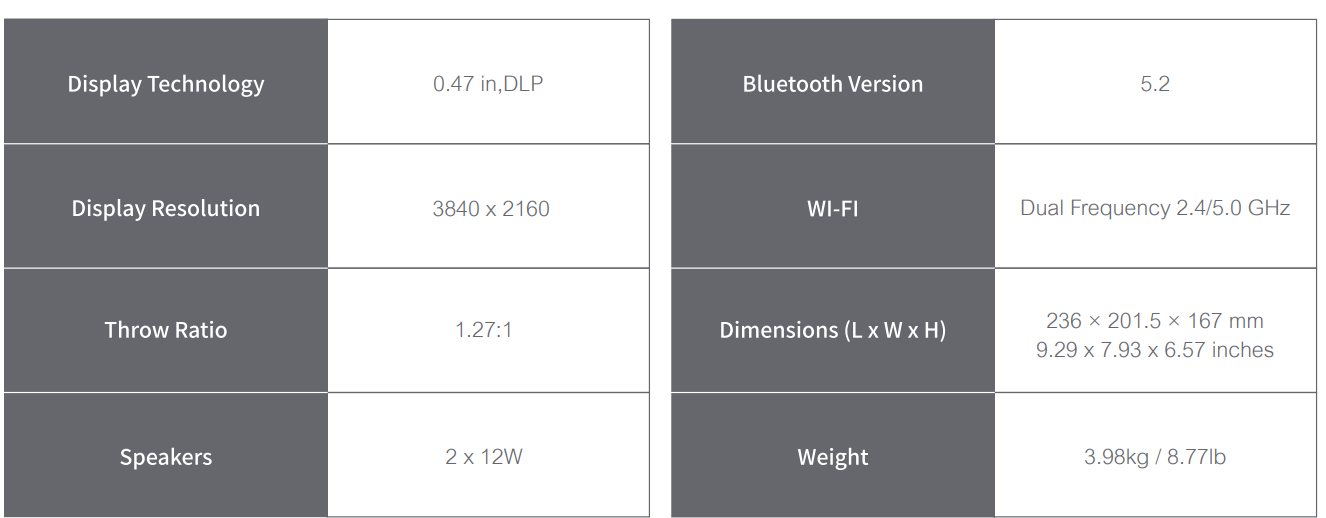

Specifications

Troubleshooting

1. No audio output.
2. No image output
   • Press the power button located on the rear of the projector. The power button indicator light will turn off if the projector
     enters projection mode successfully.
   • Ensure that the power adaptor has a power output.
3. No network
   • Enter settings, and check the network connection status in the network option.
4. Blurry Image
   • Adjust the focus or keystone.
   • The projector lens is not clean.
5. Non-rectangular Image
   • Use the keystone correction function to adjust the display.
6. Automatic keystone correction failed
   • Ensure that the Camera/TOF on the front panel is not blocked or dirty.
   • The best automatic keystone correction distance is 2.0-4.0m, horizontal ±30°.
7. Autofocus failure
   • Ensure that the Camera/TOF on the front panel is not blocked or dirty.
   • The best autofocus distance is 2.0-4.0m, horizontal ±20°.
8. Smart Eye Protection failed
   • Ensure that the Camera/TOF on the front panel is not blocked or dirty
   • The optimal sensing range is centered on the image. Being too close to the edges may cause the eye protection feature not to trigger.
9. Intelligent Screen Fit failure
10. The Remote Control is unresponsive
    • Ensure that the remote control is successfully paired via Bluetooth.
    •  Ensure that there are no interferences or obstructions between the projector and the remote control.
    • Check the battery and installation polarity.
11. Connect the Bluetooth devices. Enter settings, open the Bluetooth option to check the Bluetooth device list, and connect the device.
12. Others, please feel free to contact us at support@dangbei.com

Important Precautions

• RG2 IEC 60825-1:2014
• Do not block or cover the heat dissipation holes of the device to avoid affecting the heat dissipation of the internal parts, and damaging them
  the device.
• Keep away from humidity, exposure, high temperature, low pressure, and magnetic environments.
• Do not place the device in areas susceptible to excessive dust and dirt.
• Do not allow children to handle the device without supervision.
• Do not place heavy or sharp objects on the device.
• Please use the correct type of battery for the remote control.
• Only use attachments/accessories specified or provided by the manufacturer
  (such as the exclusive power adapter, bracket, etc.).
• Do not disassemble the device.
• Place and use the device in a 5-35°C environment.
• and the point where this exits from the device.
• Where the power plug or an appliance coupler is used to disconnect the device, the disconnected
  device would remain readily operable.
• Never touch the power cable or power connector with wet hands.

Statement

Google TV is the name of this device’s software experience and a trademark of Google LLC.
Google, YouTube,e and Chromecast built-in are trademarks of Google LLC.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ent We declare that this dev complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. Satisfies all the technical regulations applicable to the product within the scope of UK Radio Equipment Regulations (SI 2017/1206); UK Electrical Equipment (Safety) Regulations (SI 2016/1101); and UK Electromagnetic Compatibility Regulations (SI 2016/1091). This device operating frequency:2402-2480MHz(EIRP <20dBm),2412-2472MHz(EIRP <20dBm),5150~5250MHz(EIRP < 23dBm), 5250~5350MHz(EIRP <20dBm),5470~5725MHz(EIRP <27dBm),5725~5850MHz(EIRP < 13.98dBm).

Customer Support

• website:support@dangbei.com.
