HAPPRUN H1 Portable Native 1080P Projector User Manual

HAPPRUN H1 Portable Native 1080P Projector

Safety Instructions

1. Do not look directly into the lens while the projector is running, as strong light may damage your eyes.
2. Keep the projector and accessories out of children’s reach.
3. Please make sure that the working environment of the projector is dry and ventilated.
4. To prevent electric shock, please keep the projector out of the rain and away from moisture.
5. It is recommended to switch off the projector after it has run for 6 hours non-stop.
6. Do not press hard on the projector, as it may damage the product.
7. Do not throw, hit, or shake the projector to avoid damaging the circuit board.
8. Any questions after receiving the projector, please contact us.
9. We will quickly and correctly solve your problem within 24 hours and give you a satisfactory answer.
10. Do not block the air outlet to prevent the projector from cooling down, as internal electronics may be damaged.

Package Contents

• AV cable * 1
• HDMI cable * 1
• Power cord * 1
• Remote control * 1
• Projector screen * 1
• User Manual * 1

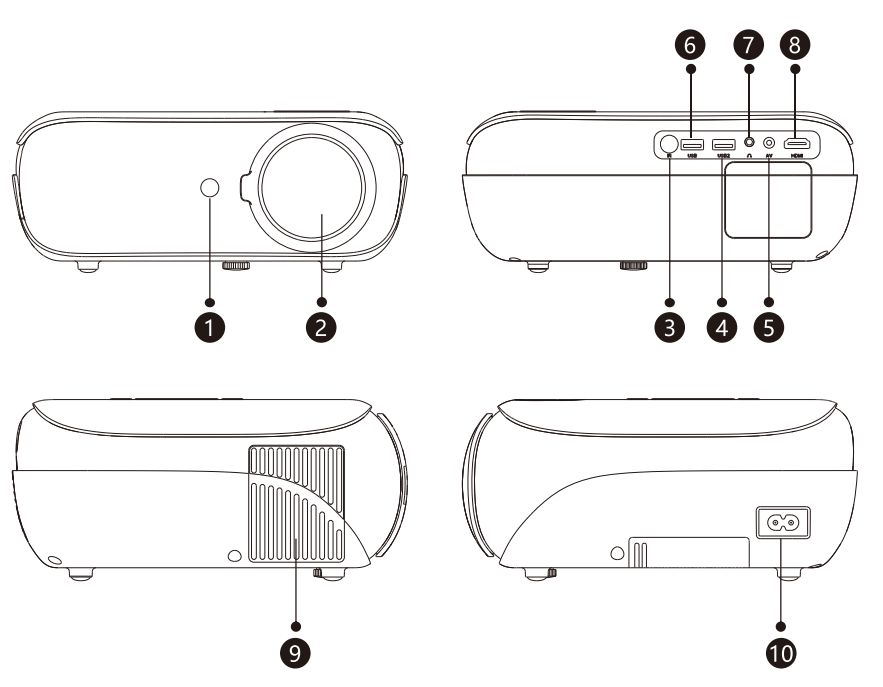

Projector Description

1. IR Receiver
2. Lens
3. IR Receiver
4. USB2 Port
5. AV Port
6. USB Port
7. Headphone Jack
8. HDMI Port
9. Cooling Window
10. Power Jack

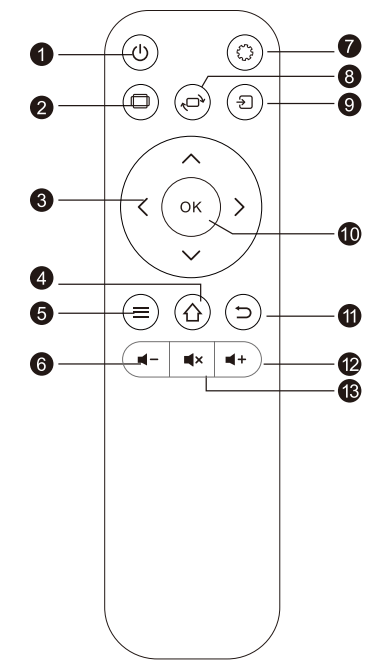

Remote Control Button Function

1. Power
2. Aspect Ratio
3. Arrow Keys
4. Home
5. Menu
6.  Volume Down
7. Menu
8. Screen Flip
9. Source
10. Enter
11.  Return
12.  Volume Up
13.  Mute

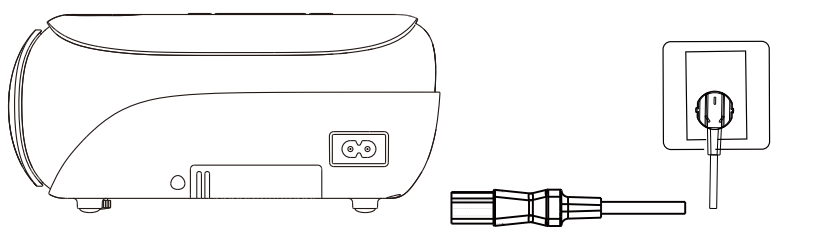

Power

1. Plug the power cord into a power outlet.
2.  Press the button”” on the projector or on the remote control.

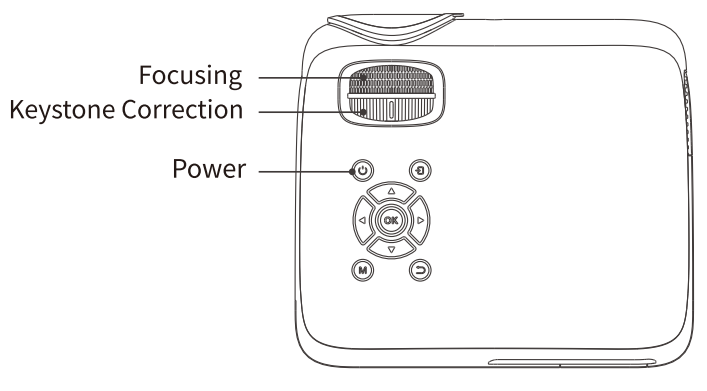

Focus

Let the projector be perpendicular to the wall, with the Focusing button to make the picture clear. When focusing, you can broadcast programs to help you finish focus.

Keystone Correction

In a different angle, you put the projector, the projection will be deformed like a trapezoid, use the keystone correction to make it correct.

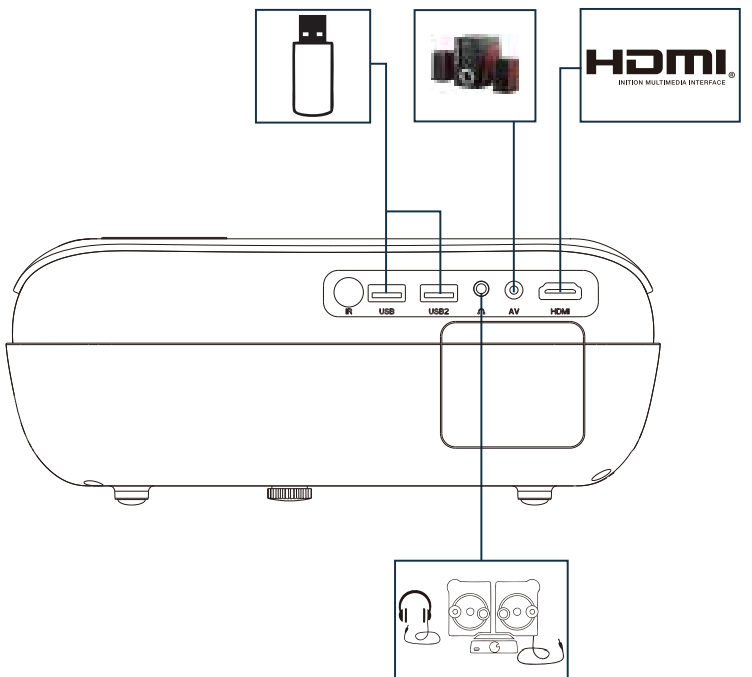

Connection

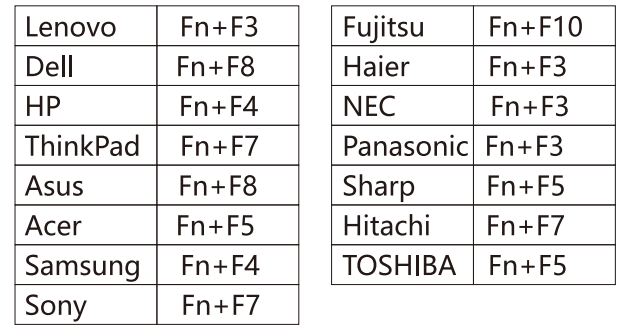

Different brand laptop output keys are as follows:

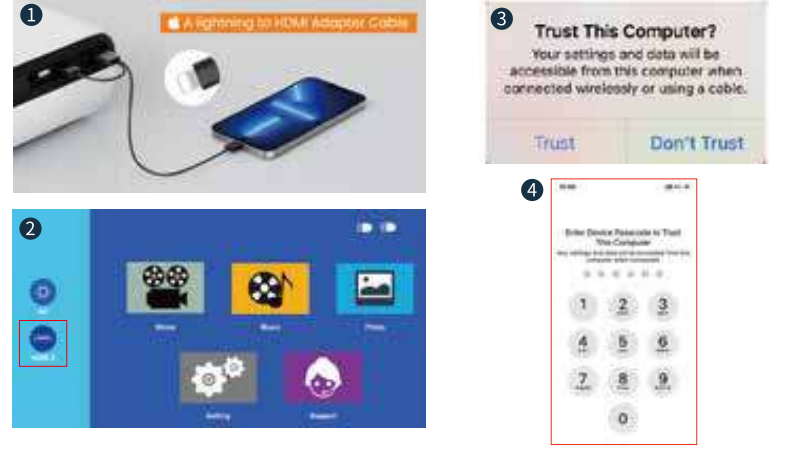

Connect the Smartphones

You need an extra Lightning to HDMI adapter to connect your iOS device to the projector. (HDMI adapter not included)

1. Plug the HDMI plug of the HDMI conversion cable into the “HDMI” port of the projector.
2. Insert the USB plug of the HDMI conversion cable into the USB port of the projector.
3. Plug the lightning terminal into your iPhone / iPad.
4. Select “HDMI” on the screen with the arrow keys on the remote control or projector.
5. Select “Trust” on the iPhone / iPad screen and enter the passcode.
6. Then you will see the iPhone / iPad screen.

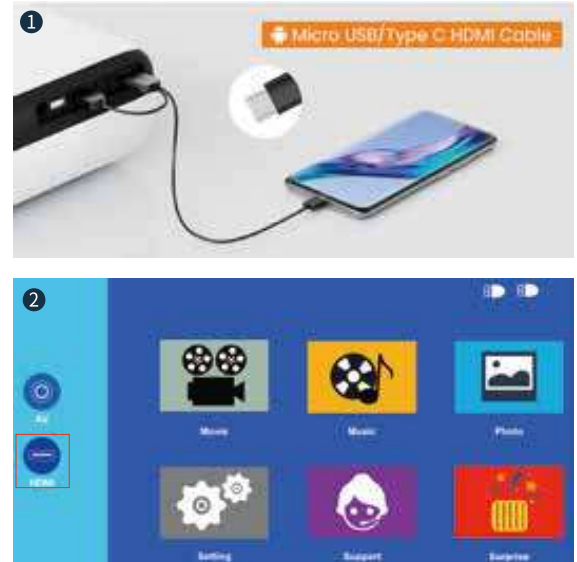

Connect the Smartphones

When connecting to an Android smartphone, * You need to buy a Micro USB/ Type C to HDMI adapter to connect your Android devices. (HDMI adapter not included)

1. Plug the HDMI plug of the HDMI conversion cable into the “HDMI” port of the projector.
2. Insert the USB plug of the HDMI conversion cable into the USB port of the projector.
3. Insert the lightning terminal / Type-C terminal into your smartphone.
4. Select “HDMI” on the screen with the arrow keys on the remote control or projector. Then the smartphone screen will be displayed.

Connect a USB Drive

• Different from other devices, when you connect a USB drive, you don’t need to click “*” to select the USB signal source; you can directly select the file you want to play on the main menu.
• To play a video stored in a USB drive, select “Movie” on the main menu and press the “OK”.
• To play a picture, music, or text stored in a USB drive, select” Photo” / “Music”/”Text” on the main menu, and press the “OK”.

Connect the AV video device.

1. Use the 3 in lvideo cable (Included in the package) to connect with AV.
2. Choose the media signal channel: “AV”.
3. Connect 3.5mm audio devices. Support 3.5mm earphones and other cable sound devices.

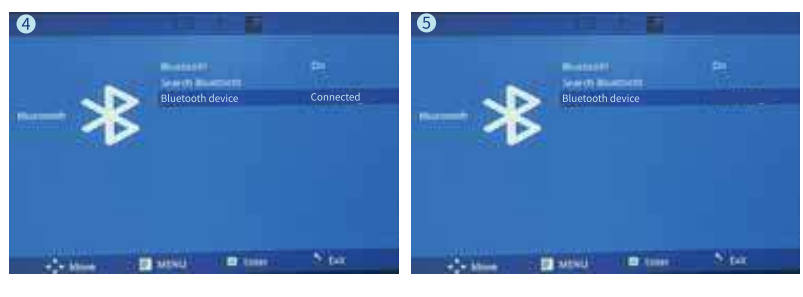

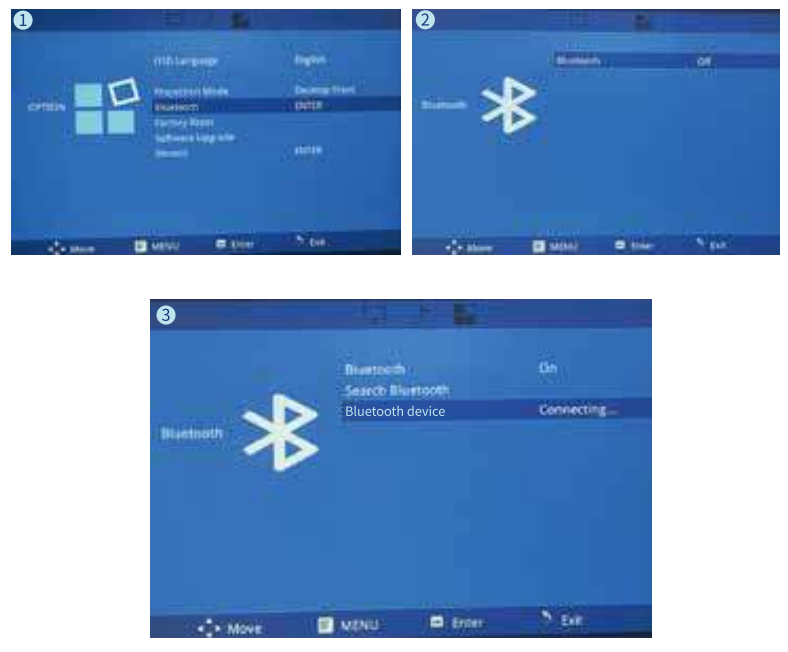

Bluetooth Settings

Please note: The Bluetooth function is only compatible with audio output devices such as soundbars and Bluetooth speakers.

1. Click “Bluetooth”.
2. Set Bluetooth on / off on the ” < / >” of the projector or remote control.
3. Search for Bluetooth on the audio output device.
4. Connect the Bluetooth of the audio output device.
5. The Bluetooth connection is complete.

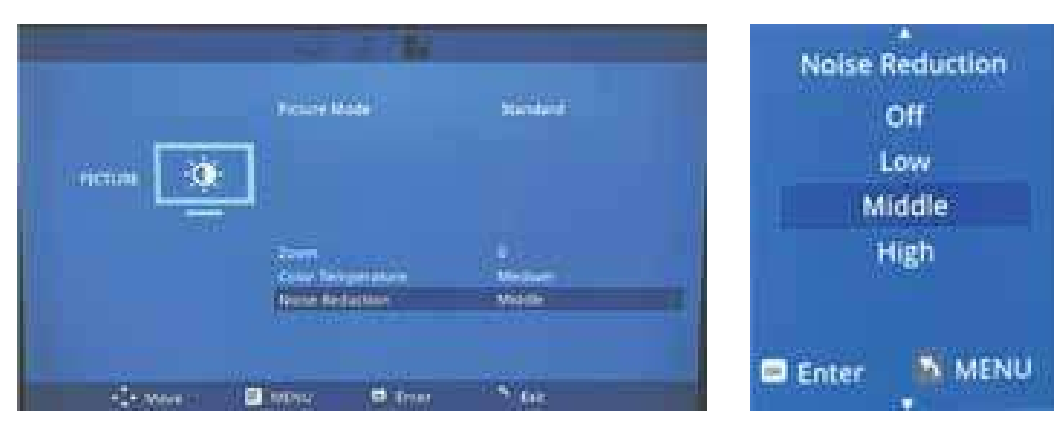

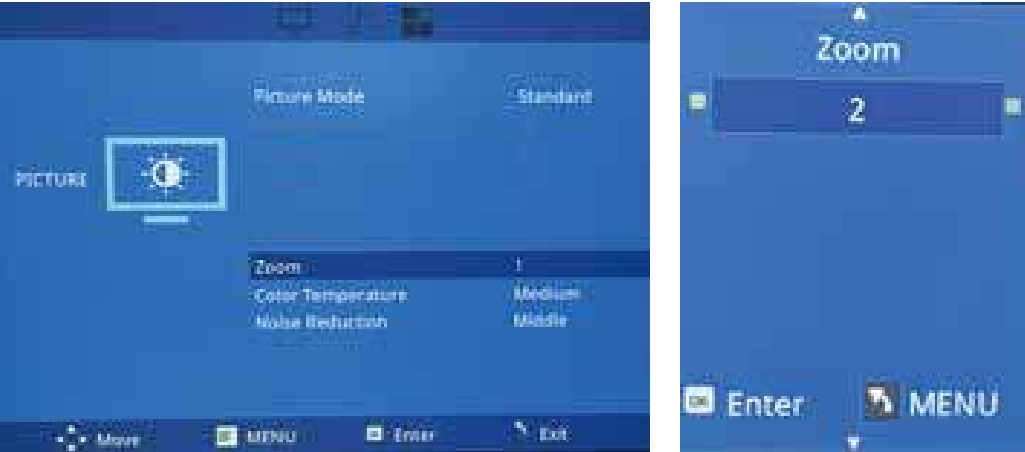

Projector Settings

Please set the option related to “Image” on this screen,n Zoom settings

1. Click “Menu” on the projector or “Menu” on the remote control to move tothe settingsg menu.
2. Click “Zoom” and set the zoom with ” < / > ” on the projector or remote control.

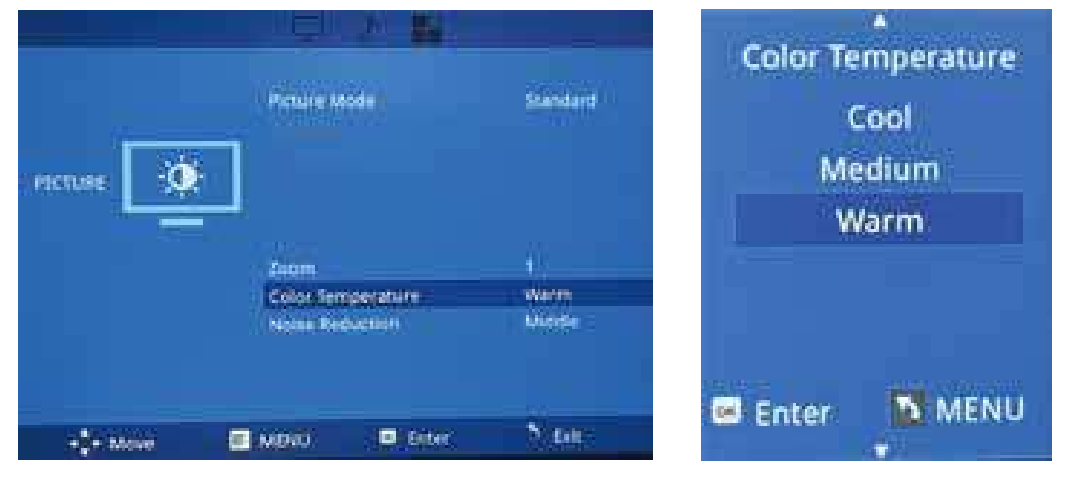

Color Temperature Setting

The “medium”, “warm”, and “cold” temperature modes default to different color preferences.

Noise Reduction Setting:s Set screen noise reduction effect (medium/high/off/low)

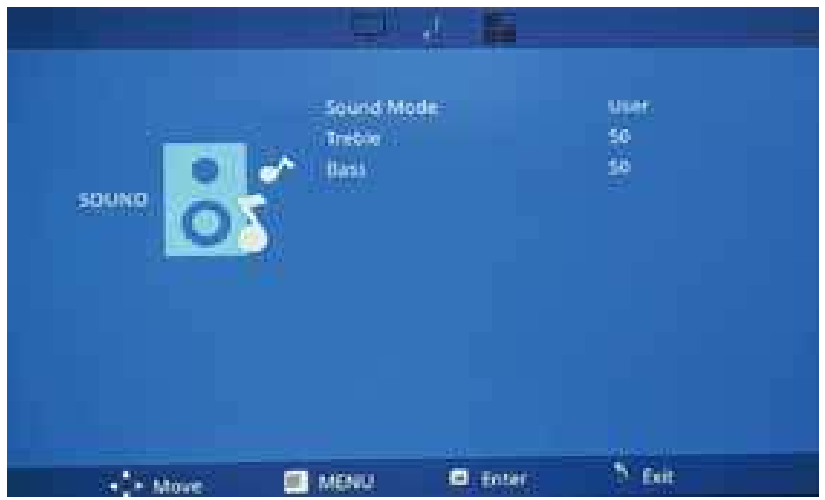

Please set youVoice-relateded options on this screen: Audio: Audio Mode/Treble/Bass.

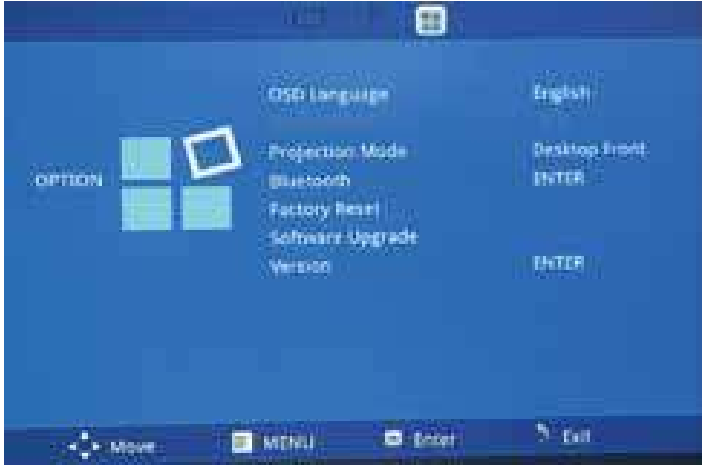

Settings

Please set options related to “Settings” on this screen

1. Click “Menu” on the projector or “Menu” on the remote control to move to the settings menu.
2. Use Left and Right on the projector or remote control to move to Settings.

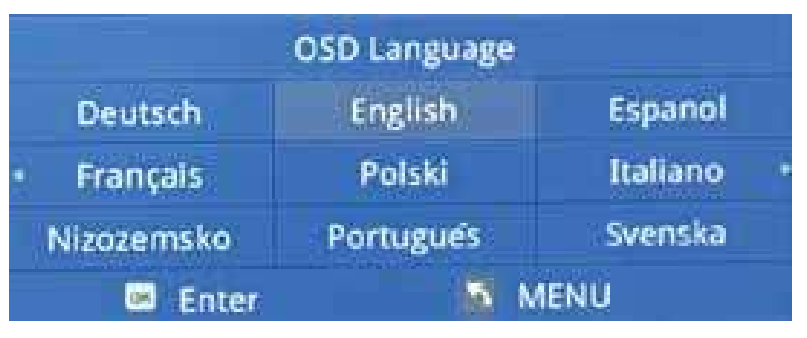

Language Settings

1. Set the language on your system (there are 23 languages). The initial setting is English.
2. Use “^/V/</ > ” on the projector or remote control to search for the language.

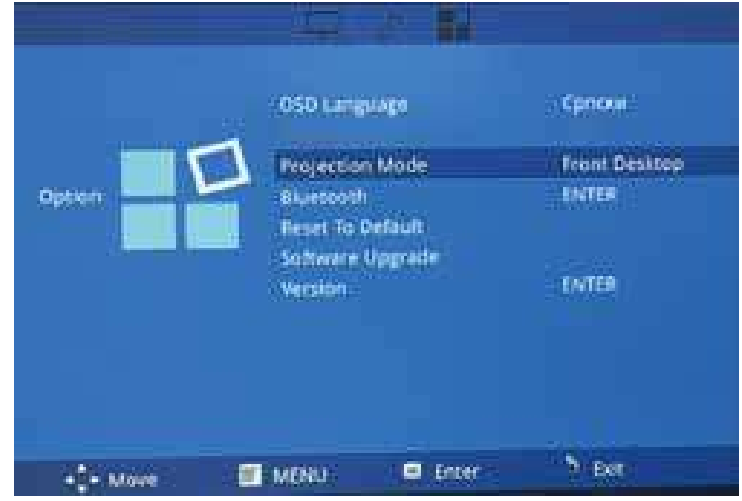

Mode Settings

Adjust the image upside down. You can get the desired image by clicking the “OK” key.

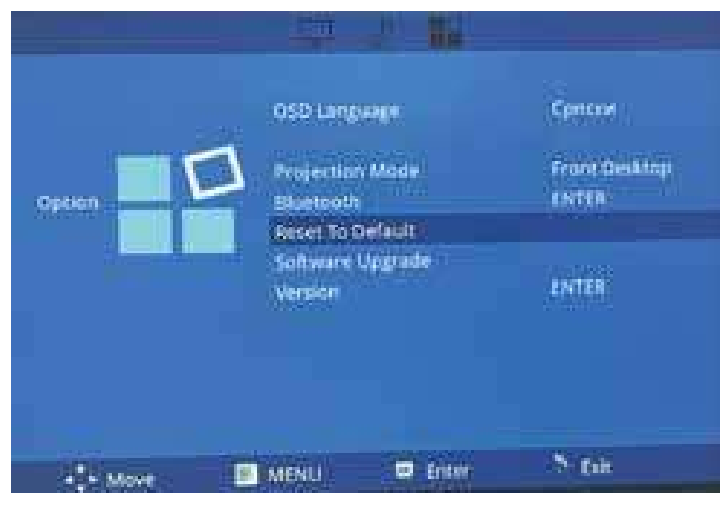

Reset to Default Settings

Please choose “Reset to Default”, click “ok”, and return to the shipping\ default setting.

Customer Service

Any questions about this item?

• Ph: 1-888-986-2646
• Website: https://happrunlife.com/
