Harman Kardon Onyx Studio Wireless Speaker
Introduction

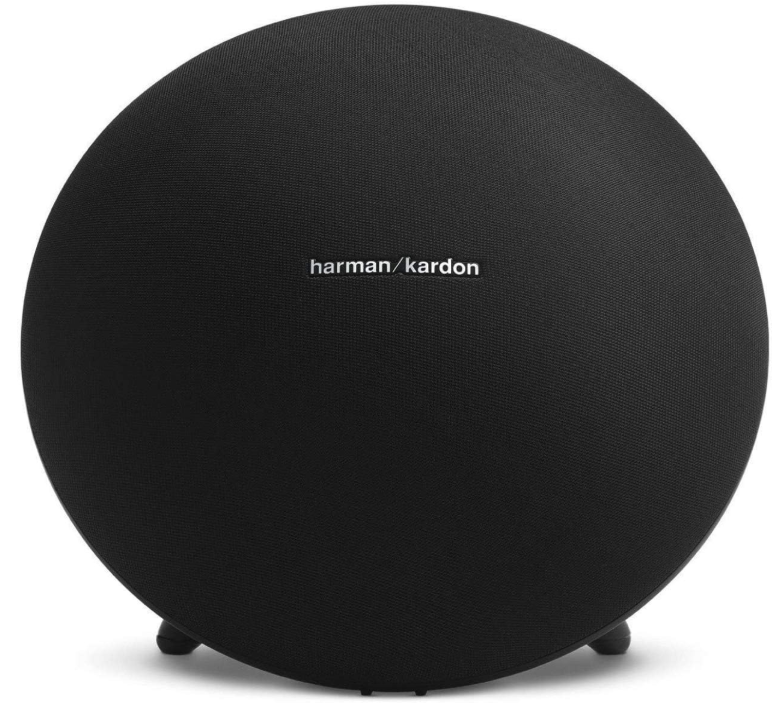

Thank you for purchasing the Harman Kardon Onyx Studio. HK Onyx Studio is a premium wireless speaker with an iconic design and comes with a rechargeable built-in battery that allows you to stream music from any smartphone, tablet, or other wireless devices through Bluetooth®.
HK Onyx Studio is a 4-speaker, advanced acoustic platform, and its dual passive radiators deliver a truly fantastic sound experience with a balanced soundstage and powerful bass response.
Description and Features
Design and Performance
- Dual passive radiators provide deep bass.
- The built-in rechargeable battery offers up to 5 continuous hours of playtime.
Wireless Connection
Wireless connectivity allows you to place the speaker in any part of the room without having to worry about friends and family tripping over cables. The HK Onyx Studio supports almost every popular wireless device via Bluetooth.
Included Items
The HK Onyx Studio speaker system’s complete accessories consist of:
- HK Onyx Studio speaker

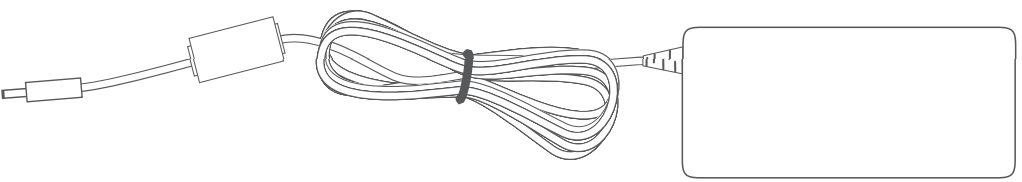

- One AC power adaptor
- Regional power cable
- Quick Start Guide
- Safety sheet
- Warranty Card (for some specific countries)
Controls and Connections
This section will help you identify the controls that are provided on the Onyx Studio top and rear panels

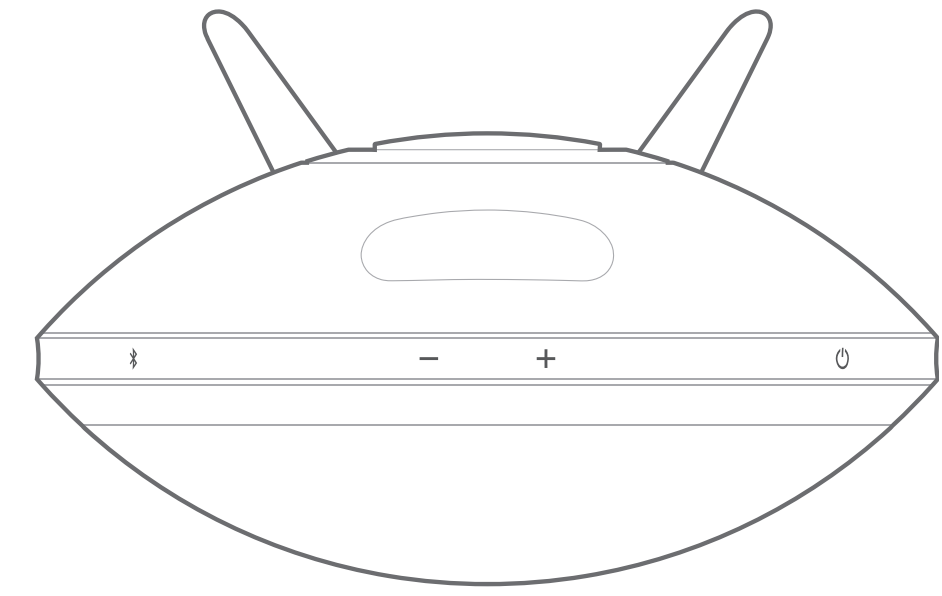

Top Panel Controls
The following control buttons are available on the top panel:
- Power button
- Volume Controls
- Bluetooth
Power Button
This button, when pressed, turns the HK Onyx Studio ON or OFF and has an LED to indicate the power mode. The two power modes are:
- Operational mode
- OFF mode
When the system is in OFF mode (Power LED is not lit), press the power button for more than 3 seconds to switch on the system. The power LED turns white when the system is turned on. To turn the speaker off, press the Power button for more than 3 seconds.
When powered by the battery, the speaker will go into off mode automatically after 30 minutes if no music stream is detected. The power LED will be turned off. To turn the speaker on, press the power button for more than 3 seconds.
Volume Controls
- Press the (-) button to decrease the volume
- Press the (+) button to increase the volume
Bluetooth
This button helps you pair your system with Harman Kardon Onyx Studio Wireless Speaker other devices. The system enters Bluetooth pairing mode automatically when it is turned on.
Rear Panel Connections
The connections on the rear panel are:
- USB Port (For service use)
- Power DC input
USB Port
- The USB port is used to upgrade software for service purposes.

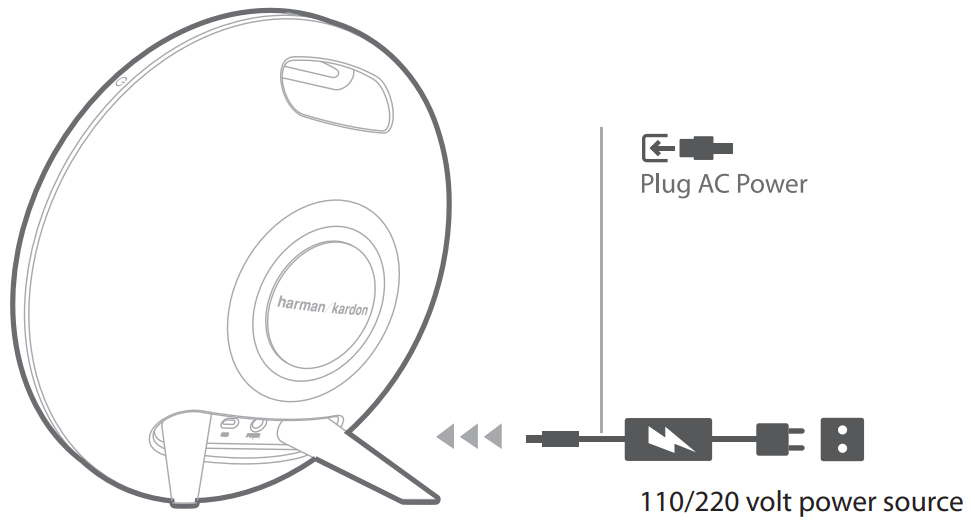

Power DC Input
- Connect the AC power adapter to this port to charge the built-in battery.

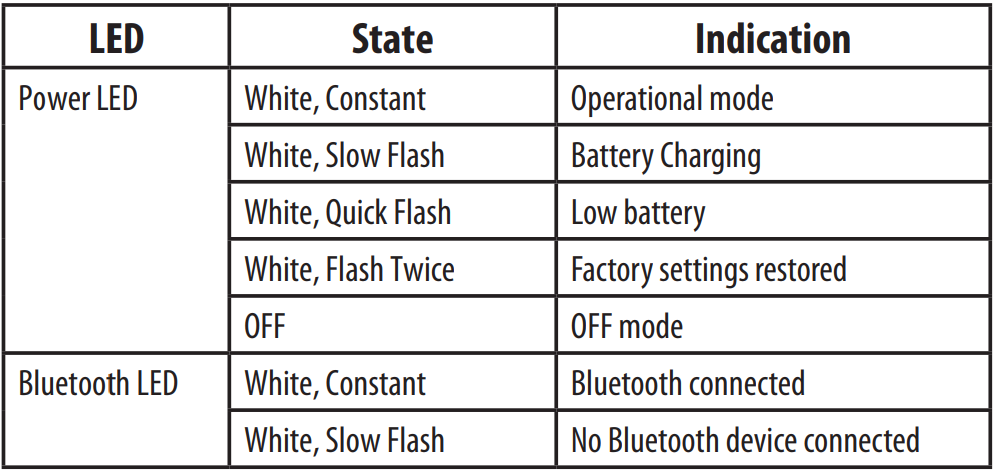

LED Indications
The LEDs present on the top panel indicate Harman Kardon Onyx Studio Wireless Speaker the status of the speaker unit. Refer to the table below to get a fair idea of the speaker LED indications.
Operation
Switching ON and OFF
The power button on the top panel of the speaker allows you to set your speaker to any of the following power modes:
- Operational mode – White constant LED illumination
- Off mode – No illumination
To change the power mode
- Long press: Off mode – to enter operational mode
- Long press: Operational mode – to enter off mode

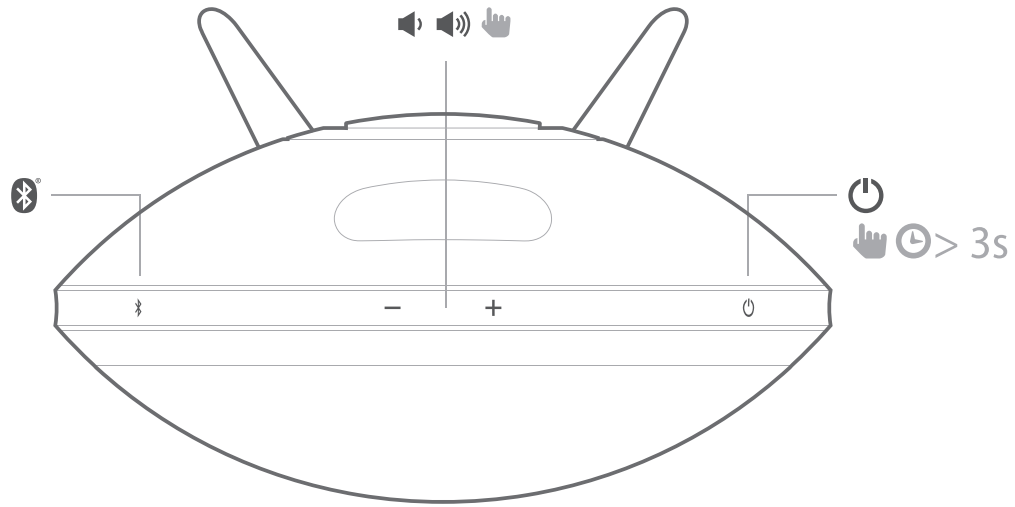

Adjusting Volume
The volume buttons on the top panel allow Harman Kardon Onyx Studio Wireless Speaker you to increase or decrease volume. Adjust volume using the Volume Up (“+”) and Volume Down (“–”) buttons located on top of the unit.
- Short press – Increase/decrease volume by 1 step
- Press and hold – Increase/ decrease volume continuously (1 step per 0.2 second)
Connecting Bluetooth & Playing Music through Bluetooth
- Press the Power button. The LED will illuminate white.
The speaker enters pairing mode when it is switched on. - If the speaker has been paired with any source before, press and hold the Bluetooth button for at least 2.5 seconds.
- Perform a new device search on your Bluetooth-capable device.
- Select HK Onyx Studio on the device’s pairing list and enter the password as 0000.
- The device will be paired to HK Onyx Studio automatically.
- If pairing is successful, the Bluetooth LED will change to white.
- Control playback from your Bluetooth-capable device.
Specifications
- No of channels 4
- Transducers 2 X 3″ woofers, 2 X ¾” tweeters, 2 x passive radiators
- Bi-amplification 4 X 15W
- Maximum SPL 95dB @ 1m
- Power requirement 100 – 240 V AC, 50/60 Hz
- Power adaptor 19V, 2.0A
- Built-in battery 3.7V, 2600mAh, Cylindrical Lithium Ion Rechargeable Battery
- Power consumption 38W Maximum <1W stand by
- Speaker impedance 4 ohms per speaker
- Frequency Response 60Hz – 20kHz
- Frequency range 2402MHz ~ 2480MHz
- Transmitter power <4dBm
- Modulation GFSK/ /4-DQPSK/8-DPSK
- Wireless Bluetooth 3.0 A2DP v1.3 AVRCP v1.5
- Dimensions (Dia x W x H) 280mm X 161mm X 260mm

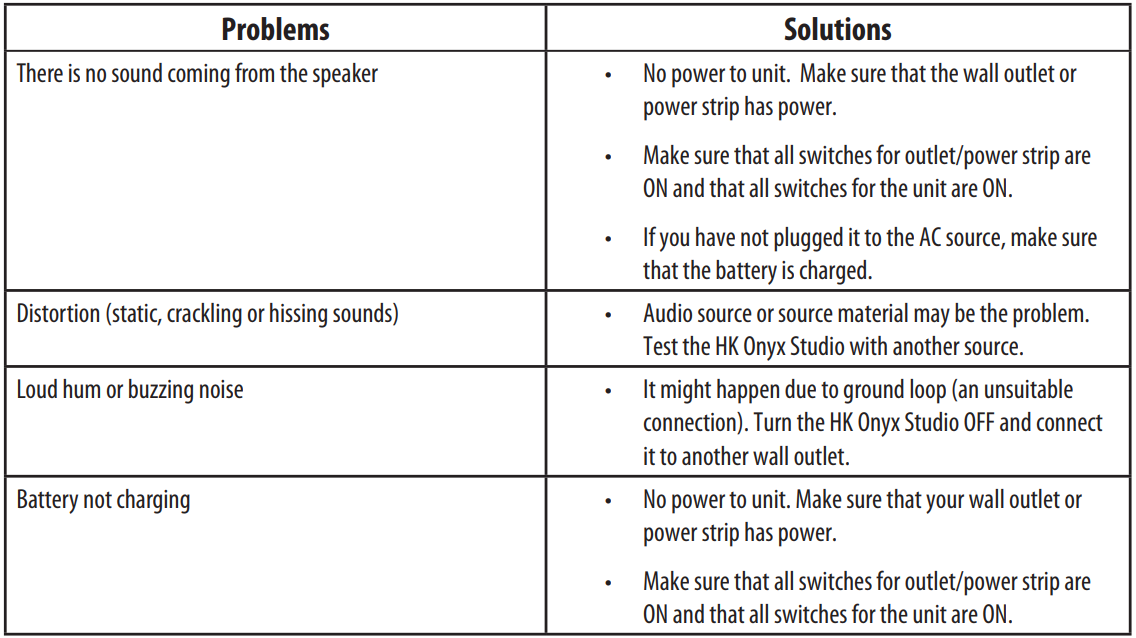

Troubleshooting
If your Harman Kardon Onyx Studio is not performing the way you think it should, check if the problem is covered in this section before calling your dealer or contacting a Harman Kardon representative.
Customer Service
- Address: Open Source, Gregor Krapf-Gunther, Parking 3, 85748 Garching bei Munchen, Germany.
- Website: www.harmankardon.com.
- Tel: (800) 422-8027
- Timings: Mon – Fri – 9:00 am 11:00 pm (ET) Sat – Sun – 9:00 am 5:00 pm
© 2013 HARMAN International Industries, Incorporated. All rights reserved.
FAQs
Q: What devices can I connect to the Onyx Studio?
Other Harman Kardon systems, such as Citation, Omni, or Aura models, are incompatible with the Enchant Sub.
Q: Can I connect more than one device at a time?
Only one device can play audio at a time, yet you can pair many devices depending on the Onyx Studio model. Quick switching between two linked devices is possible with certain versions.
Q: How long does the battery last on a full charge?
The Onyx Studio’s battery life varies depending on the model and volume setting; however, it usually lasts up to eight hours between charges. Playing louder music or with a lot of bass can shorten battery life.
Q: How do I know if my speaker is fully charged?
The battery LED indication will illuminate while the speaker is charging. Depending on the version, the indicator will either turn off or turn solid white when the battery is full.
Q: Can I use the Onyx Studio for phone calls?
Indeed. Hands-free calling is supported by models with an integrated microphone. To answer or end calls, simply tap the phone icon button.
Q: Why does my speaker turn off automatically?
To save energy, the speaker incorporates an auto-power-off mode. This conduct is typical.
Q: How far can the Bluetooth connection reach?
In open areas, Bluetooth typically has a range of up to 10 meters (33 ft).
