JANAM XT40 Series Mobile Computer Instruction Manual

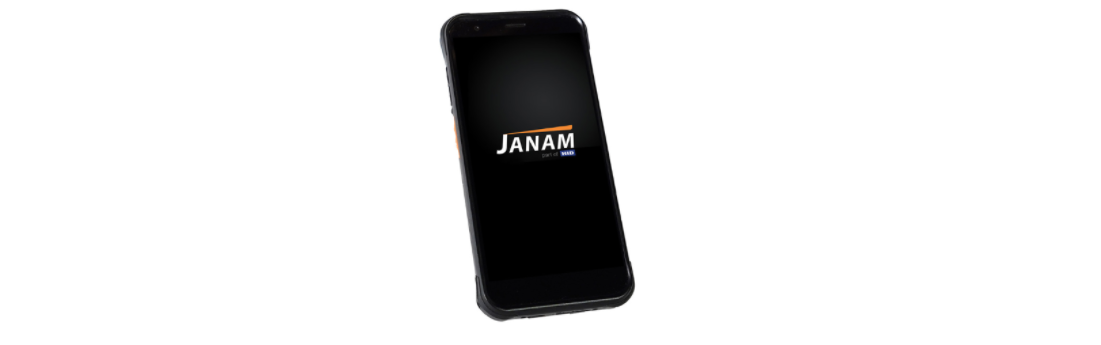

JANAM XT40 Series Mobile Computer

Quick Start Guide

Copyright 2019 Janam Technologies LLC. All rights reserved. XT40 Series, Janam, and the Janam logo are trademarks of Janam Technologies LLC. Other product and brand names may be trademarks or registered trademarks of their respective owners.

Important: Please read the End User License Agreement for this product before using the device or the
accompanying software program(s). Using the device or any part of the software indicates that you accept the terms of the End User License Agreement.

Content and Additional Resources

To help you get started with your XT40 Series mobile computer, this guide features:

• Hardware Overview
• Getting Started
• A. Install the Battery
• B. Charge the Battery
• C. Remove the Battery + Access MicroSD and SIM Card Slots
• Battery warnings and safety guidelines.
• Contents of this guide are subject to change.

For software updates and information, visit www.janam.com/product-zone.

Hardware Overview

1. Barcode Scanner
2. Camera
3. 3.5mm Audio Jack
4. Touch Screen
5. Right Trigger
6. Power Key
7. Micro USB
8. Pogo Pin Connector
9. Volume Key
10. Left Trigger

1. Camera
2. Speaker
3. SIM Card Slot
4. MicroSD Card Slot

Getting Started

Installing the Battery

1. To access the battery compartment, remove the hand strap by pulling down the plastic clip located on the bottom of the XT40.
2. Move both tabs on the battery cover to the “unlock” position and pull the cover away from the device.
3.  Position the battery so that the text “Insert this direction.” is on the left side and snap it into place.
4.  Replace the battery cover by positioning the bottom prongs first and snapping the cover into place.
5. Move both tabs on the battery cover to the “lock” position.

Charging the Battery

Important Note: The main battery charges the backup battery in the XT40 Series device. When discharged, the backup battery requires approximately. 1.5 hours to recharge.

1. Connect the AC/DC adapter to the XT40 Series.
2. Plug in the AC/DC adapter. Use only easily accessible wall sockets that are easily reached with the length of the supplied power cable.

To charge the battery using a Cradle Kit

1. Connect the power supply to the cradle.
2. Plug in the power supply. Use only easily accessible wall sockets that are easily reached with the length of the supplied power cable.
3. Place the device in the cradle. The LED on the device will illuminate to confirm the connection.
4. The battery is fully charged in approximately 2.5 hours.
5. To charge a battery in the spare battery well, insert the battery into the well top down (connectors on the battery should face downward and to the back of the cradle) and gently press down.
6. The LED light on the cradle will illuminate to confirm the connection.

Backup Battery

1. Navigate to the Home Screen -> App drawer -> Settings -> Battery.
2. Select “the Backup Battery Charge” option.

Accessing SIM Card & MICRO SD Card

1. Remove the back cover.
2. Remove the battery from the XT40.
3. MicroSD card slots and SIM slots are now accessible. Insert the MicroSD or SIM with gold-colored contacts facing downward.
4. Replace the battery.
5. Replace the battery cover.

Battery Warning

Use only Janam XT40 Series batteries and recharge batteries using only Janam-approved charging accessories (compatible accessories for the JANAM XT3 Series Rugged Mobile Computer are also available). Observe the following guidelines for safe use of Li-Ion batteries:

1. Do not expose the battery to excessive heat or cold. Do not short-circuit. Do not incinerate.
2.  To avoid the risk of burn or damage to your battery, do not allow a metal object to touch battery contacts.
3. Do not disassemble the battery. There are no user-serviceable parts inside.
4.  If battery leakage is observed, avoid any contact with the affected area and properly dispose of the battery.
5. If you come in contact with battery leakage, rinse the exposed area with soap and water. If it contacts the eye, rinse the eye with water for 15 minutes and seek medical attention.
6. Dispose of used batteries promptly. Keep away from children. Do not disassemble or dispose of it.
7. When discarding a battery, contact your local waste disposal provider to understand local restrictions for the disposal or recycling of batteries.

BATTERY CHARGER SAFETY GUIDELINES.

1. Do not use the equipment in or near areas in which sparks are likely or possible.
2. Do not let the equipment’s metal contacts and electrical sockets come in contact with metal objects.
3. For indoor use only. Do not expose the equipment to rain or any liquids.
4. Do not use or store the equipment in direct sunlight or in areas that are prone to getting hot, such as in a parked vehicle, near a heat duct, or close to other heat sources.
5. Keep the equipment’s metal contacts and electrical sockets free from debris that could obstruct charging or cause a short circuit.

Body-Worn Operation

This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna.

Third-party belt clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.

FCC Rules

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
• End-users and installers must be provided with antenna installation instructions, and consider removing the no-collocation statement. This device complies with Part 15 of the FCC Rules.
• This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). This device may not cause interference.

Customer Service

• Address: ANAM TECHNOLOGIES  999 S. OYSTER BAY RD. BETHPAGE, NY 11714
• Phone: +1.877.JANAM.. 99 (+1.877.526.2699)
• Local: +1.516.677.9500
• Fax: +1.516.320.8031
• Email: inquiries@janam.com

Contact Technical Support

• NA: +1.866.915.5311
• EMEA: +44.1202.946945
• Email: janamcare@janam.com

FAQs

Q: What is the JANAM XT40 Series Mobile Computer?

Designed for field service, inventory management, enterprise-grade data collecting, and mobile workforce applications, the XT40 is a robust mobile computer. It is a robust device that integrates computing, scanning, and connectivity.

Q: How do I power on the XT40?

Holding down the power button for three to five seconds will cause the screen to light up.

Q: How do I charge the device?

Use the supplied USB-C cable or the official charging dock. In models with detachable batteries, the XT40 is compatible with hot-swappable batteries.

Q: How do I connect the XT40 to a network?

In the settings menu, turn on cellular data or Wi- Fi. For secure VPN or MDM access in corporate settings, adhere to IT protocols. For dependable real-time data transfer, make sure the signal is well-covered.

Q: How do I scan barcodes or QR codes?

Use the device’s scanning app or press the scan button. Place the scanner over the code and remain still until a successful scan is confirmed by a sound or vibration. To preserve accuracy, clean the scanner window on a regular basis.

Q: How do I adjust screen brightness and timeout?

To change the brightness or activate adaptive brightness, navigate to Settings → Display. In field operations, set a shorter screen timeout to save battery life.

Q: How do I perform a factory reset?

Navigate to Settings → System → Factory Reset → Reset Options. This will remove all material from the device, so make a backup of all vital data first.

Q: How do I troubleshoot network issues?

Make sure cellular data or Wi-Fi is available and within range. To renew connections, restart the device. Check firewall permissions and network credentials. For better connectivity, update the firmware to the most recent version.
