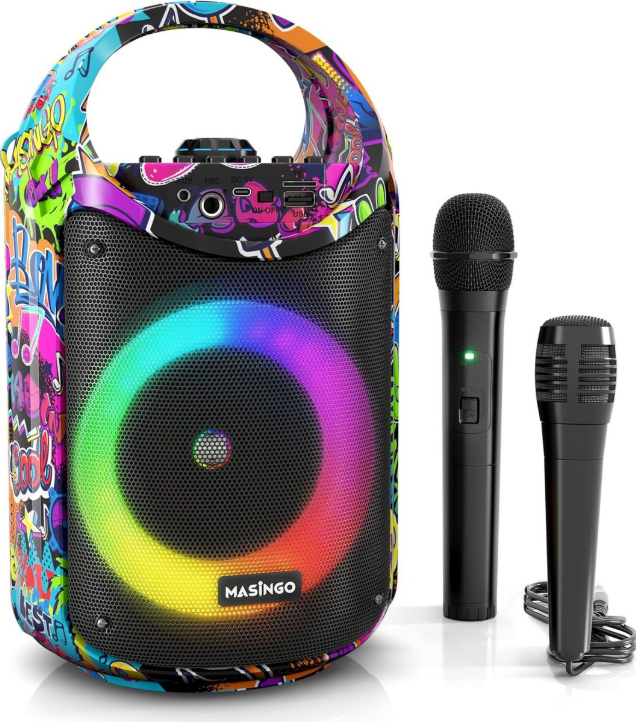

MASiNGO Burletta C10 Bluetooth Karaoke Machine
Safety Instructions
- Keep this manual for any future reference.
- Adhere to all warnings.
- Keep ventilation openings clear; do not block any of this machine’s vents/openings.
- Install and set up the machine according to the instructions provided in this manual.
- Use the polarized plug or grounding type plug carefully.
- These plugs are made for safety purposes.
- A polarized plug has two blades with one wider than the other.
- A grounding type plug has two blades and a third grounding prong.
- The wider blade and the third prong are provided for your safety.
- Please consult an electrician if the provided plug does not fit into your outlet.
Parts & Features
What’s included
- 1x Masingo Karaoke Machine
- 1x Plug-in microphone
- 1x VHF wireless microphone
- 1x 2x MicroSD charging cable
- 1x Shoulder strap
- 1x Performer’s manual

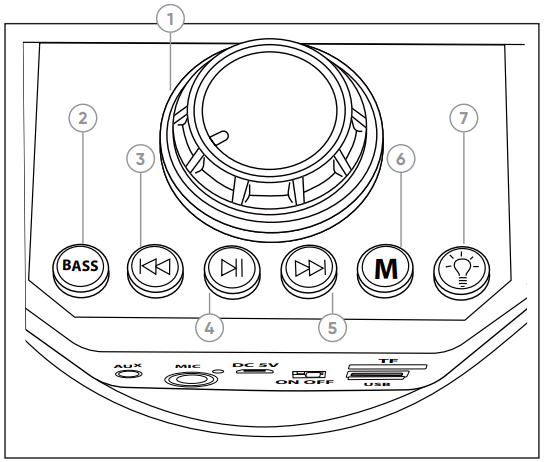

Control Panel
Top
- Master Volume
- Bass Boost
- Back
- Play/Pause
- Next
- Mode
- LEDS
Machine Diagram
Front
- 3.5mm AUX Line-In
- 6.5mm Mic Input
- Charging Indicator Light
- DC5V Charging Port
- Power Switch
- TF Slot (MicroSD)
- USB Slot
Quick Start Guide
- Charge the machine.
- Set up your preferred microphone.
- Power on the machine.
- Activate your chosen music mode.
- Sing your heart out!
How To Use
- Plug the machine’s charging cable into the DC5V (11) machine charging port on the function board.
- Connect the machine’s charging cable to your own compatible DC 5V charging plug, and then carefully insert your plug into a polarized wall outlet.
- Be sure to charge fully before each use. The indicator light (10) will turn on to indicate charging.
- Slide the Power (12) switch towards the side labeled On to turn the machine on. To turn it off, slide the same switch towards the side labeled Off.
- LEDs will start automatically when the machine is turned on. Click the LED button (7) on the machine’s function board to change to a different LED pattern.
- There are 3 total options. If the button is clicked once more after cycling through all available LED patterns, the LEDs will turn off. Click the same LED button again to reactivate them.
nb
- Gently but firmly plug the 6.5 mm AUX jack at the end of the wired microphone into the 6.5mm AUX port (8) on the machine’s function board.
- Screw off the bottom half of the microphone and insert two AA batteries (not included) into the proper slots. Screw the covering back on, and proceed to power on the microphone as directed above.
- For both the wireless and the wired microphone, slide the power switch up to turn the microphone on. Slide the power switch down to turn the microphone off.
- When there is no music playing, this machine can be used to make PA announcements. Simply speak into a microphone by ensuring that it is properly connected as instructed above.
Music
Set up playback
- Your machine has 6 different playback options: Bluetooth, SD, AUX, USB, FM, and PA. Each has its hookup location (diagram on page 7) and set-up method (see the subsections below).
Connect to Bluetooth
- Playing music from your device: Click the Mode button on the machine’s function board until the digital display indicates you are in Bluetooth mode.
- Then, search for the machine name “MASINGO” under your device’s Bluetooth connection settings and click to connect.
SD mode
- Playing music from an SD card.d Plug your MicroSD card into the MicroSD Slot on the machine’s function board. The stored music on your SD card will begin playing automatically.
AUX mode
- Playing music from an AUX-compatible device. Plug the AUX cable into the AUX Input on the machine’s function board to activate AUX mode.
- Plug the other end of the cable into the designated input on your device and play your music just as you normally would.
Connect to a TV
- Plug the AXU-RCA cable into the AUX input on the machine’s function board to activate AUX mode to connect a TV.
- Insert the other end into the designated port on your TV play your music just as you would in regular AUX mode.
USB mode
- Playing music from a USB drive. Plug your USB into the USB Port on the machine’s function board.
- The stored music on your USB will begin playing automatically.
FM mode
- Playing music from an FM radio station. Click the Mode button on the function board of the machine until “FM” appears on the display screen.
- Once the FM mode has been activated, press and hold the ni button on either the remote control or the function board for the machine to begin seeking and storing all of your local radio station channels.
PA motion
- When there is no music playing, this machine will automatically start PA Mode.
- Simply use the microphones by ensuring that they are turned on.
- Adjust the microphone’s volume and echo on the machine’s function board or the microphone itself.
To record
- Begin by inserting a suitable recording device into the function board via the MicroSD slot or USB port.
- Ensure that the microphone is turned on nd, and then proceed to press the REC button on he function board.
- Speak or sing into the microphone, and when finished recording, click REC again to stop it.
- To listen to the recorded audio, remove and then reinsert the USB or MicroSD recording device.
Multiple playback modes
- To use playback modes interchangeably, simply MASiNGO Burletta C10 Bluetooth Karaoke Machine activate each mode according to the instructions above, then click Mode to switch between the inputs.
Maintenance
- Turn the machine and microphones off. Unplug the machine’s power cord and disconnect any AUX, MicroSD, or USB plug-ins. Gently wipe the outside of the machine using a clean, dry cloth.
- Keep all vents, buttons, and openings free of lint and dirt. Do not immerse the machine in water, and do not use any harsh cleaners.
- Charge the machine and microphones so that they are ready for the next use.
- Make sure that the machine is clean and dry. Bind the power cord and microphone cord individually and gently with electrician-approved fasteners.
- Do not wrap the cord around the machine. Store the machine in a cool, dry place away from damaging elements. For best results, clean and store the machine after each use.
Troubleshooting
| Problem | Solution |
| The machine is not turning on | The battery is depleted. Be sure to charge the machine after each use. |
| The VHF wireless microphone is not turning on. | Ensure the power switch is all the way in the up position and the indicator light is on. (Note: The VHF microphone has a middle setting called “Mute.” The microphone will not function in “Mute.”) If this does not solve the issue, the Microphone battery is low or depleted. Replace the AA batteries in the microphone. |
| USB or MicroSD mode is not working | Ensure that the USB drive or MicroSD chip is inserted properly and that there are readable music files stored on said drive/chip. Ensure that the machine volume is turned to an audible level. |
| The machine is not playing the microphone vocals. | Ensure that your chosen microphone is turned on. (Note: The VHF microphone has a middle setting called “Mute.” Ensure that it is not in this setting by pushing the power switch all the way up. Ensure that the wired microphone is plugged in correctly. Ensure that the wireless microphone’s batteries are installed correctly and still have a charge. Ensure that the machine volume is on. |
| The microphone vocals are echoing excessively. | If the echo is excessive, move the machine speaker further away from the microphones to reduce echo. |
FCC Statement
This device complies with part 15 of the FCC rules. Operation MASiNGO Burletta C10 Bluetooth Karaoke Machine is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement
This equipment complies with FCC radiation MASiNGO Burletta C10 Bluetooth Karaoke Machine exposure limits set forth for an uncontrolled environment.
Customer Service
- Website: support@masingo.com
- Tel: 844-262-7464
- Timings: 9 am to 5 pm EST
FAQs
Q: What is the MASiNGO Burletta C10 karaoke machine designed for?
Ans: A portable, multipurpose karaoke machine, the Burletta C10 is ideal for small gatherings, family get-togethers, and house parties. It has two wireless microphones for duets and group activities, a built-in speaker, bright LED lighting, and Bluetooth connectivity.
Q: Can two people sing at once?
Ans: Indeed! The Burletta C10 is ideal for hosting karaoke games, duets, and battles because it can handle two microphones at once.
Q: Does this machine display lyrics?
Ans: No, there isn’t a built-in screen on the C10. Use programs like YouTube Karaoke, Smule, or KaraFun on a smartphone, tablet, or TV to view lyrics, then stream audio to the device over Bluetooth.
Q: How long does the battery last?
Ans: For the primary speaker to work, it needs to be plugged in. However, depending on usage, the wireless microphones run on fresh AA batteries and last anywhere from 6 to 10 hours.
Q: Does the C10 have sound effects or voice modulation?
Ans: The C10 may have rudimentary mic upgrades and echo control, depending on your version. Pitch modulation and autotune are examples of sophisticated voice-changing techniques that it does not provide.
Q: What do the LED lights do? Can I turn them off?
Ans: Some models have a button on the speaker or a remote control that lets you dim or turn the lights on and off.
Q: Where can I get support, spare microphones, or replacement parts?
Ans: Go to the official MASiNGO website or use the information in your user guide to get in touch with their customer service representatives.
