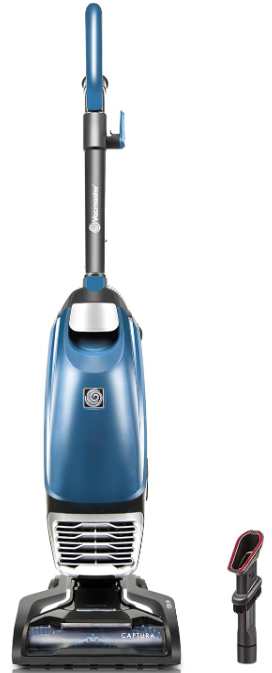

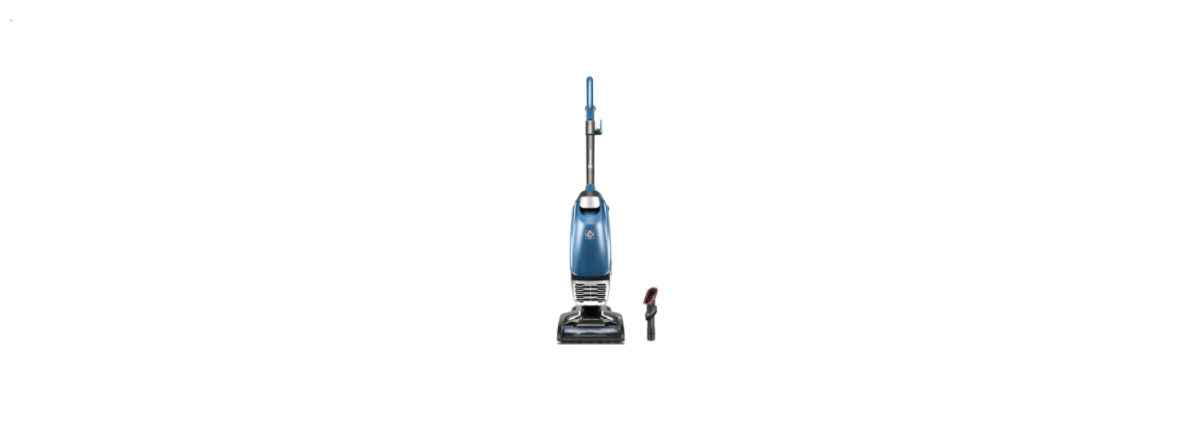

VacMaster UB0302E Bagged Upright Vacuum Cleaner

Safety Instructions

• Do not leave the appliance when plugged in.
• Unplug from the outlet when not in use and before servicing.
• Not for space heating purposes.
• Make sure the household voltage is the same as that indicated on the rating label of the unit.
• Do not unplug by pulling and jerking the cord with force.
• Do not handle the plug or the appliance with wet hands.
• Do not use the appliance in any outdoor area. Commercial use will void the warranty.
• Do not step on or wrap the cord around arms or legs when using the appliance.
• Do not pull, lift, or carry the appliance by its supply cord.
• In order to avoid damage to the cord, do not pull the cord around sharp corners and edges.
• Keep the appliance away from the ovens and stoves, etc.
• Always switch off, unplug from the socket after use or before cleaning the appliance or any maintenance task.

Know Your Product

Replacement Parts

• Item Part No.
• Textile Pad 731003104

Assembly

1. Attach the provided textile pad to the bottom of the floor head using the hook and loop fastener pads.
2. Attach the main body to the floor head until the floor head release button on the back of the main body clicks into place.
3. Raise the upright handle into position until it clicks into place.
4. Make sure the upper cord hook is in the upright position as shown. Wrap the power cord around the upper and lower cord hooks.

Operation

• Bare wooden floors or any surfaces where wood is exposed (as it will absorb moisture and may distort).
• Damaged hardfloors or hardfloors with gaps present (as they will absorb moisture and may distort).

Also, do not keep the steam mop in one place for an extended period, because the continual heat may cause damage to carpets and laminate flooring. Please disconnect and allow the unit to cool before changing pads and attachments.

Filling the Water Tank

1. Remove the water tank from the handheld steam cleaner by pressing the two water tank release buttons.
2. Open the fill cap. Fill the water tank with cold distilled water using the provided funnel and water cup, and then close the fill cap.
3. Press the water tank release buttons and refit the water tank to the handheld steam cleaner.
4. Reposition the handheld steam cleaner back into the main body.

Using Your Steam Mop

Choose the correct accessory for steam cleaning. Use onlyay textile pad for cleaning on bare floor surfaces. Use both a textile pad and a carpet glider for cleaning on carpets or rugs. Vacuum or sweep the floor surface before steam cleaning.

Using an Upright Steam Mop

1. Make sure the provided textile pad has been attached to the bottom of the floor head.
2. Rotate the upper cord hook to quickly release the power cord.
3. Plug the power cord into a grounded outlet.
4. The indicator light will begin flashing white. After approximately 25 seconds, the flashing will stop, and the light will remain steadily illuminated white.
5. Press the power button to turn on the steam mop, and the indicator light will illuminate green.
6. The steam will begin to be emitted in the low steam setting.
7. Adjust the steam volume as needed using the dedicated steam volume buttons.
8. To increase the steam volume to high, press the “+” button; the indicator light will illuminate blue.
9. To decrease the steam volume to low, press the “-” button; the indicator light will change back to green.
10. Recline the mop by placing a foot on the floor, head, and pulling the main body back toward you.
11. Move the mop slowly in a back-and-forth motion, paying particular attention to high-traffic areas and common spaces.
12. When cleaning carpet, place the floor head with the textile pad attached into the carpet glider for easier maneuverability.
13. Once you have completed cleaning, push the power button to turn off the steam mop and return the main body to the upright position, then unplug the power cord from the outlet.

Using a Handheld Steam Cleaner

This function is ideal for cleaning vertical surfaces and hard-to-reach places. The handheld cleaner has been designed for one-handed use.

1. Make sure the steam mop is unplugged from the outlet and has cooled down.
2. Separate the handheld steam cleaner from the main body by pressing the handheld release button on the front of the main body. Pull the handheld steam cleaner up and out of the main body.
3. To use all of the accessories (excluding the utility nozzle and squeegee attachment), attach the conic pipe to the handheld steam cleaner by following these steps:
4. Slide the conic pipe into the nozzle of the handheld steam cleaner. Ensure the release catch on the underside of the nozzle is in line with the square hole on the conic pipe. Push together until it clicks into place.
5. Ensure the corresponding gaps and circular sections on the accessory and conic pipe are aligned. Then, twist the accessory until the arrow markings on both parts match.
6. Plug the power cord into an outlet.
7. The indicator light will begin flashing white. After approximately 25 seconds, the flashing will stop, and the light will remain steadily illuminated white. The handheld steam cleaner will be ready for use.
8. Press the power button to turn on the handheld steam cleaner. Adjust the steam volume by pressing the steam volume buttons according to your needs.
9. Once you have completed cleaning or steaming, unplug the power cord from the outlet.
10. After the handheld steam cleaner has cooled down completely, reattach it securely to the main body, ensuring it has a firm connection.

Attachments

Conic Pipe

This attachment is the base attachment for all handheld accessories, excluding the utility nozzle. It can also be used alone to clean places or crevices that are not easily accessible.

Curved Nozzle

This attachment is ideal for cleaning toilet bowls, taps, and drain covers. To remove non-permanent stains from carpets or upholstery, point the attachment directly at the stain and hold a clean cloth nearby to absorb any loosened dirt.

Scraper

This attachment is used to remove stubborn buildup or to help de-ice the refrigerator or freezer.

Round Brush

This attachment is designed for use on a variety of surfaces, including tiles, ovens, wheels, and glass.

Small Round Brush

This attachment is for use on hard stainless-steel surfaces such as grates on a grill.

Double Brush Tool

This attachment is used to remove dirt from grooves and crevices.

Utility Nozzle

This base attachment is used with the following accessories: Small Mop for covering the utility nozzle when cleaning upholstery and bedding. This accessory is useful for cleaning tile and or glass surfaces, cabinets, and countertops. As well as upholstery, curtains, blinds, pillows, and mattresses.

The squeegee attachment can be attached to the utility nozzle by inserting the hooks at the back of the squeegee attachment into the loops on the back of the utility nozzle, then securing the front of the utility nozzle into the locking clip on the top of the squeegee attachment (as shown).

Remove the squeegee attachment after use by holding the locking clip forward. The utility nozzle should still be attached to the hooks at the back of the squeegee attachment. Pivot the utility nozzle up and unhook it from the squeegee attachment.

The squeegee attachment is ideal for cleaning tiled or glass areas such as windows or mirrors. To clean windows, start at the top, press the squeegee to the surface, and drag downwards in straight passes from top to bottom. Dry the rubber blade and window edge after each pass with the  VacMaster SMF1501 2-in-1 Steam Mop. For small windows, spray the steam directly to the surface and wipe away moisture with the squeegee.

Run-Dry and Blockage Protection

If the steam mop is operated without water, then VacMaster SMF1501 2-in-1 Steam Mop after a few minutes, the pump that supplies the water to the boiler will stop, and the indicator light will change color to red. If this happens, switch the product off, refill the tank, and then switch back on. After the 25-second heat-up time, the pump will start to work, and steam will be emitted. The indicator light will change to red, and the pump will shut off if there is a blockage to the steam nozzle. If this happens, switch off and allow the product to cool before examining the nozzle for a potential blockage.

Rinsing the Water Tank

Regularly rinse the water tank to release any deposits that have collected at the bottom of the tank. Only use deionised, demineralised, or distilled water (available from most supermarkets) and close the fill cap to allow vigorous rinsing.

Maintaining Mop

To reduce the risk of shock, disconnect the power cord and turn off. Allow the steam mop to fully cool down before performing any cleaning, maintenance, or storing. This product contains no serviceable parts. Do not try to repair it by yourself. If there is any servicingthata the  VacMaster SMF1501 2-in-1 Steam Mop requires disassembly other than cleaning, contact customer service.

After Use

Follow the two maintenance steps below after every use.

1. Turn the cleaner off and unplug it from the VacMaster SMF1501 2-in-1 Steam Mop outlet. Place immediately on a suitable surface (eg, tiled floor) where the residual heat/moisture in the floor nozzle/pad will not affect the surface. Wait until the cleaner has cooled down completely.
2. Empty the water tank by opening the fill cap and pouring out the water. Allow the inside of the water tank to dry out before closing the fill cap.

Storage

We recommend storing the steam mop with the carpet glider attached, but the pads removed to minimise the likelihood of any water leaking onto surfaces. Rotate the upper cord hook upwards, then wrap the cord around the upper and lower cord hooks to secure the power cord.

The upright handle is collapsible for compact storage by pressing the upright handle release button.

Technical Data

• 2-in-1 Steam Mop
• Model: SMF1501
• Rated Voltage: 120V AC 60Hz
• Rated Power: 1550W
• Water Tank Capacity (ml): 400ml
• Heating Time (s): 25s
• Run Time at the High Steam Setting: 16+/-3minute
• Run Time at the Low Steam Setting: 24+/-5minute

Troubleshooting

Should you have any problem(s) with your steam mop, review the table below for solutions to minor performance issues.

Customer Support

• Website: www.vacmasterfresh.com/product-registration/
• Visit:  vacmasterfresh.com/contact-us/
• Tel: 1-866-384-8432.

FAQs

Q: What type of vacuum cleaner is the UB0302E?

The UB0302E is a bagged upright hoover cleaner intended for use on hard floors, carpets, and rugs in homes.

Q: How often should I replace the vacuum bag?

When the bag is about two-thirds full or the suction begins to visibly decrease, replace it. Optimal performance is maintained with frequent replacement.

Q: What type of floors can I use the vacuum on?

Carpets, rugs, hardwood, tile, and laminate floors can all be used with the UB0302E. For the best cleaning on various surfaces, change the brush height.

Q: Can the vacuum pick up liquids?

No, the UB0302E is solely intended for dry vacuuming. Never try to hoover wet material, spills,s or water.

Q: Is the vacuum suitable for pet hair?

Indeed. The UB0302E is effective on pet hair, especially on carpets and rugs. To avoid obstructions, inspect and clean the brush roll on a regular basis.

Q: Can I use the vacuum on stairs?

Indeed. To clean stairs, use the hose and crevice tool attachments. For safety reasons, do not place the Hoover body directly on the steps.

Q: Can I use an extension cord?

Yes, but make sure the cord doesn’t go over safe electrical limitations and is rated for domestic appliances. To avoid overheating, avoid using long or inadequate wires.

Q: How do I store the vacuum cleaner?

Keep dry and erect in a cool place. Secure attachments in any available onboard storage by wrapping the power cable around the hooks.
