AURZEN BOOM mini 4 Inch 1 Smart Projector Instruction Guide

AURZEN BOOM mini 4 Inch 1 Smart Projector

Saftey Introduction

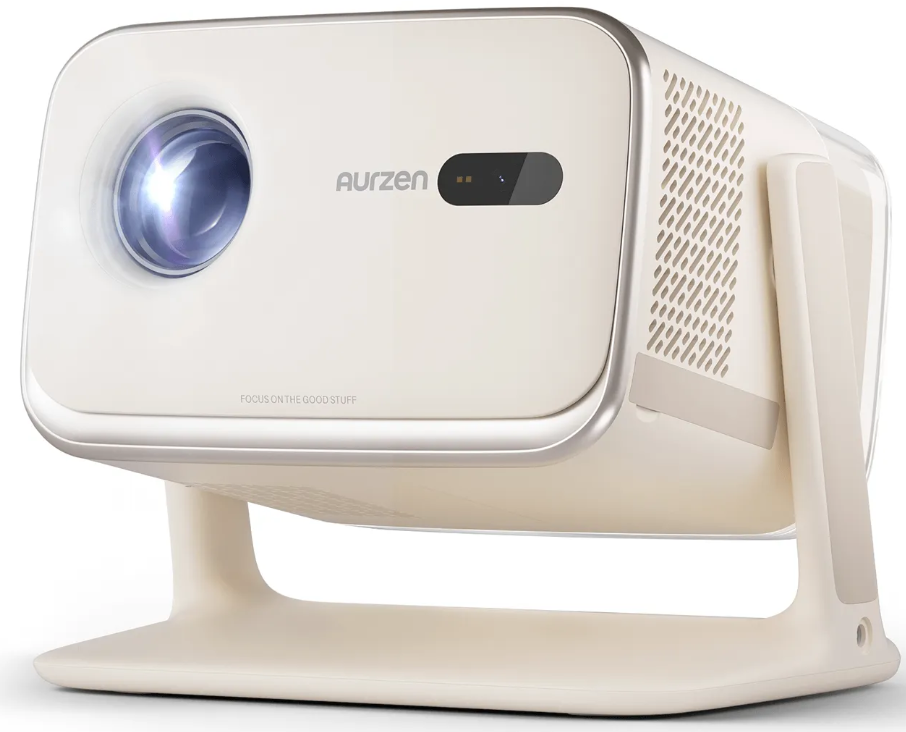

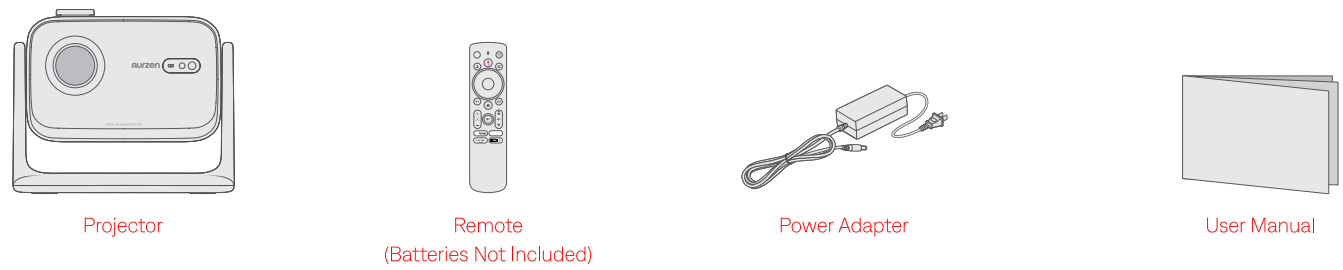

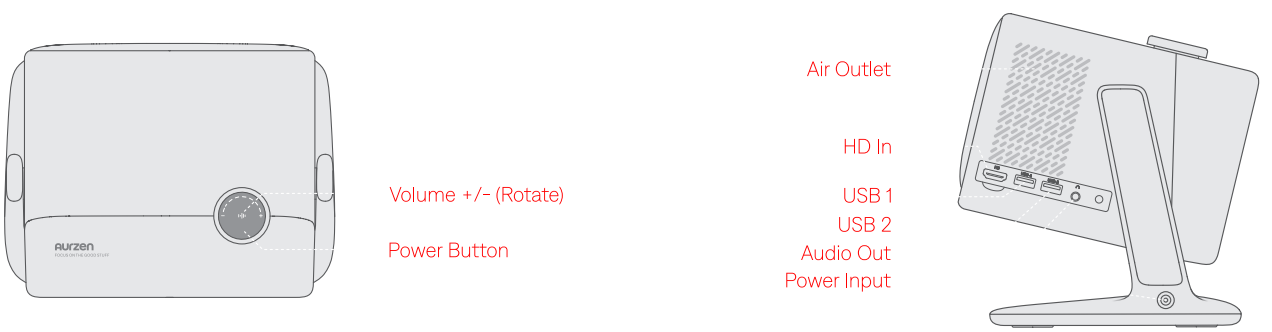

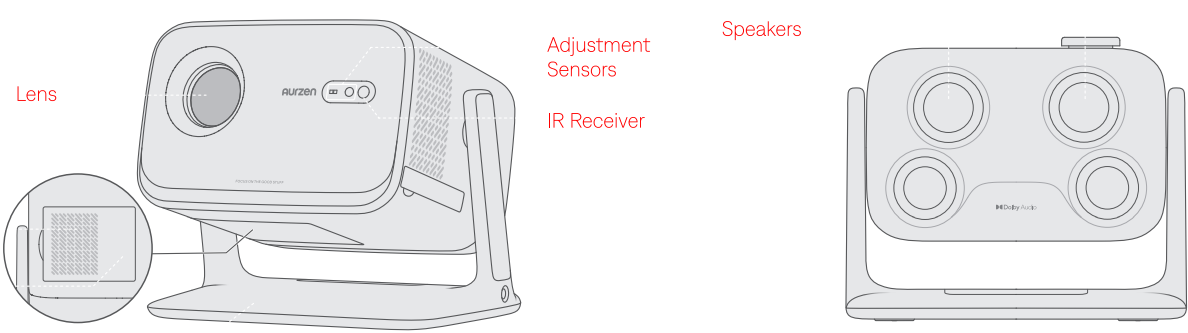

Projector

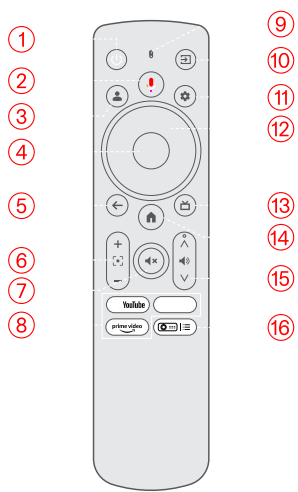

Remote Control

1. Power Press to power on/switch to standby mode/ wake up/press and hold for 3s to power off
2. Google Assistant: Press and hold, and talk
3. User Profile Press to see the profile page
4. ок Confirm a selection/pause/resume
5. Back Return to previous page
6. Focus Adjustment
7. Mute
8. Streaming Apps Jump to video streaming pages
9. Indicator Light
10. Press to choose from the input sources

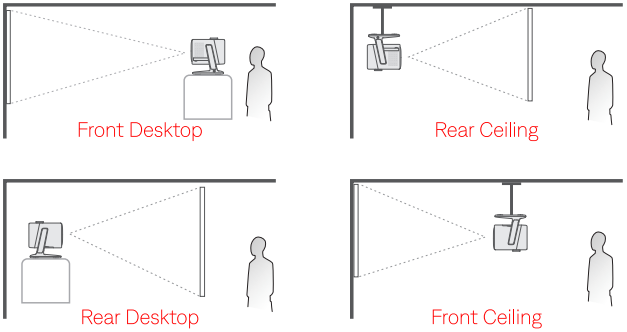

Projector Installation

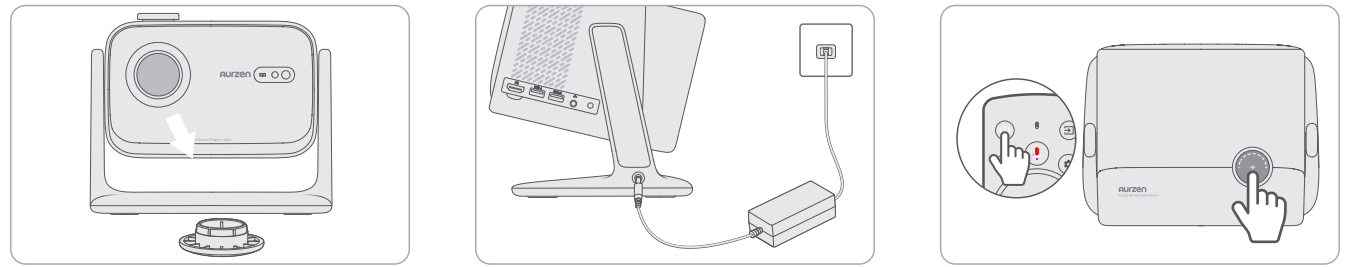

Power On/Off

• When the projector is on, press the power button once to put it into standby mode; press it again to wake it up.
• Please use the power adapter provided in the box to prevent product damage.

Remote Control Pairing

Turn on the projector and wait for the pairing prompt on the screen. Bring the remote control within 0.33 ft/10 cm of the projector, then simultaneously press and hold the and buttons. Wait for the pairing to complete.

Remote Control Pairing

Turn on the projector and wait for the pairing prompt on the screen. Bring the remote control within 0.33 ft/10 cm of the projector, then simultaneously press and hold the and buttons. Wait for the pairing to complete.

Setup Wizard

Follow the setup wizard to select the projection mode, choose your preferred language, select the correct region, and sign in with your Google Account or set up basic TV.

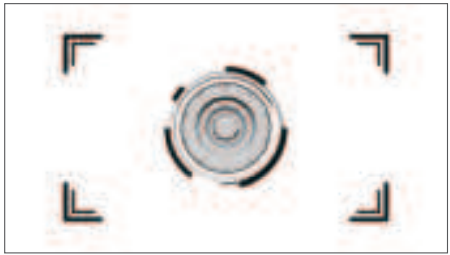

Image Adjustment Focus

• Auto Focus image quality. When the projector detects shaking/rapid movement, it will automatically adjust the

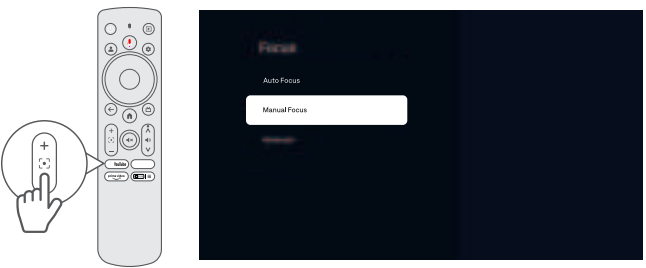

• Electric/Manual Focus You can also press the Focus buttons on the remote or go to Homepage > Dashboard > All settings > Projector > Focus > Manual Focus to sharpen the image focus until the blurry image becomes clear.

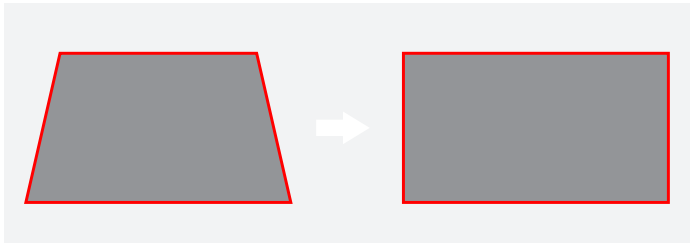

Keystone Correction

• Auto Keystone Correction: When the projector detects shaking/ rapid movement, it will automatically correct the keystone distortion.

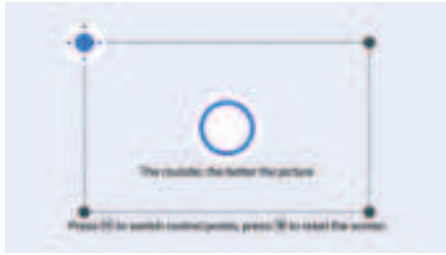

• Manual Keystone Correction Go to Homepage > Dashboard 3) > All settings ®3) > Projector > Keystone > Manual Keystone 8 > All settings to manually correct the image shape by four points.
• Intelligent Screen Fit. Go to Homepage > Dashboard > All settings > Projector > Keystone > Advanced > Auto Screen to enable the function. The projector will automatically adjust the projected image to fit the screen.
• Intelligent Obstacle Avoidance. Go to Homepage > Dashboard > All settings > Projector > Keystone > Advanced > Auto Avoid to enable the function. The projector will automatically adjust the projected image to avoid any objects on the projection surface.

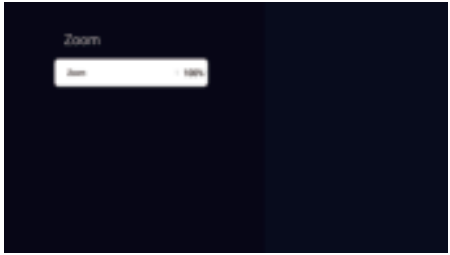

• Image Scaling Go to Homepage > Dashboard > All settings ® › Projector > Zoom to reduce or enlarge the image size.

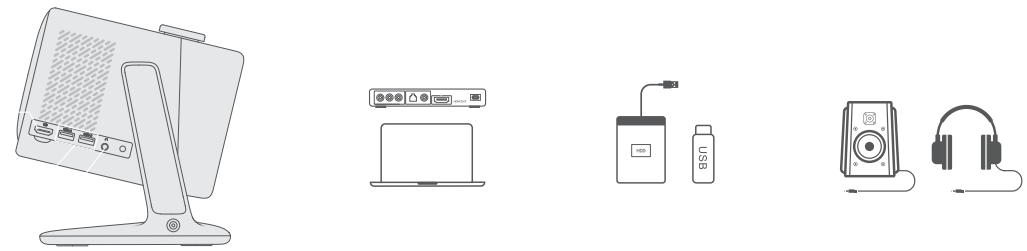

• Connect your device to the projector correctly, then select the right input source.

USB Connection

Insert the disk. Then go to Homepage > Apps and select MultiMediaPlayer under Your apps tab to locate and play the file.

• You can connect your projector to your router’s WiFi by going to Homepage > Dashboard B All settings > Network & Internet.

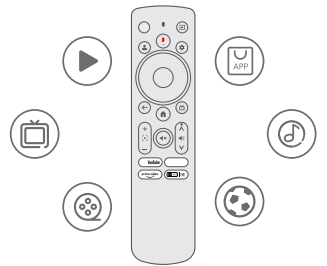

• Your TV is more helpful than ever. Use your voice to find movies, streaming apps, play music, and control the TV. Ask Google Assistant to find a specific title, search by genre, or get personalized recommendations.

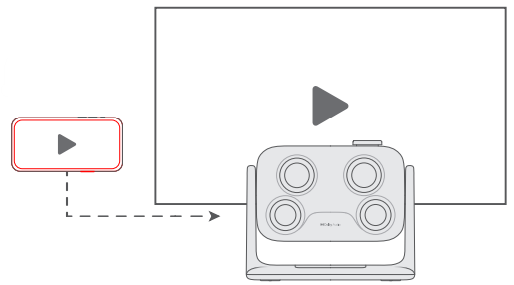

• Google Cast is a platform that lets you stream your favorite entertainment from your phone, tablet, or laptop right to your projector.

Screen Mirroring Using the Air Screen App

• You can mirror the entire screen from your iOS/Android device onto the projector screen.
• Ensure that both your device and the projector are connected to the same wireless network.
• Search and install AirScreen on the Apps tab – AirPlay is available on your projector.
• Open the AirScreen app and follow the on-screen instructions to complete the process.

Step 1

• Go to Homepage > Dashboard > All settings > Projector > BT Speaker Mode to make the projector ready for a BT connection.

Step 2

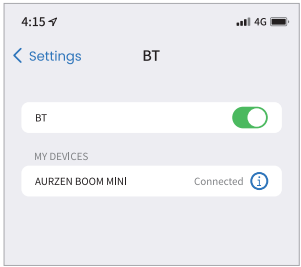

• Access your mobile device’s BT settings and activate BT. Search for AURZEN BOOM MINI in the available devices list to pair your mobile device with the projector.

1. Color Temperature Go to Homepage > Dashboard Standard, and Warm. > All settings > Display & Sound > Picture > Advanced Settings > Color Temperature to select from User, Cool,
2. Reset: Go to Homepage > Dashboard > All settings > System > About > Reset to restore the projector to factory settings.
3. System & Product Info Go to Homepage > Dashboard ©) > All settings @ > System > About to check system & product information

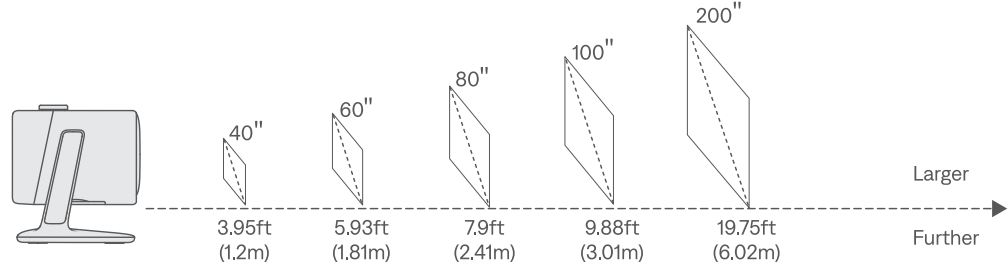

• For optimal image quality, we recommend a projection size of 60″. Position the projector 5.93ft (1.81m) away from the wall or screen.
• The recommended projection distance varies with different projection contents. Please adjust the distance between the wall/screen and the projector as needed.
• Ambient darkness will improve the clarity of the projected images.

FCC Statement

Google TV is the name of this device’s software experience and a trademark of Google LLC. Google, YouTube, Google Home, Google Cast, and other marks are trademarks of Google LLC.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

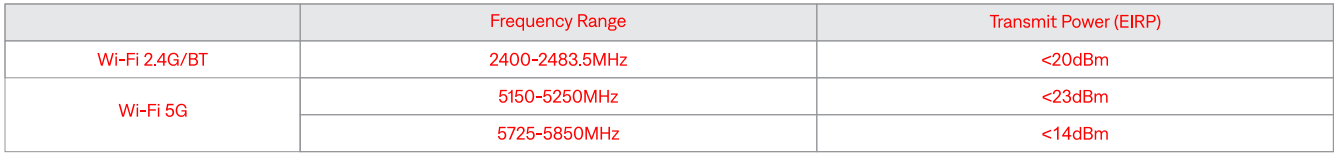

The radio frequency specification below only applies to the EU and UK regions.

Troubleshooting

1. The copyrighted content from Hulu, Netflix, and similar services can not be mirrored or cast.
   • This projector offers a range of pre-installed streaming apps that are officially licensed. You can go to the homepage > Apps, search for the
     app, and log in to your account to play the content. For casting, refer to the “Google Cast” section.
2. Fuzzy Image
   • Adjust the focus or keystone correction of the projector.
   • Make sure the projection distance is in the effective focal range of the projector.
   • Remove the dust or dirt from the lens with a blower or soft-bristled brush.
3. Non-rectangular Image
   1. Use the keystone correction function to adjust image shape.
4.  Automatic keystone correction failure
5. Autofocus failure
   • Make sure the adjustment sensors on the front of the projector are not blocked or smudged.
6. Remote control unresponsive
   • Make sure the batteries are installed correctly and not drained.
   • Remove any obstructions between your projector and remote control.
   • Ensure the remote control is successfully paired with the projector via BT.
7. Connect the BT devices.
   • Go to Homepage > Dashboard > All settings B > Remotes & Accessories to check the BT device list, and connect the device.
8. The power adapter is getting warm.
   • It’s been tested and meets safety standards. Rest assured.
9. Others
   • Please feel free to contact us at support@aurzen.com.

Customer Support

• Website:  https://aurzen.com
• Tel: 1-667-218-4830
• Timings: Mon-Fri, 9 AM – 5 PM EST
