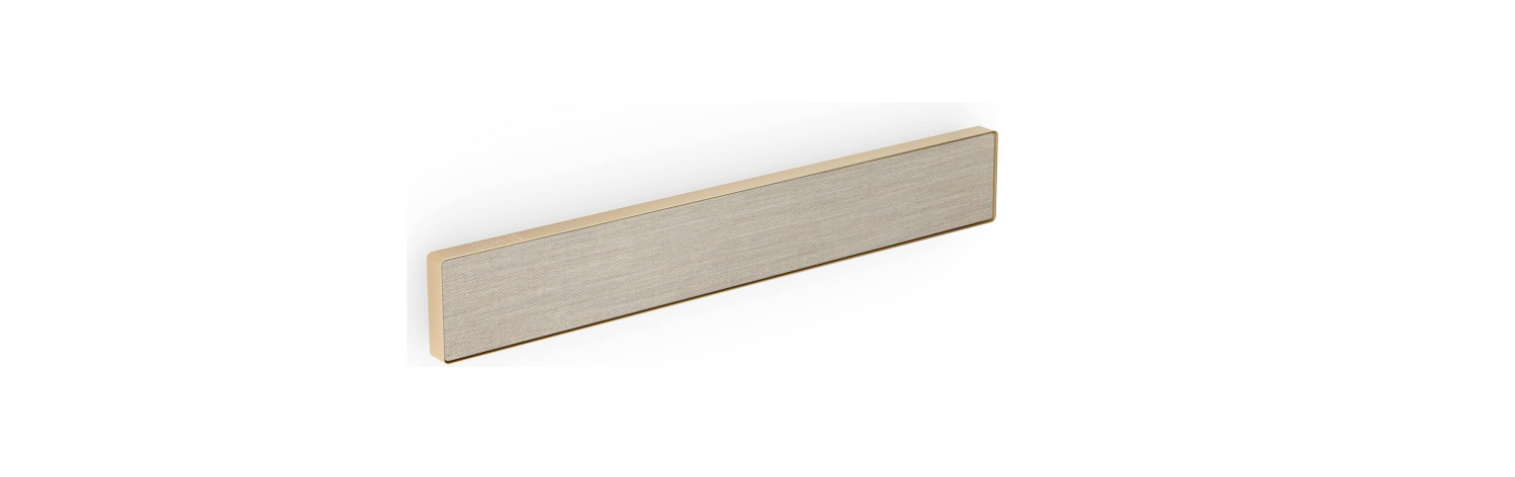

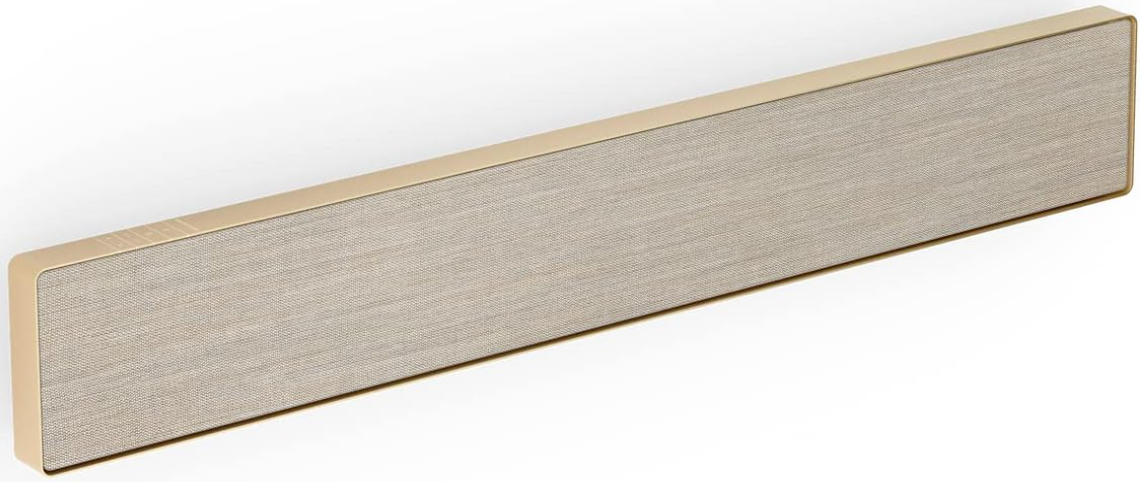

Bang & Olufson 1200578 Beosound-Stage-Soundbar
A new vision for sound
Beosound Theatre reinvents what the home cinema experience can be. All the power, clarity, and immersion of a multi-speaker setup. But from one beautiful soundbar that slots in seamlessly with any screen. No black boxes, no cable clutter. Four patent-pending acoustic innovations in one sleek soundbar envelop you in sound from every angle. Made with materials as beautiful as they are durable, Beosound Theatre is made to last for generations. Make every movie an unmissable cinematic event.
Important feature
- The sound that surrounds
- All beauty. No clutter
- For generations to come
Basic
WEIGHT
- 18 kg
PLACEMENT
- Table or wall
RECOMMENDED ROOM SIZE
- 15 – 60 m2
Technical
CABINET PRINCIPLE
- Closed cabinet
LOCAL BUTTONS
- Volume up/down, Play/pause, Step forward/previous, Touch to join, Bluetooth pairing, and 4 favorite buttons
LOUDSPEAKER
- 11 outputs: 7 Internal: Left, Centre, Right / Left and Right side-firing / Left and Right up-firing 4 Virtual: Virtual Left and Right Surround / Virtual Left and Right Front Height
AMPLIFIER
- 12 poweramplifiers2 x 100 watts amplifiers for bass outputs, 10 x 60 watts amplifiers for center channel, left/right/upfiring/side firing outputs
SPEAKER CONFIGURATION
- 12 speaker drivers 2 x 6.5” woofer custom made 1 x 5.25” midrange + 1 x 1” tweeter for custom-made coaxial centre speaker 2 x 3” midrange 4 x 2.5” full range 2 x 1” tweeter
ADANCEDSOUNDFETURES
- Integrated 7.1.4 Dolby Atmos decoding and custom-tuned post-processing with proprietary True Image up-/downmixing algorithm. Advanced Bass management system, Adaptive Bass Linearisation (ABL), Thermal protection
ROOMSENSE
- Automated speaker setup with external microphone: Speaker level and distance Speaker role Speaker position compensation from 30 10,000HzHz Room resonance compensation from 30 – 200Hz
FREQUENCY RANGE
- 28 Hz – 23,000 Hz
MAXIMUM OUTPUT LEVEL (SPL) 1M
- 112 dB SPL
B A S S C A P A B I L I T Y 1 M
- 94 dB SPL
S O U N D F O R M A T H D M I
- Dolby Atmos supporting: Dolby Digital TrueHD, Dolby Digital Plus 7.1 (including DD5.1), Dolby Atmos, Dolby MA, T PCM 7.1 multichannel, MPEG-2, AAC, MPEG-4 HE-AAC
TOUCH UI WITH PROXIMITY SENSOR
- Ultrasonic sound for the detection of a person within 6a 0 cm range
POWER CONSUMPTION
- Typical: 120 W
TV SCREEN
- Optimised for LG OLED C2/G2/Z2 55”/65”/77”
Connectivity
WIRED CONNECTIVITY
3 x HDMI input with CEC input 1 x HDMI eARC with passthrough 4K 120FPS / 8K 60FPS / 40Gbit Analogue audio in via USB-C (3.5 mm passive jack adaptor required. B&O partno. 6271374 ) Ethernet switch with 4 x 1Gbit ports. One port assigned for LG OLED TV connection for integrated control via Beoremote One and Bang & Olufsen App
WIRELESSCONNECTIONS
Dual band WLAN 2.4 / 5GHz IEEE 802.11 b/g/a/n/ac Standard built-in, WiSA compliant. Connect up to eight Beolab loudspeakers wirelessly in addition to the wired loudspeakers. Bluetooth 5.1 (BLE and EDR) Bluetooth Codecs (AAC and SBC)
INTEGRATED MUSIC SERVICES
- Bang & Olufsen Radio
VOICEASSISTANT
- Via an external Google Assistant device
REMOTE CONTROL
- Integrated system control, including LG OLED TV Beoremote One BT Bang & Olufsen App Beoremote Halo for music streaming
STREAMING SERVICES
- Apple AirPlay 2 Bluetooth audio streaming DLChromecast built-in Spotify Connect Deezer
QPlay
MULTIROOM
- Apple AirPlay 2 multiroom, Google Cast group, Beoli, including join of TV / HDMI input sound (not in sync), and analogue line-in
SPEAKER OUTPUTS
- 8 x Wireless Powerlink 8 x Powerlink
PERIPHERAL UNIT CONTROL
- Integrated Peripheral Unit/Set-top Box Controller for two units, allowing you to control set-top boxes with the Bang & Olufsen remote control
MOTORISED TURN FUNCTION
- 1 x micro-fit 4 pin
SOCKET EXTERNAL ROOMSENSE MICROPHONE
- 3.5 mm jack Slider for microphone mute
Other information
DESIGNER
- Noto GmbH
WHAT IS IN THE BOX
Beosound theatre, including 55” or 65”, or 77” side wings, hdmi cable lan cable mains cable soundbar wall bracket (for installing a stand-alone soundbar), soundbar table stand (for installing as a stand-alone soundbar), decoration cover,s installation guide drilling template for wall mounting of soundbar microphone for automated room sense setup tool for removing speaker cover.
LISTENING MODES
- 5 customisable listening modes
LISTENING POSITIONS
- Yes
Basic
- BEOSOUND THEATRE WITH A 55” TV
PLACEMENT OPTIONS
- Table stand
- Motorised floor stand
- Motorised wall bracket
WEIGHT
- Table stand incl LG G2 TV:49 kg Motorised floor stand incl. LG G2 TV: 69 kg Motorised wall bracket incl. LG G2 TV:62 kg
MOTORISED FLOOR STAND
- The maximum turning angle is +/- 35 degrees. It requires a 9 cm distance from the wall. If the rear part of the floor stand is placed against the wall, the screen can be turned: +/-18 degrees.
Product Dimensions
TABLE STAND WITH 55” TV, MOTORISED FLOOR STAND WITH 55” TV, MOTORISED WALL BRACKET WITH 55” TV
Basic
- BEOSOUND THEATRE WITH A 65” TV
PLACEMENT OPTIONS
- Table stand
- Motorised floor stand
- Motorised wall bracket
WEIGHT
Table stand incl LG G2 TV:
- 53 kg
Motorised floor stand incl. LG G2 TV:
- 73 kg
Motorised wall bracket incl. LG G2 TV:
- 68 kg
MOTORISED FLOOR STAND
- The maximum turning angle is +/- 35 degrees. It requires a Bang & Olufsen Beosound Theatre Dolby Atmos Soundbar 14 cm distance from the wall. If the rear part of the floor stand is placed against the wall, the screen can be turned: +/-18 degrees.
Product Dimensions
TABLE STAND WITH 65” TV, MOTORISED FLOOR STAND WITH 65” TV, MOTORISED WALL BRACKET WITH 65” TV
Basic
PLACEMENT OPTIONS
- Table stand
- Motorised floor stand
WEIGHT
Table stand incl LG G2 TV:
- 66 kg
Motorised floor stand incl. LG G2 TV:
- 87 kg
MOTORISED FLOOR STAND
- The maximum turning angle is +/- 35 degrees. It Bang & Olufsen Beosound Theatre Dolby Atmos Soundbar requires a 22 cm distance from the wall. If the rear part of the floor stand is placed against the wall, the screen can be turned: +/-15 degrees.
Product Dimensions
TABLE STAND WITH 77” TV
MOTORISED FLOOR STAND WITH 77” TV
FRAME
Silver aluminium SPEAKER COVER Oak
FRAME
Silver aluminium SPEAKER COVER Grey mélange fabric
FRAME
- Black Anthracite aluminium SPEAKER COVER Dark oak
FRAME
Gold Tone aluminium SPEAKER COVER Light oak
Available for customisation
With the B&O AR Experience app, you can preview the customisation options and view the speakers in different rooms. Ask in store or visit www.bang-olufsen.com for more information.
Customer Support
- Visit: http://www.bang-olufsen.com
- Ph:+45 96841122
- Timing: 9:00 – 12:00
- Company name: Bang & Olufsen UK Ltd
- Company address: 7 Albemarle Street, London, W1S 4HQ, United Kingdom
FAQs
What devices are compatible with the Beosound Stage?
The Beosound Stage has built-in Chromecast, Bluetooth 5.1, optical audio, and HDMI ARC/eARC support. TVs, cellphones, tablets, and other audio devices that allow these connections can all use it.
Can I connect multiple devices simultaneously?
Indeed. Multiple devices can be connected via Bluetooth, optical, and HDMI. The active input is automatically given priority by the soundbar.
Does the soundbar support surround sound formats?
Indeed. When paired with appropriate content, Beosound Stage’s support for Dolby Atmos, Dolby Digital, and DTS creates engrossing surround sound experiences.
Can I adjust the sound profile?
Indeed. Choose from pre-programmed sound modes or change the EQ for treble, bass, and midrange with the Bang & Olufsen app.
Does the Beosound Stage support wireless streaming?
Indeed. Music can be streamed straight from compatible apps and devices using Bluetooth or Chromecast built-in.
Can I pair the soundbar with other Bang & Olufsen speakers?
Indeed. For multi-room audio configurations, Beosound Stage can be connected to additional Beoplay or Beosound speakers, enabling synchronised playback across devices.
How do I update the soundbar firmware?
Updates to the firmware are distributed through the Bang & Olufsen app. To guarantee optimum performance, download and install updates according to the in-app instructions.
Can I mount the soundbar on a wall?
Indeed. Instructions and wall-mount brackets are included with the Beosound Stage. To preserve safety and acoustic performance, make sure the installation is done correctly by following the instructions.
