BLAUPUNKT BP15PM602D 15.6 Inch Portable Monitor User Manual

BLAUPUNKT BP15PM602D 15.6 Inch Portable Monitor

Safety Instruction

• Using Cabinets or stands recommended by the manufacturer of the monitor.
• Only use furniture that can safely support the Products.
• Ensure the Product is not overhanging the edge of the supporting furniture.
• Do not place the product on high furniture without securing both the furniture and the product to a stable support.
• Do not place the product on cloth or other conductive materials.
• Warn children of the dangers of climbing on furniture to reach the monitor or its controls and to call for an adult to assist.
• Do not expose this appliance to rain or moisture, as it may result in fire or an electric shock hazard.
• Do not tamper with or change, or modify the product in any way.
• Only use Accessories outlined and recommended by the manufacturer.
• Please do not expose the product to splashing or water contact
• Please do not place any object on top of the product, including objects filled with liquids such as vases.

Installation

• Before installing this Monitor set, make sure your outlet voltage corresponds to the voltage stated on the product rating label.
• Do not use a damaged power cord, plug, or loose outlet. Doing so may cause an electric shock.
• Do not plug several devices into the same outlet. Doing so may cause the outlet to overheat and start a fire. Make sure the outlet is readily accessible during operation of the equipment.
• Do not bend, twist, or kink the power cord excessively.
• If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center. Failure to do so may result in fire or electric shock.
• When not using the unit for long periods of time or when you are moving the unit, please ensure to disconnect the power cord from the wall socket.
• Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire.
• To maintain the product, do not use any chemical or cleaning agent or wet cloth, please only ensure to utilize a dry cloth to wipe it down from marks or dust, and only after unplugging the product from the power socket.
• Please ensure to contact our call center for any repair or service required for the products.
• Make sure to always carry the Monitor from the sides, and always be sure to have assistance from another person. Do not carry the Monitor from the middle.

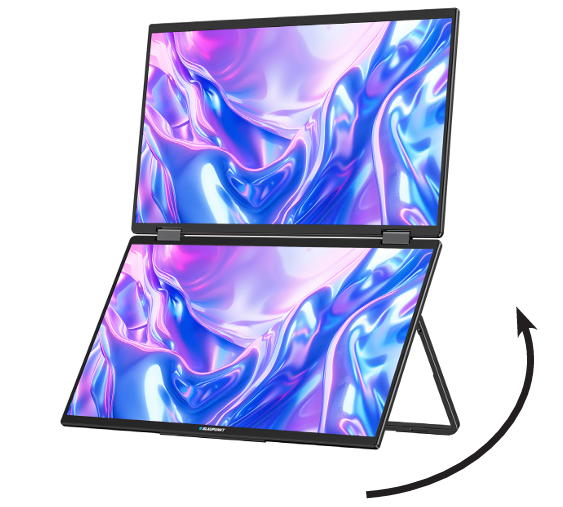

Install the stand by adjusting the kickstand.

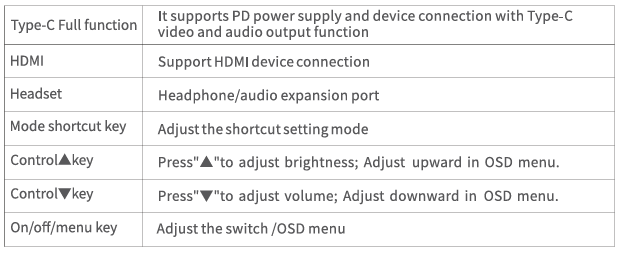

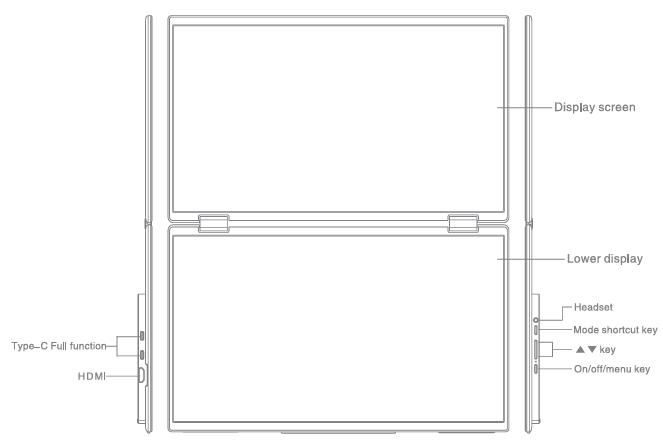

Controls & Connections

Driver Instructions

Apple products, such as laptops, require a driver BLAUPUNKT BP15PM602D 15.6 Inch Portable Monitor to be installed to work. After you set up and connect your portable monitor to your laptop, your laptop will detect a USB drive has been detected. Follow the below:

1. Open USB Drive
2. Open the USBDisplay_macOS package
3. Select Continue
4. Select Continue again
5. If required, enter your computer password and install the software.
6. Wait for the installation to complete, then follow the prompts to restart the device.

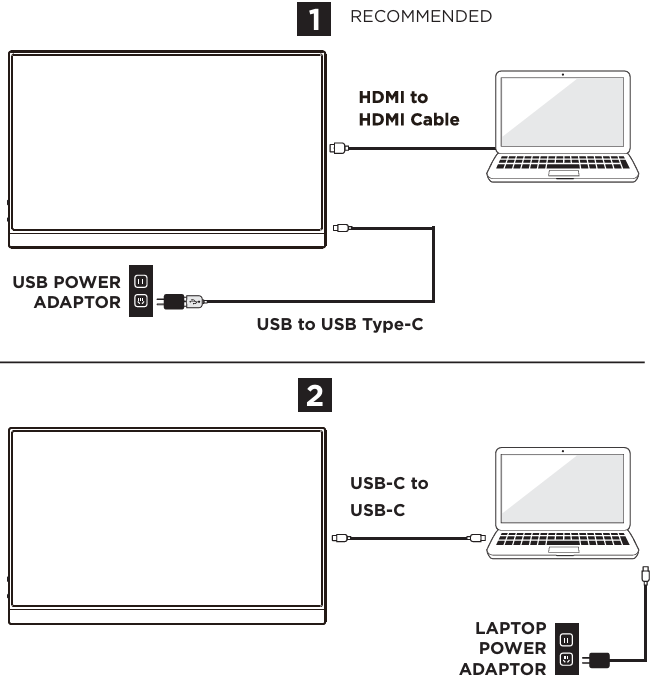

Use

USB TYPE-C

• Can be used for Power (Adaptor Included)
• It can be used for USB Type-C to USB Type-C Video Display.
• Connect the Type to your Portable Monitor.
• Connect the other end of the USB Type-C to your Laptop or PC to display the video from the device to your Portable Monitor.

SPLICING MODE

• Monitor: Splice ON, Computer: Extend ON

EXTEND MODE

• Monitor: Splice OFF, Computer: Extend ON

DUPLICATE MODE

• Monitor: Splice OFF, Computer: Duplicate ON


• Brightness
• Contact
• Mode

COLOUR SETTINGS

• Color Temp
• BLUE LIGHT
• OD

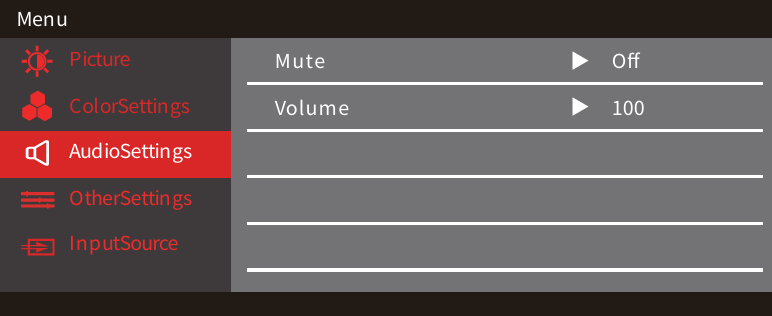

SOUND SETTINGS

• Mute
• Volume

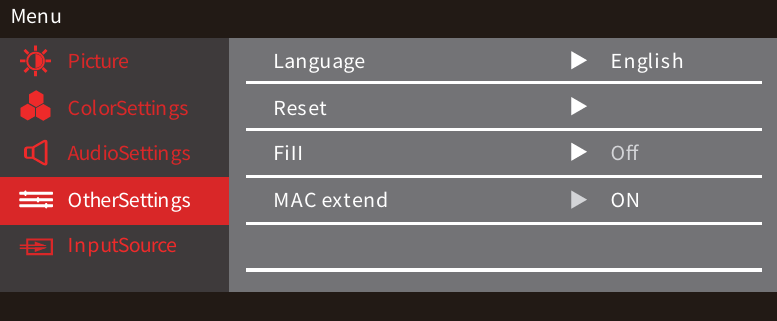

OTHER SETTINGS

• Language
• RESET
• Fill Off 100
• MAC Extend – Switch the extension mode under the Apple system.

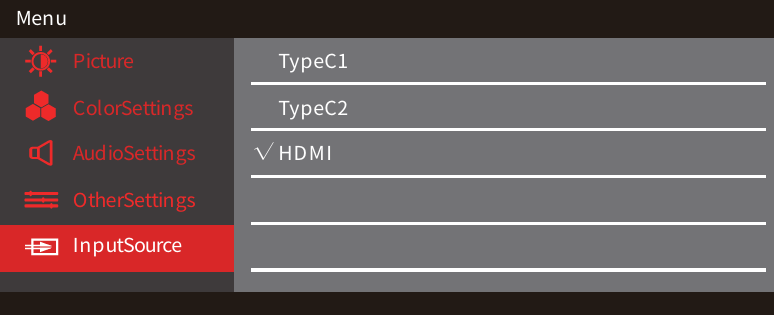

INPUT SETTINGS

• USB-C 1
• USB-C 2
• HDMI

Specifications

Disclaimer

• In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special, consequential damages to property or life, or whatsoever arising out of or connected with the use or misuse of our products.
• This product is not intended for sale in the United States and Canada. If purchased in the U.S. or Canada, this product is purchased on an as-is basis. No warranty, whether expressed or implied,  is provided in the U.S. or Canada.

Recycling and Disposal

• Do not dispose of your old unit in the household trash! Use the return and collection systems available to dispose of the old device.

Customer Service

• Competence Center
  • 2N-Everpol Sp. z o.o. Ul. Puławska 403A 02-801 Warsaw, Poland
  • Call: +48 22 688 08 00
  • E-mail: info@everpol.pl
  • Visit: www.blaupunkt.com
• In case of questions or problems
  • Tel: 00 48 22 688 08 33
  • E-mail: sda@blaupunkt.pl

FAQs

Q: What is the BLAUPUNKT BP15PM602D Portable Monitor used for?

Ans: A 15.6-inch Full HD portable monitor, the BP15PM602D is ideal for dual-screen setups, gaming, media watching, and on-the-go productivity. It works with cellphones, game consoles, laptops, and other devices.

Q: What is the screen resolution and panel type?

Ans: Wide viewing angles and brilliant colour reproduction are provided by the monitor’s IPS display and 1920 x 1080 (Full HD) resolution.

Q: Does the monitor support touch functionality?

Ans: No, there isn’t a touchscreen on the BP15PM602D. It is a display-only tool for screen extension and mirroring.

Q: Is the monitor plug-and-play?

Ans: Indeed! With the majority of USB-C or HDMI-compatible devices, it is made to be plug-and-play. Usually, no extra drivers are needed.

Q: Can I use it with my laptop or MacBook?

Ans: Indeed. One USB-C cable can manage both power and video if your laptop has USB-C with DisplayPort Alt Mode. If not, use USB-A or USB-C for power and Mini HDMI for video.

Q: Does it work with smartphones or tablets?

Ans: It is compatible with the majority of smartphones and tablets that have USB-C video output (also known as DisplayPort Alt Mode). Some iPads (with USB-C) and Android phones are compatible.

Q: Is a power adapter included?

Ans: A 5V/2A power adaptor is included in some packages. If not, you can use any power bank or USB-C charger that has enough output.
