Blaupunkt CO4010 Cordless Orbit Sander Instruction Manual

Blaupunkt CO4010 Cordless Orbit Sander

Safety Instructions

• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to a socket with values corresponding to the values on the rating label.
• Check the grinder housing for damage before each use.
• Ensure that the vents are free from debris.
• The device may only be used in a dry, well-lit environment.
• This tool should not be used by anyone under the age of 16.
• This tool is not suitable for wet sanding.
• Never use the tool if its cable is damaged; have it replaced by a qualified person.
• Do not process materials containing asbestos (asbestos is considered a carcinogen).
•  Always disconnect the plug from the power source before adjusting or changing accessories.
• The noise level during operation may exceed 85 dB (A); wear hearing protection.
• Do not continue to use worn, torn, or badly clogged grinding plates.

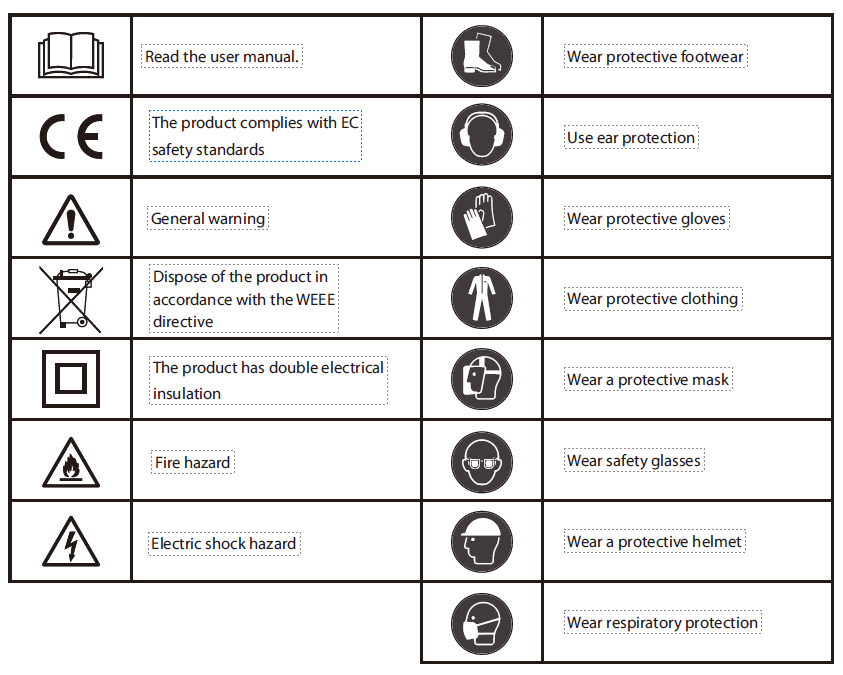

Symbols

• The manual or rating plate on your tool may show symbols.
• These represent important information about the product or instructions on its use.

Protective Equipment

• Wear safety glasses according to EN166
• Use protective masks in accordance with EN149
• Use other precision personal protective equipment, depending on the type of work involved.

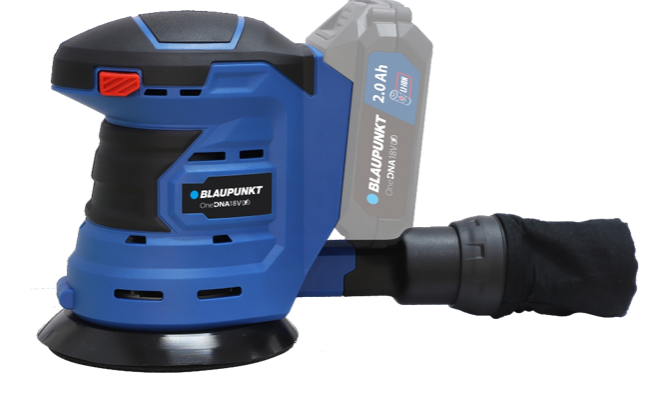

Description

1. Switch ON.
2. Switch OFF.
3.  Sanding sheet.
4. Dust container.
5.  Dust container mounting port

Prepration

1. Fit the dust container, mount the container adapter in the dust container port, and turn counterclockwise (Fig.2). Make sure that the container is properly mounted.
2. Place the appropriate sandpaper on the grinding plate; the sanding sheet is equipped with Velcro and eyelets.
3. This allows a new pad to be applied quickly without the need for a tensioning system. Clean the grinding plate before applying a new sanding sheet Blaupunkt CO4010 Cordless Orbit Sander to it. Spread the sandpaper over the grinding plate and make sure the holes in the plate and the disc match (Fig.3).

Sanding Paper

• Always use the correct sanding paper for the material you want to sand.
• Depending on the grain size, there are degrees of roughness. The thickness is determined by the number on the back of the paper. The higher the number, the finer the grain.
• It is important to use the right paper for the surface. For coarse sanding, use grits up to 80; for soft woods such as larch, pine, or spruce, use a grit size of 60 to 150. For dense hardwoods such as beech or maple, grit sizes up to 220 can be used.

Installing the battery pack

• Using a battery pack incompatible with the power tool may result in abnormal performance or failure of the power tool.
• Insert the battery pack into the handle until the battery pack latch clicks (the battery pack should be flush with the receptacle edges on the power tool).

Charging

• Insert the charger plug into the battery socket
• Connect the charger to the power source
• The time to fully charge the battery at 20°C is 3 to 5 hours
• The indicator light may not light up if the battery Blaupunkt CO4010 Cordless Orbit Sander overheats due to direct sunlight or other factors. If this happens, allow the battery to cool down and then restart the charging process.
• Due to their internal chemical composition, batteries that have never been used or that have not been used for a long time may not reach their full capacity during the first or second use. This is temporary. Repeat the charging process three times to restore optimum battery performance.

Operation

1.  Position the entire grinding surface on the workpiece.
2.  Switch on the unit using the switch ON (Fig. 4).
3.  Run the machine along the surface to be sanded in a circular motion. No additional pressure should be applied to the machine when sanding;g, the weight of the machine itself is usually sufficient to ensure optimum speed and good results.
4.  When you have finished working, switch off the appliance using the switch OFF (Fig. 4).

Cleaning & Maintainance

Clean the unit with a damp cloth. Switch off the machine before cleaning.

Technical Specification

• Oscillation speed (no load): 10000/min
• Oscillating motion diameter: 2 mm
• Diameter of grinding paper: 125 mm
• Diameter of the grinding plate: 125 mm
• Voltage: 18V d.c
• Battery type: 18 V Li-Ion; BP1820 2.0Ah (not included), BP1840 4.0 Ah recommended (not included)
• Dimensions: 22 x 13 x 17 cm
• Weight: 1 kg

Noise

Typical A-weighted noise level measured in accordance with EN 62841.

• Sound pressure level (LpA): 76,27 dB (A)
• Measurement uncertainty (K): 3 dB (A)
• Noise level during operation may exceed: 87,27 dB (A).

Vibrations

Total vibration value (triaxial vector sum) measured in accordance with EN 62841.

• Vibration emission (ah): 9,479 m/s²
• Measurement uncertainty (K): 1,5 m/s²
• Operating mode: Sanding

Customer Support

• WhatsApp:  9156910994
• Toll Free: 1800 209 6820
• Email: support@blaupunktcar.in

FAQs

What type of battery does the CO4010 use?

A 20V lithium-ion rechargeable battery powers the CO4010. The same battery may work with other Blaupunkt instruments because it is a part of their cordless power tool platform.

What are the orbital speed settings?

The variable speed control of the CO4010 usually ranges from 6,000 to 12,000 orbits per minute (OPM). To choose the right pace for your task, turn the speed adjustment dial.

Can the battery overheat?

Yes, the battery may overheat if used heavily for an extended period of time. The tool may automatically turn off if it becomes too hot because the battery has built-in thermal protection.

Can I use the CO4010 for polishing as well as sanding?

Rather than being a polisher, the CO4010 is primarily a random orbital sander.

What is the sanding pad diameter?

125mm (5 inches) in diameter, the basic sanding pad accommodates hook-and-loop backed sanding discs with eight holes for dust extraction alignment.

Can I use the sander on drywall or plaster walls?

Yes, but to prevent gouging, use paper with a fine grit (180–240) and work slowly.

Does the CO4010 have a soft start feature?

Indeed, the CO4010 has soft start technology, which increases speed gradually to minimise jerks and enhance control when sanding.

Can I replace the hook-and-loop sanding pad myself?

Indeed. To guarantee fit and functionality, only use replacement parts that have been certified by Blaupunkt.

Is there a storage case included?

The usual packaging does not necessarily include a storage container. Examine the contents of the box or the product listing.
