BLAUPUNKT IMB301 150 W Ice maker Instruction Manual

BLAUPUNKT IMB301 150 W Ice maker

Safety Instructions

1. Before using this device, read the instruction manual and follow the instructions inside.
2. Before maintenance work, always disconnect the unit from the power supply.
3. When unplugging the power cord from the electrical outlet, hold it by the BLAUPUNKT IMB301 150 W.
4. Unplug the ice maker plug only and remove the plug carefully.
5. Never pull the cable, as it may cause damage to the plug or power cord.
6. Damage to the power cord or plug can lead BLAUPUNKT IMB301 150 W Ice maker to an electrocution hazard.
7. Never leave the product connected to the power source without supervision.
8. Never put the power cable, the plug, or the whole device into the water or any other liquids.
9. The device should be cleaned regularly, complying with the recommendations described in the section on cleaning and maintenance.
10. Do not place the device near sources of heat, flame, an electric heating element, or a hot oven. Do not place on any other device.

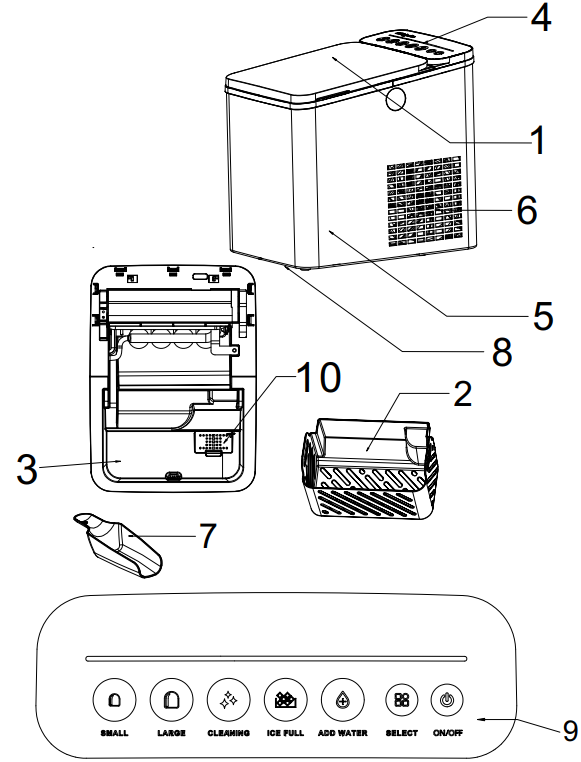

Description

1. Transparent lid
2. Ice basket
3. Water tank
4. Control panel
5. Front casing
6. Ventilation opening
7. Ice paddle
8. Lower drain plug
9. START/PAUSE button
10. Filter

Before the initial start-up

1. Remove any stickers and adhesive tape from the appliance. Open the transparent window and check that all accessories (ice costs, ice paddle) are in place.
2. Thoroughly clean the inside of the appliance, including the water tank.
3. Place the appliance on a level countertop, away from sunlight and heat sources. Ensure a clear space of at least 15 cm around the appliance to allow free airflow.

Control panel description

• ICE FULL: Light indicating a full ice container
• ADD WATER: Indicator light for lack of water
• LARGE / SMALL: Choice of larger or smaller ice cubes

Use

1. After connecting to power, the device enters standby mode and the LARGE indicator light ashes.
2. Each press of the SELECT button changes the function between SMALL, LARGE, and CLEANING.
3. Press the ON/OFF button to confirm the selection.
4. Cleaning mode: Do not disconnect the power during cleaning.
5. After cleaning is complete, the device will automatically enter standby mode. Low water alarm: the light will come on to indicate that there is no water in the tank.
6. Add water and press the START/PAUSE button to restart the appliance. Full ice container alarm. When the ice container is full, the “ICE FULL” light will illuminate and the unit will stop.
7. The ice must be emptied from the container for the appliance to resume operation.
8. When the ice level drops below the sensor position, the appliance will restart automatically.
9. Open the lid, remove the ice tray, and add water to the reservoir.
10. There is a mark on the “MAX” scale in the reservoir. The water should not exceed the MAX level.
11. If the water exceeds the maximum level, open the bottom drain plug, let the excess water out.
12. Connect the power supply, and press the START/PAUSE button to switch on the unit.

Cleaning & Maintainance

• Clean the ice basket, water tank regularly. When cleaning, unplug the appliance from the power.
  Supply and remove the ice cubes.
• Use a diluted solution of water and vinegar, citric acid, or a small amount of dishwashing liquid to clean the inside and outside surface of the ice cube maker.
• Rinse thoroughly before use. Do not immerse the appliance in water or wash it under running water!
• The ventilation openings in the appliance housing or in the enclosure should be free of dirt blocking the air ow.
• Do not use mechanical devices or other means to accelerate the defrosting process.
• Using the appliance again after a prolonged break from operation may cause the pump to take longer and may run louder to draw in water and remove air from the circuit.

The device is compliant with EU directives

• Low-voltage directive (LVD)
• Electromagnetic compatibility (EMC)

When this crossed-out wheeled bin symbol is attached to a product, it means that the product is covered by the European Directive 2012/19/EU.

Please inform yourself about the local separate collection system for electrical and electronic products. Used appliances should be delivered to the dedicated collection points due to hazardous components, which may affect the environment.

Technical data

• Voltage: 220-240 V/50 Hz
• Power: 150 W
• Daily ice capacity: 12 kg/24 hrs.
• Ice storage capacity: 600 g
• Water tank capacity: 1,1 l Weight: 6.3 kg
• Refrigerant: R600a, 0,013 kg

Customer Service

• Competence Center
  • Address: 2N-Everpol Sp. z o.o. Ul. Puławska 403A 02-801 Warsaw, Poland
  • Call: +48 22 688 08 00
  • E-mail: info@everpol.pl
  • Visit: www.blaupunkt.com
• In case of questions or problems
  • Tel: 00 48 22 688 08 33
  • E-mail: sda@blaupunkt.p

FAQs

Q: What is the daily ice production capacity of the IMB301?

Ans: Depending on the water input conditions and surrounding temperature, the BLAUPUNKT IMB301 can generate 12 to 15 kg of ice each day.

Q: How long does it take to make the first batch of ice?

Ans: Depending on the ice size chosen and the ambient temperature, the first batch usually takes 7 to 10 minutes after the equipment is started.

Q: What type of ice does the IMB301 produce?

Ans: It creates hollow, bullet-shaped ice cubes that are ideal for smoothies, cocktails, and everyday use around the house.

 Q: Can I select different ice cube sizes?

Ans: Indeed. The control panel on the IMB301 lets you choose between tiny and large ice cube sizes.

Q: Does the ice maker require a water line?

Ans: Plumbing is not necessary. It is convenient for both home and portable use because you only need to manually replenish the water reservoir.

Q: How will I know when the ice basket is full?

Ans: The control panel of the device features a “Full Ice” indicator light. Until any ice is removed, it automatically stops working.

Q: What happens if the water runs out?

Ans: The machine will halt until the reservoir is filled, and the “Add Water” indicator will illuminate.

Q: Can I leave ice in the unit for later use?

Ans: A freezer is not what the IMB301 is. With time, the ice will start to melt. Although melted water is automatically recycled to create new ice, if you plan to store the ice for an extended period of time, it is advisable to move it to a freezer.
