Bose AMU108 ArenaMatch Utility Loudspeakers User Guide

Bose AMU108 ArenaMatch Utility Loudspeakers

Safety Instructions

1. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
2. Only use attachments/accessories specified by the manufacturer.
3. Do NOT make unauthorised alterations to this product.
4. If you are not sure about installing the bracket, contact a qualified professional installer.
5. The use of such hydrocarbon-based lubricants, solvents, or cleaning agents on or around the mounting anchors and screws can lead to degradation of the plastic material, possibly resulting in cracking and premature failure of the product.
6. Keep the product away from fire and heat sources.
7. Do NOT place naked flame sources, such as lighted candles, on or near the product.
8. Consult the local authority having jurisdiction before installing this product.
9. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.

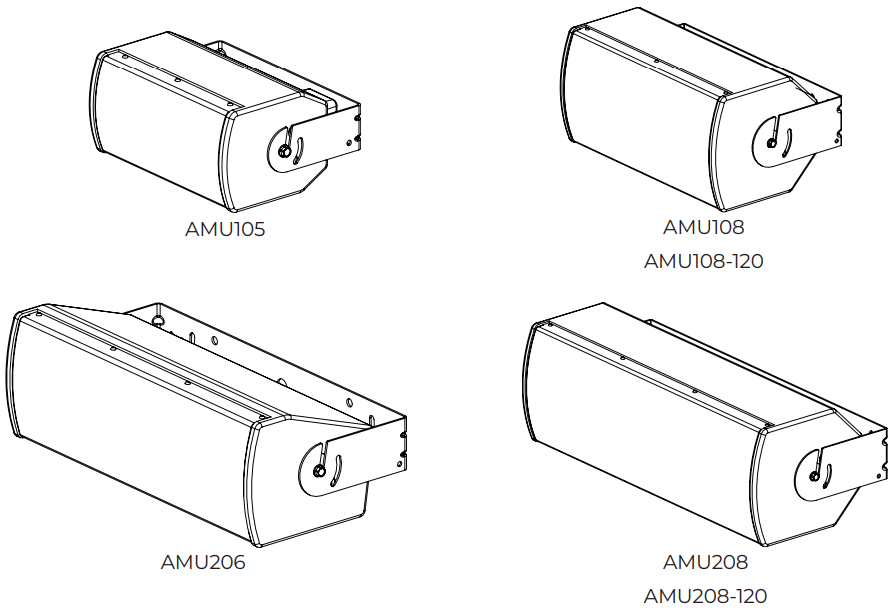

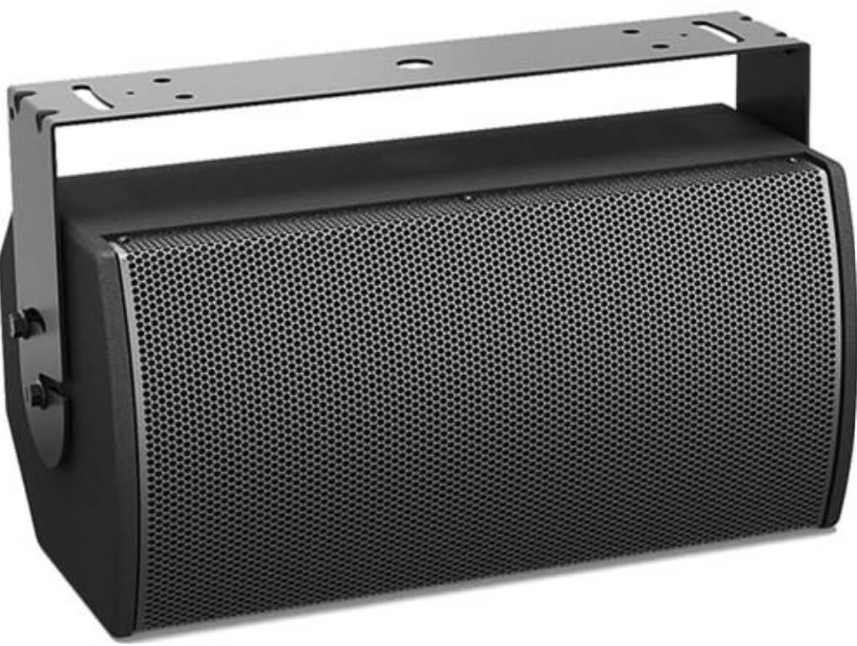

ArenaMatch Utility Loudspeakers

Package Contents

Each ArenaMatch Utility loudspeaker carton includes the following.g

Optional Accessories

The optional mounting accessories have not been assessed to EN 54-24.

1. Surface-Mount Pan and Tilt Bracket
2. AMUPOLEAT Pole Adapter
3. AMURAIL Suspension Rail

Maintaining Weather Resistance

ArenaMatch Utility loudspeakers are rated for direct-exposure outdoor installations. To maintain the weather Resistance, please observe the following precautions:

1. During installation, angle the loudspeaker at least 5° downward to reduce the potential of rain compromising the performance of the loudspeaker.
2. All mounting holes must be sealed off with steel screws or the included plastic plugs (pre-installed).
3. The gland nut that secures the loudspeaker cable is factory sealed.
4. Do not remove the gland nut of the other weather-resistant seal will be broken.

Recommended Tools

The following tools are recommended for assembly of an ArenaMatch Utility loudspeaker system:

• Flathead screwdriver
• 2 Phillips-head screwdriver
• 10-millimetre socket or wrench
• 5-millimetre hex key
• T3 square drive (included)

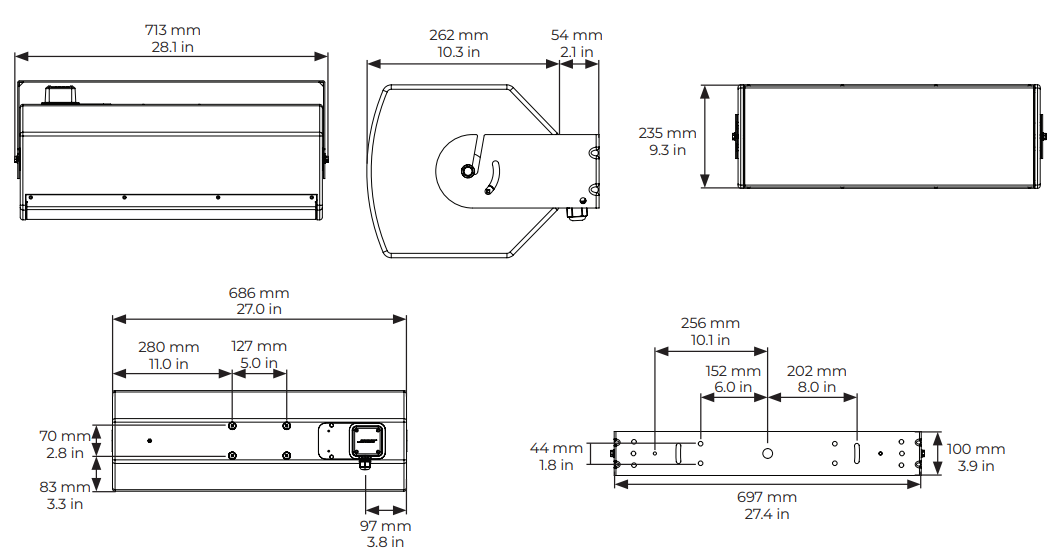

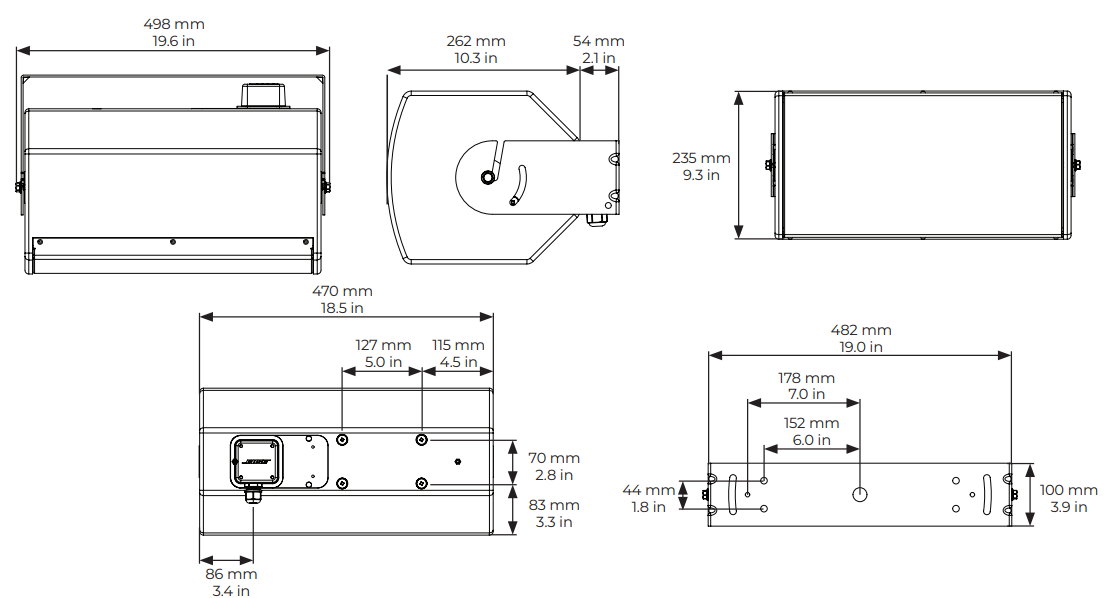

Dimensions

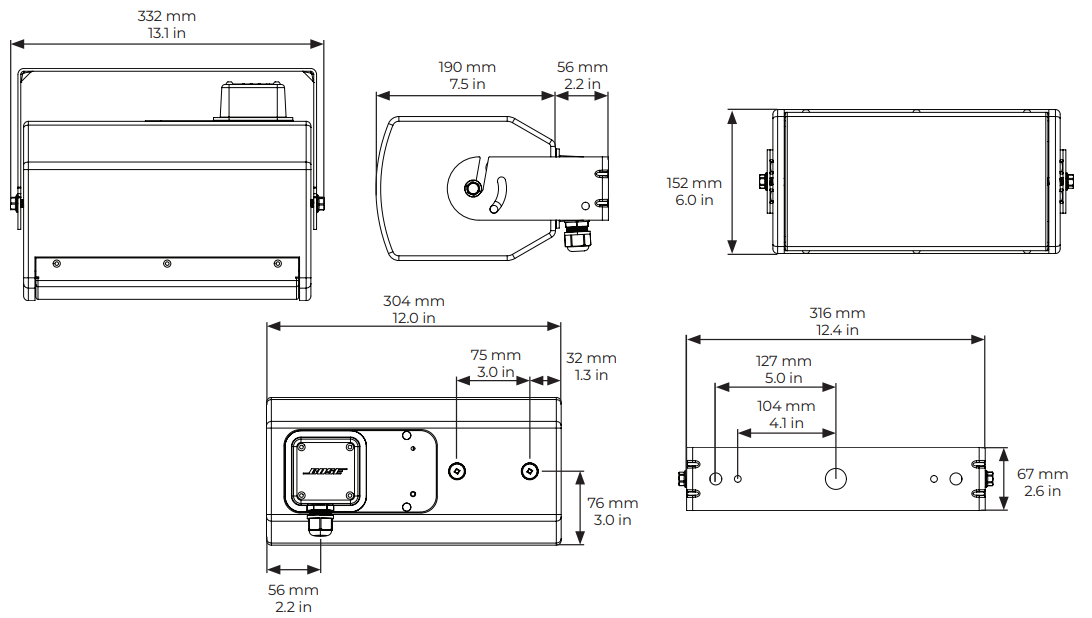

AMU105

Product net weight: 6.5 kg (14.4 lb) / 7.5 kg (16.5 lb) with U-bracket

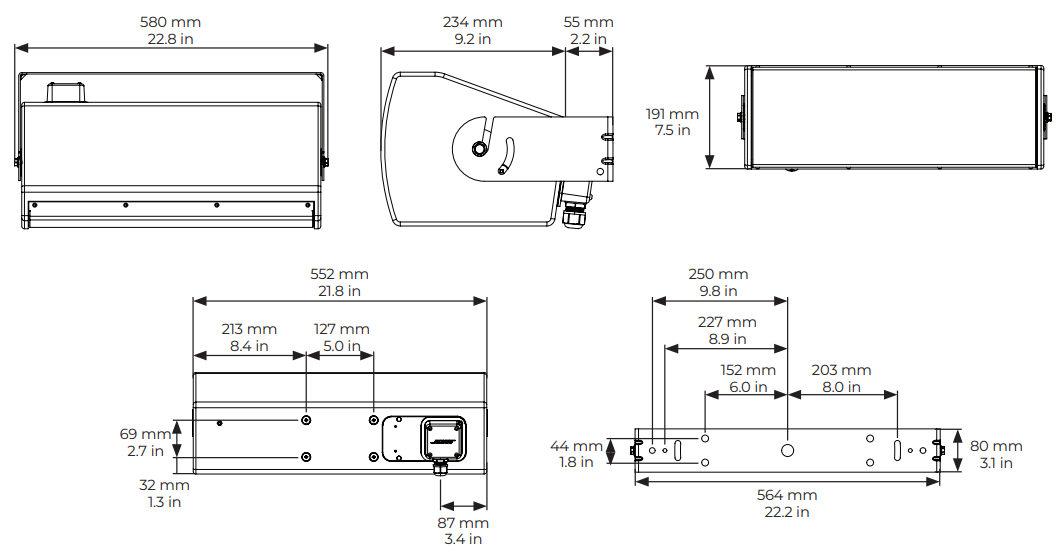

AMU108 and AMU108-120

Product net weight: 10.6 kg (23.3 lb) / 12.6 kg (27.7 lb) with U-bracket.

AMU206

Product net weight: 12.2 kg (26.8 lb) / 13.8 kg (30.5 lb) with U-bracket

AMU208 and AMU208-120

Product net weight: 17.0 kg (37.5 lb) / 19.5 kg (43.0 lb) with U-bracket

Installation

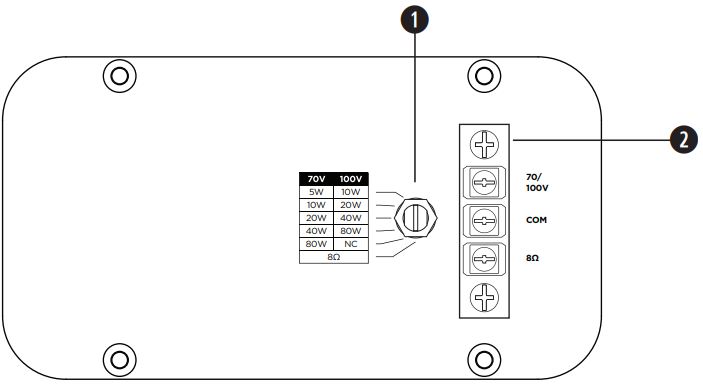

Input Panel

The input panel for all models is identical. They include a single screw-terminal barrier strip. Each terminal accepts a wire gauge of 10 AWG (5.3 mm2) to 18 AWG (0.8 mm2).

1. Tap switch: Rotate to adjust tap setting. Use a flathead screwdriver.
2. Barrier strip

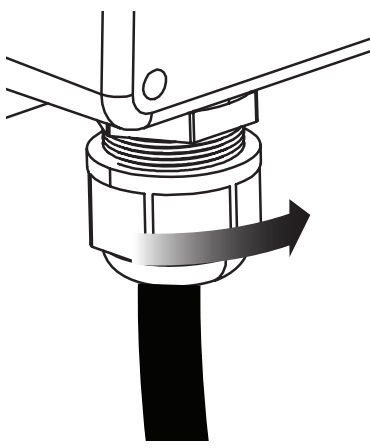

Securing the Wiring

Feed the wiring through the gland nut on the bottom of the input panel. Do not over-tighten. Gland nut is rated IP68.

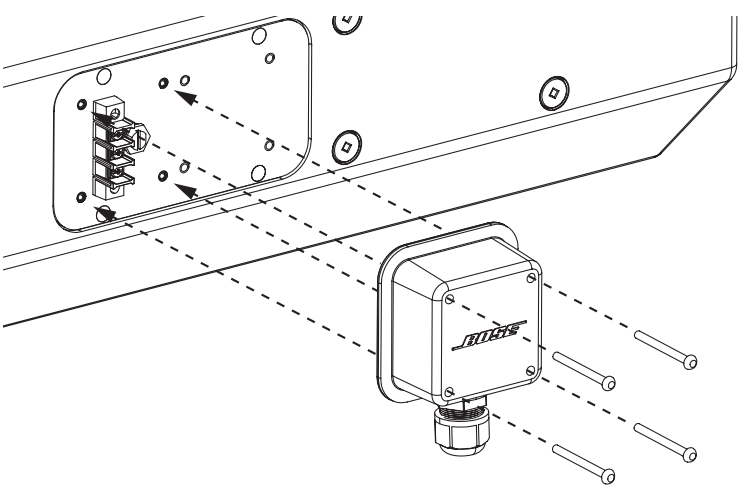

Attaching the Input Panel Cover

ArenaMatch Utility loudspeakers are shipped with the rear input panel cover not installed. Once you’ve made input wiring connections, secure the cover over the input panel with the included M4 screws.

Loudspeaker Pitch Angles

The maximum pitch angles for AMU loudspeakers when horizontally mounted with the included U-bracket are as follows

The pitch angle is defined between the loudspeaker reference axis and the perpendicular axis to the mounting surface.

Mounting

1. Your loudspeaker installation design) on each side of the loudspeaker. loudspeaker. Do not tighten.
2. Hold the U-bracket in the mounting location and mark the holes.
3. Drill holes into the mounting surface using previously marked positions.
4. Attach the U-bracket to the building surface using appropriate fasteners (not included)
5. Hang the loudspeaker on the bracket by lowering the M8 screws into the bracket slots, keeping the rubber washers between the bracket and the speaker enclosure.
6. Connect your wiring to your loudspeaker.
7. Feed the wiring through the gland nut on the input panel cover and tighten the gland nut.
8. Attach the input cover using the included M4 screws (see Attaching the Input Panel Cover on page 8).
9. Position the loudspeaker in your desired pitch angle.
10. Insert an M8 screw through the remaining open insert on each side of the loudspeaker.
11. Tighten the four M8 screws with a 10-millimetre socket tool using a torque not to exceed 13.6 to 20.3 newton·meters (10 to 15 pound·feet).

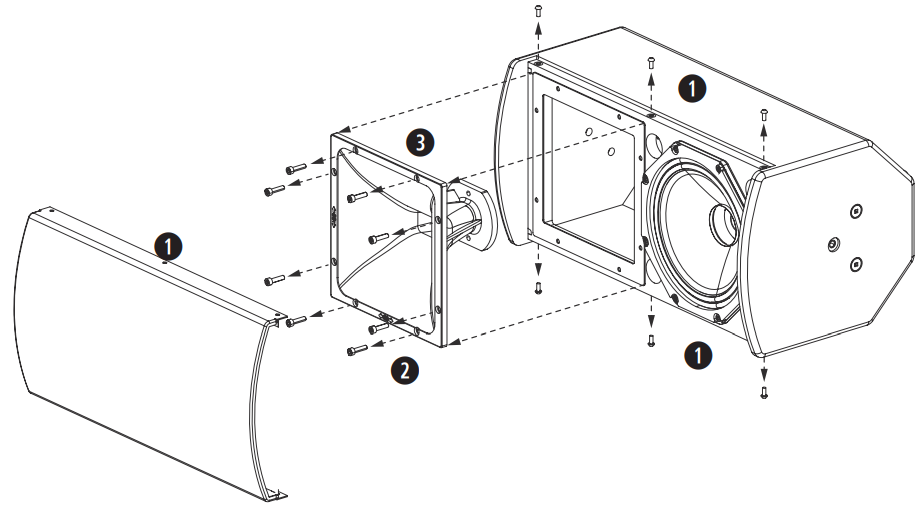

Rotating the High-frequency Waveguides

To rotate the waveguide for vertical mounting, do the following.

1. Remove the screws (AMU108 and AMU108-120: 6 screws; AMU206, AMU208, and AMU208-120: 8 screws) from around the loudspeaker grille and remove the grille from the enclosure.
2. Remove the eight waveguide screws.
3. Pull the waveguide forward, rotate it 90°, and place it back into the enclosure.
4. Secure the waveguide using the screws removed in Step 2.
5. Reattach the grille using the screws removed in Step 1.

Amplifier Power

Selecting the proper amplifier size for a given loudspeaker requires analysis of the transducer’s long-term (or RMS) power rating, dynamic range of the input-source material (crest factor), desired sound pressure levels, and other factors.

Technical Specifications

Footnotes

1. The specifications data were measured in an anechoic chamber, free-field. The reference plane is on the grille surface. The reference axis is perpendicular to the centre of the grille surface. The horizontal plane contains the reference axis and is parallel to the horizontal axis defined by the longest baffle dimension.

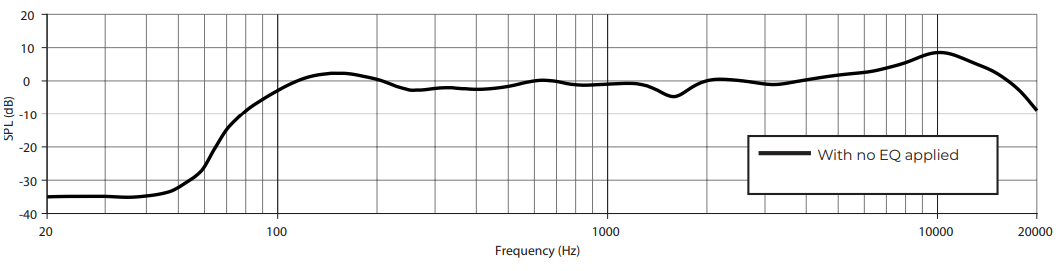

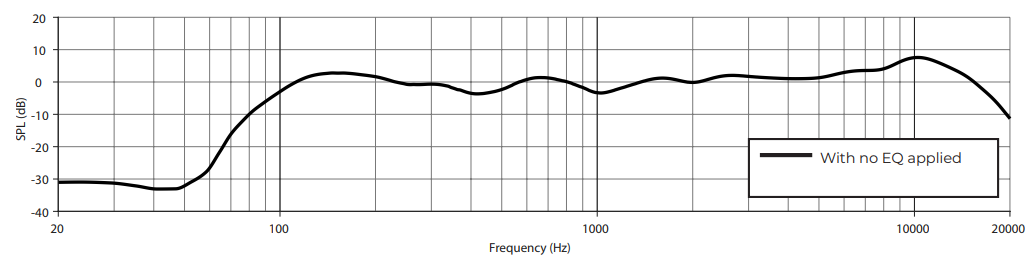

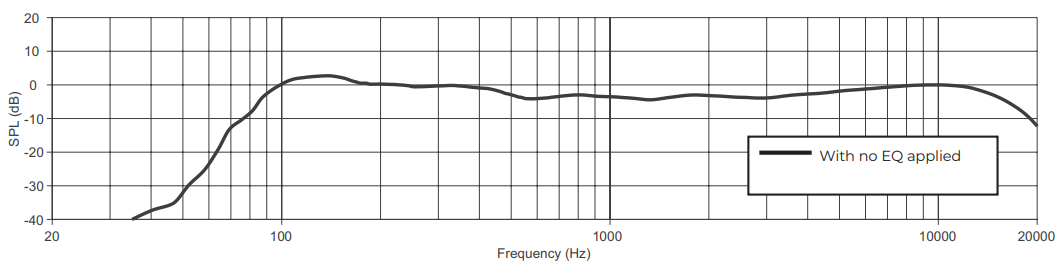

AMU105 Frequency Response

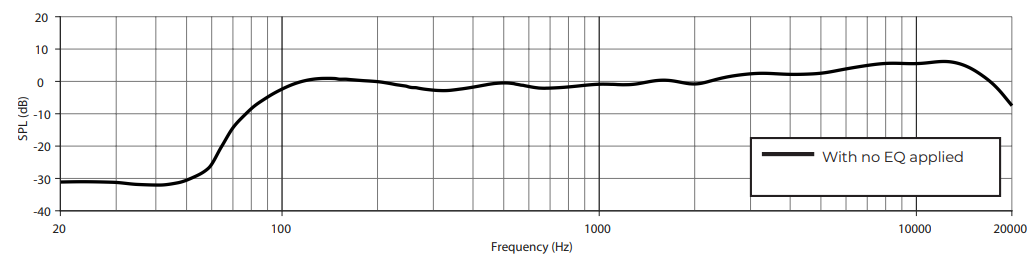

AMU108 Frequency Response

AMU108-120 Frequency Response

AMU206 Frequency Response

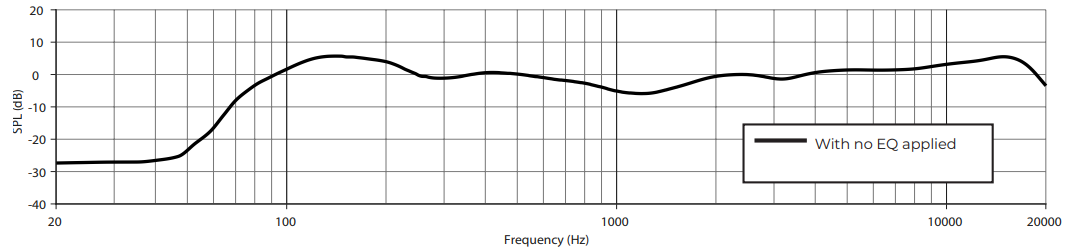

AMU208 Frequency Response

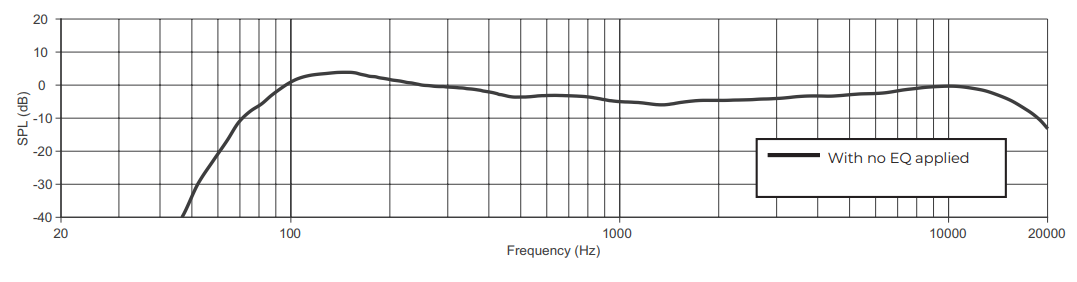

AMU208-120 Frequency Response

Regulatory Compliance

Environmentally rated to IP55

• This product conforms to all applicable EU directive requirements.
• Proper disposal and recycling help protect natural resources, human health, a nd the environment.
• For more information on the disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Warranty

• This product is covered by a limited warranty.
• For warranty details, visit BoseProfessional.com/warranty

Customer Support

• Tel: 1-800-278-1083
• Website: https://support.bose.com/

MA 01748 USA Bose is a trademark of Bose Corporation. ArenaMatch is a trademark of Transom Post OpCo LLC. ©2024 Transom Post OpCo LLC.

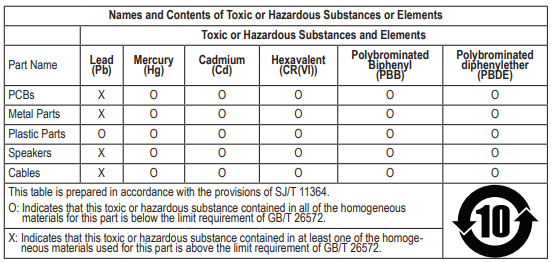

China Restriction of Hazardous Substances Table

Taiwan Restriction of Hazardous Substances Table
