Bose FreeSpace FS2P Pendant Loudspeaker Instruction Guide

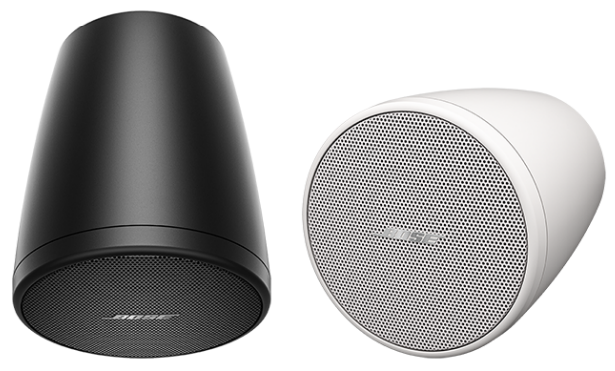

Bose FreeSpace FS2P Pendant Loudspeaker

Safety Instructions

1. Do not use this apparatus near water.
2. Clean only with a dry cloth.
3. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
5. Only use attachments/accessories specified by the manufacturer.
6. Do not mount the product in locations where it may be exposed to water or condensation.
7. Do not expose this product to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the product.
8. Do not mount on surfaces that are not sturdy or that have hazards concealed behind them, such as electrical wiring or plumbing.
9. Ensure the bracket is installed by a qualified professional installer and in accordance with local building codes.
10. Use only the hardware and accessories included or specified by Bose Professional for use with FreeSpace FS2P loudspeakers.
11. Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product. Do not make unauthorized alterations to this product.
12. Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose Professional, including but not limited to lubricants, cleaning agents, contact sprays, or hydrocarbon-based solvents.
13. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.
14. Clean speakers using only a dry cloth. Do not expose the loudspeaker to soap, detergent, mineral oil, alcohol, or other cleaning agents or chemicals.

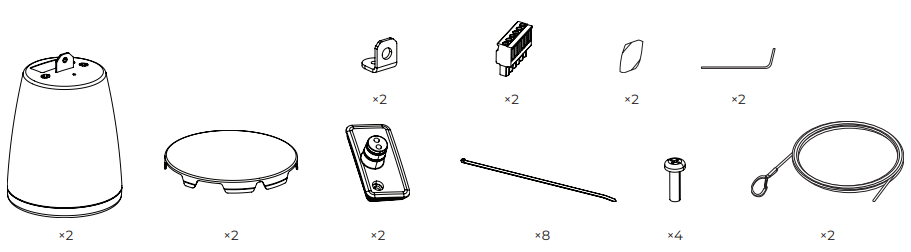

Package Contents

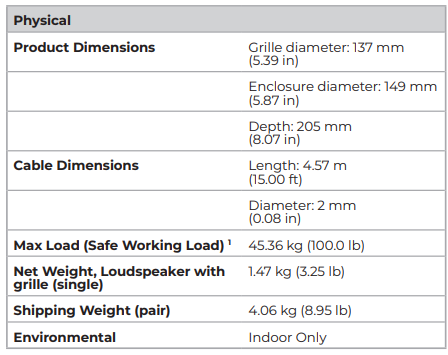

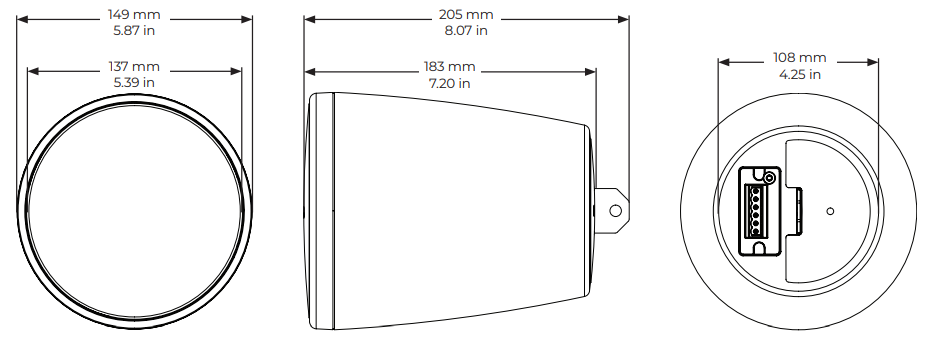

Dimensions

Product Ratings

• Input Voltage: 70V/100V
• Impedance: 16 Ω, 16 W
• Current or Power: (70V): 1W, 2W, 4W, 8W, 16W; (100V): 2W, 4W, 8W, 16W

Setup

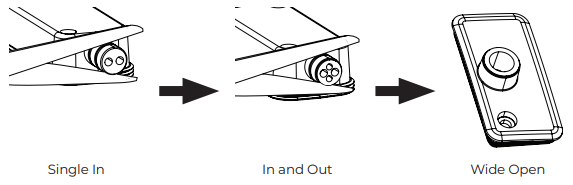

Weather-resistant Input Cover

The weather-resistant input cover is designed for three different wiring scenarios (see above). To change the configuration of the input cover to support your wiring scenario, cut along the perforation on the rubber conduit.

Indoor-only applications do not require the use of the input cover. If using the wide open rubber conduit configuration, it is the installer’s responsibility to seal against water ingress into the Euroblock connector.

Wiring the Loudspeaker

Wire Gauge

The FreeSpace FS2P loudspeaker is designed to work with 18 AWG (0.8 mm2 ) to 14 AWG (2.1 mm2 ) size wire only.

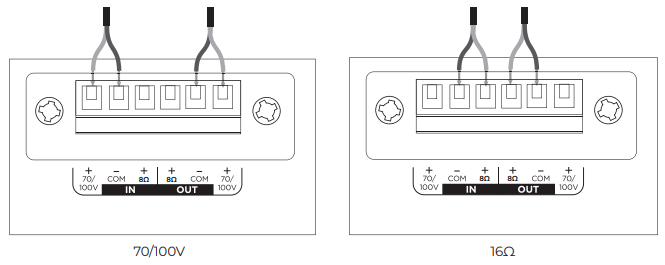

Connection Diagrams

Expose six millimeters (1/4 inch) of bare wire to attach to the terminals. Note: The loudspeaker is not rated for use with a rigid conduit. The loudspeaker is suitable for a flexible conduit or wiring connection only.

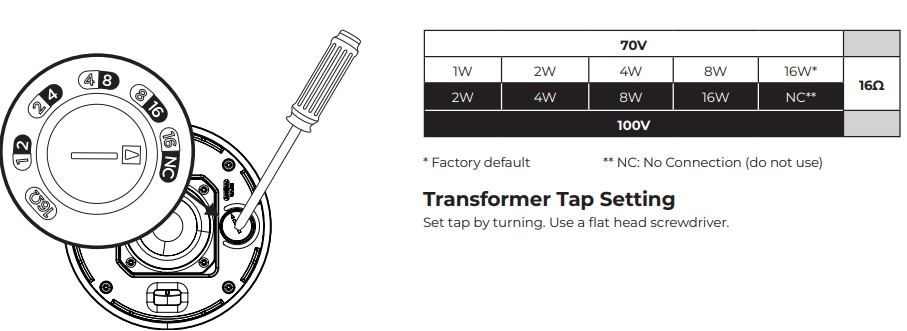

Loudspeaker Settings

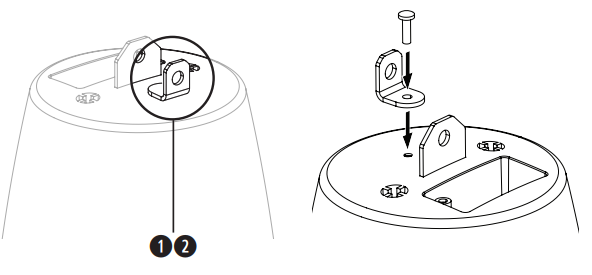

Using a Safety Cable

• Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety.
• Choose a mounting position, method, and hardware consistent with local building codes and regulations.
• Bose Professional recommends using (1) a safety wire or (2) a safety cable as a secondary securing mechanism (not included).
• See the diagram to the right for safety attachment points.
• Follow the manufacturer’s instructions for any secondary securing mechanism implemented.

Mounting the Loudspeaker

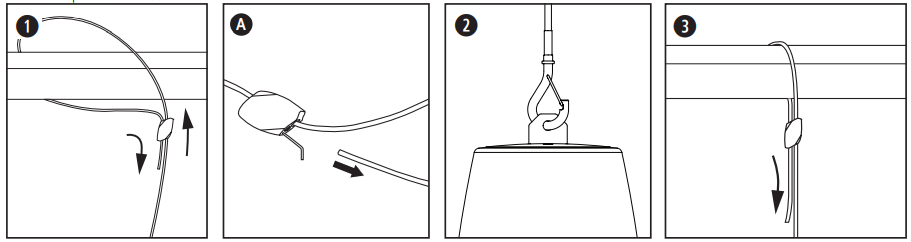

Insert the included suspension cable through the cable fastener and wrap the cable around a support structure; secure the cable using the cable fastener.

1. To loosen the cable, insert the fastener tool into the release hole and adjust the cable.
2. Secure the cable clip to the loudspeaker suspension cable attachment point.
3. Pull the loose end of the suspension cable to adjust the loudspeaker to the desired height.
4. Once you’ve reached the desired loudspeaker height, cut away any excess cable.
5. Trim any frayed filaments with wire cutters after cutting to length.

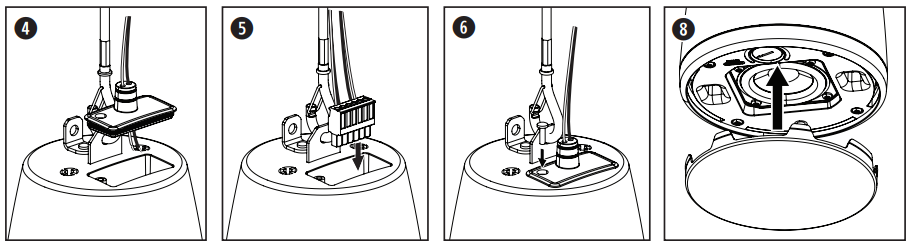

6. Insert the loudspeaker wiring through the rubber conduit of the input cover.
7. Wire the connector and insert the connector into the loudspeaker.
8. Place the input cover over the connector and press it firmly against the loudspeaker to create a tight seal. Secure the input cover using the input cover screw.
9. Use the included cable ties to secure the wiring to the suspension cable.
10. Line up the grille with the inside of the loudspeaker enclosure so that the two smallest grille tabs are on either side of the tap switch. Push the grille on the loudspeaker until it is secured in place.
11. If necessary, push the grille tabs inward to properly fit into the loudspeaker enclosure.

Removing the Grille

Insert a small tool (no larger than 1.5 millimeters in diameter) through the grille perforation at the edge of the grille and pull to disengage the grille.

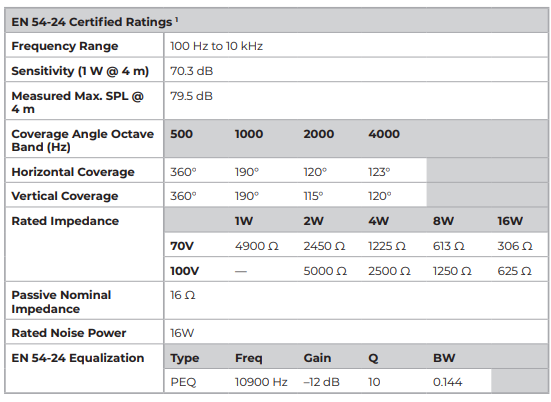

Specifications

Systems for Buildings

Environmental: Type A (indoor applications)

• Suitable for installation using Class 1, Class 2, or Class 3 wiring methods in accordance with NFPA 70, National Electric Code, 2002, Article 640.
• Suitable for use with fire alarm circuit wiring methods in accordance with NFPA 70, National Electric Code, 2002, Article 760.
• NFPA 70, National Electric Code, 2002, Article 300-22 (c). NFPA 90-A, 2002, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.10.2.6.5.
• EMC Directive 89/336/EEC and Article 10 (1) of the directive, EN50081-1 and EN50082-1 as signified by the CE mark.
• The FreeSpace FS2P loudspeaker has been designed to the requirements defined in the following European regulatory specification for combination systems.
• British Standard Code of Practice BS 5839, Part 8, when used with the ceramic terminal block and thermal fuse. Tested to IEC60268-5.

Foot Notes

The specifications data were measured in an anechoic chamber, free-field. The reference plane is on the grille surface and perpendicular to the reference axis. The reference axis is perpendicular to the center of the grille surface. The horizontal plane contains the reference axis and is perpendicular to the reference plane.

On-axis Frequency Response

Regulatory Compliance

• This product conforms to all applicable EU directive requirements.
• Proper disposal and recycling help protect natural resources, human health, a nd the environment.
• For more information on the disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Warranty

• This product is covered by a limited warranty.

Customer Support

• Tel: 1-800-278-1083
• Website: https://support.bose.com/

MA 01748 USA Bose is a trademark of Bose Corporation. ArenaMatch is a trademark of Transom Post OpCo LLC. ©2024 Transom Post OpCo LLC.

China Restriction of Hazardous Substances Table

Taiwan Restriction of Hazardous Substances Table

FAQs

Q: How should I install the FS2P for optimal performance?

Using the provided cable and mounting tools, hang the FS2P from the ceiling. Place it so that the speaker can cover the designated listening area unhindered. To lessen audio distortion, keep your distance from shiny surfaces and walls.

Q: Can I connect multiple FS2P speakers?

It is possible to link several FS2P devices to a single distributed audio system. To balance output levels, make sure the entire load doesn’t exceed the amplifier’s rated capacity and make the necessary adjustments to the speaker’s power tap.

Q: What are the power and impedance specifications?

With configurable power taps (often 2.5 W, 5 W, 10 W, and 20 W) and an 8-ohm impedance for low impedance applications, the FS2P is compatible with 70V or 100V distributed audio systems. To avoid damage, always make sure the tap you’ve chosen matches the output of your amplifier.

Q: How do I connect the FS2P to an amplifier?

Make use of the input terminals on the speaker’s top. Use the proper power tap to connect 70V/100V systems. Connect to the 8-ohm terminals for low-impedance wiring while keeping an eye on the proper polarity (black = –, red = +).

Q: Is the FS2P weather-resistant?

The FS2P is designed to be used in semi-protected outdoor spaces or indoors. Steer clear of intense weather, rain, and snow. Additional protection could be necessary for fully outside applications.

Q: How do I maintain or clean the speaker?

Use a gentle, dry cloth to clean the grille and cabinet. Water, chemicals, and abrasive cleaners should not be used. Frequent dusting guarantees longevity and the best possible sound quality.
