CAD-Audio GXLD2QM Wireless Microphone Instructions Manual

CAD-Audio GXLD2QM Wireless Microphone

Microphone System

The GXLD2QM™ Digital frequency agile wireless system includes the following features:

• Digital High Definition Audio
• Frequency Agile Design
• Dual Handheld System
• QuickMic™ connection to your mixing board via integrated ¼” jack
• QuickMic™ is supplied with USB and TRS 3.5mm adapters for added flexibility
• Handheld transmitters feature the CADLiveStyle Neodymium capsules
• Handheld transmitters and receivers feature low battery indicators
• Handheld transmitters utilize AA Batteries with >8 hours of operation
• 2 Year Warranty

Receiver

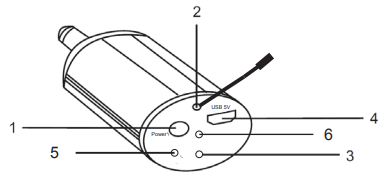

1. ON/OFF Switch
2. Antenna
3. Charge indicator, Red charging, Green charged
4. DC 5V charging port
5. . Low battery indicator, Blue on, Red needs charging
6. RF indicator, Red Ch A, Green Ch B

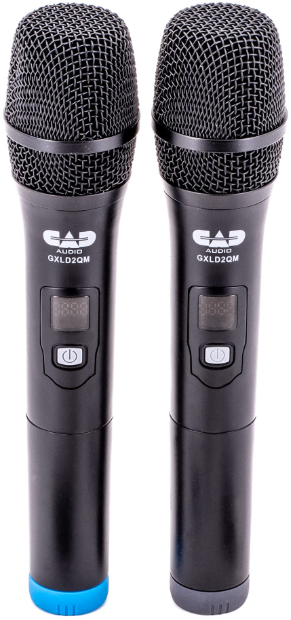

Transmitter

1. ON/OFF switch
2. Frequency Selection Button
3. Frequency Display
4. Battery Compartment

Adapters

1. USB adapter
2. 3.5mm TRS adapter

Use

1. Turn the receiver ON/OFF switch to ON The LED indicator will illuminate. Insert the 1/4” (6.3mm) input jack into the audio input jack of your audio mixer.
2. Insert (2) AA batteries into the battery compartment of the transmitter, making sure the polarity is correct.
3. Turn the transmitter on, and the frequency display will illuminate, and you can now use this system.
4. When the receiver battery gets low, please use the rechargeable cable to recharge the built-in battery.
5. If there is any noise, distortion, or audio dropouts when using the system, it may be caused by a low battery. Please replace the transmitter batteries CAD-Audio GXLD2QM Wireless Microphone or charge the receiver battery.
6. Remember to turn the switches to the OFF position when not in use.
7. If you won’t be using the system for a long time, please take the batteries out of the transmitter.

Frequency Matching

If there are multiple sets of units in the same environment, crosstalk may occur (same frequency and ID). It can be resolved by the matching procedure below:

1. Turn both transmitters and receiver OFF
2. First Transmitter: Press and hold the ON/OFF switch and the frequency select buttons for about 4 seconds; the display will flash.
3. Receiver: Turn the power switch ON The RF indicator will flash 4 times.
4. Second Transmitter: Press and hold the ON/OFF switch and the frequency select buttons for about 4 seconds; the display will flash.
5. A short press on the frequency select button on each transmitter will complete the setup.

Receiver

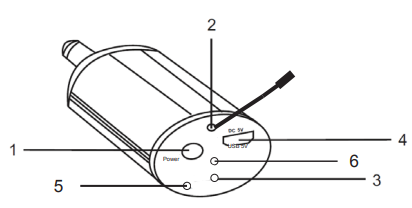

1. 1. ON/OFF Switch
   2. Antenna
   3. Charge indicator, Red charging, Green charged
   4. DC 5V charging port
   5. . Low battery indicator, Blue on, Red needs charging
   6. RF indicator, Red Ch A, Green Ch B

Transmitter

1. 1. ON/OFF switch
   2. Frequency Selection Button
   3. Frequency Display
   4. Battery Compartment

Individuals with cardiac pacemakers and other similar medical CAD-Audio GXLD2QM Wireless Microphone devices should consult with their physician before using any RF devices. Though the output level of this wireless system is below 50 milliwatts, the proximity of the transmitter to the implant device could pose a threat.

Specifications

• Frequency Response: 20Hz– 20kHz
• Modulation: High Definition Digital QPSK
• Transmitting Power: 10mW
• Sensitivity: – 43dBV(6.8mV) @ 1Pa
• Battery Life: >10Hrs
• Frequency Band: 500Mhz – 599Mhz

FCC Statement

As with any wireless product, environmental conditions can CAD-Audio GXLD2QM Wireless Microphone reduce or, in some cases, prohibit a successful connection between the transmitter and the receiver. This device complies with Part 15 of the FCC Rules. Most users of CAD Audio wireless products in the United States do not need a license for operation.

However, the rules for unlicensed operation state that this device must not operate in excess of 50 milliwatts, it must not cause harmful interference to other wireless devices, and it must accept interference received from other devices.

• Wireless products meeting CAD factory standards adhere to these rules.
• The FCC reserves the right to change these rules at any time.
• For more information, contact the FCC at
• 1-888-CALL-FCC (TTY: 1-888-TELL-FCC)
• Visit the FCC’s wireless microphone website at:
• www.fcc.gov/cgb/wirelessmicrophones
