CAD AUDIO WX3000 Wireless Microphone System User Manual

CAD AUDIO WX3000 Wireless Microphone System

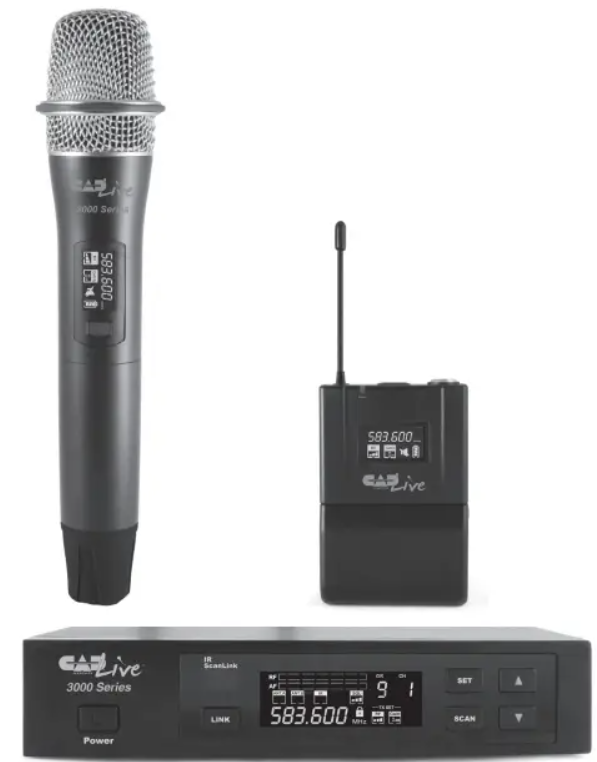

Introduction

• CADLiveTM is designed to outperform your expectations and deliver exceptional performance. Engineered to complement the new generation of exceptional sound systems – The CADLive Series taps our Equitek studio heritage along with our live sound know-how in creating an impactful and easy-to-use line of mics.
• The CADLive 3000 series features True Diversity operation to minimize multipath interference, along with CADLock™ Automatic Tone Encoded Squelch to eliminate unauthorized transmissions in the signal path.
• Frequency agile design, when partnered with ScanLink™ technology, will precisely scan, select, and link to the optimum channel, allowing for an easy, flexible frequency plan.
• The CADLive handheld transmitter features metal construction, and the CADLive D90 Supercardioid dynamic capsule provides a powerful, smooth, and highly articulate profile.
• The handheld and body pack transmitters also include SoftTouch™ multi-function On-Off/Mute switches.
• CADLive bodypack transmitters are equipped with CADTone™ circuitry, ensuring accurate reproduction of Hi-Z guitar and Lo-Z mic inputs.
• CADLive wireless features 10, 30, and 50mW transmitter power adjustment and a dynamic range of up to 110dB.
• Receivers and transmitters are equipped with a high definition LCD and full RF, AF, Battery Life, Mic  Sensitivity, and RF power metering.
• Receivers are housed in an all-metal chassis and supplied with single/ dual rack ears and a BNC relocation kit.
• Body pack systems include Equitek E19 earworn and E29 lavalier mics. Both systems are supplied with a heavy-duty carry case.

Features

• True Diversity to minimize multipath interference
• CADLock™ Automatic Tone Encoded Squelch eliminates unauthorized interference.
• Frequency agile operation for maximum frequency plan flexibility
• ScanLink™ technology for instantaneous and automatic channel configuration
• CADTone™ Body Pack input – Optimized Impedance interface – Hi-Z for Guitar and Lo-Z for mic
• Metal construction Handheld Transmitter equipped with CADLive™D90 capsule
• High Contrast LCDs on TX and RX
• Transmitters feature 10, 30, and 50mW power adjustment to aid in multiple system applications
• The CADLiveTM WX3000 includes the following features:
• True Diversity to minimize multipath interference
• CADLock™ Automatic Tone Encoded Squelch eliminates unauthorized interference
• Frequency agile operation for maximum frequency plan flexibility
• ScanLink™ technology for instantaneous and automatic channel configuration
• CADTone™ Body Pack input – Optimized Impedance interface – Hi-Z for Guitar and Lo-Z for mic
• Metal construction Handheld Transmitter equipped with CADLive™D90 capsule
• High Contrast LCDs on TX and RX
• Transmitters feature 10, 30, and 50mW power adjustment to aid in multiple system applications

Startup Guide

1. Install new high-quality alkaline batteries into the transmitter, observing proper polarity.
2. Power up the receiver by holding the power button for one second.
3. Hold the SET button for one second to unlock the receiver menu.
4. Hold the SCAN button for one second to activate the ScanLinkTM environmental frequency analysis, which automatically selects a clear operating frequency.
5. Turn on the transmitter by holding the power button for one second.
6. Open the battery compartment to reveal the IR node.
7. Press the LINK button (note the IR node will illuminate). Align the two IR nodes (transmitter and receiver) at a distance of 4″-12″ (ambient room light can affect distance) for a few seconds while the receiver updates the transmitter. Your system is now ScanLink’d.

Installation

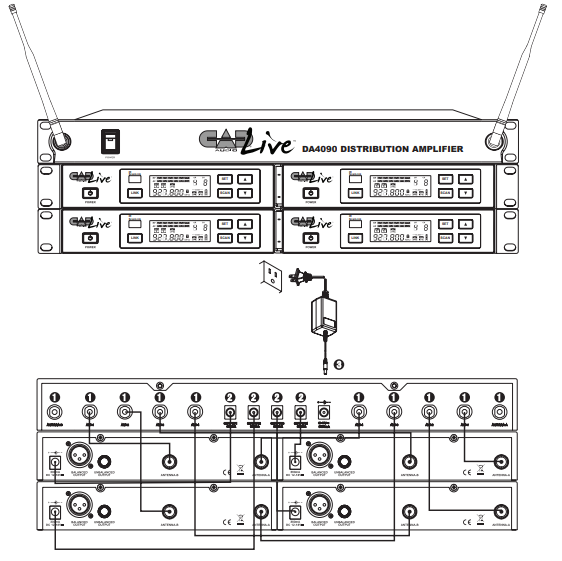

1. BNC 50 ohm cable.
2. Power cable.
3. Power adapter.

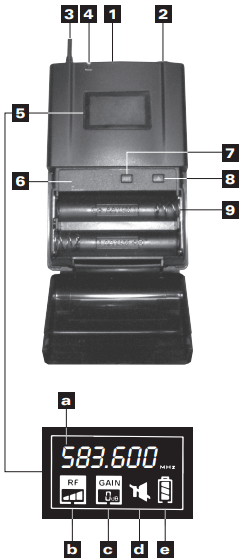

Bodypack TX3010 Transmitter

1. Power/Mute button: hold for power, press for mute.
2. CADTone TB4M-type audio input connector.
3. Transmitting antenna
4. Power indicator
5. High-contrast display
   • Operating frequency
   • RF power indicator
   • transmitter audio gain indicator
   • mute indicator
   • battery strength indicator
6. IR node for ScanLink
7. SET button. Unlocks advanced features.
8. UP arrow button. Use to adjust advanced feature menu items.
9. Battery compartment. Use only high-quality AA alkaline batteries, observing proper polarity.

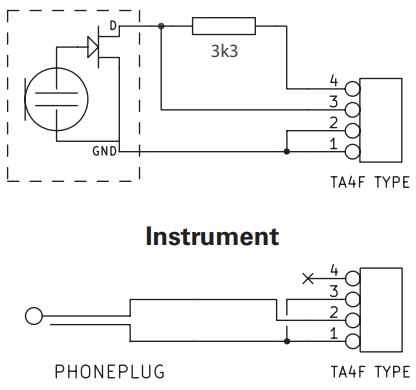

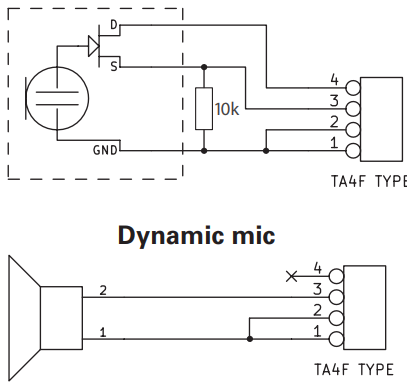

Interfacing to CADTone TB4M-type input connector

3-wire type electret mic

2-wire type electret mic

Accessing Advanced Features (SET button)

All advanced features are accessed by holding the “SET” button for one second to unlock the menu. Press the “SET” button to advance through menu items. Menu items may be adjusted using the arrow keys.

1. Manually Select Frequencies
   GR (frequency group)
   CH (channel)
2. Receiver Squelch Level
   SQL (used to reduce sensitivity to competing RF by sacrificing operating distance)
3. Transmitter Power
   TX SET RF (higher power increases operating distance, lower power improves simultaneous usage)
4. Transmitter audio gain
   TX SET GAIN (lower gain may be used as needed CAD AUDIO WX3000 Wireless Microphone System for louder performers)
5. Receiver Output Volume
   VOL (may be reduced if audio signal overloads mixer)

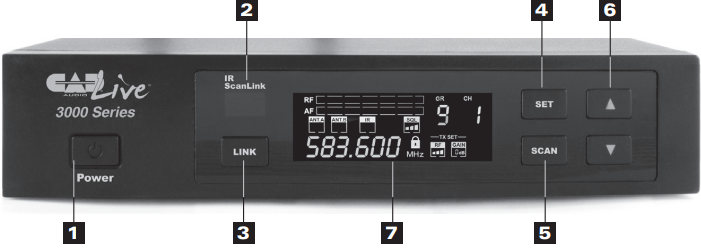

Receiver RX3000 (Front)

1. Power button.
2. IR ScanLink node. Use for linking the transmitter and receiver.
3. LINK button. Used to initiate the TX-RX link.
4. SET button. Unlocks advanced features.
5. SCAN button. Use to initiate environmental frequency analysis.
6. UP and DOWN buttons. Use to adjust advanced feature menu items.
7. High-Contrast display.

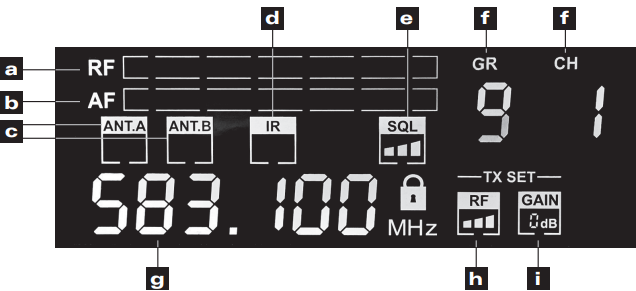

   • a) Multi-segment RF signal strength meter.
   • b) Multi-segment AF signal level meter.
   • c) ANT.A/ANT.B diversity indicator.
   • d) IR indicates active IR communication.
   • e) SQL squelch level indicator.
   • f) GR CH group and channel indicator.
   • g) Operating Frequency.
   • h) TX SET RF indicates transmitter RF power setting.
   • i) TX SET GAIN indicates transmitter audio gain setting.

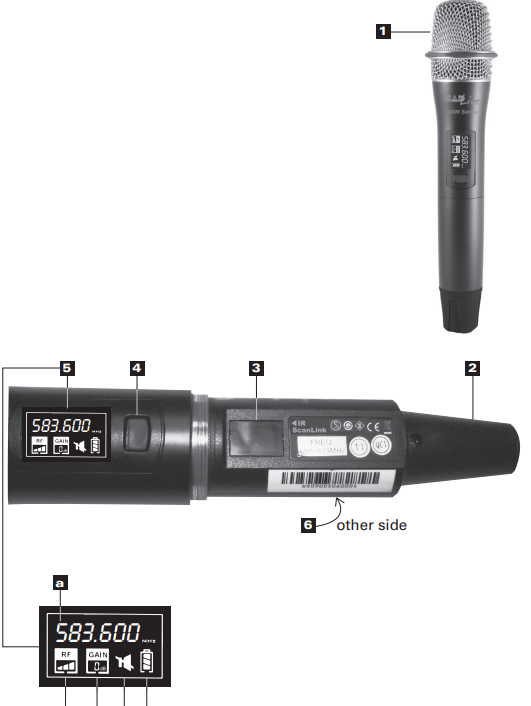

Handheld TX3000 Transmitter

1. CADLive D90 supercardioid dynamic capsule.
2. Enclosed transmitting antenna.
3. IR node for Scan-LinkTM
4. Power/Mute button. Hold for power, press for mute.
5. High-contrast display
   a) Operating frequency
   b) RF power indicator
   c) Transmitter audio gain indicator
   d) Mute indicator
   e) Battery strength indicator
6. Battery compartment. Use only high-quality AA alkaline batteries. Observe polarity

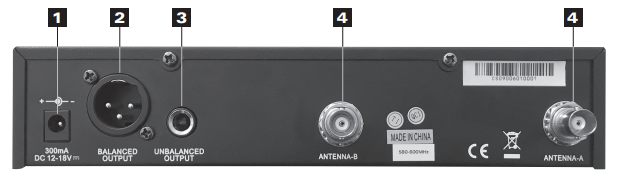

Receiver RX3000 (Rear)

1. DC power input jack. 12-18VDC, 300mA min, center positive.
2. XLRM-type low-impedance balanced audio output.
3. 1/4″ [6.35mm] high-level unbalanced output
4. BNC 50 ohm antenna inputs

Channelization
These frequencies have been approved for use within the United CAD AUDIO WX3000 Wireless Microphone System States and Canada as of the date of publication of this manual. It is the user’s responsibility to comply with local regulations.

580 – 600MHz Band R

655 – 679MHz Band S

Specifications WX3000

• Frequency Range ………………………………………………..R Band 580 – 600MHz
• S Band 655 – 679MHz
• Frequency Response ………………………………………………………..40Hz – 15kHz
• Dynamic Range………………………………………………………………………..>110dB
• Transmitter Power………………………………………… Switchable 10, 30, 50mW
• Battery Life ………………………………………………………………………Up to 15 Hrs
• Dimensions ………………………………………………. 17″ [43.2cm] x 12″ [30.5cm]
• x 4″ [10.2cm]
• Weight……………………………………………………………………………… 5lbs [2.3kg]

FAQs

What is the CAD AUDIO WX3000 Wireless Microphone System?
A top-notch wireless microphone system made for professional audio applications, the WX3000 produces crystal-clear, interference-free sound for recordings, live performances, and presentations.

What components are included in the WX3000 system?
A handheld or bodypack transmitter, a wireless receiver, an antenna or antennas, power adapters, and the required connecting cables are all included in the system.

What frequency range does the WX3000 operate on?
In order to reduce interference and guarantee steady signal transmission, the WX3000 uses a broad range of frequencies in the UHF frequency band.

How long is the wireless transmission range?
Depending on the surroundings and obstructions, the device can support a line-of-sight distance of up to 100 meters (328 ft).

Does the system support multiple microphones simultaneously?
Yes, it has multiple channel compatibility, which makes it possible to utilise many WX3000 systems at once with no interference. This makes it perfect for panel discussions or bands.

How do I pair the transmitter with the receiver?
The most common methods for pairing are automated or using the same frequency or channel on both the transmitter and the receiver. For more information, see the detailed pairing instructions in the manual.

Can I use the WX3000 with any mixer or PA system?
Indeed, the receiver has conventional audio outputs that work with the majority of PA systems, mixers, and amplifiers.

What batteries does the transmitter use, and how long do they last?
Depending on battery condition, the transmitter can run continuously for 8–10 hours on common AA batteries.
