Introduction

Thank you for purchasing this Petrol Generator. Please read this manual thoroughly before attempting to operate, and carefully follow all instructions given. It is vitally important that ALL precautions are taken, as specified, which will not only provide protection for yourself and that of others around you, but will also ensure that the chainsaw will give you long and satisfactory service.

Safety Instructions

1. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, or refrigerators.
2. DO NOT expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
3. Avoid accidental starting. Ensure the switch is in the off position before connecting to the power supply.
4. DO NOT overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
5. Dress properly. DO NOT wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from moving parts.
6. Disconnect the power before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of accidentally starting the power tool.
7. Store idle tools out of the reach of children and DO NOT allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
8. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use.
9. Keep all parts of the body away from the saw chain when the chainsaw is operating. Before you start the Petrol Generator. Make sure the Petrol Generator is not contacting anything.
10. A moment of inattention while operating chainsaws may cause entanglement of your clothing or body with the Petrol Generator.

Unpacking & Assembly

Unpack your generator and check that the following items are present. Should there be any missing or damaged items during transit, contact your CLARKE dealer.

Before Using the Generator

• In good condition and free from any damage.
• Clean and free from fuel or oil spillage and without leaks. It is
• It is correctly located for use.

Check The Oil Level

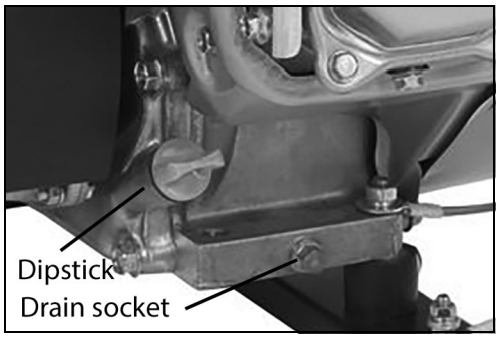

1. Stand the generator on a level surface and check the oil level as follows.

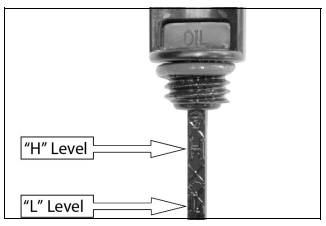

2. Turn the oil filler cap/dipstick anticlockwise to remove it from the oil reservoir and wipe with a clean cloth.
3. Insert the dipstick back into the oil filler tube and then remove it again
4. If the oil is below the minimum level on the dipstick, top up the oil reservoir with fresh oil.

• DO NOT fill above the max level mark.
• We recommend the use of SAE10W/30 oil in this generator. (CLARKE part number 3050845)
• DO NOT tilt the generator when adding engine oil. This could result in overfilling and damage to the engine.

Adding Fuel

1. To check the fuel level, open the fuel filler cap.
2. Slowly add fuel to the fuel tank (maximum 3.6 litres)
3. DO NOT overfill the fuel tank.
4. Replace the fuel filler cap securely.

Preparation For Use

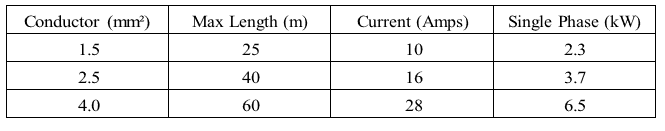

All extension cables from the generator set to the appliance must be carefully selected, fitted, and maintained. Cables inbyEC 245-4 should be used. Cables should be inspected regularly and should be replaced, not repaired, in the event of a defect. The length cross-section of conductors should be selected according to the job to be done. The table below is an indication of the sizes that should be used.

Ensure the cable is fully unwound when in use to avoid overheating, and place it under extra load on the generator.

Operation

Start the engine as follows (referring to the engine manual) and allow it to run for a few minutes at full speed for it to warm up.

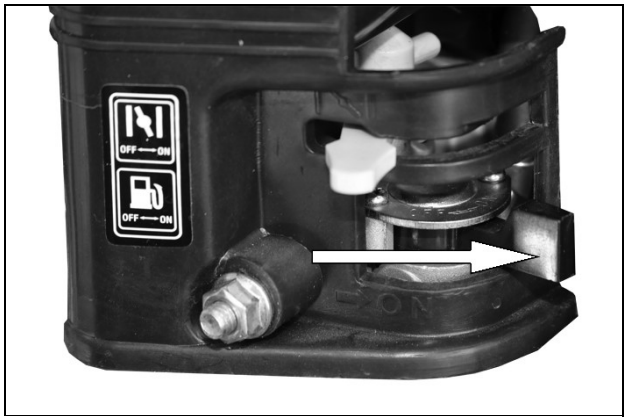

1. Move the fuel valve lever to the ON position
2. To start a cold engine, move the choke lever to the closed position.
3. Pull the recoil starter grip lightly until you feel resistance, then pull briskly. Return the starter grip gently.
4. To restart a warm engine, leave the choke lever in the open position.

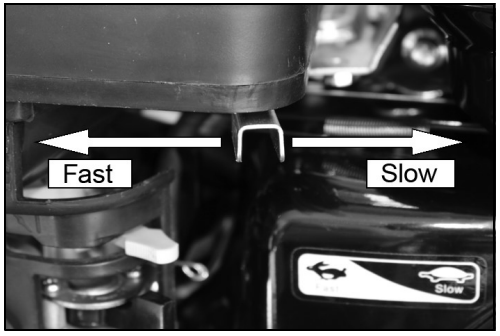

5. Set the engine speed by moving the throttle lever away from the MIN position.

6. Check the condition of the appliance, including the supply cable and the extension cable if used, and ensure it is switched OFF. Ensure also that the operating voltage is the same as the output from the generator.

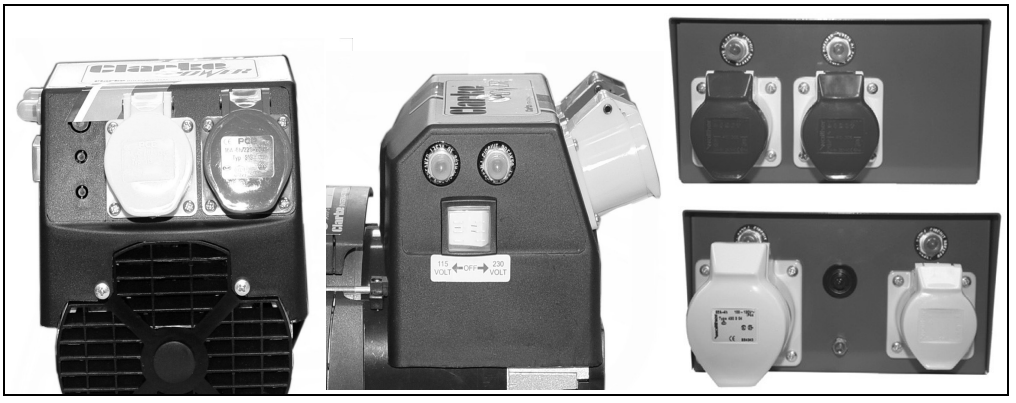

7. For generators with dual output, ensure the voltage selector switch is set to deliver the appropriate output – 115V or 230V, see below
8. With the engine running smoothly,, connect the appliance to the appropriate receptacle: BLUE – 230V, YELLOW – 115V

Shutting the generator down

To stop the generator in an emergency, simply set the Clarke CP3550K 3.4KVA Petrol Generator engine switch to ‘OFF’. Move the throttle lever to the MIN position.

1. Set the engine switch to the “0” (OFF) position.
2. Turn the fuel valve knob to “OFF” (pointing left).
3. Disconnect any electric devices.

Maintainance

ENGINE OIL (AFTER FIRST 20 HOURS OF USE)

1. Turn the oil filler cap anti-clockwiseand remove it from the oil reservoir.
2. Tilt the generator to allow the oil to drain out of the oil reservoir into a suitable container.

3. Fill the oil reservoir with fresh oil.
4. Replace the oil filler cap and maintenance panel.

Air Filter

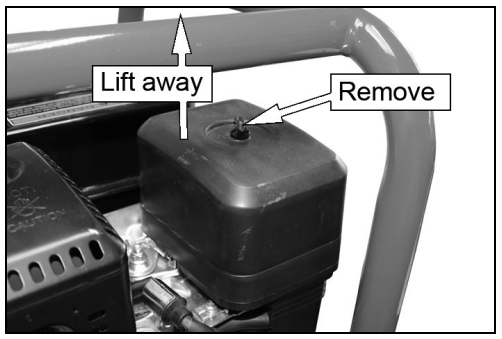

1. Remove the air filter cover, unscrewing the securing nut.
2. Remove the air filter panel and the air filter element.
3. If the air filter is damaged, contact the CLARKE spare parts department for a replacement.
4. Replace the filter in its original position and replace and secure the air filter cover.

Spark Plug

1. Remove the spark plug cap from the spark plug.

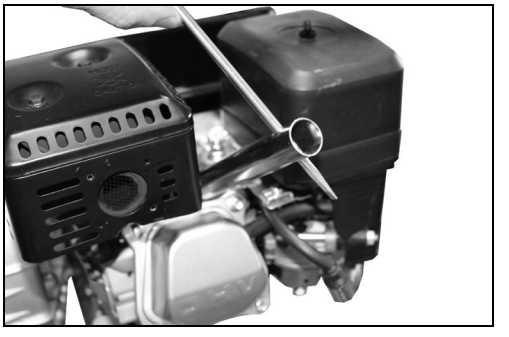

2. Fit the spark plug box spanner over the spark plug Clarke CP3550K 3.4KVA Petrol Generator as shown, and use the lever to turn it.
3. When the spark plug has been removed, check for discolouration and use a wire brush to remove any carbon buildup.
4. Check the spark plug gap with a feeler gauge, which should be between 0.6 and 0.7 mm.
5. Check the overall condition of the spark plug and replace it if damaged.
6. Reinstall the spark plug and replace the spark plug cap.

Fuel Tank Filter

Just inside the fuel tank is a fuel filter. Check this filter periodically and remove any contaminants that may have accumulated.

1. Remove the fuel tank cap.
2. Lift out the filter inside.
3. Clean the filter with solvent.
4. Replace the filter and fuel tank cap.

Storage

1. Always store in a dry, dust-free environment away from children.

Spare Parts

Specifications

Troubleshooting

Guarantee

This CLARKE generator is guaranteed against faulty Clarke CP3550K 3.4KVA Petrol Generator manufacture for 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the generator is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. Faulty goods should be returned to their place of purchase; no chainsaw can be returned to us without prior permission. This guarantee does not affect your statutory rights.

Environmental Policy

Through the purchase of this generator, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery, and environmentally sound disposal of the WEEE.
