Digitech AA0520 2x120WRMS Stereo Amplifier
Before First Use
Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend keeping the original packaging to store the product when not in use. Find a safe and convenient place to keep this instruction manual for future reference. Unpack the product, but keep all packaging materials until you have made sure your new Digitech AA0520 2x120WRMS Stereo Amplifier is undamaged and in good working order. Ensure you have all accessories listed in this manual.
Box Content
1 x Stereo Amplifer 1 x Remote 1 x User Manual
Spcifications
The Digitech AA0520 2x120WRMS Stereo Amplifier delivers a maximum output power of 120W + 120WRMS (4 Ohms) and works perfectly with passive speakers. Input Impedance: 47k Ohm, Input Sensitivity: 300mV, Signal-to-Noise: ≥80dB, Total Harmonic Distortion (1KHz): ≤0.5%, Frequency Response: 20Hz-20KHz ±2dB, Power Input: 240VAC @ 2A Max, Audio Input: Dual Stereo RCA Sockets, Audio Output: 1 x Stereo RCA Sockets, Weight: 3.5kg, Dimensions: 250(W) x 240(D) x 90(H)mm.
The minimum allowable speaker impedance is 4 Ohms, which gives the maximum rated power of 120 Watts per channel. It will work perfectly well with higher-impedance speakers, such as 8 Ohms; it’s just that the maximum power will be reduced. With 8 Ohms

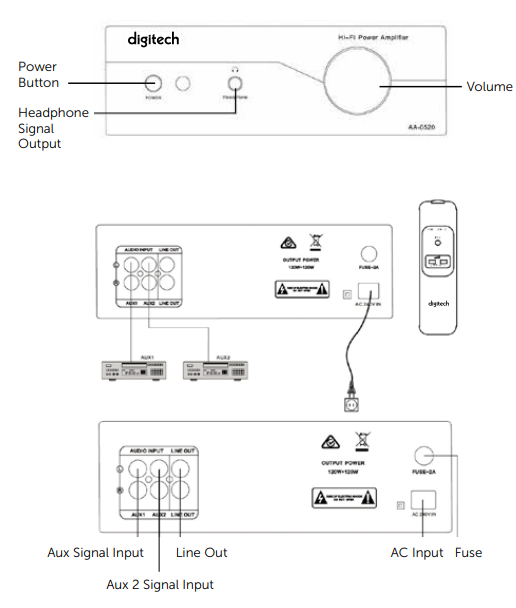

Overview
Warranty
Our Digitech AA0520 2x120WRMS Stereo Amplifier is guaranteed to be free from manufacturing defects for a period of 12 months. If your Digitech AA0520 2x120WRMS Stereo Amplifier becomes defective during this period, Electus Distribution will repair, replace, or refund the product if it is faulty or not fit for its intended purpose.
This warranty does not cover a modified product, misuse or abuse contrary to the user instructions or packaging label, change of mind, or normal wear and tear of your Digitech GE4108 Mini Hi-Fi Speaker Boxes.
To claim warranty, you will need to show a receipt or other proof of purchase. The benefits to the customer provided by this warranty are in addition to other rights and remedies under the Australian Consumer Law in relation to the goods or services covered by this warranty, including your Digitech GE4108 Mini Hi-Fi Speaker Boxes.
Customer Support
- This warranty is provided by: Electus Distribution
- Address: 46 Eastern Creek Drive, Eastern Creek NSW 2766
- Ph: 1300 738 555
- Website: https://digitech.com/
FAQs
Q: What type of speakers can I connect to this amplifier?
Passive speakers with an impedance of 4 to 8 ohms can be connected. To avoid overloading or damaging the amplifier, be sure that each channel’s total load impedance does not go below 4 ohms.
Q: What is the output power of the AA0520?
The amplifier ensures clear and powerful audio performance throughout the frequency spectrum by delivering 2 x 120W RMS @ 4Ω or roughly 2 x 80W RMS @ 8Ω.
Q: Can I use this amplifier with an active (powered) speaker?
No, the AA0520 is solely intended to power passive speakers. It could harm both devices if connected to powered speakers.
Q: How do I adjust volume levels properly?
To get the required volume, gradually raise the input and output levels after starting both volume controls at minimum. To avoid distortion or overheating, avoid operating the amplifier at maximum power for extended periods of time.
Q: Does the AA0520 have a cooling fan?
Indeed. To maintain safe operating temperatures, the machine has an integrated ventilation system and cooling fan. When using the vents, make sure they are unobstructed.
Q: Can I connect multiple input devices at the same time?
Yes, but to prevent signal interference or overloading the input stage, only one input source should be active at a time. To securely swap sources, use the input selector switch if it is available.
Q: What protection features does the amplifier have?
Overload, short-circuit, and heat safety circuits are all included in the AA0520. In order to prevent harm, the unit will immediately shut down or mute the output if it senses a defect.
