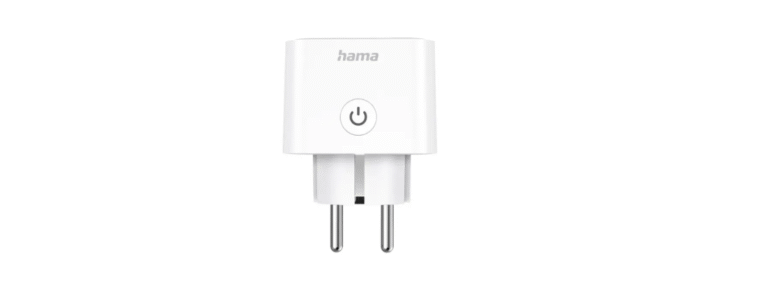

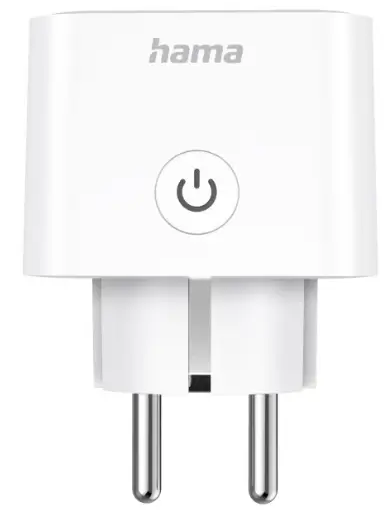

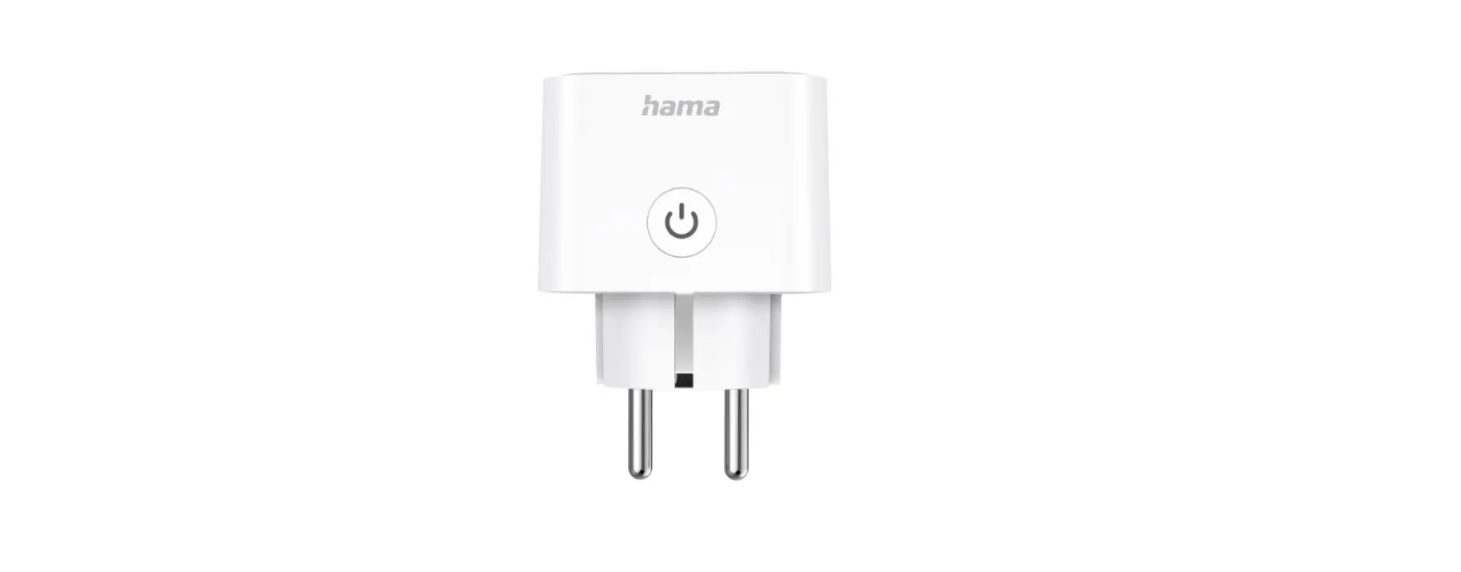

Hama 00176654 Smart Plug “With Powermeter
Safety Instructions
- Protect the Hama 00176654 Smart Plug from dirt, moisture, and overheating, and use it in dry rooms only.
- Do not drop the product and do not expose it to any major shocks.
- Do not operate the Hama 00176654 Smart Plug outside the power limits specified in the technical data.
- Do not modify the device in any way. Doing so voids the warranty.
- Do not continue to operate the product if it is visibly damaged.
- Use the product only for the intended purpose.
- As with all electrical products, this device should be kept out of the reach of children.
- Do not use the product in the immediate vicinity of heaters, other heat sources, or in direct sunlight.
- Route all cables so there is no risk of tripping.
- Do not bend or crush the cable.
- Always pull directly on the plug when disconnecting the cable, never on the cable itself.
- Dispose of packaging material immediately in accordance with the locally applicable regulations.
- The product is intended only for use inside buildings.
- Only use the article under moderate climatic conditions.
- Do not use the product in an area where electronic products are not permitted.
- Do not use the product in a damp environment and avoid splashing water.
- Do not use the product if the AC adapter, the adapter cable, or the mains cable is damaged.
- Do not attempt to service or repair the product yourself. Leave any service work to qualified experts.

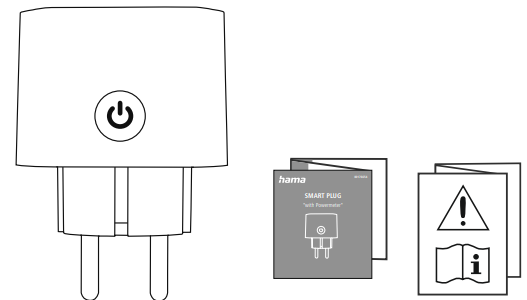

Package Contents
- 1x Smart Plug
- 1x quick guide
- 1x warning and safety instructions
If you use other Hama devices, such as the Hama Freedom Light Bluetooth Earphones, you can check the instruction manual here for setup and operation guidance.
Operation
- Ensure that the power of the connected device does not exceed 40W when using the Hama 00176654 Smart Plug.
- Plug & GO: no additional software required, simply plug in and start. Thanks to Power Delivery / QC 3.0, 2.0, the voltage and power are adjusted automatically.
- Be aware that, for efficient and optimised charging, your terminal device must support the PD (Power Delivery) / QC 3.0, 2.0 function.
- Only operate the Hama 00176654 Smart Plug from a socket that has been approved for the device.
- The socket must be installed close to the product and must be easily accessible.
- Disconnect the product from the power supply using the On/Off switch – if this is not available, unplug the power cord from the socket.
- If you will not be using the product for a prolonged period, disconnect it from mains power.
- Connect your device to a USB charging socket using a suitable USB cable.
- Connect the charger to a properly installed and easily accessible mains socket.
- The charging process is displayed on your device.
- Then disconnect the charger from the line connection.
Technical Data
The following technical specifications apply to the Hama 00176654 Smart Plug, ensuring safe and optimal operation:
| Specifications according to Regulation (EU): Brand name, commercial register number, address | 2019/1782 Hama, HRA12159, Dresdner Str. 9 86653 Monheim, Germany |
| Model identifier | 00125146, 00201989 |
| Input voltage | 100 – 240V |
| Input AC frequency | 50 / 60Hz |
| Output voltage/output current/output power total | USB-C1 or USB-C2 (Single): 5.0V DC/ 3.0A/ 15.0W, 9.0V DC/ 3.0A/ 27.0W, 12.0V DC/ 3.0A/ 36.0W, 15.0V DC/ 2.67A/ 40.0W 20.0V DC/ 2.0A/ 40.0W PPS mode: 5.0-11.0V DC/ 3.0A/ 15.0-33.0W, 5.0-16.0V DC/ 2.5A/, 12.5-40.0W, USB-C1/C2 (Double use at the same time):5.0V DC/ 2.4A/ 12.0W, 9.0V DC/ 2.22A/ 20.0W, 12.0V DC/ 1.67A/ 20.0W |
| Average efficiency during operation | 83.8% |
| Efficiency at low load (10%) | 79,5% |
| Power consumption at zero load | 0.30W |
Warranty
Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation, mounting, or improper use of the Hama 00176654 Smart Plug, or from failure to observe the operating instructions and/or safety notes.
Disclaimer
Hama GmbH & Co KG accepts no liability or warranty for damage resulting from improper installation,
assembly, or improper use of the product or failure to observe the operating instructions and/or safety instructions.
Service and Support
Please contact the Hama product advisory service if you have any questions about the product.
Declaration of conformity
Hama GmbH & Co KG hereby declares that the radio equipment type[00176638]complies with Directive 2014/53/EU.
Customer Service
- Website: https://de.hama.com
- Ph: 49 9091 502-0
FAQs
Q: What is the Hama 00176654 Smart Plug with Powermeter?
With the help of a smartphone app, you can use this Wi-Fi-enabled smart plug to remotely control your electrical appliances and track your energy usage in real time.
Q: Can I monitor my electricity usage?
Indeed, the integrated power meter monitors connected devices’ energy usage in real time. The software allows you to view usage in kWh, watts, and cost predictions.
Q: Can I control the plug remotely when I’m away from home?
Yes, you can remotely turn gadgets on or off from any location after the smart plug is linked to the app and connected to Wi-Fi.
Q: Can multiple users control the smart plug?
Yes, the app allows for multi-user access, allowing roommates or family members to operate devices at the same time.
Q: Can I use voice commands to control the smart plug?
Indeed, it is compatible with Google Assistant and Amazon Alexa, enabling voice commands for hands-free operation.
Q: Can I control multiple smart plugs at the same time?
Yes, you can turn on and off many devices at once using the app’s group management feature.
Q: What is the maximum load of the smart plug?
For precise values, consult the handbook. Generally speaking, these plugs can handle up to 2300–2500 W or 10–11 A, making them appropriate for the majority of household products, including fans, lamps, and small appliances.
Q: Can I monitor electricity costs over time?
Yes, depending on your local electricity rates, the app can provide daily, weekly, or monthly energy usage and cost projections.
