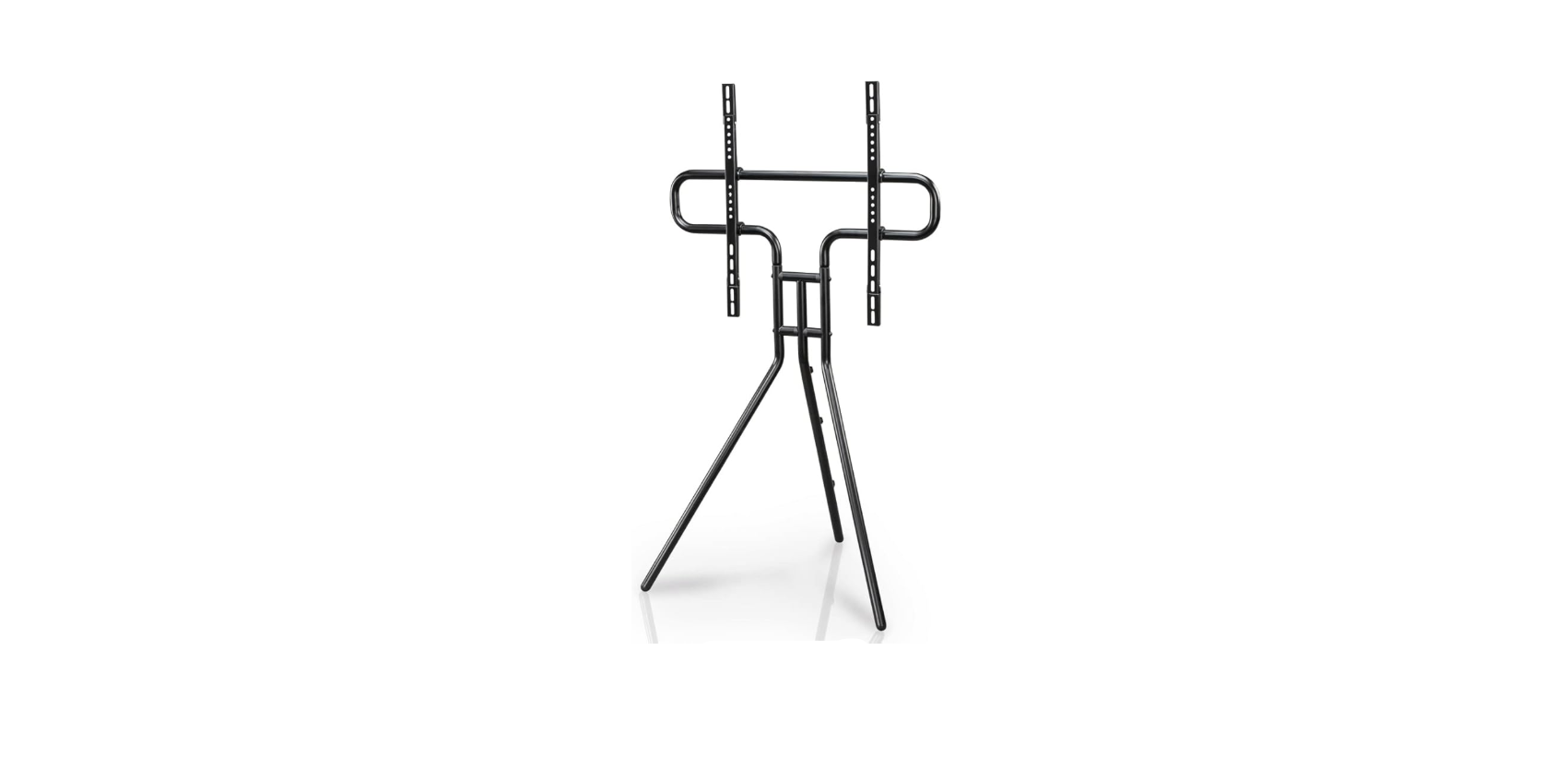

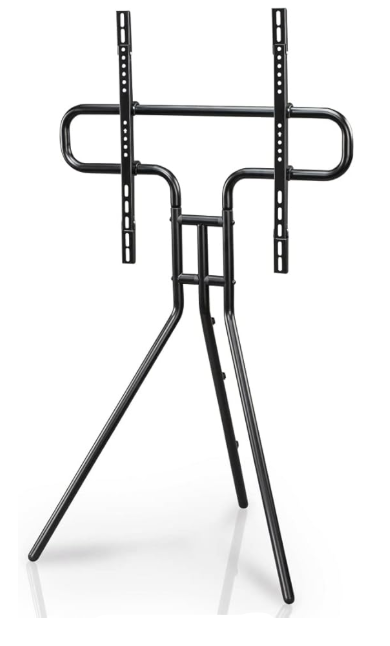

Hama 00220870 TV Floor Stand Bracket
Safety Instructions
- It occasionally happens that the screws for attaching the device to the bracket are too long.
- Read the operating instructions for your terminal device before attempting to mount it.
- The instructions provide information about the type and measurements of suitable fastening materials.
- If the supplied mounting kit does not contain suitable fastening materials for mounting the terminal device, purchase these from a specialised dealer.
- Never apply force during assembly. This can damage your device or the bracket.
- If in doubt, have this product installed by a qualified technician – do not attempt to install it yourself!
- Once you have mounted the product and the attached load, check that they are sufficiently secure and safe to use.
- You should repeat this check at regular intervals (at least every three months).
- Ensure that the product does not exceed its maximum permitted carrying capacity and that no load exceeding the maximum permitted dimensions is attached.
- Make sure that the product is loaded symmetrically.
- Maintain the necessary safety clearance around the attached load (depending on the model).
- In the event of damage to the product, remove the attached load and stop using the product.
- Do not attach any additional objects to the product.
Package Contents
- VESA arms (2x)
- Support legs (3x)
- Mounting bracket (1x)
- Mounting kit
- Safety instructions, illustrated quick start guide

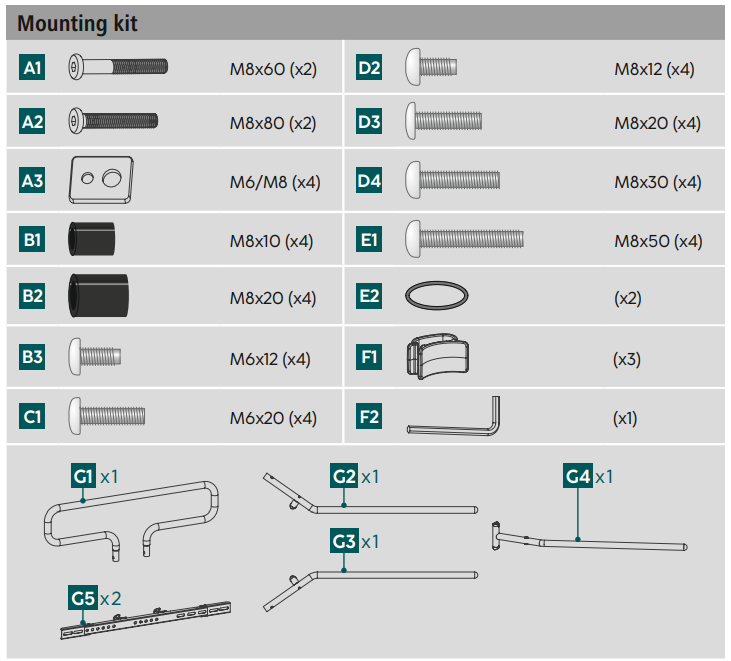

Mounting Kit

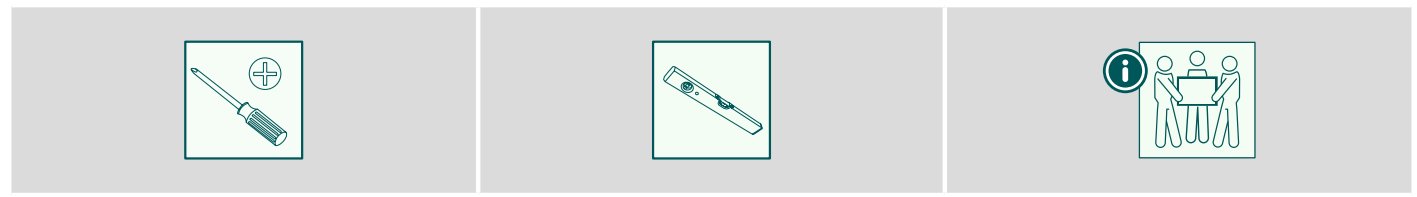

Additionally Required Tools
Application and Specifications
- The bracket is used for mounting flat screens in private, non-commercial households.
- The bracket is intended only for use inside buildings.
- Use the bracket only for the intended purpose.
Preparation and Assembly
- Never install the bracket alone. Seek assistance and help!
- Different end devices have different connections for cabling and other devices.
- Before commencing the installation, check whether the necessary connections can still be reached after mounting.
- Depending on the product and mounting method, you may not need all parts of the mounting kit.
- It is therefore possible that unneeded screws and other small parts will be left over even after correct mounting.
- Keep these in a safe place together with these operating instructions for use for later reference (sale of the product, moving house, relocation of the bracket, new TV, etc.).
- Only set the product up on even, non-slip surfaces with a sufficient load-bearing capacity for the product and the device attached to it.
- Make sure that children do not use the product for climbing.
- Note that the castors of the product can cause pressure marks on the installation surface.
- This depends on the weight loading and on the stability of the surface at the place of installation.
- Please note that subsequent height adjustment is only possible by dismantling the suspension fitting.
Assembly Preparation

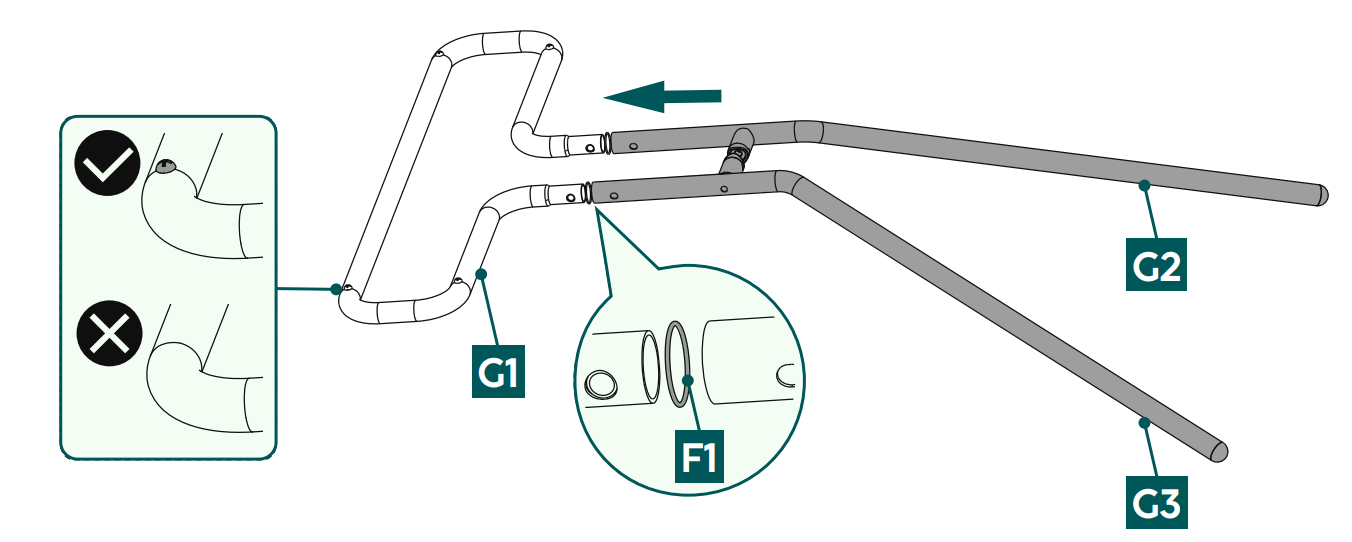

- First, attach the two support legs [G3 and G2r with the connecting rings [F1] to the mounting bracket. Ensure that the screws of the mounting bracket are positioned as shown above.

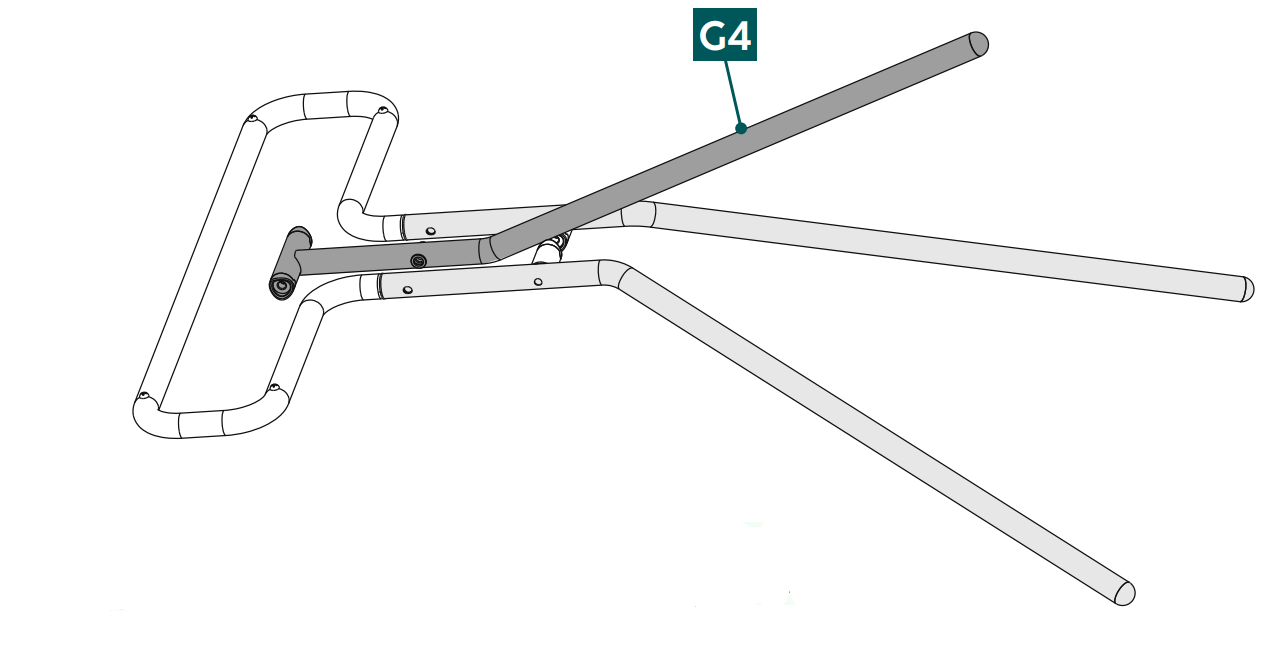

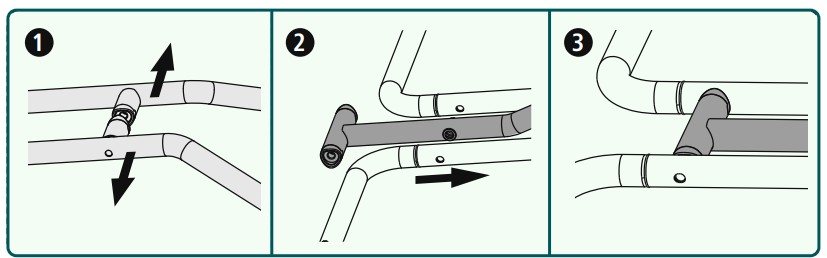

- In the next step, position the third support leg [G4] between [G2] and [G3] as shown above. Make sure that the screw and threaded holes are exactly on top of each other so that they can be screwed together in the next step.

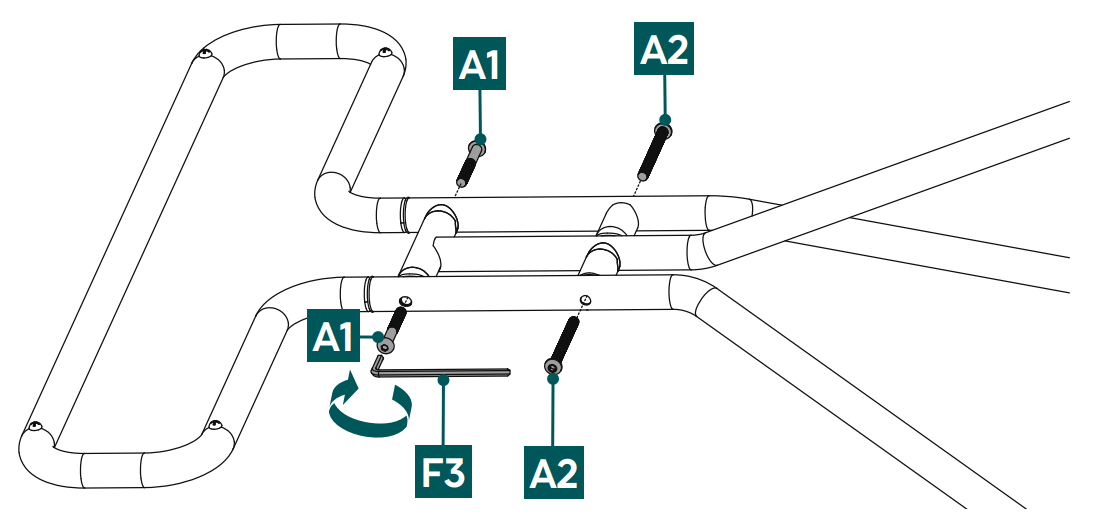

- Secure the support legs using screws [A1] in the upper area and [A2] screws in the lower area. Use the enclosed Allen key [F3] for installation.
Mounting on the TV Set
- Given the multitude of terminal device structures available on the market, we cannot describe all possible mounting options here.
- Please ensure that the bracket lies flat and evenly on the back of the television.
- Use the enclosed spacer to even out any unevenness on the back of the television.

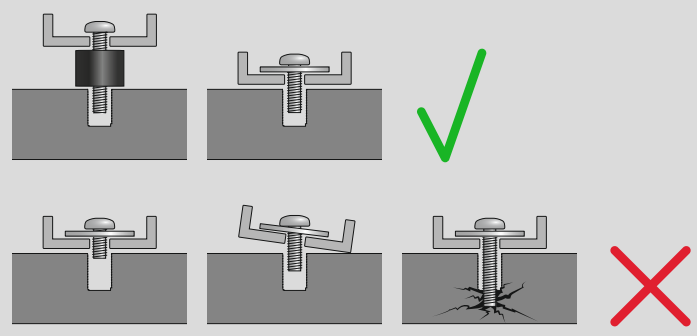

- Ensure that all screws have the proper length and can be mounted until they are hand-tight.

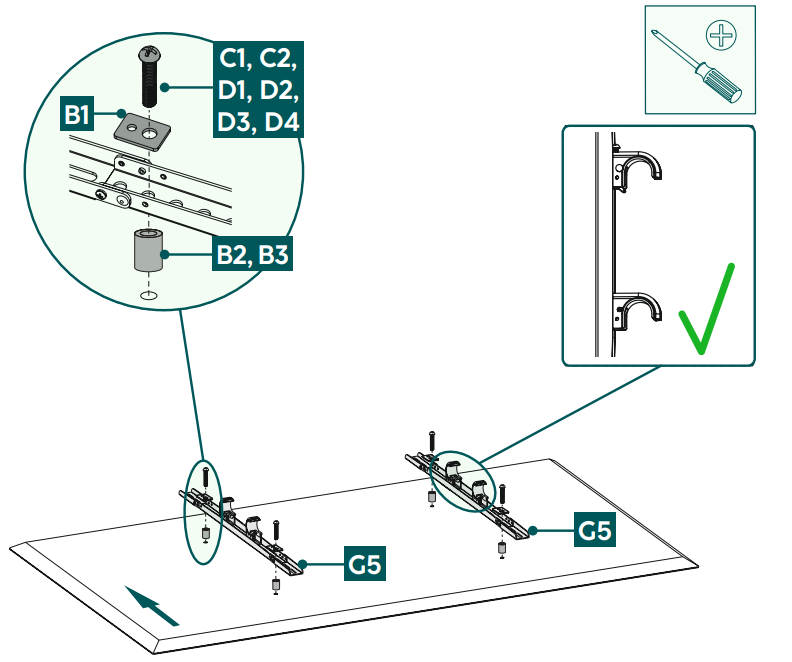

Mount the VESA arms on the back of the TV set.
- Mount the VESA arms on the back of your TV set.
- Use the fold-out VESA arms to mount the TV at the desired height.
- Ensure that the VESA arms are correctly aligned. The two hooks must point downwards.

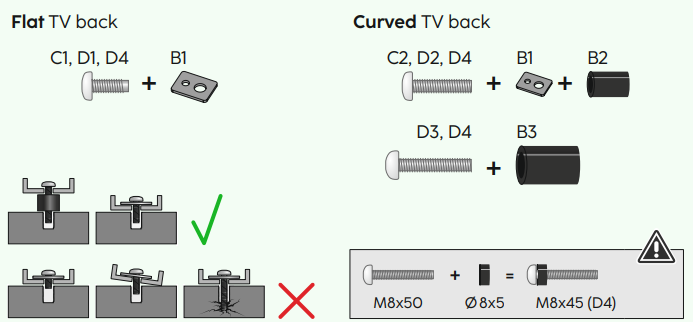

- Note the combination of screw, washer, and spacer listed above for your flat or curved TV.
Variable height adjustment when mounting the television

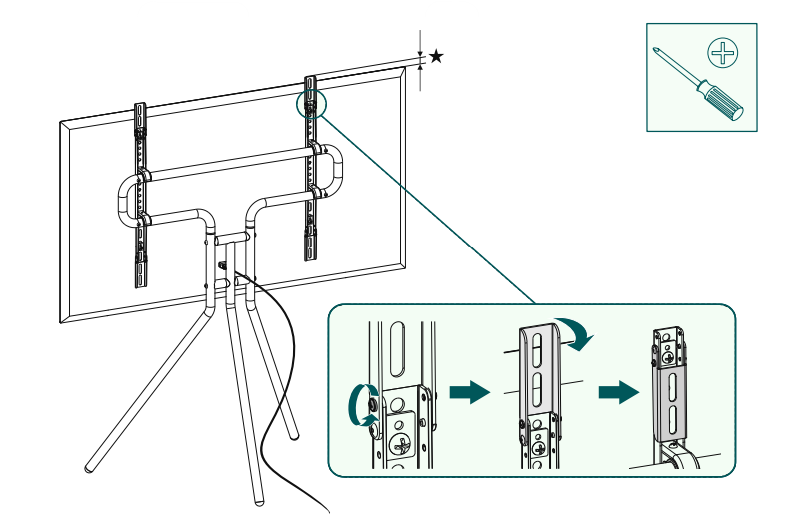

- Depending on the size of the mounted TV, the Hama 00220870 TV Floor Stand Bracket VESA arms may protrude beyond the TV. After removing the side screws, the VESA arms can be folded up or down as required.
Mounting the TV on the TV stand
Get support and help from other people for the following assembly step.
- Ensure in advance that the screw on the top of the hooks on the VESA arms is not tightened.

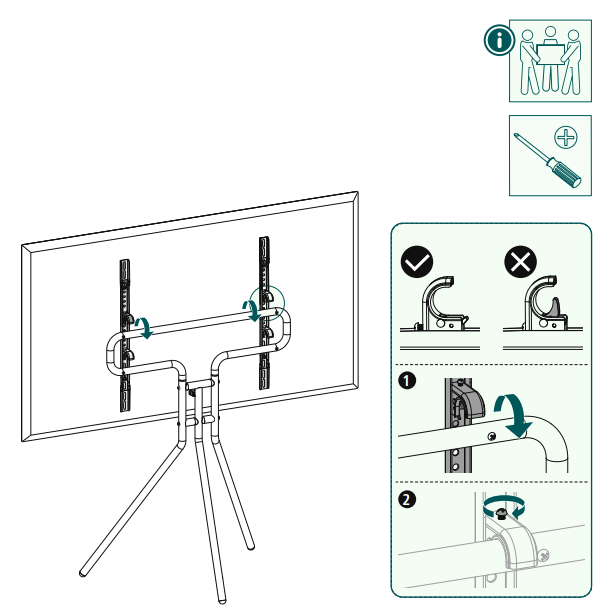

- Hang the TV set with the mounted VESA arms on the bracket as shown above.
- Lock the safety device by tightening the screws integrated into the hooks.
Mounting the cable management

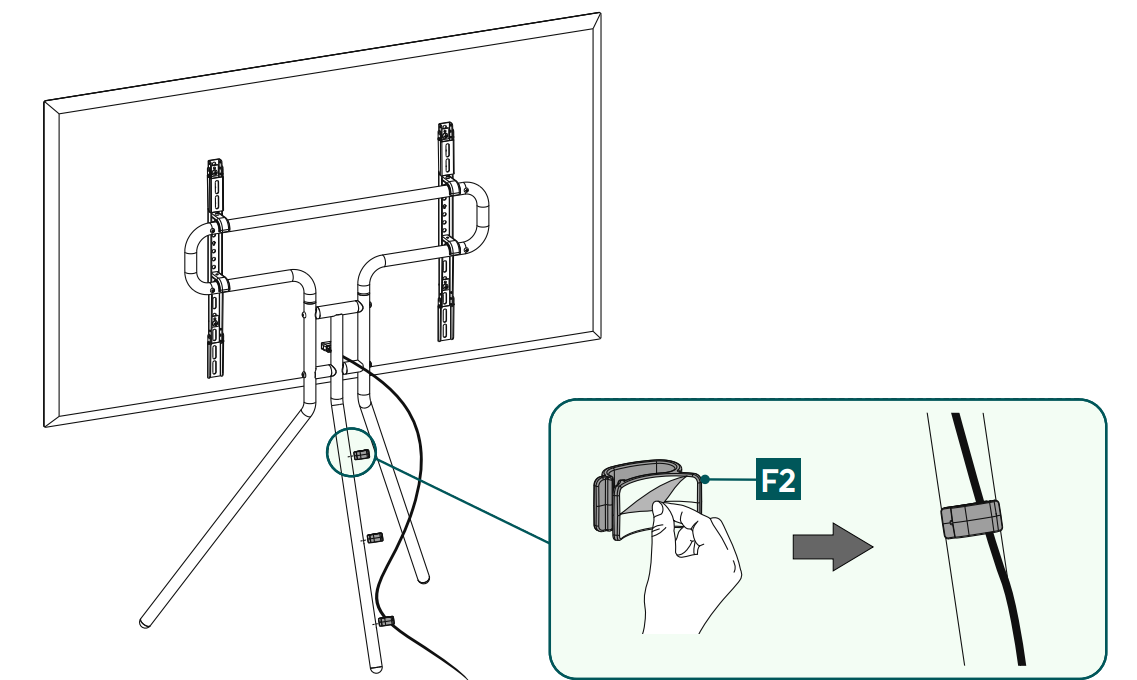

- Attach the supplied cable clips [F2] to the centre leg as shown in the illustration and then feed the cables through.
Adjustment & Maintenance
- Check the strength and operational safety of the bracket and the load attached to it at regular intervals (at least quarterly).
- Clean only with water or conventional household cleaners.

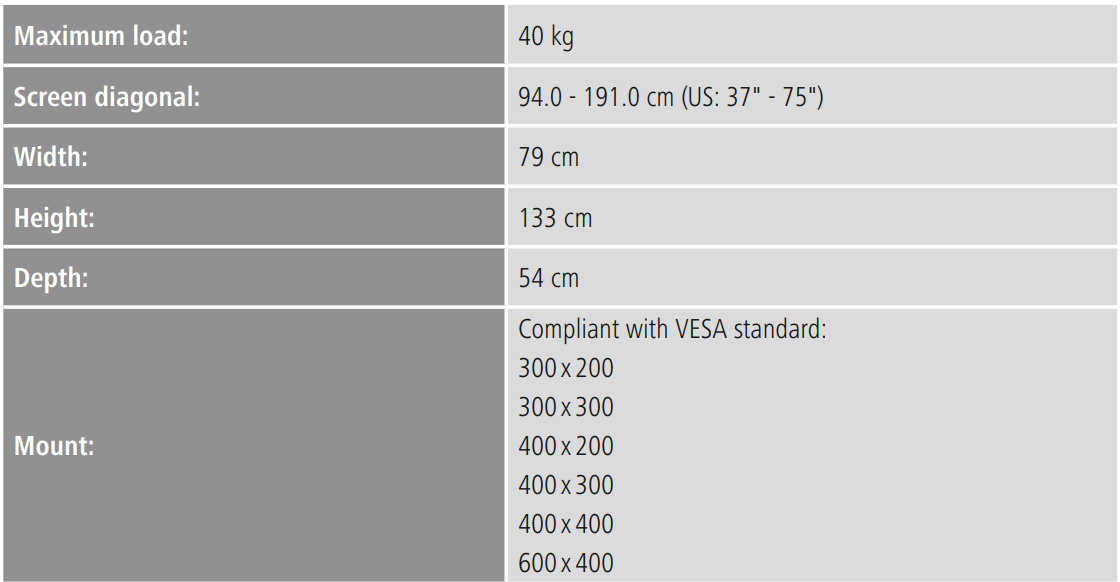

Technical Data
Warranty disclaimer
Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper
installation/mounting, improper use of the product, or failure to observe the operating instructions and/or safety notes.
Warranty conditions
For this product, HAMA GmbH & Co KG grants you an extended manufacturer’s warranty for freedom from
defects, usability, workmanship, and the durability of the materials used for a period of 10 years.
Excluded from the guarantee is the compatibility of the product with future standards of further developed hardware. Within the specified period, Hama GmbH & Co KG will remedy a justified warranty claim at its own discretion, free of charge, either by repair or replacement.
The warranty period begins on the date of purchase of this product and is valid throughout the EU. The warranty granted is in addition to and does not affect your statutory rights.
Damage caused by improper use, normal wear and tear, exposure to chemicals or force majeure, as well as tampering or repairs by you or third parties, is excluded from the warranty.
Furthermore, accessories that are not part of the basic equipment of the product (promotional parts) are excluded from the warranty. In the event of a warranty claim, please contact us at Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, Germany, enclosing proof of purchase.
Customer Service
- Website: https://de.hama.com
- Ph: 49 9091 502-0
