HAYWARD HCF7030C HCF Cartridge Filter

Safety Instructions

• Do not operate the water circulation system if a system component is assembled improperly, damaged, missing, or not a genuine Hayward component.
• Before performing maintenance on the water circulation system, verify that all system and pump controls are in the OFF position and the filter manual air relief valve is in the OPEN position.
• Use ONLY Hayward clamp system components: DEX2421JKIT clamp assembly, DEX2421J2 nut/bolt assembly, and a DEX2422Z2 metal reinforced seal. Non-Hayward components may fail in use and cause explosive separation.
• Never rely on hand-tightening the clamp nut to the clamp bolt. Using a ¾” socket on a torque wrench, torque the clamp nut and clamp bolt to 150 inch-lbs.
• Before starting the system pump, ensure the filter manual air relief valve body is in the LOCK position in the filter upper body.
• Before starting the system pump, verify that all system valves are set in a position to allow water from the filter to return to the pool.
• Before starting the system pump, the manual air relief valve must be in the OPEN position.
• When starting the pump, do not stand over or near the filter.
• If water leakage appears in the area of the filter tank clamp, immediately turn off all system circulation pumps and electrical power. Do not return to the filter until all water flow has stopped. Reassemble the clamp system per the instructions in this owner’s manual to stop the leak.
• Return to filter to close the manual air relief valve only when a steady stream of water (Not air or air and water mix) is discharged from the manual air relief valve.
• Do not change the filter control valve position while the system pump is running.

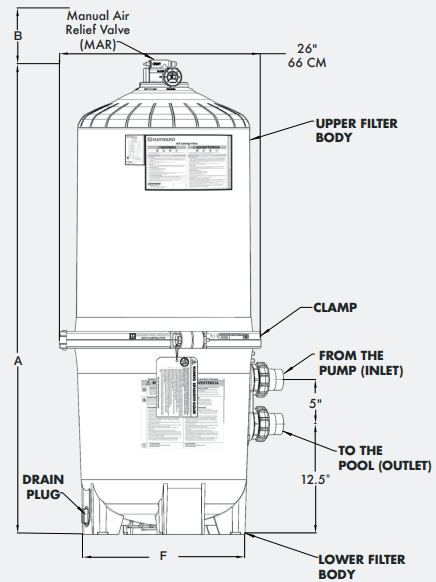

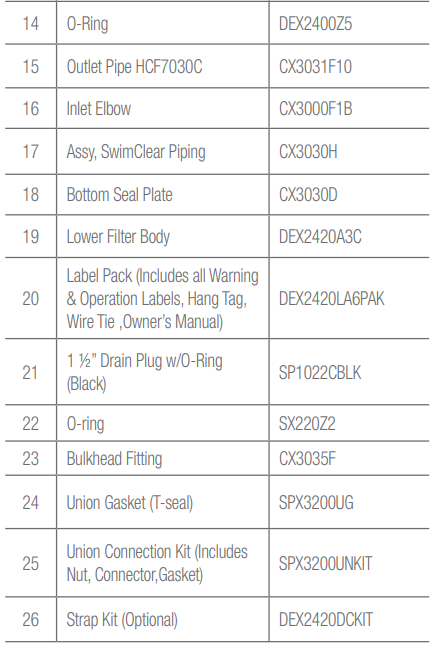

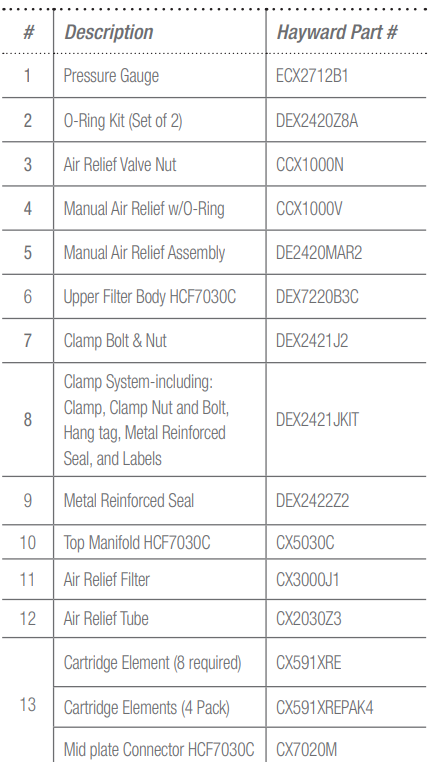

Replacement Part Drawing and Numbers

Service and Repairs

Consult your local authorized Hayward dealer or service center. No returns may be made directly to the factory without the express written authorization of Hayward Pool Products.

SUGGESTED POOL CHEMISTRY LEVELS

• pH 7.2 to 7.8
• TOTAL ALKALINITY 80 to 120 ppm
• CALCIUM HARDNESS 200 to 400 ppm
• COMBINED CHLORINE .2 ppm Maximum
• CHLORINE (STABILIZED) 1.0 to 3.0 ppm
• CHLORINE STABILIZER 60 to 80 ppm
• (Cyanuric Acid)

Problem Solving

1. Check skimmer and pump strainer baskets for debris.
2. Check for restrictions in intake and discharge lines.
3. Check for an air leak in the intake line (indicated by bubbles returning to the pool).
4. Check for algae in the pool and super-chlorinate as required.
5. Be sure chlorine and pH levels are in the proper range (adjust as required).
6. Check chlorine, pH, and total alkalinity levels and adjust as required.
7. Be sure the flow rate through the filter is sufficient.
8. Operate the filter for longer periods.

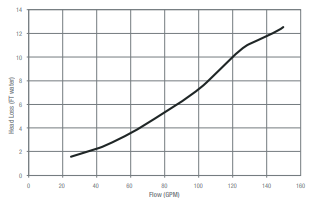

Head Loss HCF7030C Top Manifold

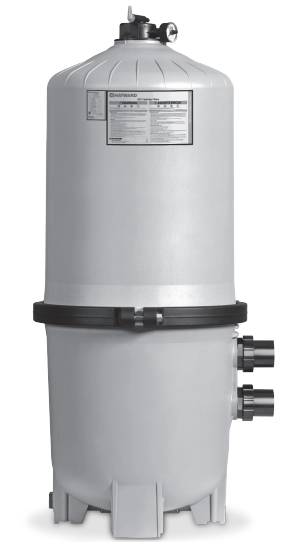

General Information

Your Hayward HCF cartridge filter combines superior water filtration with ease of operation and totally
corrosion-resistant construction. With filtration ratings to 9000 gallons (34,000 liters) per hour, they are
designed for continuous or intermittent operation, for installation above or below the pool water line, for
fresh or salt water swimming pools or spas. HCF filters utilize multiple reusable, reinforced polyester filter cartridge elements to provide a high degree of water clarity and long filter cycles with minimum care.

Installation

1. The filter system should be installed on a level concrete slab or other rigid base. Select a well-drained and vented area, one that does not flood when it rains.
2. Position the filter so that the piping connections and winter drain are convenient and accessible for operation, service, maintenance, and winterizing.
3. Position the filter body such that all operations and safety labels are visible.
4. Position the filter so that filter will drain by gravity.
5. If practical, place the pump and filter in the shade to shield them from continuous, direct heat from the sun.
6. Connect the pool suction plumbing from the skimmers and pool suction outlets at the pump inlet port.
7. Connect the pump discharge (pump OUTLET) to the top port of the filter (filter INLET).
8. Connect the bottom filter port (filter OUTLET) to the pool return plumbing lines.
9. Do not locate pump controls over or near the filter.
10. Verify water discharge from the manual air relief valve(MAR) is directed away from electrical devices.

Starting the Pump and Filter System

1. Use ONLY Hayward clamp system components: DEX2421JKIT clamp system, DEX2421J2 nut/bolt
   assembly, DEX2422Z2 metal reinforced seal.
2. Non-Hayward clamp components may fail in use and cause explosive component separation. Verify that the upper and lower filter bodies are properly secured with the filter body clamp. Never rely on hand-tightening the clamp nut to the clamp bolt.
3. Using a ¾” socket on a torque wrench, torque the clamp nut to the clamp bolt to 150 inch-lbs. (See Fig. 1) Verify that the filter manual air relief body is in the LOCK position, and no filter components are missing, damaged, or not genuine Hayward components. (See Fig. 2)

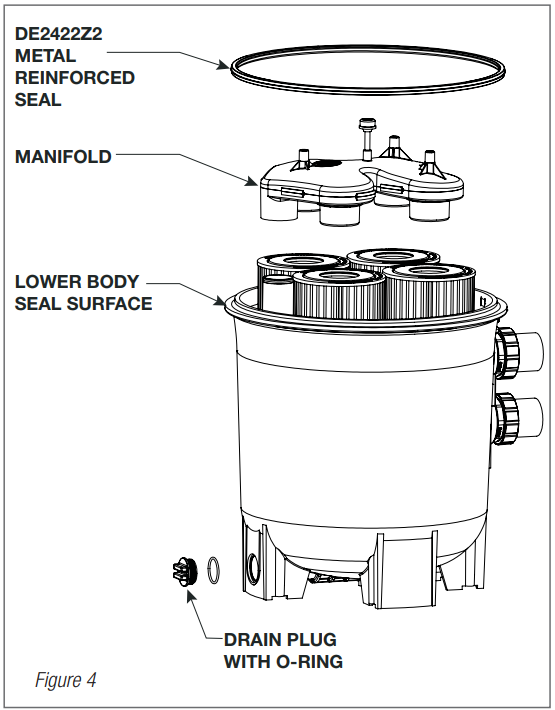

4. Close the filter drain. NOTE: Filter plug requires an o-ring seal. (See Fig 4)
5. Open all system valves to allow water from the pool to the filtration system and from the filter to return to the pool.
6.  Place the manual air relief valve in the OPEN position. (See Fig. 2)

Starting the Pump

1. When starting the system pump, do not stand over or near the filter. If water leakage appears at the filter tank clamp, immediately turn off all system circulation pumps and all electrical power. Do not return to the filter until all water leakage has stopped. Reassemble the clamp system per the instructions on page 7 in this owner’s manual to stop the leak.
2. Return to filter to CLOSE manual air relief valve only when a steady stream of water (not air or air and water mix) is discharged from the manual air relief valve.

Manual Air Relief Valve

1. Turn off all system circulation pumps and all electric power on the equipment pad.
2. Set all system valves in a position to prevent water from flowing to the filter.
3. The manual air relief valve must be placed in the OPEN position.
4. Wait until all water leakage has stopped.
5. Grasp the MAR body at the flats, turn the MAR counterclockwise until the indicator on the MAR flange is aligned with the “UNLOCK” position on the upper filter body.
6. Pull straight up to remove the MAR. A slight rocking motion may help.

Re-Installation of the Manual Air Relief Valve

1.  Check the o-ring seals, replace as needed.
2. With a clean cloth, wipe the paper filter body and the o-ring groove. Remove all dirt and debris.
3. Align the notch in the MAR Flange with the HAYWARD HCF7030C HCF Cartridge Filter notch on top of the upper filter body.
4. Press the MAR straight down into the upper filter body.
5. Turn the MAR clockwise until the indicator is aligned with the “LOCK” position on the upper filter body.
6. Verify the MAR discharge points are away from all electrical connections.

Body and Clamp Re-Assembly

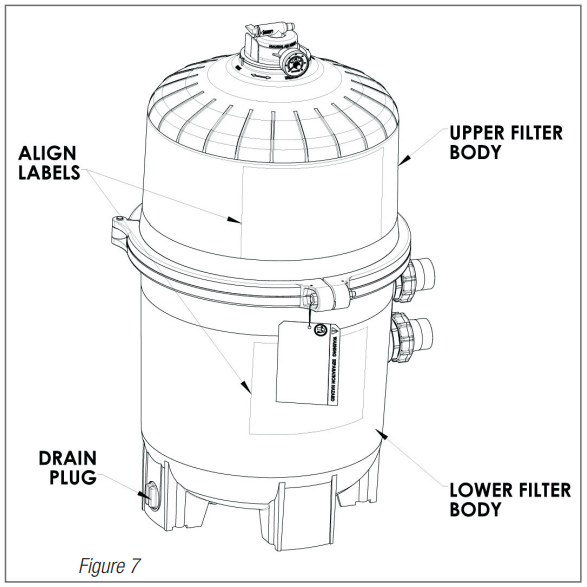

1. Place the metal reinforced seal on the lower filter body. (Fig 4) Place the upper filter body on the metal reinforced seal and the lower filter body in a position that allows all operation and safety labels to be clearly visible and the upper filter body to be centered on the lower filter body. Press down firmly and evenly on the upper filter body to seat the seal. (Fig 7)
2. Replace the filter clamp around the upper and lower filter bodies. Hold the clamp ends to position the clamp on the filter bodies with the clamp ends adjacent to the safety and operation labels on the filter bodies. (Fig 7)
3. Insert the lamp bolt through the clamp ends and thread the clamp nut onto the clamp bolt with the rounded end of the nut (Fig. 8) towards the ends of the clamp.

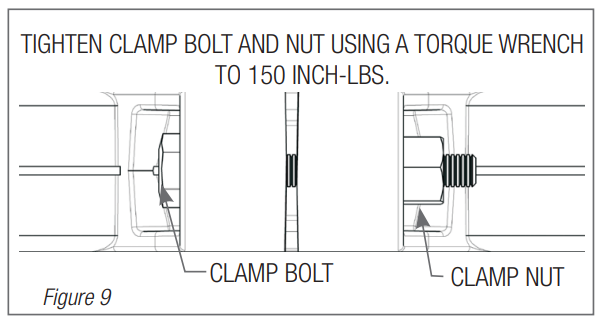

4. Never rely on hand tightening of the clamp nut to clamp the bolt. Using a 3/4” socket on a torque
   wrench, torque the clamp nut to the clamp bolt to 150 inch-lbs. (Fig 9)
5. Follow Operation Instructions for “Starting the Pump and Filter System” (Page 5).

Operation

Filtration starts as soon as the flow is steady through the filter. As the filter removes dirt from the pool water, the accumulated dirt causes a resistance to flow. As a result, the gauge pressure will rise and the flow will decrease. When the pressure rises between 7 and 10 psi (.49 – .69 bar) above the starting pressure, or when the flow decreases below the desired rate, clean or replace the filter cartridge elements.

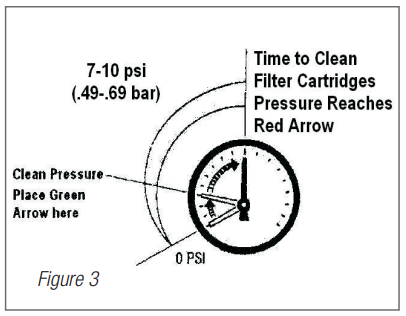

Once your filter is running and there is a pressure reading, line up the green arrow with the current reading. (See Fig. 3) When the pressure rises to or above the red or second arrow, it is time to clean or replace your filter cartridge elements.

By recording the initial starting pressure (with clean filter elements), a determination can be made when the filter cartridge elements should be replaced rather HAYWARD HCF7030C HCF Cartridge Filter than cleaned.

After the filter elements have been cleaned and reinstalled, if the starting pressure is higher than 6 PSI above the starting pressure with the new filter cartridge elements, the filter cartridge elements should be replaced the next time the gauge arrow reaches the red arrow.

Maintaining Your Filter

FILTER DISASSEMBLY INSTRUCTIONS

1. Turn off all system circulation pumps and all electric power on the equipment pad.
2. Set all system valves in a position to prevent water flow to the filter.
3. The manual air relief valve must be placed in the OPEN position. (Fig. 6)
4. Remove the filter drain plug (Fig. 4) and drain water from the filter.

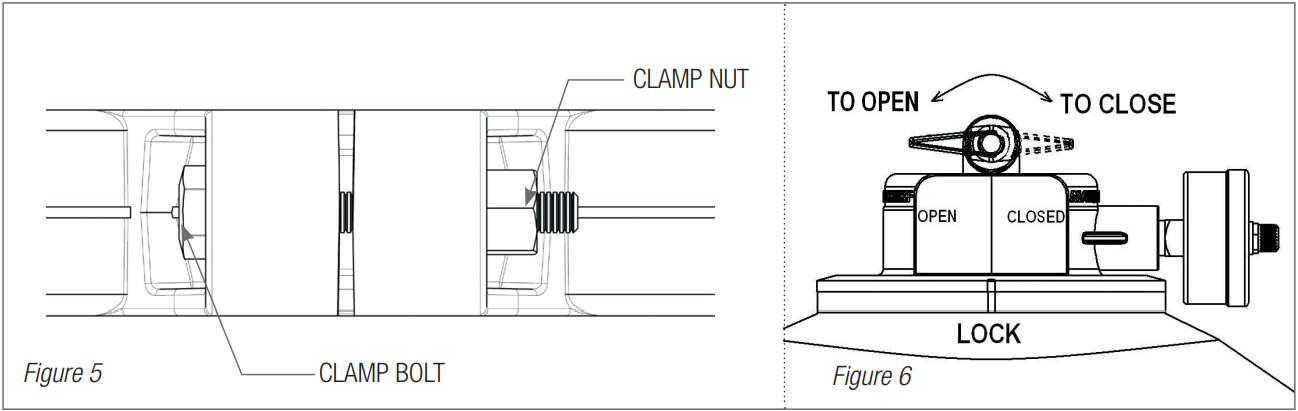

5. Using 3/4” wrenches or hex sockets, loosen and remove the clamp nut and the clamp bolt. (Fig 5)
6. Holding both ends of the filter clamp, carefully spread the clamp ends. Remove the clamp by lifting it over the upper filter body. Do not drop the clamp during removal, because the clamp could be damaged. Do not strike the clamp with metal tools, as they can damage the clamp.
7. Lift off the upper filter body. Do not use the HAYWARD HCF7030C HCF Cartridge Filter pressure gauge to lift the upper filter body.

Removing Cartridges

1. Remove the top Manifold, which is exposed when HAYWARD HCF7030C HCF Cartridge Filter the upper filter body is removed. (Fig 4)
2. Remove the filter cartridge elements by using a slight rocking motion and lifting.
3. Clean filter cartridge elements.

After housing the cartridge, for best results, carefully brush the pleated surface to remove fine particles. Do not pressure wash, as it can damage the filter element.

Filter Re-Assembly Instructions

1. Flush and drain any dirt or debris from the bottom of the lower filter body.
2. Flush any dirt or debris from the upper filter body HAYWARD HCF7030C HCF Cartridge Filter and from around the manual air relief area.
3. Carefully replace the cartridges over the hubs on the bottom seal plate.
4. Place the op manifold securely on top of the cartridges, aligning the return pipe with the port in the manifold.

Clean Seal Ring and Seal Surface

1. Remove the filter tank seal.
2. With a clean cloth, wipe the lower filter body seal surface and clean the seal of all dirt and debris. (Fig 4) Do not use a solvent.
3. With a clean cloth, wipe the upper filter body seal surface.

Customer Service

• Ph: 1-800-657-2287
• Website: www.haywardcommercialpool.com

FAQs

What is the Hayward HAYWARD HCF7030C cartridge filter designed for?

In order to maintain your pool clear and clean, the HCF7030C is made to effectively filter pool water by eliminating dirt and debris.

How often should I clean the cartridge filter?

During the swimming season, or if you see a decrease in water flow or an increase in pressure on the pump gauge, it is advised to clean the cartridge every four to six weeks.

Can I use any type of cartridge in this filter housing?

To guarantee a good fit and effective filtration, always use Hayward HCF series cartridges that are compatible with the HCF7030C model.

How long does it take to clean the cartridge?

Cleaning, including washing and soaking if necessary, often takes ten to fifteen minutes.

 Can I use chemicals or detergents to clean the cartridge?

Use only filter cleaning products made especially for pool cartridges. Steer clear of household detergents and aggressive chemicals since they can harm the filter material.

Can I operate the filter without the cartridge installed?

No, because there is no filtration or control over the flow of water, running the system without the cartridge can harm the pump and piping.

How tight should I seal the filter housing lid?

No, because there is no filtration or control over the flow of water, running the system without the cartridge can harm the pump and piping.

Can I backwash this cartridge filter?

No, backwashing is not supported by cartridge filters such as the HCF7030C. The cartridge must be taken out and rinsed in order to be cleaned.
