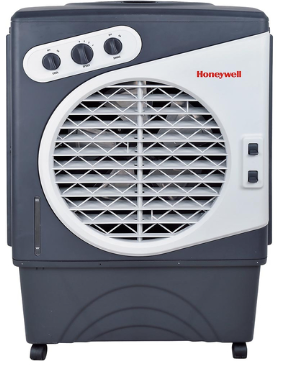

Honeywell CO60PM Portable Evaporative Air Cooler

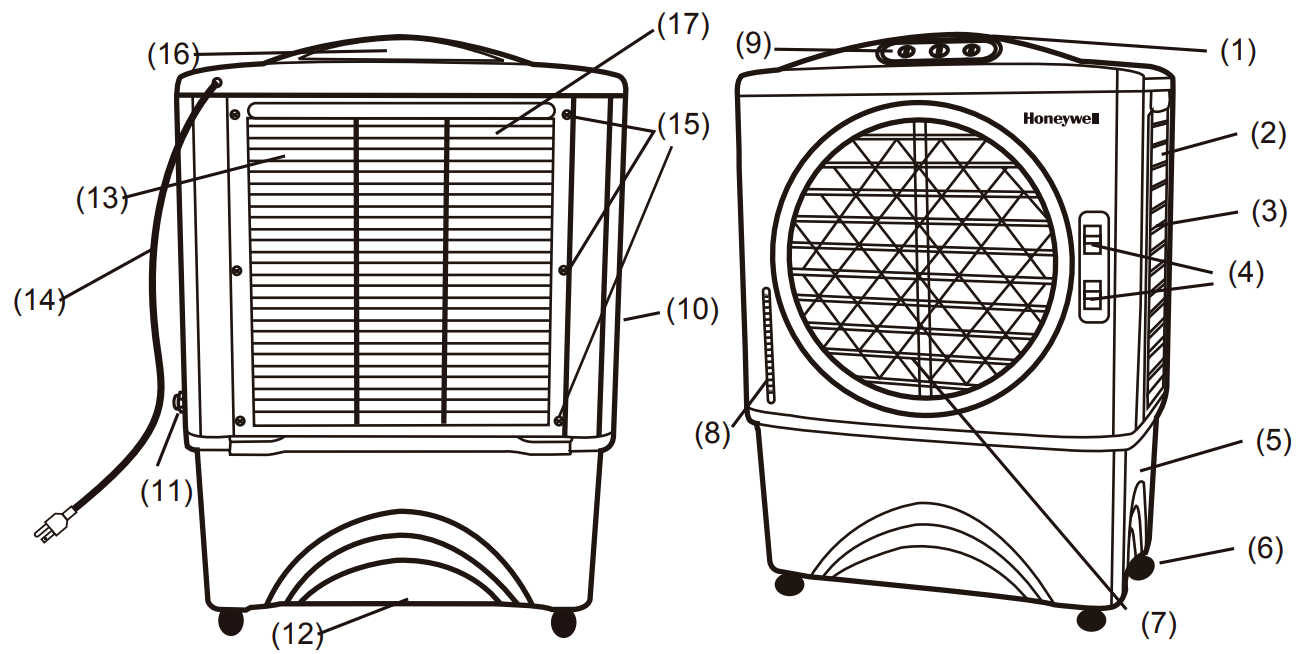

PARTS DESCRIPTION
- Water Inlet Hole
- Handle
- Left Side Grill
- Lever for Horizontal Louvers
- Water Tank
- Casters
- Louvers
- Water Level Indicator
- Control Panel
- Right Side Grill
- Water Inlet Valve
- Drain Plug
- Rear Grill
- Power Cord & Plug
- Rear Grill Screws
- Water Fill Door
- Honeycomb Cooling Media
USE & OPERATION
CONTROL PANEL
FUNCTION BUTTONS
SPEED / ON – OFF
Connect to the power supply and turn the SPEED knob. The fan will start. Change the speed from 3 to 1 (1 for Low, 2 for Medium and 3 for High fan speed). To switch OFF the unit, turn the SPEED knob to 0.
COOL
You must add water before operating the unit on Cool mode. Turn the COOL knob to the ON position to activate evaporative cooling. The water pump will operate and you will feel the cooler air after the Honeycomb Cooling Media is completely wet.
SWING
Turn the SWING knob to the ON position to activate the movement of the louvers. The louvers will begin to move left to right automatically. Vertical Air Flow – You can manually adjust the lever located at the front of the unit to change vertical air flow.
COOLER LOCATION
Make sure to position the air cooler correctly before you set up and start using the product. Please refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.
FILLING WITH WATER
It is ideal to use the Continuous Water Supply Connection to run the unit for long periods of time without refilling the tank. This also helps prevent pump failure in case the cooler is running with inadequate water in the tank.
CAUTION: Unplug the unit from the electrical power outlet before filling or emptying the water tank.

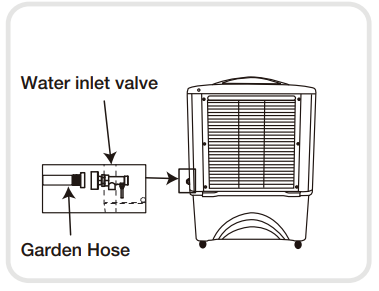

Continuous Water Supply Connection
For a continuous water supply, you will need a garden hose that is connected to a main water supply.
- Locate the male connector at one end of the garden hose. Insert the garden hose connector into the water inlet valve of the cooler. Try to disconnect, replace and tighten the water inlet valve again.
- When the connection is secured, turn ON the water supply and the water will flow into the water tank of the cooler.
- The cooler is now set so the water refills automatically when the water tank is empty, or when the water reaches below a minimum level.
- When the water tank is full, the water inlet valve will automatically stop the water supply from overflowing.
- Please open the water valve for minimum flow as too much pressure could damage the inlet pressure control system.
Manual Water Tank Refill

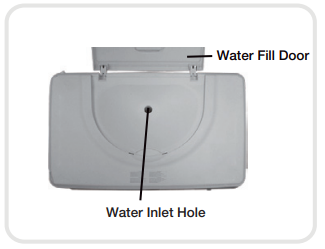

- Using a portable container or a garden hose, you can refill the water tank manually by pouring water into the water tank through the water inlet hole located at the top of the air cooler.
- Check the water level indicator to know when the water tank is full. Do not fill water above the “Max.” water level mark to avoid water droplets collecting on the louvers.
CLEANING & DRAINING THE WATER TANK
If the cooler will not be used for a long period, please refer to the STORAGE & MAINTENANCE GUIDELINES located in the separate Safety & Maintenance Guide.
WARNING: Before cleaning the unit, switch the unit OFF and disconnect from the electrical socket.
- Move the unit to a location where the water can be drained. Remove the cap from the Drain plug located at the bottom of the unit. Allow the tank to empty.
- Refill the water tank with clean water, up to the Honeywell CO60PM Portable Evaporative Air Cooler maximum level and drain it completely.
- Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive elements or chemicals to clean this product.
- When the product is not in use, store the unit in a dry place away from direct sunlight.
CLEANING THE HONEYCOMB COOLING MEDIA
- The appliance is supplied with three Honeycomb Cooling Media pads.
- The Honeycomb Cooling Media are located inside the Rear and Side Grills. Follow Steps 1 to 5 for
instructions on how to remove them from the unit for cleaning and maintenance. - The cleaning frequency for the Honeycomb media depends on local air and water conditions. In areas where the mineral content of water is high, mineral deposits may build up on the Honeycomb Cooling Media and restrict air flow. Draining the water tank and refilling with fresh water at least once a week will help reduce mineral deposits.
- For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool
function 15 minutes before turning the unit off.
Removing the Honeycomb Cooling Media
- Remove the screws from the Rear Grill of the Air Cooler.
- Carefully pull out the Rear Grill from the Air Cooler.

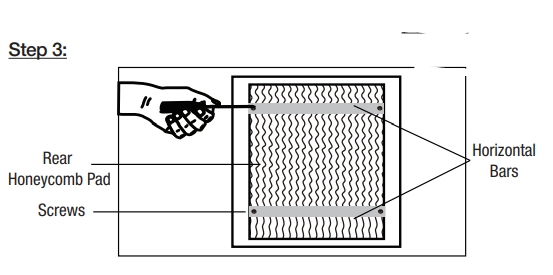

- Remove these screws to release the Horizontal Bars.

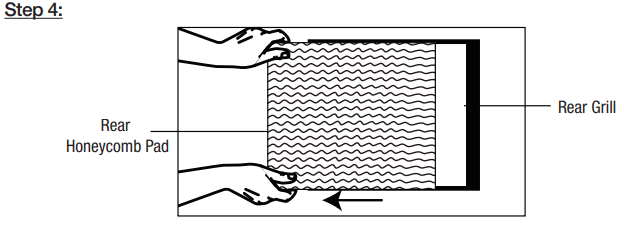

- Pull out the Honeycomb Cooling Pad by sliding it out from the Rear Grill. Replace with the new Honeycomb Cooling Pad by sliding into the grooves of the Rear Grill until it fits comfortably and securely in place on the grill. Replace the Horizontal Bars back onto the Rear Grill by replacing the Left and Right Side screws and tightening them Honeywell CO60PM Portable Evaporative Air Cooler in place. This secures the Honeycomb Cooling Pad in place on the Rear Grill.
- Repeat steps 1 to 4 to remove the Honeycomb Cooling Pad on the Left and Right Side Grills.

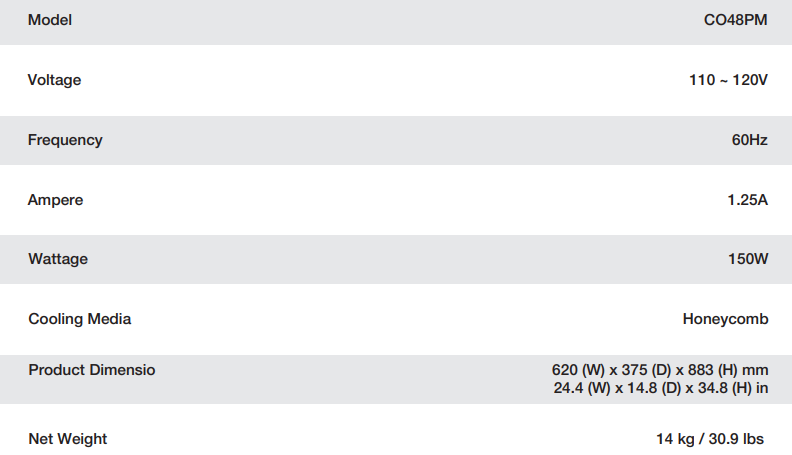

TECHNICAL SPECIFICATIONS

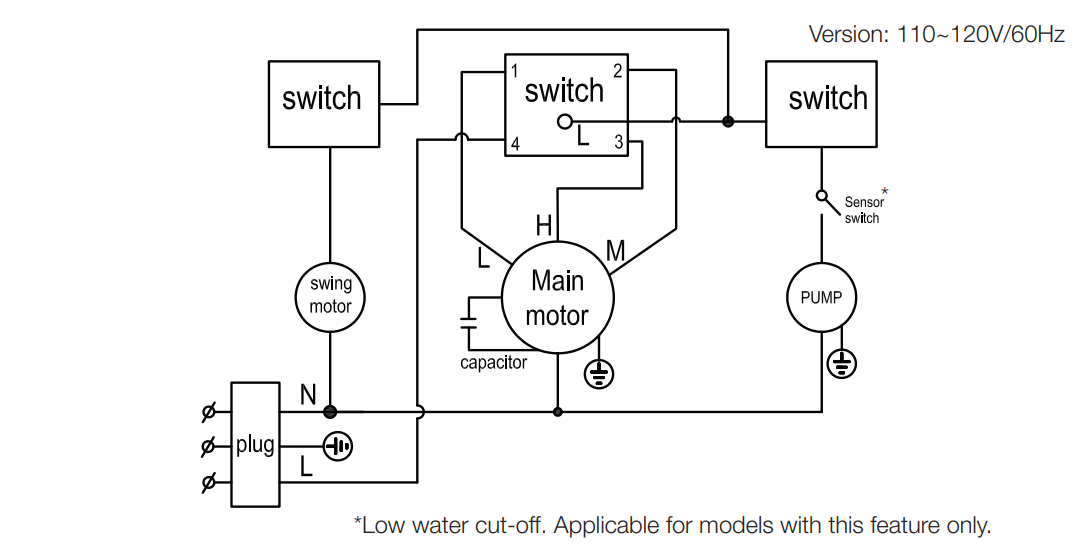

ELECTRICAL WIRING DIAGRAM
For USA Outdoor Models Only. This appliance is equipped with a GFCI plug. Press the TEST button and then the RESET button once every month to ensure proper operation.
JMATEK North America LLC Mahwah, New Jersey 07495 USA
Customer Service
- Phone: 1-800-474-2147
- Email: usinfo@jmatek.com
- Web: www.jmatek.com
