Honeywell H115BCS 115 Can Beverage Cooler
Safety Instructions
- Do not store explosive substances such as aerosol cans in this appliance.
- Do not use extension cords or ungrounded (two-prong) adapters.
- Keep ventilation openings in the appliance enclosure or the built-in structure clear of obstruction.
- Do not damage the refrigerant circuit.
- This freezer uses flammable blowing gas and refrigerant. Please dispose of according to local regulators.
- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- Risk of child entrapment. Before disposing of your old freezer:
- Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.
- Opening the door for long periods can cause a significant increase in the temperature in the compartments of the appliance.
- Regularly clean surfaces that can come in contact with food and accessible drainage systems.
Electricity Safety
- Do not pull the power cord when unplugging the upright freezer.
- Replace worn or damaged power cords in manufacturer-authorized maintenance stations.
- In case of a gas leak, please turn off the valve of the leaking gas and then open the doors and windows.
- Do not unplug the upright freezer and other electrical appliances since that spark may cause a fire.

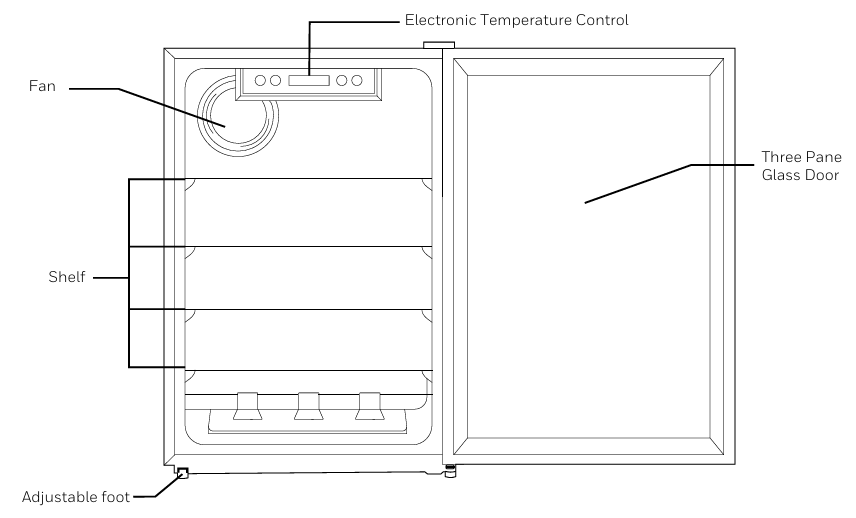

Names of Components
Use
Display Control
- When powering on the cooler for the first time, the display screen will display in full for 3 seconds, the start-up tone will ring, and then the display will enter a normal running state.
- Avoid scratching the display panel with sharp objects and keep it away from high magnetic fields and high humidity.
- Normal settings and operation of the cooler may be affected.
Standby Function
- To exit standby state, press the standby button until the buzzer rings.
- The display screen will then display the set temperature.
- To enter the standby state, press the standby button until the buzzer rings.
- The display screen will turn off.
Functions
- Except for the lighting function, the following functions must be carried out when the display panel is unlocked.
Lighting Mode
- Press the lighting key until the buzzer rings to turn the internal lamp on or off.
Switching Temperature Units
- Press the Temperature-rise key and the Temperature-drop key continuously for 3 seconds to finish the switch of the Celsius temperature and Fahrenheit temperature; the display area will show the setting Fahrenheit temperature or Celsius temperature under the existing mode.
Temperature Setting
- Press the temperature-rise key and the temperature will increase 1 °C (or °F).
- After locking, the cooler will run according to the setting value.
- Press the temperature-drop key and the temperature will decrease by 1 °C (or °F). After locking, the cooler will run according to the setting value.
- Setting the range of the Celsius temperature: 1°C – 10°C.
- Setting range of the Fahrenheit temperature: 33.8°F – 50°F
Memory Function
- The cooler has the power-off memory function. If the power supply is reconnected, the cooler will run under the temperature set before power-off.

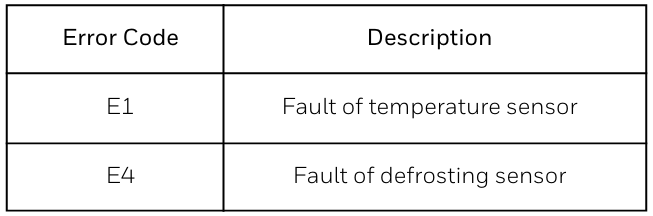

Error Code
- If the following error codes appear on the LED display, please unplug the unit for 24 hours to allow the sensors to completely defrost a restart. If there is still an error when turning the unit back on, please contact the manufacturer.
- Storing too many cans or bottles in the cooler may cause the temperature in the cooler to rise temporarily.
Placement
- Before using the cooler, remove all packaging materials, including bottom cushions, foam pads, and tape inside, and tear off the protective film on the door and the appliance body.
- The cooler should be placed in a well-ventilated indoor place on ground that is flat and sturdy ground. (Rotate left or right to adjust the wheel for leveling, if unstable)
- Keep away from heat and avoid direct sunlight. Do not place the appliance in moist or watery places to prevent rust or reduction of insulation.
- Please leave at least 30 cm of space above the appliance, and 10 cm from both sides and the backside to facilitate heat dissipation.
Start to Use
- The cooler must stand upright for half an hour before connecting power when it is first started.
- Clean the interior before using it for the first time.
- Do not connect the cooler to electronic energy saving plugs and converters that can convert DC into AC (e.g., solar energy system, ship grid).
- When the compressor is running, there may be water drops or frost on the backside of the cooler.
- Wiping out frost or water drops is not needed, as the water will be collected into the drain tank, then flow into the water disposal pan above the compressor and vaporized.
The Arrangement of the Bottle
- Do not let bottles touch the cooler’s back in order to maintain good air circulation within the cooler. The bottle number may be different from bottles in different shapes and sizes. Oversized bottles may impact the number of bottles that can be stored inside the beverage cabinet.
Usage of Temperature Zones
- Do not let bottles touch the cooler’s back in order to maintain good air circulation within the cooler.
- The bottle number may be different from bottles in different shapes and sizes.
- Oversized bottles may impact the number of bottles that can be stored inside the beverage cabinet.
- Due to different temperature zones generated by the Honeywell H115BCS 115 Can Beverage Cooler by air circulation in the cooler, the upper area’s temperature is higher than the lower area.
- Unplug the power plug to disconnect the cooler.
Stop using the cooler.
- If the cooler is left unused for a long time, please:
- Unplug the cooler.
- Clean the cooler.
- Keep the cooler door open.
Reversing the Door Swing

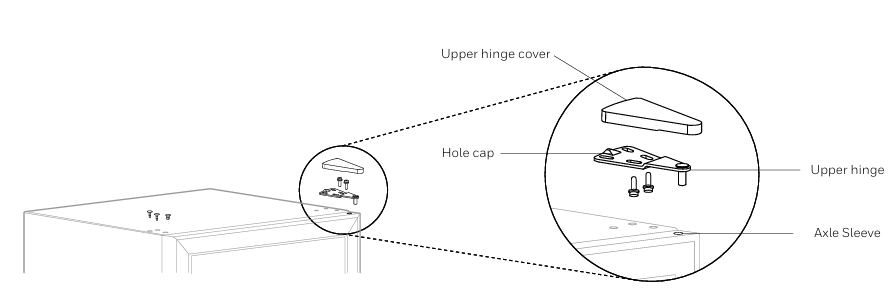

- Change the installation location of the upper hinge of the beverage cabinet, then the opening direction of the door can be changed at will.
- Open the door of the beverage cabinet and detach the glass door with tremendous care.

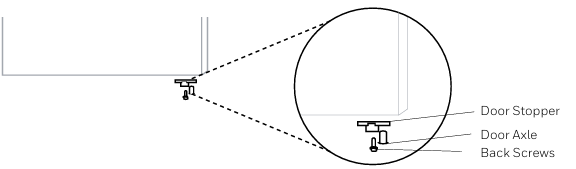

- Remove the door axle sleeve at the lower part Honeywell H115BCS 115 Can Beverage Cooler of the glass door, the door stopper back screws, and the door stopper, and fix them to the left side.

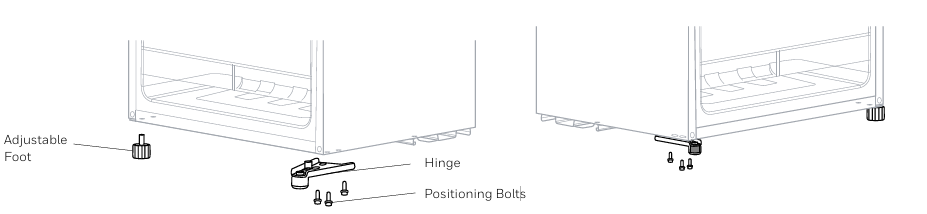

- Remove the adjustable foot, positioning bolt, and lower hinge, then exchange the parts of the right and left sides, and later use the reverse method to install the adjustable foot and positioning bolts.
- Put the glass door on the lower hinge, install the door axle sleeve back, and then install the upper hinge. Align the door with the cabinet and check the tightness of the gasket.
Maintainance & Cleaning
- Clean the dust behind the cooler and on the ground to improve the cooling effect and energy saving.
- Check the door gasket regularly to make sure there is no debris.
- Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
- Clean the interior of the appliance regularly to avoid odor.
- Please turn off the power before cleaning the interior, and remove all food, shelves, drawers, etc.
- Use a soft cloth or sponge to clean the inside of the appliance, with two tablespoons of baking soda and a quart of warm water.
- Then rinse with water and wipe clean. After Honeywell H115BCS 115 Can Beverage Cooler cleaning, open the door and let it dry naturally before turning on the power.
- Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the appliance or contaminate food.
- Clean the bottle frame, shelf, and drawers with a soft cloth dampened with soapy water or diluted detergent.
- Dry with a soft cloth or dry naturally.
- The wooden wine rack should be cleaned with a dry cloth.
- The rack should not be directly immersed in liquid to prevent cracking or mold from moisture.
- Wipe the outer surface of the appliance with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
- Do not rinse directly with water or other Honeywell H115BCS 115 Can Beverage Cooler liquids during cleaning to avoid short circuits or damage to the electrical insulation.

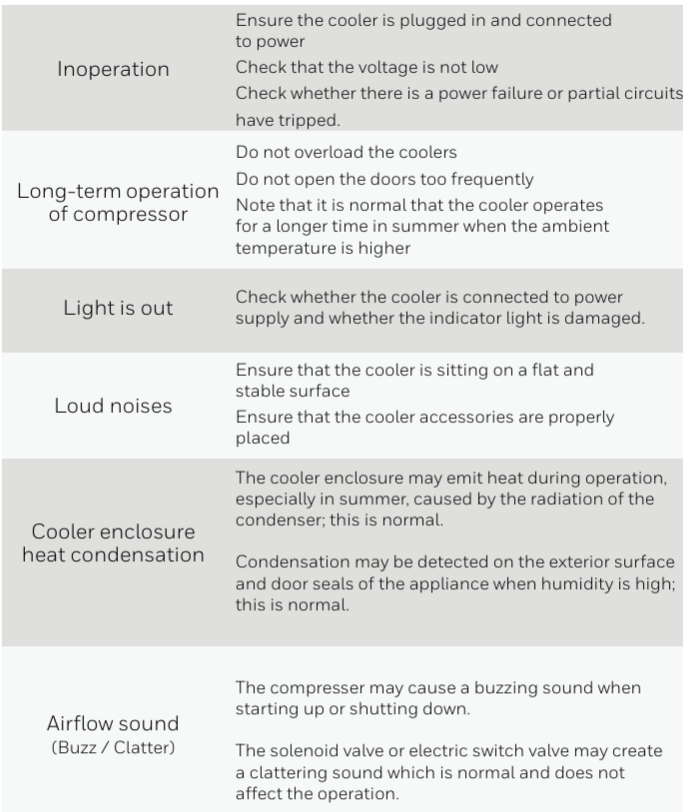

Troubleshooting
If you want to return or replace the product, please contact the store where it was purchased (remember to bring the purchase invoice). If your product needs repair, please contact us via email or phone.
Disposal
- The upright freezer’s refrigerant and cyclopentane foam materials are combustible materials.
- Please transfer the upright freezer to a qualified professional recycling company for processing to avoid damage to the environment or other hazards.
- Please remove the door of the upright freezer and the shelves to prevent children from entering and playing in the upright freezer.
Correct Disposal of this product
- To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
- Contact the retailer, as many will take them back for recycling.
Customer Service
- 585 Prospect St., Lakewood, NJ 08701
- Tel: 1-800-604-0295
- Email: support@honeywellcoolingappliances.com
- Website: honeywellcoolingappliances.com
FAQs
Q: What is the temperature range of the Honeywell H115BCS beverage cooler?
Ans: The cooler’s temperature range of 38°F to 50°F (3°C to 10°C) makes it ideal for chilling a range of drinks, such as juices, sodas, and beers.
Q: How many cans can the Honeywell H115BCS hold?
Ans: This type is perfect for parties, businesses, or home use because it can carry up to 115 regular 12-ounce cans.
Q: Can I adjust the temperature settings? If so, how?
Ans: Indeed! By clicking the up or down buttons on the front digital control panel, you can quickly set and modify the temperature to your desired cooling level.
Q: Does the beverage cooler have an interior light?
Ans: To illuminate your drinks without changing the internal temperature, the cooler has an inside LED light that you can turn on or off.
Q: Is the door reversible for left- or right-handed opening?
Ans: The Honeywell H115BCS’s door hinge is reversible, so you may adjust the door swing direction to suit your needs.
Q: How much space should I leave around the cooler for ventilation?
Ans: For optimal performance, maintain at least 4 inches of clearance around the sides and back to allow proper airflow.
