Honeywell H34WCB 34 Bottle Wine Cooler
Safety Instructions
- Do not store explosive substances such as aerosol cans in this appliance.
- Do not use extension cords or ungrounded (two-prong) adapters.
- Keep ventilation openings in the appliance enclosure or the built-in structure clear of obstruction.
- Do not damage the refrigerant circuit.
- This freezer uses flammable blowing gas and refrigerant. Please dispose of according to local regulators.
- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- Risk of child entrapment. Before disposing of your old freezer:
- Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.
- Opening the door for long periods can cause a significant increase in the temperature in the compartments of the appliance.
- Regularly clean surfaces that can come in contact with food and accessible drainage systems.
Electricity Safety
- Do not pull the power cord when unplugging the upright freezer.
- Replace worn or damaged power cords in manufacturer-authorized maintenance stations.
- In case of a gas leak, please turn off the valve of the leaking gas and then open the doors and windows.
- Do not unplug the upright freezer and other electrical appliances since that spark may cause a fire.

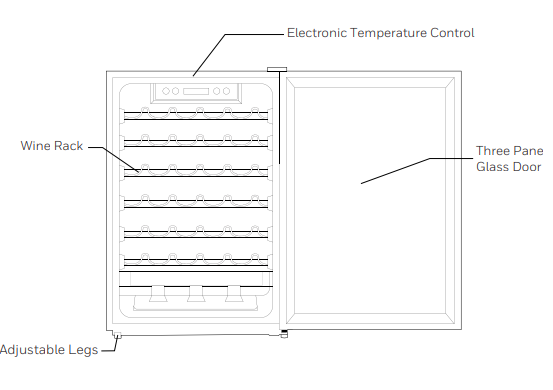

Names of Components
- Electronic Temperature Control
- Wine Rack
- Adjustable Legs
- Three Pane Glass Door
Use
- The temperature in the cooler is 41°F – 64.4°F Temp Range
- Do not place food in the cooler to prevent bacterial contamination.
- The interior of the appliance should be kept dry.
Temperature Control
- After powering on the cooler, you can turn the thermostat knob to set the inside temperature level.
- “Cold“ is the warmest setting
- “Colder“ is the coldest setting
- “OFF“ means stop cooling
- Setting the range of the Celsius temperature: 5°C – 18°C.
- Setting range of the Fahrenheit temperature: 41°F – 64.4°F
Placement
- The cooler should be placed in a well-ventilated indoor place on ground that is flat and sturdy ground. (Rotate left or right to adjust the wheel for leveling, if unstable)
- Keep away from heat and avoid direct sunlight. Do not place the cooler in moist or watery places to prevent rust or reduction of insulation.
- Please leave at least 30 cm of space above the cooler, and 10 cm from both sides and the backside to facilitate heat dissipation.
Disconnecting
- Unplug the power plug to disconnect the cooler.
Stop Using
- If the cooler is left unused for a long time, please:
- Unplug the cooler.
- Clean the cooler.
- Keep the cooler door open.
Start to Use
- The cooler must stand upright for half an hour before connecting power when it is first started.
- Clean the interior before using it for the first time.
- Do not connect the cooler to electronic energy saving plugs and converters that can convert DC into AC (e.g., solar energy system, ship grid).
- When the compressor is running, there may be water drops or frost on the backside of the cooler.
- The cooler should be placed in a dry and well-ventilated room. The cooler should not be placed in direct sunlight or next to a heat source (such as a radiator, stove, etc.), and a suitable insulation board should be applied if necessary.
- Do not keep the cooler door open for too long.
The Arrangement of the Bottle
- Do not let the bottles touch the back side of the cooler to maintain proper air circulation within the cooler.
- The capacity for bottle storage within the wine cabinet is based on the following marked bottle size. Oversized bottles may impact the number of bottles that can be stored inside the beverage cabinet.
Maintainance & Cleaning
- Clean the dust behind the cooler and on the ground to improve the cooling effect and energy saving.
- Check the door gasket regularly to make sure there is no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
- Clean the interior of the cooler regularly to avoid odor.
- Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the cooler or contaminate food.
- Clean the bottle frame, shelves, and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.
- Wipe the outer surface of the cooler with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
- Boiling water and organic solvents such as benzene may deform or damage plastic parts.
- Do not rinse directly with water or other liquids during cleaning to avoid short circuits or damage to the electrical insulation.
Troubleshooting
Inoperation
- Ensure the cooler is plugged in and connected to power
- Check that the voltage is not low
- Check whether there is a power failure or if partial circuits have tripped.
Long-term operation of the compressor
- Do not overload the coolers.
- Do not open the doors too frequently.
- Note that it is normal that the cooler operates for a longer time in summer when the ambient temperature is higher.
The light is out
- Check whether the cooler is connected to the power supply and whether the indicator light is damaged.
Loud noises
- Ensure that the cooler is sitting on a flat and stable surface
- Ensure that the cooler accessories are properly placed
Cooler enclosure heat condensation
- The cooler enclosure may emit heat during operation, especially in summer, caused by the radiation of the condenser; this is normal.
- Condensation may be detected on the exterior surface and door seals of the cooler when humidity is high; this is normal.
Airflow sound
- The compressor may cause Honeywell H34WCB 34 Bottle Wine Cooler a buzzing sound when starting up or shutting down.
- The solenoid valve or electric Honeywell H34WCB 34 Bottle Wine Cooler switch valve may create a clattering sound, which is normal and does not affect the operation.
Disposal
- The upright freezer’s refrigerant and cyclopentane foam materials are combustible materials.
- Please transfer the upright freezer to a qualified professional recycling company for processing to avoid damage to the environment or other hazards.
- Please remove the door of the upright freezer and the shelves to prevent children from entering and playing in the upright freezer.
Correct Disposal of this product
- To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
- Contact the retailer, as many will take them back for recycling.
Customer Service
- BHRS Group, LLC 585 Prospect St., Lakewood, NJ 08701
- Tel: 1-800-604-0295
- Email: support@honeywellcoolingappliances.com
- Website: honeywellcoolingappliances.com
FAQs
Q: What is the optimal temperature range for the Honeywell H34WCB wine cooler?
Ans: You can keep a range of wines at the perfect serving temperatures with the Honeywell H34WCB’s adjustable temperature range of 41°F to 64°F (5°C to 18°C).
Q: How many bottles can the Honeywell H34WCB hold?
Ans: Using detachable, adjustable wooden racks, this wine cooler maximises storage capacity by holding up to 34 standard 750ml bottles.
Q: Can I store both red and white wines simultaneously?
Ans: Indeed! You may keep both red and white wines together thanks to the cooler’s adjustable temperature settings, but for more accurate temperature management, group comparable varietals together.
Q: Does the H34WCB have a vibration reduction feature?
Ans: In order to reduce disruptions and maintain the wine’s quality and ageing process, the unit is outfitted with vibration-damping technology.
Q: How do I adjust the temperature on this wine cooler?
Ans: To adjust the temperature, use the digital control panel on the door frame. To choose the desired degree from the range, just use the up or down buttons.
Q: Is there an interior light, and can it be turned off?
Ans: To highlight your collection, the H34WCB has an energy-efficient LED internal light. To save needless heat, you can turn the light on or off using the control panel.
