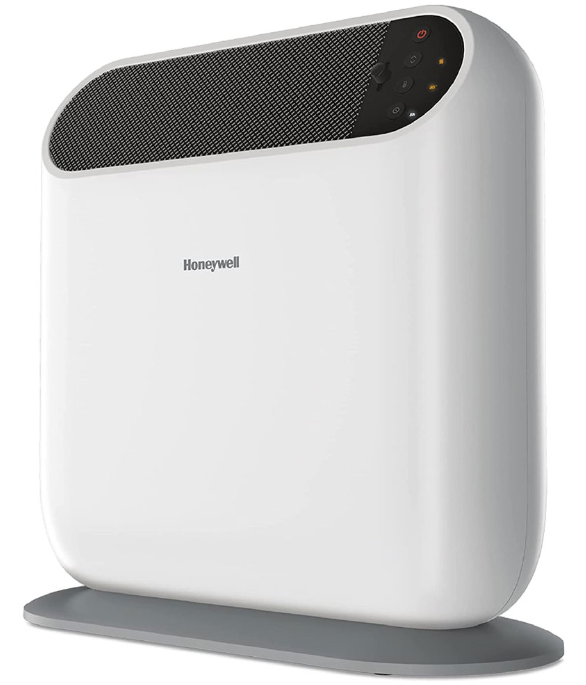

Honeywell HCE870 SERIES Ceramic Heater
Safety Instructions
- This heater is hot when in use.
- To avoid burns, DO NOT let bare skin touch hot surfaces.
- Use handles when moving this heater.
- ALWAYS unplug the heater when not in use.
- For residential use only.
- DO NOT use outdoors.
- NEVER locate the eater where it may fall into a bathtub or other water container.
- DO NOT run cord under carpeting.
- DO NOT cover the cord with throw rugs, runners, or similar coverings.
- DO NOT route cord under furniture or appliances.
- Arrange the cord away from the traffic area and where it will not be a tripping hazard.
- This appliance has a polarized plug (one blade is wider than the other).
- If the plug does not fit fully in the outlet, reverse the plug.
- If it still does not fit, contact a qualified electrician.
- DO NOT attempt to defeat this safety feature.
- This heater draws 12.5 amps during operation.
- DO NOT plug the heater into a circuit that already has other appliances working.
- Contact a qualified electrician to replace a loose or worn outlet.
- DO NOT block air intakes or exhaust in any manner.
- DO NOT use on soft surfaces, like a bed, or where openings may become blocked.
- A heater has hot and arcing, or sparking parts inside.
Ceramic Technology
Ceramic heaters generate heat by passing electricity through heating wires embedded in ceramic plates. This type of heating technology provides fast, even heating.
Assembly

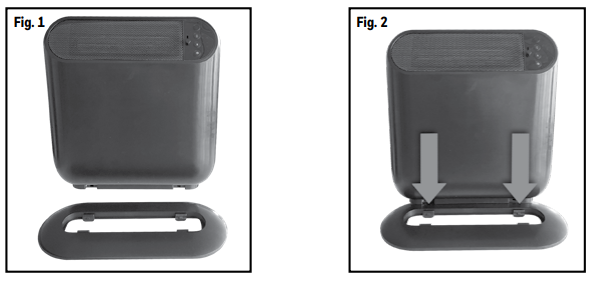

This heater requires a simple, no-tool assembly. Unpack the Main Body and Mounting Base (Fig. 1). Place the Mounting Base on a firm surface. Place the ThermaWaveTM 6 Heater Main Body on the Mounting Base so the Mounting Tabs are aligned with the Base Slots. Press the Main Body onto the Base until the Tabs snap securely into the Slots (Fig. 2).
Set-Up
Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9 m) away from any wall or combustible material. DO NOT use on an unstable surface such as bedding or deep carpeting. For the best result, place the heater on the floor to create a warming room convection and allow the heater to run for 5-10 minutes to reach maximum heat output.
Moving the Heater
Turn off the heater. Allow it to cool for ten (10) minutes. Unplug the heater and move. This heater is equipped with a Cool Touch Handle for your convenience.
Operation
DO NOT FORCE THE POLARIZED PLUG INTO THE OUTLET; it will only fit one way.

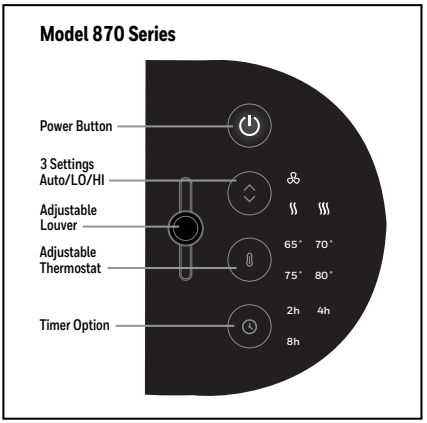

Turn the heater on by pressing the ON (U) button. The heater will default to the low setting. Adjust the Louver to give directional heat control. The Low (S) heat setting uses 900 watts of power, and the High (S) heat setting uses 1500 Watts of power.
The Fan Only (2) setting uses very low power and does not provide heat. You can select the proper setting to accommodate your comfort level with the Settings Button (v). The Low (SS) heat setting does not require as much electricity to operate, it is more energy efficient, and may be a better option if you are concerned about amperage draw on a circuit when the heater is on the High setting.ng
The Adjustable Thermostat (8) button is equipped with 4 pre-set Heat Levels. To set the thermostat to one of these levels, press the Thermostat (8) button until the desired temperature is illuminated. The heater will operate at the High setting until the room reaches the desired temperature. The heater fan will run for 60 seconds and turn off until the room temperature goes below the desired temperature. It will then turn back on.
Features
The ThermaWave™ 6 Heater is equipped with several devices and features for added protection:
- A 360° tip-over switch that disables the heater if it is tipped in any direction.
- Two high-temperature safety sensors prevent overheating. If activated, unplug the device and wait at least 20 minutes or allow the unit to cool completely. Make sure the operating conditions are safe, and then plug the heater back in and follow the OPERATION instructions.
- Thermally insulated wiring for heat resistance and reinforced wire connections to help protect against loose connections.
- Built using a high-temperature plastic, and has a cool-to-touch housing and handle.
- The 8-hour timer auto-off is the default setting upon powering the unit on. To select another option, press the timer.
Cleaning
We recommend that the ThermaWave™ 6 Heater be cleaned at least once a month and before off-season storage.
- Turn the heater OFF (U) and unplug it. Allow it to cool.
- Use a dry cloth only to clean the external surfaces of the heater.
Troubleshooting
If your ThermaWave™ 6 Heater shuts off unexpectedly or fails to operate, one of your heater safety features may have been activated to prevent overheating.
- Be sure it is plugged in and that the electrical outlet is working.
- Check for any obstructions. If you find an obstruction, turn the heater OFF and unplug it.
- Allow the heater to cool completely, then remove the obstruction.
- Wait at least 20 minutes, then plug the heater back in and follow the OPERATION instructions.
- Make sure the heater is on a flat level surface Honeywell HCE870 SERIES Ceramic Heater so that the tip-over switch is not engaged.
Specifications
- Model(s) 870 Series
- Unit Dimensions 7.75” L x 17.8” W x 18.31” H (assembled)
- Amps 12.5
- Unit Voltage 120V, 60Hz
- Max Watts 1500
- Max BTUs 5118
Operation Cost
To estimate the cost to operate this heater, multiply the watts used by 0.001 to convert into kilowatts, then
Multiply the kilowatts used by your local kilowatt-hour electric rate for however long you run the heater. For
Example, if your electric rate is $0.1326** per kilowatt hour and you ran this heater in constant high mode
(1500 watts) For 4 hours, it would cost you 0.80 to run the heater (1500 watts x 4 hours x 0.001) x $0.1326 kwp = 0.80 cent)
Limited Warranty
- This 33-year limited warranty applies to the repair or replacement of the product found to be defective in material or workmanship.
- This warranty does not apply to damage resulting from commercial, abusive, or unreasonable use, or supplemental damage.
- Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.
- Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
- This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.
- At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship.
- This warranty does not cover damage Honeywell HCE870 SERIES Ceramic Heater resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
Disposal
- The upright freezer’s refrigerant and Honeywell HCE870 SERIES Ceramic Heater cyclopentane foam materials are combustible materials.
- Please transfer the upright freezer to a qualified professional recycling company for processing to avoid damage to the environment or other hazards.
- Please remove the door of the upright freezer and the shelves to prevent children from entering and playing in the upright freezer.
Correct Disposal of this product
- To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
- Contact the retailer, as many will take them back for recycling.
Customer Service
- 585 Prospect St., Lakewood, NJ 08701
- Tel: 1-800-604-0295
- Email: support@honeywellcoolingappliances.com
- Website: honeywellcoolingappliances.com
FAQs
What room size is the Honeywell HCE870 heater suitable for?
Small to medium-sized spaces up to 150 square feet can be effectively heated with the HCE870 Series.
What safety features does this heater include?
If the heater becomes too hot, the HCE870’s overheat prevention mechanism will immediately turn it off.
How do I clean and maintain the heater?
Unplug the heater and let it cool fully before cleaning. Wipe the outside with a gentle, dry cloth. Avoid using abrasive cleansers, solvents, or water. To avoid dust accumulation, inspect and clean air intake vents on a regular basis.
What power settings are available?
In addition to two heat settings—High (1500 watts) and Low (750 watts)—the heater also has a fan-only mode for cold air circulation.
Why is the heater not producing heat?
Verify that the heater is turned on and plugged in. Verify if the thermostat is set higher than the room temperature at the moment. The heater might require maintenance if it is still not producing heat.
