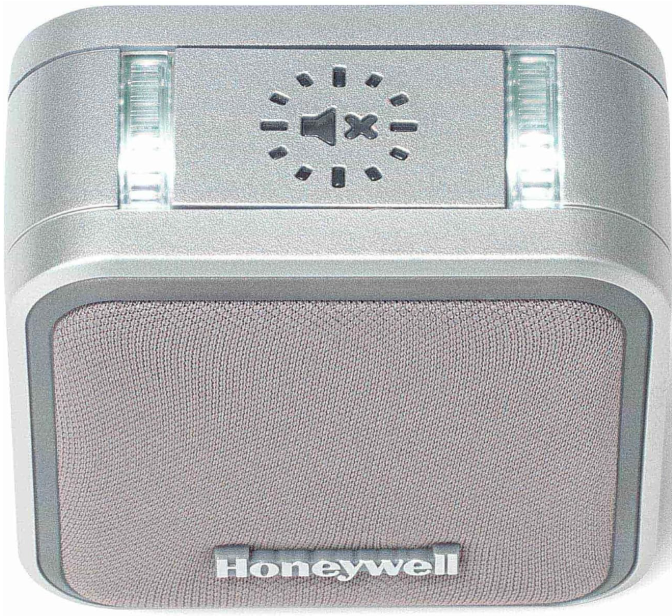

Honeywell RDWL515P2000 Plug-In Wireless Doorbell
Overview
Just follow these simple steps
- Install the push-button battery and plug in the doorbell.
- Set up the doorbell and your preferences. Install the push button. Indoor use only. Do not expose to liquid, vapor, or rain.
Power-up
- Choose an outlet location that is not near a heat source, where the doorbell will be easy to see and hear, and plug in the doorbell.

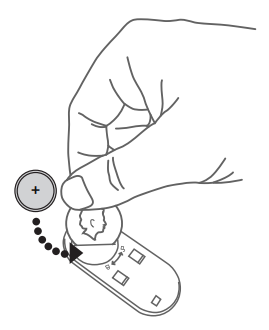

- Open the push-button battery cover and install the CR2032 battery.
Setup and Operation
Press the push button to test whether it is paired with the doorbell. The doorbell will light up and ring.
Change the Light Pattern
Press the Sunlight button to change the lights that flash when the doorbell rings.
- Press the Sunlight button.
- Halo light and top lights
- Halo light only
- Top lights only
- No lights
Change the Tune
- Press the Music button to change the doorbell tune.
- Every time you press the Music button, the tune will change.
- Stop pressing the Music button when you hear the tune you want:
Change the Halo Light Color

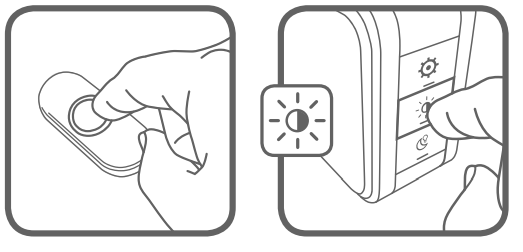

Press the push button. Within 12 seconds, press the Sunlight button.
Adjust the Volume
Press the Volume Up or Volume Down buttons to adjust the volume of the Doorbell.
Set the Mute
You can also mute the doorbell for specific amounts of time. Press the Mute button.
Preparation

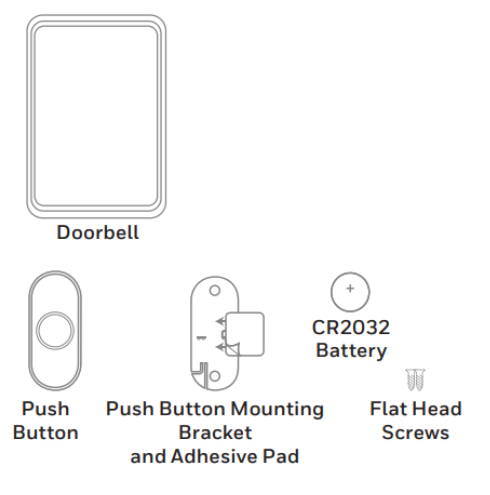

In the box you will find
To install, you will need
- Phillips Screwdriver
- Standard Screwdriver
Specifications
| Doorbell | Push Button | |
| Operating Temperature | 23°F to 104°F (-5ºC to 40ºC) | -4°F to 122°F (-20ºC to 50ºC) |
| ActivLink™ | 916.8 MHz | 916.8 MHz |
| Range (open field) | 350 ft. (106 m) | 350 ft. (106 m) |
| Sound Level (typical) | 84dBA | – |
| RF Power | – | <1.2W |
| Battery Type | Input: 100 V-240 V~ 50-60 Hz 300 mA | CR2032 |
| Battery Life (5 activations/day) | – | Up to 2 years |
| Rain proof | N/A | Pass UL1598 rain test. |
Caution
Before operating, make sure that the product components have not been damaged, have not been exposed to water or high temperatures.
Maintenance
Your doorbell and push button require no maintenance except to periodically
change the battery. If using the correct battery, its life should be approximately:
- Up to 2 years for the push button; replace with a CR2032 lithium battery
- When the push button batteries are low, two beeps are heard after the normal tune.
Reset
- This process removes all pairings, including the push button that came with this doorbell:
- Unplug the doorbell.
- Press and hold the Setting button, and plug the doorbell back in at the same time.
- The halo light will circle, and the doorbell will return to its factory default settings.
Troubleshooting
| If Then | |
| The doorbell does not work | 1. Press the Mute button until all of the Mute lights are off. 2. Make sure the correct batteries (1 CR2032) are installed with the correct polarity. 3. The doorbell might be out of range; try the doorbell in a different location. 4. Reconnect the doorbell. See “Connect a Push Button”. |
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and usedbyh the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed, and the Honeywell RDWL515P2000 Plug-In Wireless Doorbell operated with a minimum distance of 20 millimeters between the radiator and your body.
IC Regulations
This device complies with Industry Canada licence‐exempt RSS standard(s). Operation is subject to the following two conditions
- Users can obtain Canadian information on RF exposure and compliance.
- The operation of this equipment is subject to the following two conditions:
- This equipment or device may not cause harmful interference, and
- This equipment or device must accept any interference, including interference that may cause undesired operation.
Warranty
- 1-year limited warranty Resideo warrants this product, excluding battery, to be free from defects in workmanship or materials, under normal use and service, for one (1) year from the date of first purchase by the original purchaser.
- Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you.
- Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
- This warranty provides you with specific legal rights, and you may have other rights that vary from state to state. If you have any questions concerning this warranty, please write.
- Resideo Customer Care, 1985 Douglas Dr, Golden Valley, MN 55422, or call 1-800-633-3991.
- Resideo Technologies, Inc. 1985 Douglas Drive North, Golden Valley, MN 55422 1-800-468-1502 33-00185EFS—07 M.S. Rev. 03-20.
- Printed in the United States.
© 2020 Resideo Technologies, Inc. All rights reserved.
Customer support
- Website
- honeywellhome.com
- www.resideo.com
- Tell: 1-800-633-3991.
FAQs
Q: What is the wireless doorbell’s range?
Ans: The wireless range of the Honeywell RDWL515P2000 can reach up to 450 feet, contingent on obstructions like walls or other electronic equipment that could disrupt the signal.
Q: Is it possible to alter the chime sounds?
Ans: There are numerous chime alternatives available Honeywell RDWL515P2000 Plug-In Wireless Doorbell, for the doorbell. The receiver’s settings make it simple to select the sound you want.
Q: Can the sounds of the chime be changed?
Ans: For the doorbell, there are several different chime options. It is easy to choose the sound you want thanks to the receiver’s settings.
Q: How do I replace the doorbell button’s batteries?
Ans: Remove the doorbell button from its mounting bracket, open the battery compartment, and swap out the old batteries for fresh ones in order to update the batteries. Make sure you put the batteries appropriately by following the polarity markings.
Q: If my doorbell is not working, what should I do?
Ans: First, make sure the doorbell button is within range and check the receiver’s power supply. For additional help, consult the user manual’s troubleshooting section if problems continue.
Q: Can I expand my system to include more doorbell buttons?
Ans: Yes, you can expand the Honeywell RDWL515P2000 system’s doorbell button count. To connect more buttons, adhere to the pairing guidelines in the user manual.
Q: Could you please mute the doorbell?
Ans: Indeed, there is a mute feature on the receiver. When necessary, you can turn it on to temporarily turn off notifications.
Q: Where can I locate spare parts or more assistance?
Ans: Visit the Honeywell website or get in touch with customer service for more assistance, troubleshooting advice, or to obtain replacement parts.
