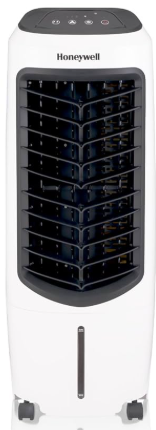

Honeywell TC10PE Series Air Cooler

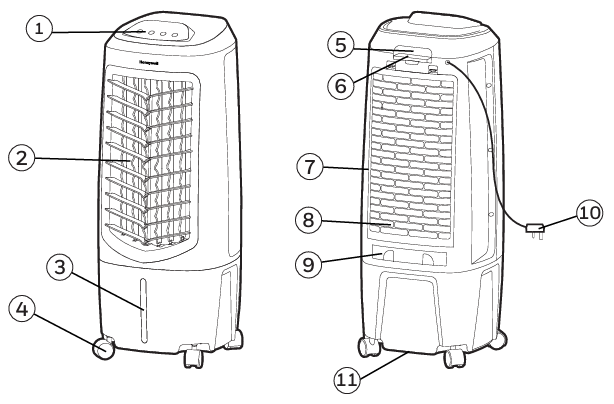

PARTS DESCRIPTION
- Control Panel
- Louvers
- Water Level Indicator
- Casters
- Handle
- Remote Control
- Rear Grill & Mesh Filter
- Honeycomb Cooling Media
- Water Fill Door
- Power Cord & Plug
- Drain Plug
USE & OPERATION
CONTROL PANEL
Icons on Display Screen
- Power
- Swing
- Cool
- Speed
- Low
- Medium
- High
POWER
Press the button to turn the unit on. The cooler will start automatically at medium speed. After a few seconds the speed will switch to low. To turn the unit off, press the button again.
SPEED
Press the SPEED button repeatedly to change the speed between .
SWING
Press the SWING button until is illuminated on the display. The louvers will begin to move left to right automatically. You can manually adjust the louvers to change vertical air flow.
COOL
You must add water before operating the unit in Cool mode. Press the button until is illuminated on the display screen. The water pump will operate and you will feel the cooler air after the Honeycomb Cooling Media is completely wet.
REMOTE CONTROL
- POWER: ON / OFF
- SPEED: Low / Medium / High
- COOL: Evaporative Cooling ON / OFF
- SWING : Controls the motion of the louvers
NOTE:
- The remote control requires a CR2025 (1 x 3V) coin type or equivalent battery for replacement. Open the battery compartment at the back of the remote control and insert the battery inside.
- Even used batteries may cause injury.
- WARNING: Chemical Burn Hazard. Keep batteries away from children.
COOLER LOCATION
Make sure to position the air cooler correctly before you set up and start using the product. Please refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.
FILLING WITH WATER
CAUTION: Unplug the unit from the electrical socket before emptying or refilling the water tank.
Open the Water Fill Door located on the back of the unit. The Water Level Indicator is located at the front of the unit. Refill the water tank when water level is low. Do not fill water above the “Max.” water level mark to avoid water droplets collecting on the louvers. Check the water level in the tank before running the COOL function. Make sure that the water in the tank is above the minimum water level mark. Running the unit in COOL mode with inadequate water may cause pump failure.
LOW WATER ALARM
The unit is equipped with a low water sensor. In Cooling Mode, when water in the tank is below the minimum level, you will hear a beeping sound and the GREEN LED will flash continuously. The unit will automatically pause evaporative cooling. Refill the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug from the power outlet. Fill the water tank with water above the minimum water level mark. Plug in and switch ON again.
To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch the unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low Water Alarm will sound again if the COOL function is activated while the water tank is still empty
LEANING & DRAINING THE WATER TANK
Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used for a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in the separate Safety & Maintenance Guide
Before cleaning the unit, power OFF the unit and disconnect from the electrical socket.
- Move the unit to a location where the water can be drained. Remove the cap from the drain plug located at the bottom of the unit. Allow the tank to empty.
- Refill the water tank with clean water, up to the maximum level and drain it completely.
- Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive elements or chemicals to clean this product.
- When the product is not in use, store the unit in a dry place out of direct sunlight.

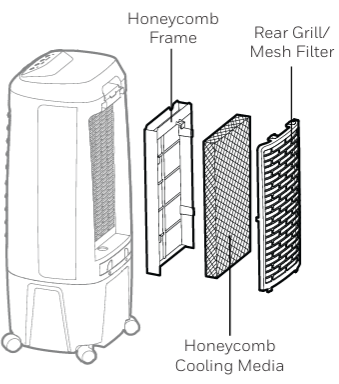

CLEANING THE MESH FILTER AND HONEYCOMB COOLING MEDIA
Removing the Mesh Filter and Honeycomb Cooling Media
- Carefully pull out the rear grill / mesh filter from the cooler.
- Rinse the rear grill / mesh filter with clean water and let it dry before re-installing to the unit.
- Carefully pull out the Honeycomb Media from the Honeycomb Frame.
- Replace or clean media with water and a damp cloth as needed.
WARNING: DO NOT operate the Air Cooler when the Rear Grill is removed from the Air Cooler, or if there is a loose-fitting Rear Grill. Doing so can cause Honeywell TC10PE Series Air Cooler serious injury or dangerous electrical shock.
