HOOVER HF2 Cordless Vacuum Cleaner Instructions Manual

HOOVER HF2 Cordless Vacuum Cleaner

Know Your Product

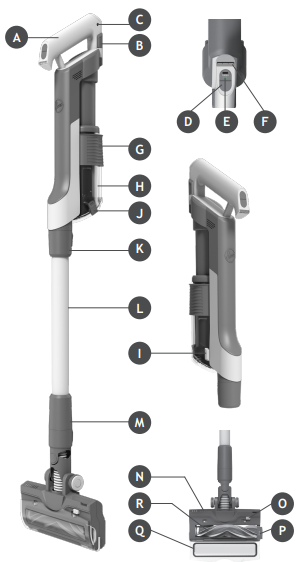

Components

• Battery Pack
• Batter Pack Release Buttons
• Battery Charger Inlet
• on / Off Power Button
• Power Mode Button
• Battery Status Led
• Dust Bin Ultra Compact X3 Slider
• Dust Bin
• Dust Bin Removal Lever
• Dust Bin Empty Release Button
• Tube Release Button
• Tube
• Nozzle Release Button
• Floor Nozzle
• Nozzle Brushbar Release Slider
• Nozzle Brushbar Release Latch
• Nozzle Window
• Nozzle Brushbar

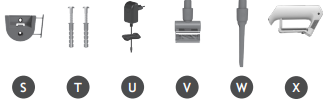

• Wall Mount
• Wall Mount Screws & Fixings
• Charger
• Mini Power Nozzle*
• Crevice Tool
• Additional Battery Pack

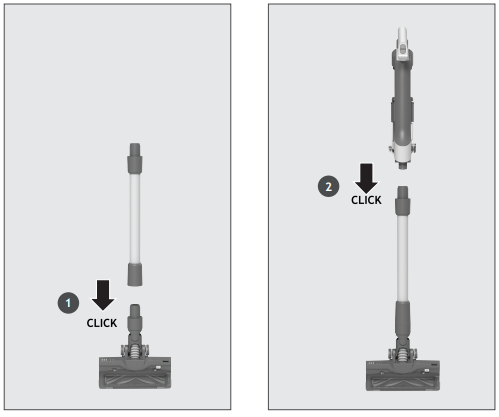

Preparing Your Product

• Fit the tube into the floor nozzle.
• Fit the handheld unit onto the tube.

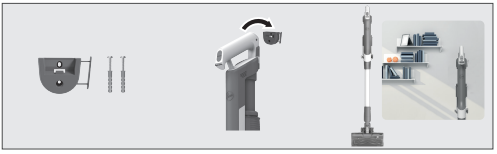

We provide a wall mount for optional storage. You can fix the wall mount to a suitable wall using the screws and fixings provided.

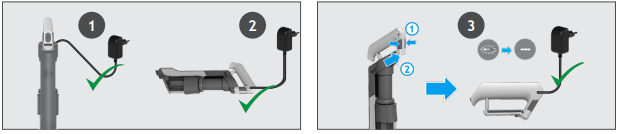

Charging the Battery

• With the product fully assembled in stick mode or located in the wall mount.
• With the product in the handheld mode.
• With the battery removed from the product.

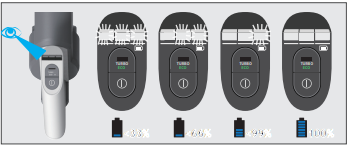

• When using your product, the real-time charge level of your battery is indicated on the Battery Status LED located on the handheld.
• When the remaining run time finishes, the LED display icons will begin to blink white. It is recommended that you switch off your product and recharge the battery.

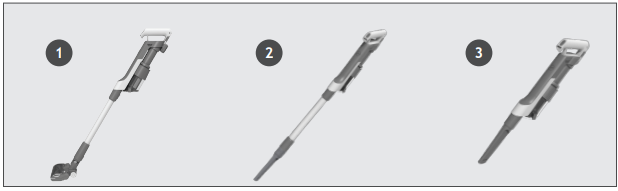

Use

1. Stick mode.
2. Above Floor mode.
3. Handheld mode.

Stick Mode

• To use your product in Stick Mode: Press the ON/OFF button to begin cleaning. The default mode is STANDARD. Press the Power Mode Button to shift the working mode between Turbo/ECO/Standard.

• If you require a deeper clean when using your product in Stick Mode, press the Power Mode Button once
  to enter TURBO mode. The Power Mode icon will illuminate white on the LED display to confirm your selection. Please note that this will reduce your battery runtime.
• If you require a lighter clean when using your product in Stick Mode, press the Power Mode Button two times to enter ECO Mode. The Power Mode icon will illuminate green to confirm your selection.
• Press again the Power Mode Button to go back to Standard Mode. The Power Mode icon will turn off to confirm your selection.

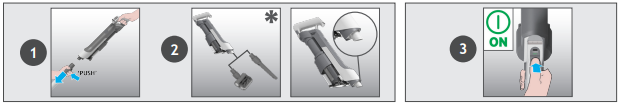

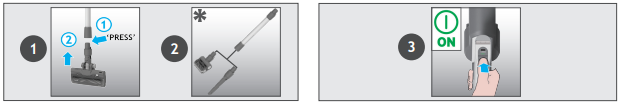

Above Floor / Handheld Mode

• Detach the Nozzle from the tube by pressing the Nozzle Release Button.
• Fit your desired accessory to the end of the Tube; all of your available accessories will fit onto the end of the Tube.
• Press the ON/OFF Button to start cleaning.
• Detach the Tube from the handheld unit by pressing the Tube Release Button.
• Fit your desired accessory to the end of the handheld unit; all of your available accessories will fit onto the end of the handheld unit. You can also use the Integrated Crevice tool.
• Press the ON/OFF button to start cleaning.

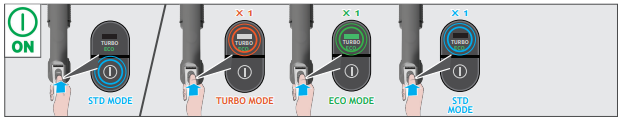

Control settings

• Press the ON/OFF button to begin cleaning. The default mode is STANDARD. Press the Power Mode Button
  to shift the working mode between Turbo/ECO/Standard.
• If you require a deeper clean, press the Power Mode Button once to enter TURBO Mode. The Power Mode
  icon will illuminate white on the LED display to confirm your selection. Please note that this will reduce your battery runtime.
• If you require a lighter clean, press the Power Mode Button two times to enter ECO Mode. The Power
  The mode icon will illuminate green to confirm your selection.
• Press again the Power Mode Button to go back to Standard Mode. The Power Mode icon will turn off to confirm your selection.

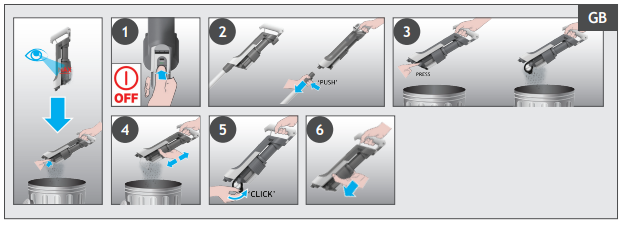

Cleaning & Maintaining

• Switch off your product.
• Press the Tube Release Button to detach the Tube from the handheld.
• Hold the handheld over a Dust Bin and press the Dust Bin Empty Release Button to open the flap and release the debris into the trash.

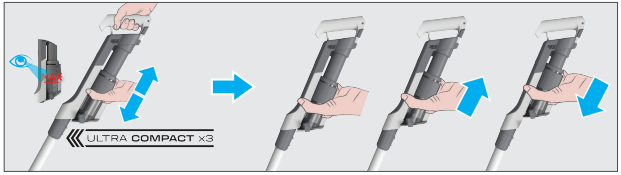

• Hold the Dust Bin ULTRA COMPACT X3 Slider and move it upwards and downwards to remove any residual dirt.
• Close the Bin Flap.
• Check that the Dust Bin ULTRA COMPACT X3 Slider is back into its original position.

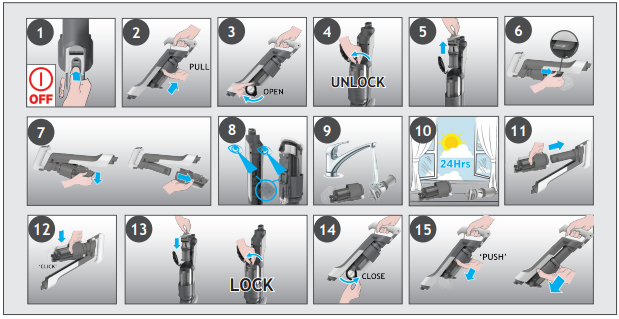

1. Ensure your product is switched off.
2. Hold the Dust Bin ULTRA COMPACT X3 Slider and pull it upwards.
3. Press the Dust Bin Empty Release Button to open the Bin Flap.
4. Rotate the Filter anti-clockwise.
5. Remove the Filter from the handheld unit.
6. Press the Dust Bin Removal Lever to release the bin, moving it downwards.
7. Remove the bin from the main unit by sliding it downwards.
8. Check for any residual dust or debris on the main unit.
9. Wash the filter and the bin using lukewarm water.
10. Leave them to dry for 24 hours before refitting to your product.
11. Refit the bin onto the main unit.
12. Attach the bin, sliding it upwards on the main unit until you hear a “click” sound.
13. Close the bin flap.
14. Hold the Dust Bin Ultra Compact x3 Slider and move it downwards into its original position.

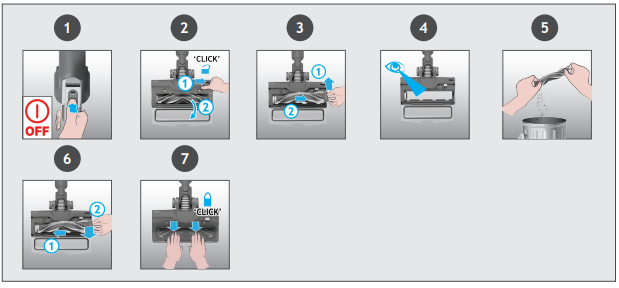

Clean Floor Nozzle

1. Ensure your product is switched off.
2. Slide the nozzle brushbar release slider and open the nozzle window.
3. Using the brushbar release latch, remove the brushbar from the nozzle.
4. Check for and remove any large debris from inside the HOOVER HF2 Cordless Vacuum Cleaner the nozzle. Carefully check for and remove any tangled debris from the comb.
5. Remove any excess debris from the brushbar.
6. Refit the brushbar to the nozzle, ensuring the latch HOOVER HF2 Cordless Vacuum Cleaner is fully in place. The brush bar can only fit in one direction. Press the end slightly to make sure the brush bar is in place.
7. Close the window by pressing gently on the middle area until you hear it “click” into place. Check that the window is completely locked by pressing on both sides.

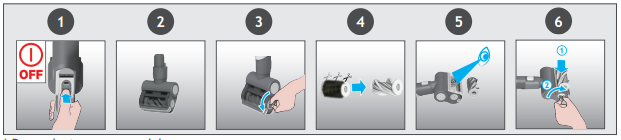

Clean Mini Power Nozzle

1. Ensure your product is switched off.
2. Detach the mini-power nozzle from your product.
3. To remove the brushbar, unlock the release HOOVER HF2 Cordless Vacuum Cleaner with a coin.
4. Using scissors, remove any tangled fibres or debris from the Brushbar.
5. Look inside the nozzle and remove any debris.
6. Re-fit the brushbar, push and lock the release latch with a coin.

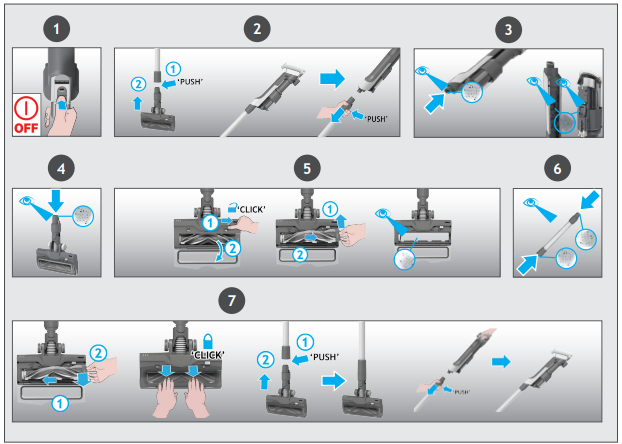

Blockages

1. Ensure your product is switched off.
2. Detach the nozzle, tube, and handheld unit as per previous instructions.
3. Visually check the handheld inlets for any debris or obstructions and clean them.
4. Visually inspect the nozzle joints area for any debris or obstructions and clean it.
5. Remove the Brushbar and check the nozzle inlet area for any debris or obstructions, and clean it.
6. Visually check both ends of the tube and remove any debris or obstructions.
7. Reassemble your product.

Troubleshooting

• Check if the cleaner is charged.
• Check if the battery pack is assembled in place.
• Check if the filter is assembled in place.
• Check if the dust bin is assembled in place.
• Check if the battery is assembled correctly.
• Check if the Dust Bin ULTRA COMPACT X3 slider is in the correct position.
• Check if the filter is assembled correctly.
• Check if there is an obstruction in the air inlet or in the tube, clear it, and ensure the product is OFF.
• Once this is done, simply press the on/off button, and the product will start working again.
• There is a blockage in the nozzle or an obstruction to the brushbar, or the nozzle window is not properly located.

Customer Support

• Tel: 03444 995599
• NATIONAL CONTACT TEL NO. (087) 245 0029
• JOHANNESBURG TEL NO. (011) 490-9600
• Website: https://hoover.com/
• www.homeoflivingbrands.com
• www.hooversa.co.za

FAQs

What is the runtime of the HOOVER HF2 on a full charge?

On standard mode, the HOOVER HF2 provides up to 25 minutes of continuous suction. Depending on the attachment being used and the cleaning mode, this could change.

How long does it take to fully charge the HF2?

It takes about four to five hours to fully charge the HOOVER HF2. Always use the original Hoover charger that came with the unit for optimal results.

Can I use the HF2 on both carpet and hard floors?

Indeed. With its multi-surface brush head, the HF2 may be used to clean low- to medium-pile carpets, vinyl, wood, and tiles. Make sure the brush roller is clear of any dirt that could scratch fragile flooring.

How do I know when the battery is low?

The handle of the HF2 has an LED battery indication. The LED will blink or turn red when the battery is low. When this occurs, recharge the hoover to prevent disruptions.

Does the HF2 have different power settings?

Yes, both Standard and Boost Mode are available. While Boost mode offers more strength for tough dirt or pet hair, Standard mode is best for daily cleaning. To switch between them, press the mode button.

Can I wash the filter?

Indeed. It is possible to wash the pre-motor filter. Before reinstalling, rinse it with cold water and allow it to dry completely for at least 24 hours. Unless otherwise instructed in the handbook for your model, do not clean the HEPA or post-motor filters.

How often should I clean the filter?

Depending on usage, we advise cleaning the filter every two weeks. Your vacuum’s lifespan is increased and higher suction is guaranteed with a clean filter.
