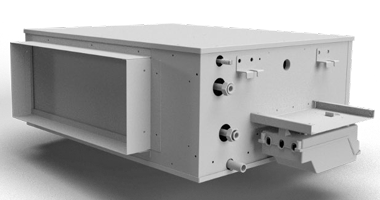

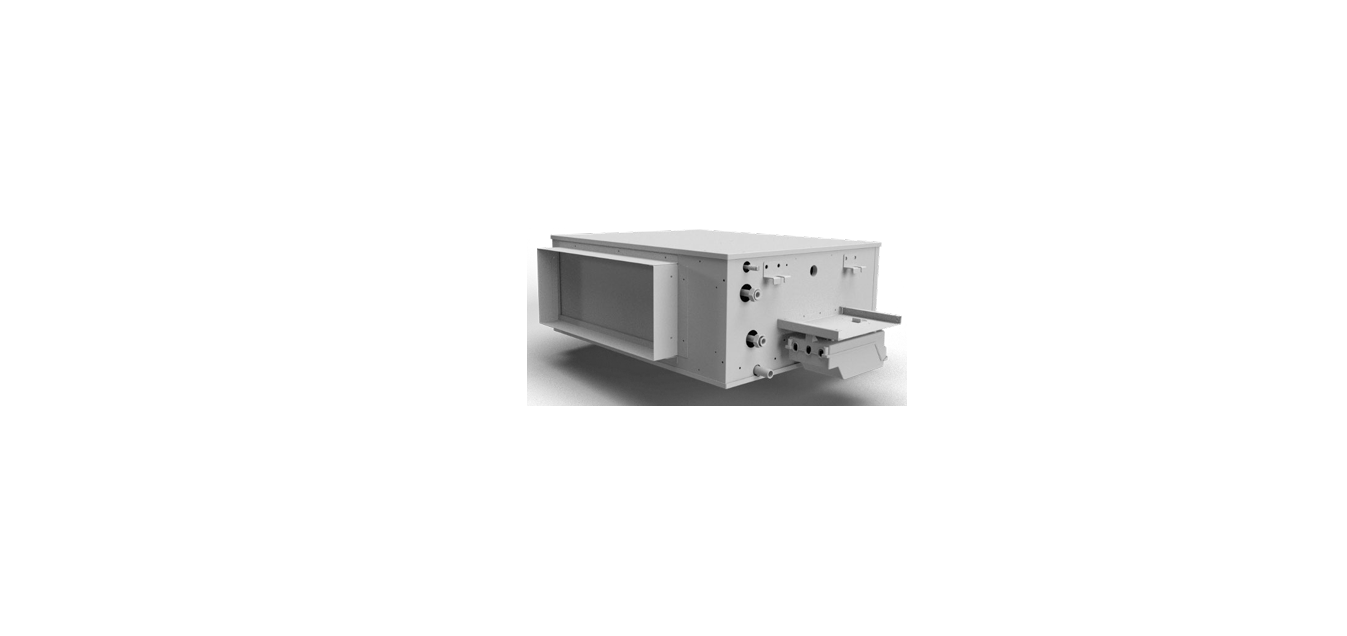

INNOVA DEH+ Ceiling Dehumidifiers Installations
Features
- Dehumidifiers for suspended ceiling installations with a high-efficiency EC motor
- Ductable for radiant systems with a water connection
- For stand-alone use without a water connection, and a model with integration
Structure
- High-strength structure with a self-supporting galvanized sheet metal frame. Selection of materials with high thermal and acoustic insulation characteristics.
Fans
- The unit is equipped with EC centrifugal fans with a high-efficiency Brushless motor.
Comperessor
- High-efficiency reciprocating compressor
Filtration
- Flat filters with Coarse filtration class.
Operation
Ventilation
- Fans with dual-intake brushless EC motor. Very high efficiency and low noise levels, Erp-compliant.
Air Handling Section
- The unit is equipped with a cooling circuit for dehumidification or integration of cooling and heating. In the various configurations, it will be possible to select the desired type of air treatment between dehumidification only or dehumidification with cooling.
Filtration
- Coarse filter with low pressure drop easily removed on recirculating air.
Structure
- Self-supporting perimeter structure made of galvanized sheet metal. Panel insulation is made of 10 mm-thick polyethylene insulation.
Refrigerant Circuit
- Made of brazed copper, complete with: High-efficiency compressor, finned coils, water exchanger, and thermostatic valve.
Adjustment
- Management through external controls and digital inputs
- management through a remote panel with an integrated T/H sensor
- MODBUS RTU RS 485 Communication.
| -1- | -2- | -3- | -4- | |
| DEH + | 30 | H | I | D |
Dehumidification Instructions
- Defines the total max flow rate: Model 300 – 500 m³/h 2)
- Installation type H: horizontal 3)
- Construction type I: electronics I 4)
- Construction type D: Dehumidification version DC: Version for dehumidification and integration in cooling.
Dehumidification version (D)
Unit for dehumidifying only the air from the recirculating EC fan, thus allowing the refrigeration circuit to operate, obtaining dehumidified air during the summer period (compressor on). Equipped with a hydronic post cooling/heating coil that, when powered, allows for supplementary cooling/heating power to be provided to the air conditioning system.
Version for dehumidification and integration in cooling (DC)
Unit for dehumidification of air from the recirculating EC fan, allowing integration of cooling/heating power to the radiant air conditioning system. During the summer period (compressor on), the unit can operate in 2 modes:
- Dehumidification: the unit condenses totally in water through the plate condenser, resulting in neutral and dehumidified air through active post;
- Dehumidification + Cooling Integration: the unit condenses totally in water, excluding post, thus obtaining dehumidified and cooled air.
During the winter period (compressor off), the hydronic coils are supplied with hot water from the heating system and behave like a fan coil.
Composition
| Version-D | Version-DC | |
| Hermetic reciprocating compressor | ● | ● |
| Copper tube air condenser with aluminum
fins |
● | ● |
| Hydronic condenser with stainless steel exchanger | / | ● |
| Copper tube air evaporator with aluminum fins | ● | ● |
| Laminating organ | ● | ● |
| Filter drier | ● | ● |
| TX thermostatic valve | ● | ● |
| Hydronic post cooling/heating coil | ● | ● |
| EC Brushless centrifugal forward curved fan | ● | ● |
| Recirculating Air Coarse Filters | ● | ● |
| Microprocessor | ● | ● |
Performance
| DEH + 30 | DEH + 50 | ||||
| Aeraulic performance in dehumidification | |||||
| Nominal air flow rate | m/³h | 300 | 500 | ||
| Useful prevalence | Pa | 150 | 98 | ||
| Dehumidification performance (W 16; A 26) | |||||
| Dehumidification capacity | L/24h | 18,9 | 36,2 | ||
| Heating performance (W 45; A 20) | |||||
| Total power output | kW | 0,62 | 1,30 | ||
| Cooling performance (W 16; A 25) | |||||
| Total power output | kW | 0,58 | 1,22 | ||
| Sensible power output | kW | – | – | ||
| Hydronic battery power output | kW | 0,58 | 1,22 | ||
| Water flow rate | L/h | 150 | 300 | ||
| Pressure drop | kPa | 4,5 | 9,0 | ||
| Room side fan | |||||
| Type | Ec Brushless centri | fugal forward curved fan | |||
| Number | Nr. | 1 | 1 | ||
| Room air recirculation filter | |||||
| Type | Nylo | n flat filter | |||
| Number | Nr. | 1 | 1 | ||
| Efficiency | Coarse | ||||
| Compressor | |||||
| Type | Alt | ernative | |||
| Refrigerant type | R134a | ||||
| Electrical characteristics | |||||
| Power supply | V/ph/Hz | 2 | 30/1/50 | ||
| Total maximum power consumption | W | 736 | 1219 | ||
| Total absorbed current | A | 3,20 | 5,30 | ||
| Degree of protection | IP | 20 | 20 | ||
| Room-side sound levels (UNI EN 3741; 3744) | |||||
| Sound power Lw | dB(A) | 53 | 55 | ||
| Radiated sound power in the channel Lw | dB(A) | 51 | 54 | ||
| Average sound pressure at 1 m Lp | dB(A) | 41 | 43 | ||
| Average sound pressure at 3 m Lp | dB(A) | 36 | 38 | ||
Technical Data
| DEH + 30 DC | DEH + 50 DC | ||||
| Aeraulic performance in dehumidification | |||||
| Nominal air flow rate | m/³h | 300 | 150 | ||
| Useful prevalence | Pa | 150 | 98 | ||
| Dehumidification performance (W 16; A 26) | |||||
| Dehumidification capacity | L/24h | 18,9 | 36,2 | ||
| Heating performance (W 45; A 20) | |||||
| Total power output | kW | 0,62 | 1,30 | ||
| Cooling performance (W 16; A 25) | |||||
| Total power output | kW | 1,27 | 2,39 | ||
| Sensible power output | kW | 0,77 | 1,44 | ||
| Hydronic battery power output | kW | 0,58 | 1,22 | ||
| Water flow rate | L/h | 150 | 300 | ||
| Pressure drop | kPa | 4,5 | 9,0 | ||
| Room side fan | |||||
| Type | Ec Brushless centri | fugal forward curved fan | |||
| Number | Nr. | 1 | 1 | ||
| Room air recirculation filter | |||||
| Type | Nylo | n flat filter | |||
| Number | Nr. | 1 | 1 | ||
| Efficiency | Coarse | ||||
| Compressor | |||||
| Type | Alt | ernative | |||
| Refrigerant type | R134a | ||||
| Electrical characteristics | |||||
| Power supply | V/ph/Hz | 2 | 30/1/50 | ||
| Total maximum power consumption | W | 736 | 1219 | ||
| Total absorbed current | A | 3,20 | 5,30 | ||
| Degree of protection | IP | 20 | 20 | ||
| Room-side sound levels (UNI EN 3741; 3744) | |||||
| Sound power Lw | dB(A) | 53 | 55 | ||
| Radiated sound power in the channel Lw | dB(A) | 51 | 54 | ||
| Average sound pressure at 1 m Lp | dB(A) | 41 | 43 | ||
| Average sound pressure at 3 m Lp | dB(A) | 36 | 38 | ||
Construction
- Self-supporting perimeter structure made of galvanized sheet metal. Panel insulation is made of 6 mm-thick polyethylene insulation.
- Compact size and low height for simplified installation, with an easily accessible bottom panel for maintenance and inspection.
- Rectangular inlets with connection to ductwork or can be combined with plenums of various types as an accessory.
- Quick filter inspection and side condensate drain for condensate evacuation.
- Refrigeration circuit with a high-efficiency hermetic compressor, heat exchange coils, lamination organ, and safety organs.
- Electrical box, excluded from airflow with management boards and control terminal blocks.
- Fans with dual-intake brushless EC motor; Very high efficiency and low noise levels, Erp-compliant.
- Coarse filter with low pressure drop easily removed on recirculating air. On-board electrical panel with a microprocessor and dedicated control.
- Fan management, internal machine temperature probe display, timed dirty filter management, recirculation, and fresh air management.
The possibility of controlling the unit with these three solutions
- Management through external commands
- Management through a remote panel with an integrated T/H sensor
- MODBUS RTU RS 485 Communication

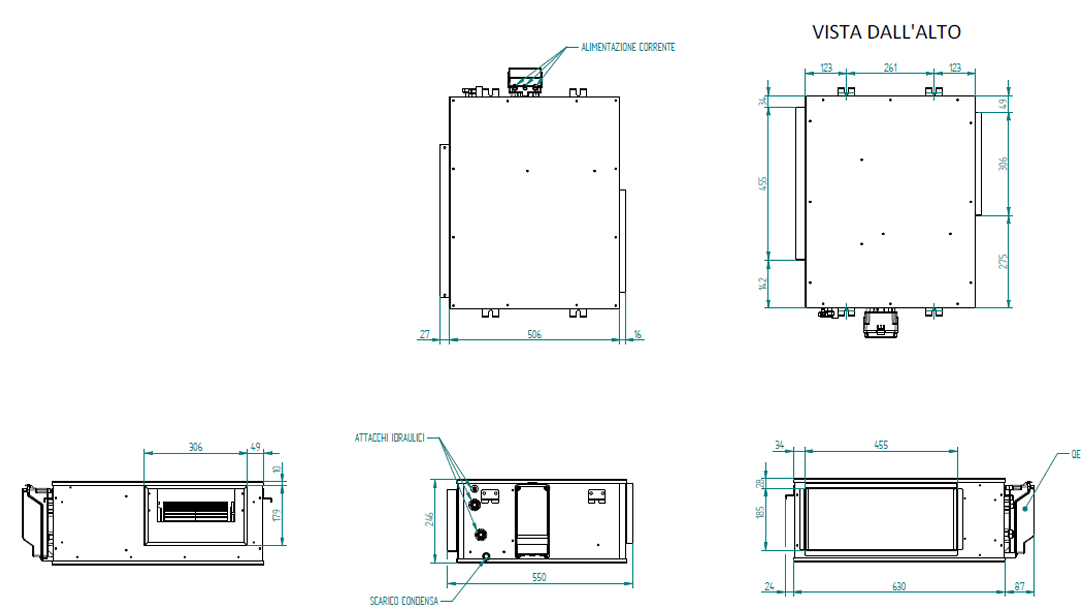

Dimensions
| DEH+ | 30 D | 50 D | 30 DC | 50 DC | |
| Width | mm | 690 | 690 | 690 | 690 |
| Length | mm | 690 | 800 | 690 | 800 |
| Height | mm | 250 | 310 | 250 | 310 |
| Weight | Kg | 40 | 53 | 42 | 55 |
Accessories

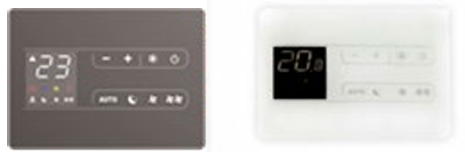

ECA033II / ECB033II
- SMART TOUCH wall control panel with thermostat and room temperature and relative humidity probe, color black or white
2-WAY VALVE
- 2-way zone valve operated directly from the unit to enable hydronic coil supply.
3-WAY VALVE
- 3-way zone valve operated directly INNOVA DEH+ Ceiling Dehumidifiers Installations from the unit to enable hydronic coil supply.
DELIVERY PLENUM FOR HOSES
- Delivery plenum with 3 circular ports, DN 125 mm, Flanges for fixing to the unit. Internal polyethylene insulation.
- Delivery plenum with 5 circular ports, DN 125 mm, Flanges for attachment to the unit. Internal polyethylene insulation.
- Delivery plenum with 8 front ports + 8 side INNOVA DEH+ Ceiling Dehumidifiers Installations ports for DN 75 / DN 90 mm connection
- Delivery plenum with 12 front ports + 8 side ports for DN 75 / DN 90 mm connection.
PLENUM FOR SINGLE TUBE
- Duct discharge plenum with 1 circular inlet Dn 200 mm for remote supply manifold. Flanges for fixing to the unit. Internal polyethylene insulation. For size 30
PLENUM FOR SINGLE TUBE
- Ducted delivery plenum with 1 circular INNOVA DEH+ Ceiling Dehumidifiers Installations inlet Dn 200 mm for remote supply manifold. Flanges for fixing to the nit. Internal polyethylene insulation. For size 50
ACOUSTIC SILENCER
- Silencer composed of a painted steel INNOVA DEH+ Ceiling Dehumidifiers Installations outer structure, an inner structure covered with sound-absorbing panels 20 mm thick.
STARTING CORRUGATED PIPE
- Male/female adapter for direct connection between manifold and round pipes.
REPLACEMENT FILTER
- Kit consisting of a replacement Coarse filter; Filters are easily removed through dedicated inspectable ports.
Unit Codes
| Codes | Description |
| Dehumidification-only versions | |
| DHSD30H01II | DEH+ 30 H D – Dehumidifier for suspended ceiling installation. Installation is only a horizontal version with dehumidification. |
| DHSD50H01II | DEH+ 50 H D – Dehumidifier for suspended ceiling installation. Installation is only a horizontal version with dehumidification. |
| Dehumidification and integration versions | |
| DHSI30H01II | DEH+ 30 H DC – Dehumidifier for suspended ceiling installation. Horizontal-only installation version with dehumidification and integration in cooling |
| DHSI50H01II | DEH+ 50 H DC – Dehumidifier for suspended ceiling installation. Horizontal-only installation version with dehumidification and integration in cooling |
Ordering Codes
Wall control panel
| Model | All | |
| Description | SMART TOUCH wall control panel with thermostat and room temperature and relative humidity probe. Color White | SMART TOUCH wall control panel with thermostat and room temperature, and relative humidity
humidity probe. Black color |
| Code | ECB033II | ECA033II |
Motorized 2-way valve
| Model | All |
| Description | 2-way motorized ON/OFF valve. Valve diameter 1/2″ |
| Code | AHRD0314II |
Motorized 3-way valve
| Model | All |
| Description | 3-way motorized ON/OFF valve. Valve diameter 1/2″ |
| Code | AHRD0315II |
Coarse replacement filters
| Model | DEH + 30 H D / DEH + 30 H DC |
| Description | Coarse replacement filters |
| Code | ARAD0123II |
Delivery plenum for flexible hoses – 3 ports DN 125 mm
| Model | DEH + 30 H D / DEH + 30 H DC |
| Description | Delivery plenum for flexible hoses with 3 circular ports |
| Code | AHRD0017II |
5 ports DN 125 mm
| Model | DEH + 50 H D / DEH + 50 H DC |
| Description | Delivery plenum for hoses with 5 circular ports |
| Code | AHRD0018II |
8 frontal inlets and 4+4 side inlets
| Model | DEH + 30 H D / DEH + 30 H DC |
| Description | Delivery plenum for flexible hoses with 8 front inlets and 4+4 side inlets for DN 75 / DN 90 mm connection |
| Code | SCO312008II |
12 front inlets and 4 +4 side inlets
| Model | DEH + 50 H D / DEH + 50 H DC |
| Description | Delivery plenum for flexible hoses with 12 front ports and 4+4 side inlets for DN 75 / DN 90 mm connection |
| Code | SCO502512II |
Delivery plenum for single pipe
| Model | DEH + 30 H D / DEH + 30 H DC |
| Description | Single duct delivery plenum 1xDN 200 mm |
| Code | AHRD0217II |
| Model | DEH + 50 H D / DEH + 50 H DC |
| Description | Single duct delivery plenum 1xDN 200 mm |
| Code | AHRD0227II |
Acoustic silencer
| Model | DEH + 30 H D / DEH + 30 H DC |
| Description | Silencer module and extension for coupling between air inlet plate and main body for flexible supply plenum 3xDN 125 mm / corrugated pipe supply plenum 8xDN 75/90 mm / single pipe plenum 1xDN 200 mm. |
| Code | SCO454084II |
Acoustic silencer
| Model | DEH + 50 H D / DEH + 50 H DC |
| Description | Silencer module and extension for coupling between air inlet plate and main body for 5xDN 125 mm flexible delivery plenum / 12xDN 75/90 mm corrugated pipe delivery plenum /
1xDN 200 mm single pipe plenum |
| Code | SCO654124II |
Departure corrugated pipe – DN 75 mm
| Mode | All |
| Description | Male/female adapter for direct connection between manifold and DN 75 mm round pipes,
Connection: M/F, including 1 O-ring (Pack of 4) |
| Code |
Departure corrugated pipe – DN 90 mm
| Model | All |
| Description | Male/female adapter for direct connection between manifold and DN 90 mm round pipes,
Connection: M/F, including 1 O-ring (Pack of 4) |
| Code | SRS090140II |
CE Marking
The CE marking (found on each machine) certifies compliance with the following community standards:
- Low Voltage Directive: 2014/35/EC
- Electromagnetic Compatibility Directive: 2014/30/EC
Customer service
- Working hours: Mon to Thu from 08:00 to 14:00 and from 15:30 to 17:30, and Fri. from 09:00 to 14:00
- Website: sac@innovacelular.com
- Tel: +92 304 4090409
FAQs
Q: What is the INNOVA DEH+ Ceiling Dehumidifier designed for?
Ans: A ceiling-mounted dehumidifier called the DEH+ was created to lessen excessive moisture in interior spaces like homes, businesses, and basements.
Q: Where is the ideal location to install the DEH+ dehumidifier?
Ans: It should be placed in places that are prone to high humidity and on a stable ceiling construction with unhindered ventilation.
Q: What tools and materials are needed for installation?
Ans: A drill, screwdriver, mounting brackets, measuring tape, electrical wiring tools, and safety gear, including goggles and gloves, are examples of common tools.
Q: Can I install the dehumidifier myself, or should I hire a professional?
Ans: If you have electrical and mounting experience, you can do a basic installation yourself, but for the best results and electrical safety, a professional installation is advised.
Q: How do I prepare the ceiling for installation?
Ans: Make sure the unit’s weight can be supported by the ceiling, remove any obstacles, and confirm that there is an appropriate power source available.
Q: What electrical requirements does the DEH+ need?
Ans: It needs to be connected to a circuit that is appropriately grounded and has a dedicated power supply that meets the voltage and current requirements listed in the handbook.
Q: How do I mount the DEH+ securely?
Ans: Attach the unit to the ceiling joists or beams using the mounting brackets and hardware that come with it, making sure to adhere to the torque and spacing recommendations in the instructions.
Q: Does the unit require drainage?
Ans: Yes, to eliminate collected water, the DEH+ usually has a condensate drain line that needs to be attached to the proper drainage point or pump.
