INNOVA LC0605 Floor Mounting Feet Kit Instruction Manual

INNOVA LC0605 Floor Mounting Feet Kit Instruction

Standard supply

• 4 locking tabs on the floor
• self-tapping screws
• Screws M6
• installation template

Description

LC0605 – Feet for anchoring the unit to the floor. Colour white. For masking the appliance’s plumbing connection pipes coming from the floor, use the special aesthetic LC0157 feet.

For mounting the floor-fixing foot kit, place the unit with the cover cabinet resting on the floor.

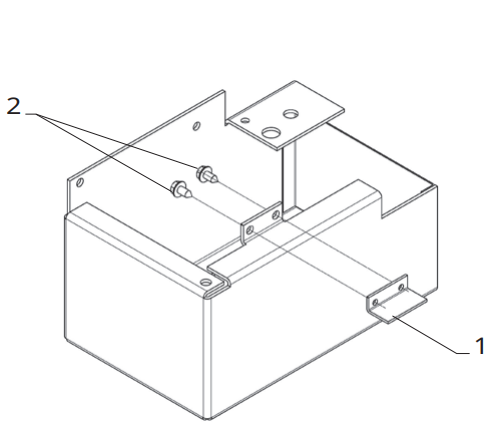

1.  Floor locking tabs
2.  Self-tapping screws

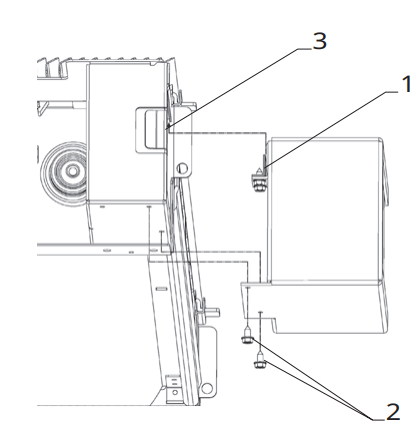

To install the kit

• Place the device on a horizontal plane
• Attach the locking tabs to the left and right support brackets
• Snap the locking tabs to the bottom of the frame
• Attach the left and right support brackets at the rear
• Attach the left and right support brackets to the bottom of the structure

Installation

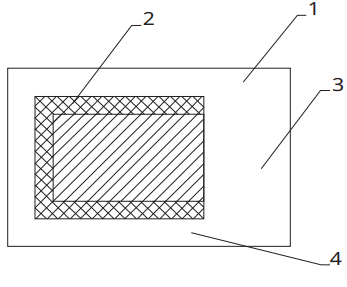

1. Installation template
2. Area of possible drilling
3. Pipe passage area
4. Fancoil support bracket area
5. Screws M6

Rear Panel

Please consult this booklet for general warnings and fundamental safety rules. For a rapid and correct assembly of the components, follow carefully the INNOVA LC0605 Floor Mounting Feet Kit Instruction sequences described in the various sections. All the operations must be performed by qualified personnel using the required Personal Protective Equipment. It is necessary, for the right functioning of the device, that during the whole installation phase, the working space remains clean.

Mounting Instructions

• Use the template provided to check the perforation area
• Drill the 4 holes of the anchor plugs in the floor
• Use anchors appropriate for the floor material and the weight of the appliance.
• Return the appliance to a vertical position.
• Secure the appliance to the floor using the 4 floor locking tabs (supplied)
• screw in the 4 anchor plugs

Mounting

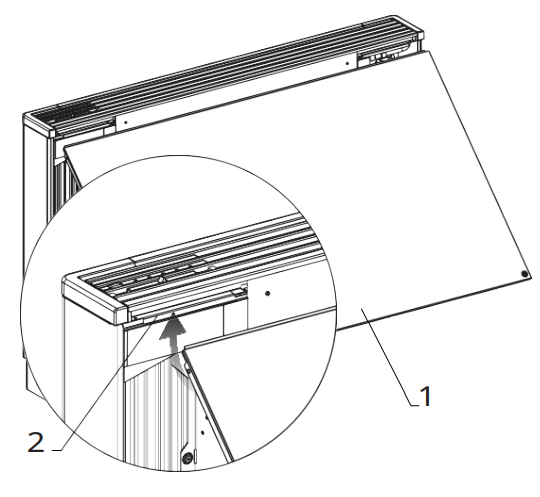

1.  Rear closing panel
2.  Top part

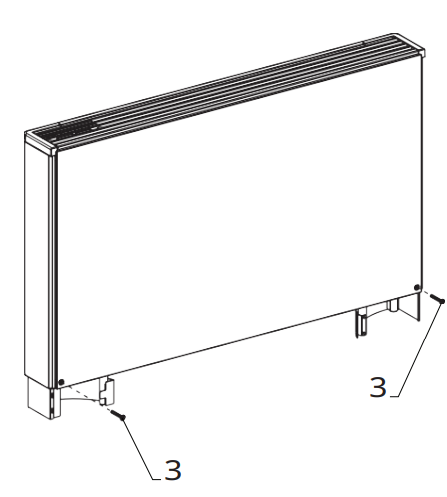

3.  Fixing screws

To install the rear closure panel on the unit

•  Place the device on a horizontal plane
•  Remove the rear screws of the brackets
•  Place the rear closure panel on the back of the unit
•  Fit the rear closure panel to the upper part of the appliance structure
•  Attach the rear closure panel with the screws previously removed
•  Return the appliance in a vertical position
