Insignia NS-AHBTOENC Noise-Canceling Headphones
PACKAGE CONTENTS
- Bluetooth Noise-Canceling Headphones
- 3.5 mm audio cable
- USB charging cable
- Quick Setup Guide
FEATURES
- Noise-canceling technology helps block out external noise
- Bluetooth lets you make wireless connections
- Rechargeable battery provides up to 20 hours of music playback with ANC, or up to 40 hours without ANC.
- Built-in microphone to make phone calls
- The foldable design allows for easy, compact storing
- Earcup controls adjust the volume and change audio tracks

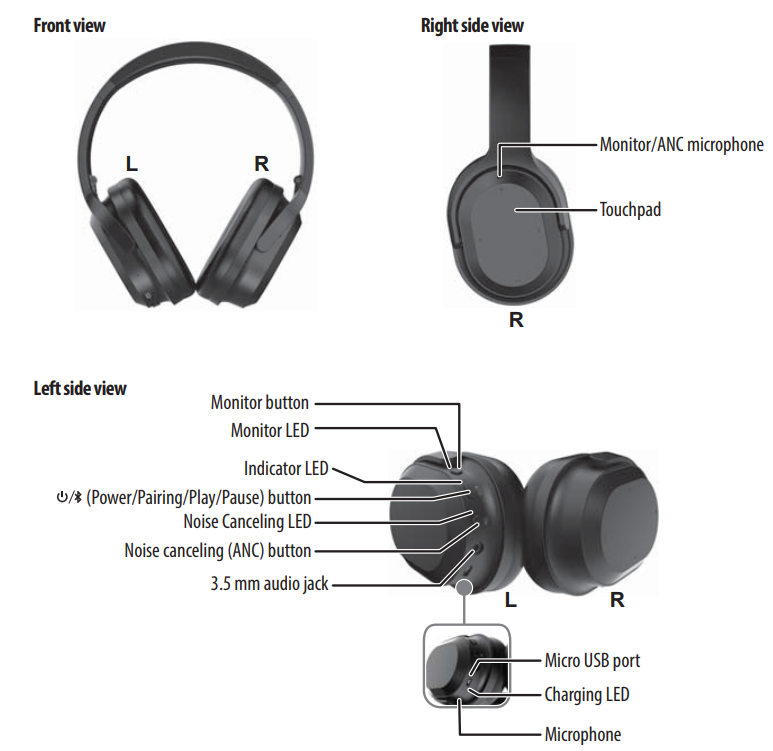

BLUETOOTH AND NOISE CANCELING BASIC INDICATION
| ACTION | OPERATION | LED INDICATION | SOUND |
| Power on | Press and hold the (power button) for more than two seconds. | Blue LED lights for 1.5 seconds | “Power on” |
| Power off | Press and hold the power button. more than three seconds. | Red LED lights for 1.5 seconds | “Power off” |
| Pairing mode | Press and hold the pairing button. more than four seconds in power off mode. | Blue and red LEDs blink alternately | Two short beeps |
| Noise canceling on | Press and release the ANC (Active Noise-Canceling) button to enter the ANC mode. | Green LED on | “ANC on” |
| Noise canceling off | Press and release the ANC button to exit the ANC mode. | Green LED off | “ANC off” |
| Play/Pause | Double-tap the touch pad with one finger or press and release the button. | LED off | |
| Volume Up/Down | From the middle of the touchpad, slide a finger towards + or -. | LED off | Two high beeps for maximum volume |
| Next/Previous track | From the middle of the touchpad, slide a finger towards < or >. | LED off | |
| Answer call | Double-tap the touch pad with one finger or press and release the when a call is incoming. | LED off | One long beep |
| Ending call | Double-tap the touch pad with one finger and release the touch pad or press and release the when a call is finished. | LED off | Two long beeps |
| Reject call | Long-press the touch pad or press the for more than two seconds, then release when a call is incoming. | LED off | Two long beeps |
| Redial | Double-press the button to redial the last phone number. | LED off | Two short beeps |
| Monitor on | Press and release the monitor button to enter the monitor mode. When the monitor mode is off, press and hold the touch pad with your palm or more than two fingers to enter monitor mode. | Orange LED on | “Monitor on” |
| Monitor off | Press and release the monitor button to exit the monitor mode. | Orange LED off | “Monitor off” |
| Voice assistant | Press and hold the touchpad with one finger for two seconds to hear the voice assistant. | LED off | |
| 3.5 mm audio jack | 3.5 mm audio cable connection to the phone or computer to listen to music when the power is off. | LED off | |
| Micro USB port | Plug the micro USB connector into this port to charge your headphones. | Charging LED on |
CHARGING YOUR HEADPHONES
When the red indicator LED blinks three times every five minutes and the voice prompt says “battery low,” you need to charge the battery. Plug the charging cable into your computer or adapter and the micro USB port on your headphones. The red LED turns on to indicate that the battery is charging and turns off when fully charged.
USING WITH THE 3.5 MM AUDIO CABLE
You can use your headphones with non-Bluetooth-enabled devices or on airplanes (in which the use of Bluetooth may be restricted) by taking advantage of the headphones’ audio jack.
- Connect the 3.5 mm end of the included audio cable to the headset’s audio jack and the 3.5 mm end to the audio device’s headphone jack.
Notes - The corded operation does not require battery power for music listening. The Bluetooth, microphone, and digital sound enhancement will not work via the audio cable. Finish your call before connecting to the audio jack.
USING YOUR HEADPHONES
Turning your headphones on and off
- Place the headphones around your head
- Press and hold (power button for more than two seconds. The LED blinks blue (when turned on) or red (when turned off), and the voice prompt says “Power on” or “Power off”
PAIRING YOUR HEADPHONES
Notes:
- The range is 33 feet (10 meters)
- Supports easy pairing
- Prompts you by saying “Your device is connected,” when connected
- Supports a battery indicator icon on an iOS device
Pairing with a cell phone or MP3 player
- With your headphones turned off, press and hold (pairing button for four seconds. The blue and red LEDs blink alternately.
- On your phone or MP3 player, select INSIGNIA NS-AHBTOENC from the list of discovered devices, then enter the password 0000 (four zeros) (if required) to pair your headphones.
For more information on pairing Bluetooth devices to your cell phone or MP3 player, see the device’s documentation.
Note: After your headphones have been successfully paired with the cell phone or MP3 player, your headphones will automatically reconnect to the phone or MP3 player.
Pairing with a computer running Windows
Note: Before you pair your headphones with the computer, make sure that the computer is equipped with Bluetooth. Refer to the computer’s documentation or contact the computer manufacturer for more information. If your computer is not Bluetooth compatible, install a Bluetooth USB adapter (dongle).
- Turn on Bluetooth on the computer. For instructions, see the computer’s documentation or contact the computer manufacturer.r
- Double-click the Bluetooth icon in the system tray, then click Add a device.
- With your headphones turned off, press and hold (pairing button for four seconds. The LED blinks blue and red alternately pairing mode is activated.
- Double-click the INSIGNIA NS-AHBTOENC icon on the computer or highlight the icon, then click Next.
Note: If you are unable to locate the INSIGNIA NS-AHBTOENC icon, click the Search Again button.
- If required, enter 0000 (four zeros) in the Bluetooth security code field, then click Next.
- After your headphones are paired, click Close.e
Note: To make your headphones your default playback device, refer to your computer User Guide or Windows Help.
Pairing with a Mac computer
Note: Before you pair your headphones with the computer, make sure that the computer is Bluetooth-compatible. Refer to the computer’s documentation or contact the computer manufacturer for more information. If your computer is not Bluetooth compatible, install a Bluetooth USB adapter (dongle).
- Turn on Bluetooth on the computer. For instructions, see the computer’s documentation or contact the computer manufacturer.
- Click the Bluetooth status menu.
- Click Set up Bluetooth Device. The Bluetooth Setup Assistant opens.
- Click Continue.
- Select Headset as the device type, then click Continue.
- With your headphones turned off, press and hold (pairing button)oforfour seconds. The LED blinks blue and red alternately. The pairing mode is activated.
- Select INSIGNIA NS-AHBTOENC, then click Continue. The computer gathers information.
- Click Continue.
- Enter 0000 (four zeros) into the Passkey field, then click Continue.
- Click Quit to finish.
- Click System Preferences, then click Sound.
- Under Input, select INSIGNIA NS-AHBTOENC, then under Output, select INSIGNIA NS-AHBTOENC.
RESETTING YOUR STEREO HEADPHONES
- With your headphones turned off, press and hold the power/pairing button for ten seconds until the red LED flashes 10 times and your headphones enter pairing mode.
SPECIFICATIONS
| Bluetooth version: | Bluetooth 5.0 |
| Supported profiles: | A2DP, AVRCP, HFP, HSP |
| Frequency spectrum: | 2.4 ~ 2.4835 GHz ISM Band |
| Working distance: | Up to 33 ft. (10 m) |
| Operating temperature: | 23 ~ 122° F (-5 ~ 50° C) |
| Operating time: | Talk: 22 hours Music: 20 hours, NC+playback music track |
| Standby time: | Up to 400 hours |
| Size: | 6.69 × 2.30 × 7.5 inches (17.0 × 7.61 × 19.06 cm) |
| Weight: | 8.47 oz (240 g) |
| Average charging time: | 3. 5 hours |
TROUBLESHOOTING
No power
- Make sure that the headphones’ battery is charged
- Make sure that your headphones are turned on.
No sound or low volume
- Turn up the volume on your headphones and Bluetooth device. Make sure that your Bluetooth device is not muted.
- Shorten the distance between your headphones and your Bluetooth device
- Make sure that your Bluetooth device is turned on, Bluetooth is turned on, and INSIGNIA NS AHBTOENC is selected
- Make sure that your headphones are not paired to another Bluetooth device.
- Make sure that your Bluetooth device is not paired to another Bluetooth device.
Cannot establish Bluetooth connection
- Make sure that your headphones are in pairing mode. Press and hold the button for four seconds to re-enter pairing mode.
- Shorten the distance between your headphones and your Bluetooth device.
- Turn your devices off, then on. Repair your headphones and your Bluetooth device.
- Make sure that your headphones are not paired to another Bluetooth device.
- Make sure that your Bluetooth device is not paired to another Bluetooth device.
- Make sure that your headphones and Bluetooth device are both in pairing mode.
- Make sure that you have selected INSIGNIA NS-AHBTOENC on your Bluetooth device.
My Bluetooth device keeps unpairing
- Shorten the distance between your headphones and your Bluetooth device.
- If the battery on your Bluetooth device is low, recharge the battery.
- If the battery on your headphones is low, recharge the battery.
INSIGNIA NS-AHBTOENC does not appear on my Bluetooth device
- Shorten the distance between your headphones and your Bluetooth device.
- Put your headphones into pairing mode, then refresh your list of Bluetooth devices. For more information, see the documentation that came with your Bluetooth device
Po.or sound quality
- Shorten the distance between your headphones and your Bluetooth device.
- Pair your headphones with a different Bluetooth device.
- Try changing the volume on your Bluetooth device.
The microphone isn’t working
- The microphone only works with a Bluetooth connection.
My headphones are paired, but I can’t get audio.
- Make sure that your source device is outputting audio to your headphones. See the documentation that came with your source device.
LEGAL NOTICES
FCC Supplier’s Declaration of Conformity:
Brandname/modelumber: INSIGNIA NS-AHBTOENC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Supplier Name: Best Buy Purchasing, LLC. Supplier Address(USA): 7601 Penn Ave South, Richfield, MN 55423 U.S.A. Supplier phone number: 1-877-467-4289.
FCC Caution:
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment
FCC Statement:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, under Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used baccording to theinstructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
RSS-Gen & RSS-247 Statement:
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
RSS-102 Statement
This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment.
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details
CONTACT
1-877-467-4289 (U.S. and Canada)
www.insigniaproducts.com
FAQs
What devices can I connect to the NS-AHBTOENC headphones?
Any Bluetooth-enabled device, including computers, tablets, smartphones, and TVs with Bluetooth, can be used with these headphones. For wired listening, they can also be connected using the 3.5 mm audio cable that comes with it.
Can I connect to more than one device at a time?
No, only one active Bluetooth connection can be maintained by the NS-AHBTOENC at once. Turn off Bluetooth on the first device or unplug the existing one in order to pair a new one.
How do I turn on Active Noise Cancellation (ANC)?
Turn on the noise-cancelling feature by sliding the switch, which is often located on the earcup. When ANC is turned on, a tiny LED light will turn on.
How effective is the Active Noise Cancellation feature?
Low-frequency background noises like city hum, air conditioning, and aeroplane engines are lessened with the ANC feature. It works best in settings with consistent noise levels, although it won’t totally block out abrupt or sharp noises.
Can I use the headphones without Bluetooth?
Indeed. When Bluetooth isn’t working or the battery is low, you can connect straight to your device using the 3.5 mm audio wire that comes with it. If there is enough battery power, ANC can still be used in wired mode.
How do I charge the headphones?
Attach the micro-USB cable that comes with it to a USB power source, such as a computer, wall adapter, or power bank. When charging, the LED indicator turns red; when fully charged, it turns blue. About two to three hours are needed for a complete charge.
Can I use the headphones while charging?
Indeed. While the headphones are charging, you can utilise the wired mode (with ANC turned on or off). During charging, Bluetooth capabilities can be restricted.
Why does the sound quality seem low when ANC is off?
By cutting down on background noise, ANC enhances clarity and bass. It is typical and anticipated for ambient sounds to have a minor impact on perceived audio quality in the absence of ANC.
