Insignia NS-APLWH2 Large Room Air Purifier User Manual

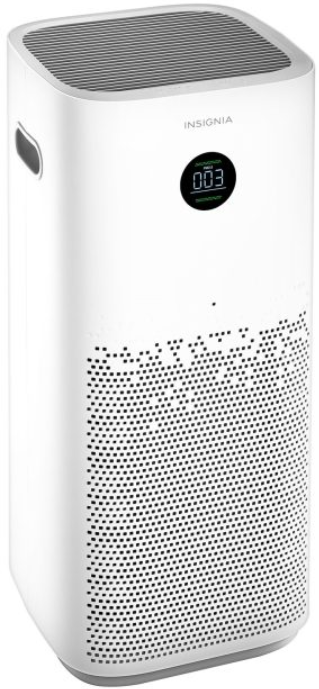

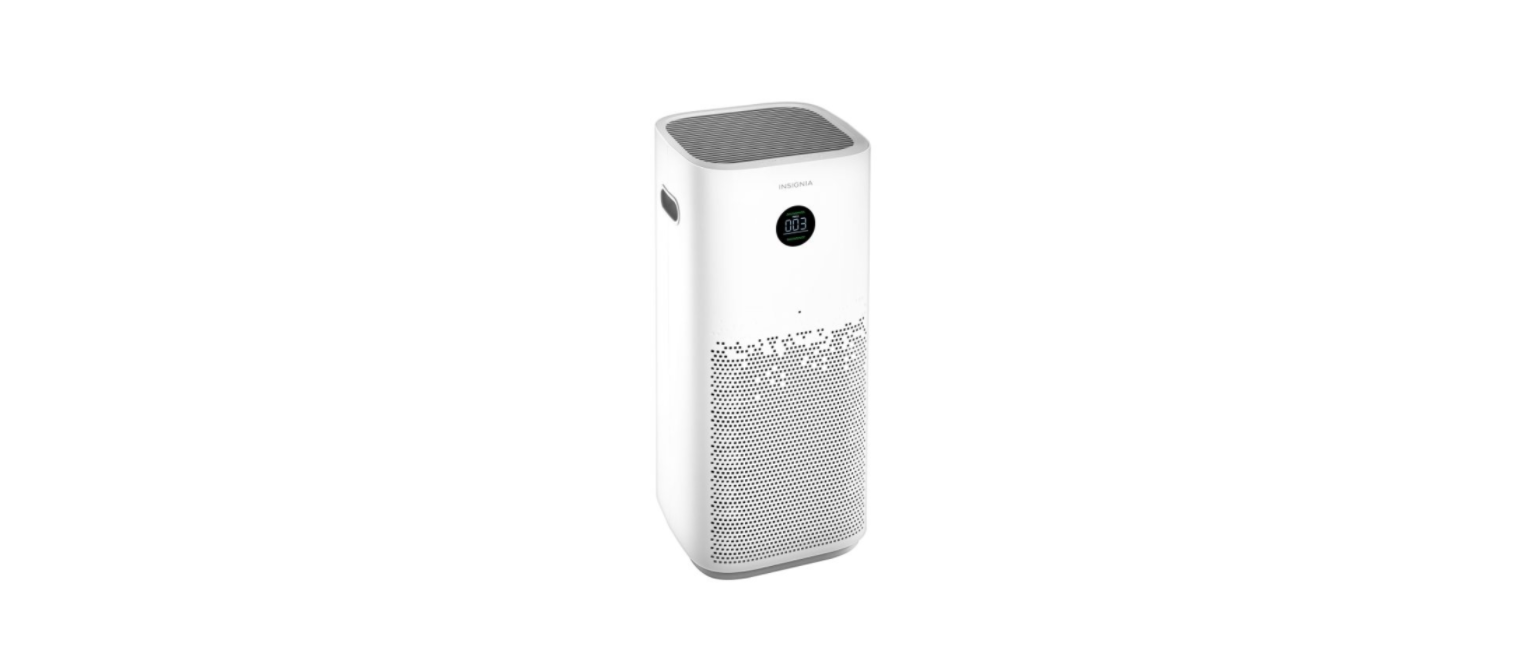

Insignia NS-APLWH2 Large Room Air Purifier

Safety Instructions

• Use only the manufacturer’s recommended accessories.
• Do not use with a damaged cord or plug.
• If the appliance is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service center.
• Do not move or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp corners. Keep the cord away from heated surfaces.
• Do not run the cord under carpeting.
• Do not cover the cord with throw rugs, runners, or similar coverings.
• Do not route the cord under furniture or appliances.
• Arrange the cord away from traffic areas so it will not be tripped over.
• Do not unplug by pulling the cord. To unplug, grasp the plug, not the cord.
• Do not handle the plug or the appliance with wet hands.
• To reduce the risk of electrical shock, turn the power switch off and disconnect the polarized plug from the electrical outlet BEFORE performing maintenance or troubleshooting checks.
• To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way.
• If the plug does not fit fully in the outlet, reverse the plug.
• If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• Do not use the appliance with any dimmer switch or solid-state speed control device.

Features

• Designed for rooms measuring as large as 375 sq. ft. (34.8 sq. m)
• Captures microscopic particle pollution in the air, removing irritants and improving visibility
• HEPA filter removes allergens, mold, dust, pet dander, smoke, and pollen
• Carbon filter removes odors from chemicals like ammonia, formaldehyde, and nicotine
• Pre-filter removes large irritants such as hair, and the LED display shows you your current air quality level and filter life
• Three fan speeds (plus sleep mode) let you select how quickly air is purified
• Timer runs the purifier for a pre-set time (1, 2, 4, or 8 hours), then automatically turns it off
• Child lock prevents accidental setting changes

Package contents

• Air purifier
• Pre-filter/charcoal filter/HEPA air filter
• User Guide

Components

Control panel

Display

Use

1. Remove all packaging materials from your air purifier, then place it on a level surface.
2. Make sure that there are no obstructions to the air inlet or filtered air outlet.
3. Pull the filter cover handle out and up to remove the cover.
4. Remove the protective plastic bag from the HEPA filter.
5. Place the filter into the purifier body.
6. Insert the bottom of the filter cover into the purifier housing, then press the top of the cover to snap it into place.

Providing the correct power supply

• Check your local power source. Your air purifier requires a 120 V, 60 Hz power supply.

Turning your air purifier on and off

1. Plug your air purifier’s power cord into a power outlet. Your air purifier enters standby mode, and a buzzer sounds once.
2. Press (power) to turn your purifier on.
3. Press again to turn off (standby mode) your purifier.

Adjusting the fan speed

You can select the speed for the fan.

1. Make sure that your air purifier is turned on.
2. Press (fan speed) one or more times to adjust the fan speed. You can select 1 (one dot=slow), 2 (two dots=medium), or 3 (three dots=fast). Each time you press, the speed indicator changes to match your selection.

Setting the timer

You can set a time when you want your air purifier to automatically turn off.

1. Make sure that your air purifier is turned on.
2. Press (timer) to select a turn-off time. You can select 1 hour, 2 hours,
3. hours, or 8 hours, or toggle sleep mode off. Each time you press, the time indicator changes to match your selection.

Using Auto mode

Auto mode adjusts the fan speed automatically according to the room’s air quality.

1. Make sure that your air purifier is turned on.
2. Press the (auto) to switch between auto mode and manual mode.

Using Sleep mode

Sleep mode dims the light and adjusts the fan to run at the lowest speed.

1. Make sure that your air purifier is turned on.
2. Press (fan speed) repeatedly until the LED under the Moon turns on.

Turning the child lock on or off

The child lock prevents changes to settings.

1. Make sure that your air purifier is turned on.
2. Hold (child lock) for three seconds to turn the child lock on.
3. Press and hold for three seconds to turn the lock off.

Understanding the filter indicator

When the light flashes red, you should replace the filter.

Replacing the filter

Filter life varies based on runtime and existing air conditions. We recommend that you replace the filter when the (filter replacement) indicator starts flashing red.

1. Turn off your air purifier, then unplug the power cord.
2. Use both hands to pull out the top edges of the filter cover toward you, then remove the cover.
3. Pull the tabs on the top and bottom of the filter to remove it.
4. Remove the new filter from its plastic bag.
5. Insert the new filter into the purifier body.
6. Insert the bottom of the filter cover into the purifier housing, then press the top of the cover forward to snap it into place.
7. Press and hold (child lock) and (timer) together for five seconds to reset the filter indicator.

Maintainance

1. Turn your air purifier off, then unplug it.
2. Clean the outside of your purifier with a soft, clean, damp cloth.
3. Clean the filtered air inlet with a small, soft brush.

Specifications

• Dimensions (H×W×D) 20.6 × 10.2 × 10.4 in. (52.4 × 26 × 26.3 cm)
• Weight 11 lbs. (5 kg)
• Power input 120V AC
• Power cord length 6 ft. (1.83 m)
• Operating temperature 40~110°F (4~43°C)
• Coverage area 375 ft.2 (34.8 m2)
• HEPA filter lifetime 2,000 hours
• HEPA filter dimensions (Height × Diameter) 11.8 (height) x 8.8 (diameter) in. (30.1 x 22.5 cm)
• HEPA filter model number NS-APFM2

Troubleshooting

Legal notices

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation Insignia NS-APLWH2 Large Room Air Purifier is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution

Changes or modifications not expressly approved by the Insignia NS-APLWH2 Large Room Air Purifier party responsible for compliance could void the user’s authority to operate this equipment.

EMC guidance

• Don’t use near active HF Insignia NS-GLSBFSCW1 Glass Scale surgical equipment or the RF shielded room of an ME system for magnetic resonance imaging, where the intensity of EM disturbances is high.
• Use of accessories, transducers, and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation.
• Otherwise, degradation of the performance of this equipment could result.

One-Year Warranty

Definitions

The Distributor* of Insignia-branded products warrants to you, the original purchaser of this new Insignia-branded product (“Product”), that the Product shall Insignia NS-APLWH2 Large Room Air Purifier be free of defects in the original manufacturer of the material or workmanship for one (1) year from the date of your purchase of the Product (“Warranty Period”).

How to obtain warranty service?

If you purchased the Product at a Best Buy retail store location or from a Best Buy online website, please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. To obtain warranty service, in the United States and Canada, call 1-877-467-4289. Call agents may diagnose and correct the issue over the phone.

Where is the warranty valid?

This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the country where the original purchase was made.

Customer Support

• Ph: 1-877-467-4289
• Website: www.insigniaproducts.com

INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A.

©2021 Best Buy. All rights reserved.

FAQs

What size room is the NS-APLWH2 designed to purify?

The NS-APLWH2 is perfect for offices, open-plan spaces, and living rooms because it can accommodate spaces up to 500 square feet.

How often do I need to replace the filters?

Depending on usage and air quality, filters should be changed every six to twelve months. When it’s time to replace the filter, the unit’s indication lets you know.

Does this air purifier remove allergens and pet dander?

In order to enhance indoor air quality, the True HEPA filter effectively removes allergens like pollen, dust mites, mould spores, and pet dander.

Can this air purifier help reduce smoke and odors?

Indeed, smoke, food, and pet odours are among the usual household odours that the activated carbon filter helps to eliminate.

Is the NS-APLWH2 safe to run continuously?

Yes, you may leave it running all day and all night because it is energy-efficient and made to run around the clock.

Does the unit have an automatic mode based on air quality?

Indeed, the NS-APLWH2 has an auto mode that monitors air quality using integrated sensors and modifies fan speed as necessary.

How noisy is the air purifier during operation?

Noise levels range from a moderate sound at higher speeds (~55 dB) to a silent operation at low speeds (~30 dB). For almost silent use at night, it also has a sleep mode.

Can I use the air purifier in rooms larger than 500 sq. ft.?

Although it may function in bigger areas, rooms up to 500 square feet are where it performs best. Take into account many units or a higher-capacity model for larger spaces.
