Insignia NS-BI1ZWC 61-Bottle Wine Cooler Instructions Guide

Insignia NS-BI1ZWC 61-Bottle Wine Cooler

Introduction

Congratulations on your purchase of a high-quality Insignia product. This model features a dry-erase front door panel, allowing you to mark notes and other information with the provided erasable markers.

Safety Instructions

1. Do not use this appliance near water.
2. Clean only with a damp cloth.
3. Do not block any ventilation openings. Install according to the manufacturer’s instructions.
4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
5. Do not defeat the safety purpose of the polarized or grounding-type plug.
6. A polarized plug has two blades with one wider than the other.
7. A grounding type plug has two blades and a third grounding prong.
8. The wide blade or the third prong is provided for your safety.
9. Do not attempt to modify or extend the power cord of this appliance.
10. Make sure that the available AC power matches the voltage requirements of this appliance.
11. Do not handle the plug with wet hands. This could result in an electric shock.
12. Unplug the power cord by holding the plug, never by pulling the cord.

Electric Shock Hazard

1. Keep ventilation openings in the appliance enclosure or built-in structure clear of obstruction.
2. Do not touch the interior of the chiller compartment with wet hands. This could result in frostbite.
3. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
4. Do not damage the refrigerant circuit when handling, moving, or using the refrigerator.

Grounding requirement

• The plug must be inserted into an outlet that is properly installed and grounded.
• Improper use of the grounding plug can result in a risk of electric shock.

Features

• le a34-bottletle capacity (depending on model purchased)
• Touch Controls with LED Display
• Removable chrome shelves
• Removable chrome basket
• Interior LED light
• Adjustable legs (2)

Package contents

• 24 or 34 bottle wine/beverage cooler
• User Guide

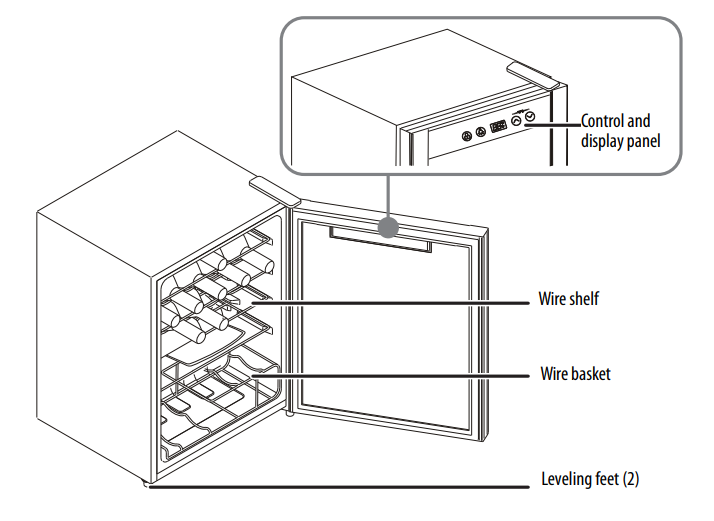

Components

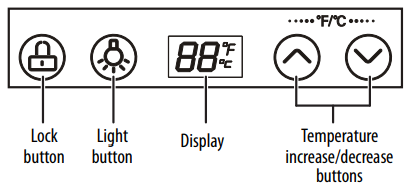

Control and display panel

• When you plug in your cooler for the first time, the display turns on for three seconds, followed by a start-up tone.
• You can now operate the control panel.
• When locked, the display turns off if no key is pressed for 30 seconds.
• The display turns on again when any key is pressed.

Setting up your Cooler

• Remove the exterior and interior packing.
• Let the wine/beverage cooler stand upright for approximately one-half hour before connecting it to power.
• This reduces the possibility of a malfunction in the cooling system from improper handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.

Finding a suitable location

• This wine/beverage cooler is designed to be free-standing only, and should not be recessed or built-in.
• Place your wine/beverage cooler on a floor, countertop, or cabinet that is strong enough to support the wine/beverage cooler when it is fully loaded.
• Allow five inches of space between the back and sides of the wine/beverage cooler and any surrounding walls.
• This allows proper air ventilation. Adjust the feet to keep the wine/beverage cooler level.
• Locate the wine/beverage cooler away from direct sunlight and sources of heat (stove, heater, radiator, and so on)
• . Direct sunlight may affect the acrylic coating, and heat sources may increase electrical consumption. Ambient temperature below 50°F (10°C) or above 85°F (29.4°C) will hinder the performance of this wine/beverage cooler.
• This wine/beverage cooler is not designed for use in a garage or any other outside installation.
• Avoid locating the wine/beverage cooler in moist areas.

Leveling your wine/beverage

• The wine/beverage cooler needs to be level to function properly.
• If the wine/beverage cooler is not leveled during installation, the door may not close or seal properly, causing cooling, frost, or moisture problems.
• To level your wine/beverage cooler, you may either turn the leveling foot clockwise to raise that side of the wine/beverage cooler or turn it counter-clockwise to lower that side.

Providing proper ventilation

• Place the wine/beverage cooler at least five inches from the wall to ensure
  proper airflow to the compressor.
• Do not place the wine/beverage cooler
  near any heat sources, such as a heater or stove, as this may put a strain on
  the compressor.

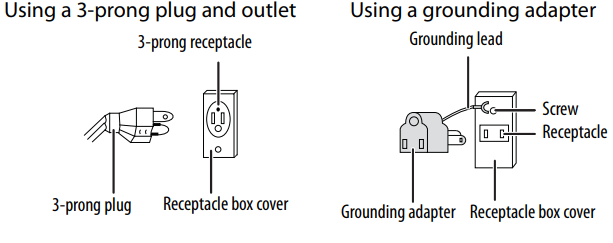

Providing a proper power supply

• Check your local power source.
• This wine/beverage cooler requires a 110V-120V, 60 Hz power supply.
• Use a receptacle that accepts the grounding prong.
• The power cord is equipped with a 3-prong (grounding) plug, which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this wine/beverage cooler.

Using your Cooler

Setting the temperature

1. Plug in and run your wine/beverage cooler for two to three hours before making any temperature adjustments and before adding wine.
2. This allows your cooler to reach a stable temperature.
3. Press the temperature up and temperature down buttons at the same time to switch between Celsius and Fahrenheit.
4. Adjust the temperature to the setting appropriate to the wine you want to cool, by pressing the temperature up or temperature down buttons.
5. Each press of the button raises or lowers the temperature by one degree between 41°F to 65°F (5°C to 18°C).

Locking and unlocking your cooler

• Press and hold the lock button for three seconds to lock or unlock the control panel.

Lighting your cooler

• Press the light button to turn the interior light on and off.

Memory function

• If you experience a power outage, when your cooler is turned on again, it resumes the same temperature that was set when the power went off.

Arranging your wine

In order to maintain good air circulation in the cooler, do not let the bottles touch the back of the cooler. Different temperature zones are generated within the cooler due to air circulation. The upper area’s temperature is the highest, while the lower area the lowest. It is best to store different types of wine within the cooler, in the following sequence, from top to bottom.

• Strong red wine
• Pink and mild red wine
• White wine
• Champagne and spritzer

Serving and storage

We suggest that you pour wine at a temperature below the ideal serving temperature, because the wine warms up quickly after it’s been poured into a glass.

• Do not store bottled wine in a box or a case in the cooler.
• The cork of the old bottle should always be moistened when returning it to the bottle.
• Red wine should be allowed to breathe (oxygenate) before drinking.
• That also allows them to reach the suitable serving temperature.

Maintaining your wine/beverage cooler

When you first receive it, wipe the case with a mild detergent and warm water, then wipe it dry with a dry cloth. Do this periodically to keep your wine/beverage cooler looking new.

Cleaning the interior of your cooler

1. Turn off the wine/beverage cooler and unplug it from the wall outlet.
2. Remove all wine/beverages.
3. Wash the inside with a damp, warm cloth soaked in a solution of one quart of lukewarm water to two tablespoons of baking soda solution.
4. Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
5. Dry the interior and exterior with a soft cloth.

Storing your cooler

1. Turn off the wine/beverage cooler and unplug the Insignia NS-WC24BK6 34 Bottle Wine Cooler from the wall outlet.
2. Remove all wine/beverages.
3. Clean the wine/beverage cooler.
4. Leave the door open slightly to avoid the possible formation of condensation, mold, or odor.

Moving your cooler

1. Turn off the wine/beverage cooler and unplug it from the wall outlet.
2. Remove all wine/beverages.
3. Securely tape down all loose items inside your wine/beverage cooler.
4. Tape the door shut. Be sure the wine/beverage cooler stays in the upright position during transportation.

Specifications

24-bottle wine/beverage cooler

Troubleshooting

One-Year Warranty

Definitions

The Distributor* of Insignia-branded products warrants to you, the original purchaser of this new Insignia-branded product (“Product”), that the Product shall be free of defects in the original manufacturer of the material or workmanship for one (1) year from the date of your purchase of the Product (“Warranty Period”).

How to obtain warranty service?

Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. To obtain warranty service, in the United States and Canada, call 1-877-467-4289. Call agents may diagnose and correct the issue over the phone.

Where is the warranty valid?

This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the country where the original purchase was made.

Customer Service

• Tel: 1-877-467-4289
• Visit:  http://www.insigniaproducts.com

INSIGNIA is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A.

©2021 Best Buy. All rights reserved.

FAQs

Q: What is the capacity of the NS-BI1ZWC wine cooler?

Depending on the shape and arrangement of the bottles, the cooler can hold up to 61 standard 750 ml wine bottles.

Q: What type of cooling system does it use?

Because of its thermoelectric cooling mechanism, the NS-BI1ZWC operates quietly and stores delicate wines without vibration.

Q: Can it store both red and white wines?

Indeed, it has temperature zones that may be adjusted to provide the best possible storage for both red and white wines.

Q: Does it have a dual-zone feature?

Indeed, the cooler might include dual-zone temperature management, which would enable reds and whites to be kept at different temperatures in distinct sections.

Q: Does it have a door lock?

Certain variants have a glass door that can be locked to secure your collection and stop unintentional opening.

Q: How long does it take to reach the set temperature?

Usually two to four hours, depending on how many bottles are inside and the room temperature.

Q: Is the door reversible?

Some versions have reversible doors; nevertheless, for installation and hardware details, consult the handbook.

Q: Can it operate in humid environments?

Yes, but too much moisture could cause condensation within the door. Keep the door closed to prevent the accumulation of moisture.
