Insignia NS-CF17BK6 1.7 Cubic Compact Refrigerator
CAUTION: RISK OF ELECTRIC SHOCK DO NOT OPEN
- This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your compact refrigerator.
- This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your compact refrigerator.
WARNING
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this appliance near water.
- Clean only with damp cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the appliance.
- Do not attempt to modify or extend the power cord of this appliance.
- Unplug this appliance during lightning storms or when it will not be used for long periods of time.
- Make sure that the available AC power matches the voltage requirements of this appliance.
- Do not handle the plug with wet hands. This could result in an electric
shock. - Unplug the power cord by holding the plug, never by pulling the cord.
- Do not turn the appliance on or off by plugging or unplugging the power cord.
- Turn off the appliance before unplugging it.
- Refer all servicing to qualified service personnel. Servicing is required when the appliance has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the appliance, the appliance has been exposed to rain or moisture, does not operate normally, or has been dropped.
- To reduce the risk of fire or electric shock, do not expose this appliance
to rain, moisture, dripping, or splashing, and no objects filled with liquids should be placed on top of it. - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
WARNING
Electric Shock Hazard Failure to follow these instructions can result in electric shock, fire, or death.
- WARNING Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- WARNING Do not touch the interior of the chiller compartment with wet hands. This could result in frost bite.
- WARNING Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by
the manufacturer. - WARNING Do not damage the refrigerant circuit when handling,
moving, or using the refrigerator. - WARNING Do not use electrical appliances inside the food storage compartment of the refrigerator, unless they are of the type recommended by the manufacturer.
- WARNING–DANGER Never allow children to play with, operate, or crawl inside the refrigerator.Risk of child entrapment. Before you throw away your old refrigerator or freezer:1) Take off the doors 2) Leave the shelves in place so that children may not easily climb inside
- Unplug the refrigerator before carrying out user maintenance on it.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Cleaning and maintenance should not be performed by children without supervision.
- If a component part is damaged, it must be replaced by the manufacturer, its service agent, or similar qualified persons in order to avoid a hazard.
- Please dispose of the refrigerator according to local regulations as the refrigerator contains flammable gas and refrigerant.
- Follow local regulations regarding disposal of the refrigerator due to
flammable refrigerant and gas. All refrigeration products contain refrigerants, which under the guidelines of federal law must be removed before disposal. It is the consumer’s responsibility to comply with federal and local regulations when disposing of this product. - This refrigerator is intended to be used in household and similar environments.
- Do not store or use gasoline or any flammable liquids inside or in the vicinity of this refrigerator.
- Do not use extension cords or ungrounded (two prong) adapters with this refrigerator. If the power cord is too short, have a qualified electrician install an outlet near the refrigerator. Use of an extension cord can negatively affect the refrigerator’s performance.
Grounding requirement
This refrigerator must be grounded. This refrigerator is equipped with a cord having a grounding wire with a grounding plug. The plug must be inserted into an outlet that is properly installed and grounded. Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if doubt exists as to whether the refrigerator is properly grounded.
Features
Package contents
- 1.7 cubic foot compact refrigerator
- Ice cube tray
- Drip tray
User Guide
Exterior
Interior
Setting up your refrigerator
Before using your refrigerator
- Remove the exterior and interior packing.
- Let the refrigerator stand upright for approximately four hours before
connecting it to power. This reduces the possibility of a malfunction in the cooling system from improper handling during transportation. - Clean the interior surface with lukewarm water using a soft cloth.
Finding a suitable location - This refrigerator is designed to be free standing only, and should not be recessed or built-in.
- Place your refrigerator on a floor that is strong enough to support the refrigerator when it is fully loaded.
- Allow 5 inches of space between the back and sides of the refrigerator and any surrounding walls. This allows the proper air ventilation. Adjust the feet to keep the refrigerator level.
- Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, and so on). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Ambient temperature below 50°F (10°C) or above 85°F (29.4°C) will hinder the performance of this refrigerator. This refrigerator is not designed for use in a garage or any other outside installation.
- Avoid locating the refrigerator in moist areas.
Leveling your refrigerator
- It is very important for the refrigerator to be level in order to function properly. If the refrigerator is not leveled during installation, the doors may not close or seal properly, causing cooling, frost, or moisture problems.
- To level your refrigerator, you may either turn the leveling foot clockwise to raise that side to the refrigerator or turn it counter-clockwise to lower that side.
Note
Having someone push against the top of the refrigerator helps to take some weight off the leveling foot, making it easier to adjust it.
Providing proper ventilation
Place the refrigerator at lease five inches from the wall to ensure proper airflow to the compressor. Do not place the refrigerator near any heat sources, such as a heater or stove, as this may put a strain on the compressor.
Providing a proper power supply
Check your local power source. This refrigerator requires a 110V-120V, 60 Hz power supply. Use a receptacle that accepts the grounding prong. The power cord is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this refrigerator.
Notes
- The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.
- Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.
Setting the thermostat
Note
The temperature range of the chiller compartment is 30°F (-1°C) to 48°F (8.9°C) at a room temperature of 77°F (25°C). Ice cream or popsicles must be kept at -5°F (-20.5°C) to 0°F (-17.8°C), therefore this chiller compartment is not suitable to store these types of items.
- The first time you turn the refrigerator on, adjust the thermostat to “6” and run for at least two hours before putting food in.
- After it is fully cooled, test it and adjust towards “4” to make it less cool, to best suit your needs. The “4” setting should be appropriate for home or office refrigerator
Notes
- Turning the thermostat “OFF” stops the cooling cycle but does not shut off the power to the refrigerator.
- If the refrigerator. is unplugged or loses power, you must wait three to five minutes before restarting it. If you
attempt to restart before this time delay, the refrigerator will not start. - Large amounts of food will lower the cooling efficiency of the refrigerator.
- If you choose to change the thermostat setting, adjust it by one increment at a time. Allow several hours for temperature to stabilize between adjustments.
Defrosting the chiller compartment
- Turn the thermostat “OFF” and leave the refrigerator door open.
- Remove all food from the chiller and refrigerator compartments.
- Clean out the melted frost with a cloth. If there is excessive frost or ice, place a towel under your refrigerator or move the refrigerator outdoors to prevent water damage.
- After defrosting, turn the thermostat to the original position.
Reversing the door position
You will need: A 10 mm socket driver and a Phillips screw driver available.
- Make sure that your refrigerator is unplugged and empty.
- Have someone available to assist you in the process.
- Keep all of the parts you remove to reuse them later.
- Removing the door requires that the refrigerator be tilted backwards. Rest the refrigerator on something solid, such as a chair, just below the top panel.Do not lay the refrigerator completely flat so that you do not damage the coolant system.
- Remove the screw holding the top hinge cover to the top of your refrigerator, then remove the top hinge cover.
- Remove the screws holding the top hinge to your refrigerator, then remove the hinge.
- Remove the screw hole covers from the top left side of your refrigerator.
- Pull the door upwards and remove it from the refrigerator.

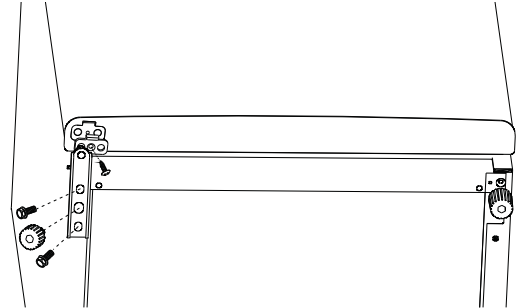

- Unscrew the left leveling foot, then remove it.
- Remove the screws holding the bottom hinge to the refrigerator, then remove the hinge
- Install the leveling foot you removed from the left side into the right bottom of your refrigerator.
- Install the bottom hinge on the right bottom of your refrigerator using the screws your previously removed.
- Align the hole in the bottom left of the refrigerator door with the bottom hinge pin, then install the door on the hinge pin.
- Place the top hinge pin into the top of the refrigerator door, then install the top hinge on the top left of the refrigerator with the screws your previously removed.
- Check the fit and alignment (vertical and horizontal) of the door and make sure that it moves freely open and closed, then tighten the screws holding the top hinge.
- Install the screw covers previously removed into the holes in the top right of the refrigerator.
- Adjust the leveling feet to level the refrigerator.
Maintaining your refrigerator
Your refrigerator is designed for year-round use with only minimalcleaning and maintenance. When you first receive it, wipe the case with a mild detergent and warm water, then wipe dry with a dry cloth. Do this periodically to keep your refrigerator looking new.
Caution
To prevent damage to the finish, do not use:
- Gasoline, benzine, thinner, or other similar solvents.
- Abrasive cleaners.
Cleaning the interior of your refrigerator:
- Turn off the refrigerator and unplug it from the wall outlet.
- Remove all food.
- Wash the inside with a damp warm cloth soaked in a solution of one quart of water lukewarm water to two tablespoons of baking soda solution.
- Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
- Dry the interior and exterior with a soft cloth.
Shutting down your refrigerator – long vacations (several months)
- Turn off the refrigerator and unplug it from the wall outlet.
- Remove all food.
- Clean the refrigerator.
- Leave the door open slightly to avoid possible formation of condensation, mold, or odor.
Caution
Use extreme caution with children. The unit should not be accessible to child’s play.
Moving Your Refrigerator
- Turn off the refrigerator and unplug it from the wall outlet.
- Remove all food.
- Securely tape down all loose items inside your refrigerator
- Tape the doors shut. Be sure the refrigerator stays in the upright position during transportation.
Tips on saving energy
- Locate your refrigerator in the Insignia NS-CF17BK6 1.7 Cubic Compact Refrigerator coolest area of the room, away from heat producing appliances or heating ducts and out of the direct sunlight.
- Let hot foods cool before placing them in the refrigerator. Overloading the refrigerator forces the compressor to run longer. Foods that freeze too slowly may lose quality or spoil.
- Wrap foods properly and wipe containers dry before placing them in the refrigerator. This cuts down on frost build-up inside the refrigerator.
- Organize and label food to reduce door openings and extended searches.
Troubleshooting
Caution
Do not try to repair your refrigerator yourself. Doing so invalidates the warranty.
Specifications
ONE-YEAR LIMITED WARRANTY
Definitions:
The Distributor* of Insignia branded Insignia NS-CF17BK6 1.7 Cubic Compact Refrigerator products warrants to you, the original purchaser of this new Insignia-branded product (“Product”), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase of the Product (“Warranty Period”). For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy branded retail store or online at www.bestbuy.com or www.bestbuy.ca and is packaged with this warranty statement.
- How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product. - What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product. - How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website (www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. To obtain warranty service, in the United States call 1-888-BESTBUY or in Canada call 1-866-BESTBUY. Call agents may diagnose and correct the issue over the phone. - Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original Insignia NS-CF17BK6 1.7 Cubic Compact Refrigerator purchaser of the product in the county where the original purchase was made. - What does the warranty not cover?
This warranty does not cover:
- Customer instruction/education
- Installation
- Set up adjustments
- Cosmetic damage
- Damage due to weather, lightning, and other acts of God, such as power surges
- Accidental damage
- Misuse
- Abuse
- Negligence
- Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of other than a private home.
- Modification of any part of the Product, including the antenna
- Display panel damaged by Insignia NS-CF17BK6 1.7 Cubic Compact Refrigerator static (non-moving) images applied for lengthy periods (burn-in).
- Damage due to incorrect operation or maintenance
- Connection to an incorrect voltage or power supply
- Attempted repair by any person not authorized by Insignia to service the Product
- Products sold “as is” or “with all faults”
- Consumables, including but not limited to batteries (i.e. AA, AAA, C, etc.)
- Products where the factory applied serial number has been altered or removed
- Loss or Theft of this product or any part of the product
- Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to five (5) pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels that may not function normally.)
- Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.
Contact Insignia:
1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
*Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2017 Best Buy. All rights reserved.
Made in China
FAQs
What is the Insignia NS-CF17BK6 compact refrigerator?
A 1.7 cubic foot tiny refrigerator, the NS-CF17BK6 is ideal for small areas including workplaces, bedrooms, apartments, and dorm rooms. It has energy-efficient cooling, movable shelves, and a freezer section.
Can I use this refrigerator in a garage or outdoor space?
No, only indoor use is intended for the NS-CF17BK6. In garages or outdoors, extremely high or low temperatures can lead to damage or poor performance.
Can I store frozen foods in the freezer compartment?
Yes, ice, frozen veggies, and small frozen products can be kept in the small freezer area. Avoid overloading as this could decrease productivity.
Is the refrigerator energy-efficient?
Indeed. Because of its low energy usage and ENERGY STAR compliance in many areas, the NS-CF17BK6 is an affordable daily device.
Can I move the refrigerator while it is full?
No. To avoid spills, damage, or tipping, always empty the refrigerator before transferring. To safeguard the compressor, keep it upright while being transported.
What is the warranty for the NS-CF17BK6?
Usually, a one-year limited warranty covering material and workmanship flaws is included with the refrigerator. For complete information, visit the Insignia website or the product handbook.
Where can I download the official user guide?
The Insignia or Best Buy support websites include the Insignia NS-CF17BK6 1.7 Cubic Compact Refrigerator User Guide. To get the PDF, search for the product number NS-CF17BK6.
Can I place the refrigerator in a small space, like under a desk?
Indeed. Although the NS-CF17BK6 is small and made for confined locations, make sure that there is at least 2-3 inches of space surrounding it to provide for adequate ventilation and effective cooling.
