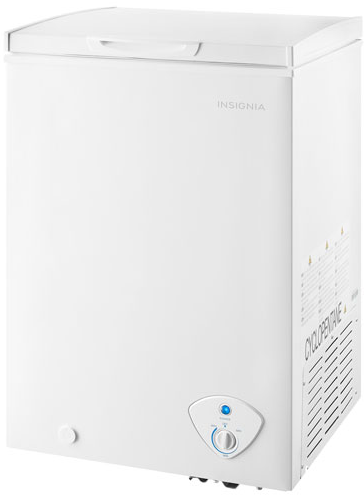

INSIGNIA NS-CZ35WH7 10.2 Cu. Ft. Chest Freezer
Safety Instructions
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this appliance near water.
- Clean only with a damp cloth.
- Do not block any ventilation openings. Install according to the manufacturer’s instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Do not defeat the safety purpose of the polarized or grounding-type plug.
- A polarized plug has two blades with one wider than the other.
- A grounding type plug has two blades and a third grounding prong.
- The wide blade or the third prong is provided for your safety.
- If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the appliance.
Features
Package contents
- 3.5, 5, 7, or 10.2 cubic foot chest freezer
- Storage basket
- User Guide

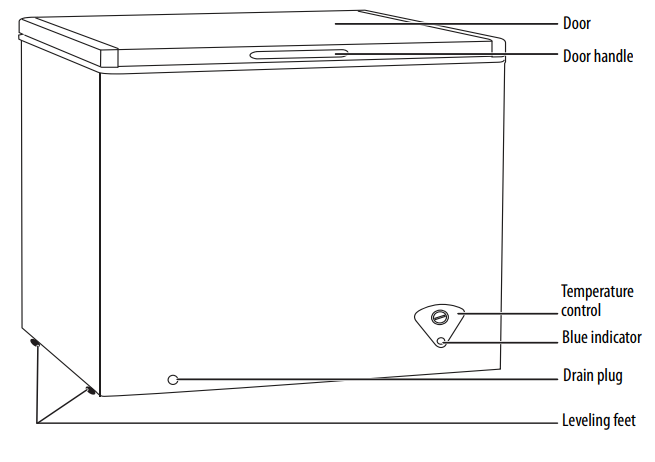

Exterior (NS-CZ70WH6 shown)
Setting
Before using your freezer
- Remove the exterior and interior packing.
- Let the freezer stand upright for approximately two hours before connecting it to power. This reduces the possibility of a malfunction in the cooling system from improper handling during transportation.
- Wash the inside with a damp, warm cloth and a baking soda solution (two tablespoons in a quart of water), then wipe dry with a dry cloth. Do this periodically to keep your freezer looking new.
Finding a suitable location
- This freezer is designed to be free-standing only, and should not be recessed or built-in.
- Place your freezer on a floor that is strong enough to support the freezer when it is fully loaded.
- Allow six inches (15 cm) of space between the back and sides of the freezer and any surrounding walls to allow for proper air ventilation. Adjust the feet to keep the freezer level.
- Locate the freezer away from direct sunlight and sources of heat, such as a stove, heater, or radiator. Direct sunlight may affect the acrylic coating, and heat sources may increase electrical consumption. Extremely cold temperatures may also prevent the freezer from performing properly.
- Avoid locating the freezer in moist areas.
Power Supply

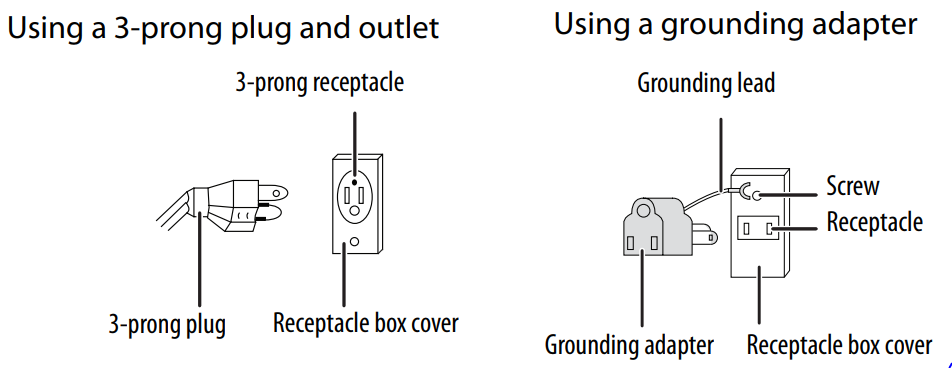

Check your local power source. This freezer requires a 115 V, 60 Hz power supply. Use a receptacle that accepts the grounding prong. The power cord is equipped with a 3-prong (grounding) plug, which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this freezer.
Use
The storage life of frozen foods varies, and the recommended storage time should not be exceeded. Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet, carefully follow these instructions regarding storage times.
- The first time you turn the freezer on, adjust the temperature control to the setting you want and run it for two to three hours before putting food in.
- After it is fully cooled, adjust the temperature control to the setting that best suits your needs. Settings include MIN, MAX, and OFF.
Defrosting
To minimize food spoilage, choose a time when your stock of frozen food is low. Defrosting usually takes a few hours. Leaving the top open helps speed the process.
- Remove the frozen food from your freezer and place it in a refrigerator or cooler to protect the food.
- Turn the thermostat knob to OFF and unplug the freezer.
- During defrosting, the ice melts into the cabinet, so remove the drain plug on the inside of the freezer, then place a shallow pan under the drain outlet so the defrost water can drain into something. Check the pan occasionally so that the water does not overflow.
- When your freezer has defrosted, clean the interior of the freezer, then replace the drain plug.
- Reset the thermostat to the desired setting, then allow the freezer to cool for one hour.
- Return the food to the freezer.
Maintainance
Your freezer is designed for year-round use with only minimal cleaning and maintenance. We recommend that you do the following every time you defrost it to keep your freezer running odor-free and efficiently:
- Turn off the freezer and unplug it from the wall outlet.
- Remove all food.
- Wash the storage basket with a mild detergent solution.
- Wash the inside with a damp, warm cloth soaked in a solution of one quart of lukewarm water to two tablespoons of baking soda solution.
- Dry the interior and exterior with a soft cloth.
- Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
Storage
- Turn off the freezer and unplug it from the wall outlet.
- Remove all food.
- Clean the freezer.
- Leave the door open slightly to avoid the possible formation of condensation, mold, or odor.
Moving your freezer
- Turn off the freezer and unplug it from the wall outlet.
- Remove all food.
- Securely tape down all loose items inside your freezer.
- Tape the door shut. Be sure the freezer stays in the upright position during transportation.
Specifications
| Dimensions (WxDxH) | 3.5 Cu. ft.: 22.2 x 20.6 x 33.5 in. (56.5 x 52.3 x 85 cm) 5 Cu. ft.: 28.7 x 20.6 x 33.5 in. (73.0 x 52.3 x 85 cm) 7 Cu. ft.: 37.2 x 20.6 x 33.5 in. (94.5 x 52.3 x 85 cm) 10.2 Cu. ft.: 43.9 x 26.4 x 33.5 in. (111.5 x 67 x 85 cm) |
| Weight | 3.5 Cu. ft.: 59.5 lbs. (27 kg) 5 Cu. ft.: 61.7 lbs. (28 kg) 7 Cu. Ft.: 70.5 lbs. (32 kg) 10.2 Cu. ft.: 88.2 lbs (40 kg) |
| Power requirements | 115 V~ 60 Hz |
| Current | 3.5 Cu. ft.: 0.89 A 5 Cu. ft.: 1.2 A 7 Cu. ft.: 1.2 A 10.2 Cu. ft..: 1.4 A |
| Power consumption (annual) | 3.5 Cu. ft.: 193 kWh 5 Cu. ft.: 218 kWh 7 Cu. ft.: 250 kWh 10.2 Cu. ft.: 238 kWh |
Troubleshooting
| PROBLEM | POSSIBLE CAUSE | POSSIBLE SOLUTION |
| The freezer does not operate | The freezer is unplugged. | Make sure that the freezer is plugged in and that the plug is pushed completely into the outlet. |
| The thermostat is set to the “OFF” position. | Turn the thermostat knob to “MAX.” | |
| The fuse on the circuit is blown, or the circuit breaker is tripped. | Check the house fuse/circuit breaker box and replace the fuse or reset the circuit breaker. | |
| Power failure. | If a power failure occurs, the freezer turns off. | |
| The freezer door does not close completely | Food packages are interfering with the door. | Move the food packages or remove some food. |
| The storage basket is out of position. | Adjust the storage basket properly. | |
| The door gaskets are dirty. | Clean the door gaskets. | |
| The freezer is not level. | Level the freezer with the leveling feet. | |
| Food in the freezer is not cold | The door has been opened too often or was not closed properly. | Make sure that the door is closed properly. |
| You have just added a large amount of food to the freezer. | Allow time for the new food to cool, then check again. | |
| The door is not closed completely. | Check the door gasket and food distribution, and make sure that the door closes completely. | |
| The freezer has been disconnected for some time. | Allow time for the freezer to cool before adding food. | |
| The thermostat is set too warm. | Set the thermostat to a colder setting. | |
Legal notices
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, Freezer and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Caution
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
EMC guidance
- Don’t use near active HF Insignia NS-GLSBFSCW1 Glass Scale surgical equipment or the RF shielded room of an ME system for magnetic resonance imaging, where the intensity of EM disturbances is high.
- Use of accessories, transducers, and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation.
- Otherwise, degradation of the performance of this equipment could result.
One-Year Warranty
Definitions
The Distributor* of Insignia-branded products warrants to you, the original purchaser of this new Insignia-branded product (“Product”), that the Product shall be free of defects in the original manufacturer of the material or workmanship for one (1) year from the date of your purchase of the Product (“Warranty Period”).
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website, please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. To obtain warranty service, in the United States and Canada, call 1-877-467-4289. Call agents may diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the country where the original purchase was made.
Customer Support
- Ph: 1-877-467-4289
- Website: www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2021 Best Buy. All rights reserved.
FAQs
What type of appliance is the NS-CZ35WH7?
The 10.2 cubic foot chest freezer NS-CZ35WH7 is perfect for storing frozen items in large quantities. It works well in utility rooms, basements, garages, and kitchens.
Does the freezer have an adjustable thermostat?
Indeed, there is a mechanical temperature control dial close to the front bottom of the device. Depending on your storage demands, you can change it from chilly to the coldest setting.
What is the temperature range of this chest freezer?
The freezer normally maintains a range of -12°C to -24°C (10.4°F to -11.2°F), while precise temperatures may fluctuate based on the environment.
How quickly can it freeze fresh food?
A “Quick Freeze” function on the freezer is perfect for quickly freezing a lot of food. A few hours prior to loading new things, set the thermostat to the lowest possible temperature.
Does it come with a storage basket?
Indeed, it has a detachable wire basket that helps keep tiny items like frozen meats, vegetables, or ice packs organised for convenient access.
Is it frost-free or manual defrost?
Being a manual defrost chest freezer, the NS-CZ35WH7 contributes to lower temperatures and improved energy efficiency. To avoid ice accumulation, periodic defrosting is necessary.
