Insignia NS-IR10BK6 10” Steam Iron
Safety Instructions
- Only use an iron for its intended use.
- To avoid the risk of electric shock, do not immerse the iron in water or other liquids.
- Always turn the iron OFF before plugging or unplugging the iron from the electrical outlet.
- Never pull on the cord to disconnect the iron from the electrical outlet; instead, grasp the plug and pull on the plug to disconnect the iron.
- Do not let the cord touch hot surfaces. Let the iron cool completely before putting the iron away.
- Coil the cord loosely around the iron when storing.
- Always disconnect the iron from the electrical outlet before filling the iron with water, emptying the water from the iron, and when the iron is not in use.
- To avoid the risk of electric shock, do not disassemble the iron.
- Take it to a qualified serviceman for examination and repair.
- To avoid a circuit overload, do not operate an iron on the same circuit as another high-wattage appliance.
Features
Package contents
- 10” steam iron
- User Guide

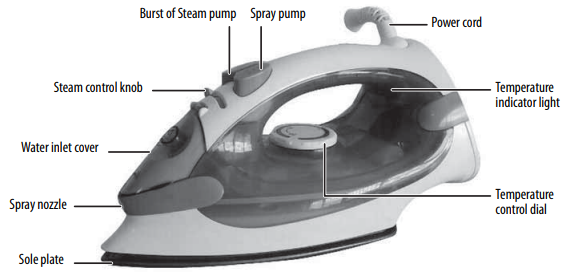

Main features
- Sole plate
- Spray nozzle
- Water inlet cover
- Steam control knob
- Burst of Steam pump
- Spray pump
- Power cord
- Temperature indicator light
- Temperature control dial
Using your iron
Using your iron for the first time
Some parts of the iron have been slightly greased, and, as a result, the iron may smoke slightly when turned on for the first time. This stops after a few uses.
- Remove any protective films or stickers from the sole plate and the body of the iron. Clean the sole plate with a soft cloth.
- Test the iron on an old piece of fabric to make sure that the sole plate and water reservoir are completely clean.
Setting the temperature control
- Always check the garment label for ironing instructions before ironing the garment.

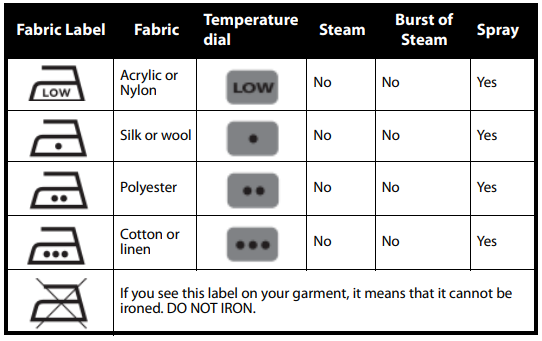

- If the ironing instructions are missing, use the table below to set the temperature.
- Sort your laundry into fabric types (wool with wool, cotton with cotton, and so on), then iron the fabrics requiring the lowest temperature setting first, then progress to fabrics that require higher temperatures (the iron heats up quicker than it cools down).
- If the fabric consists of various kinds of fibers (such as cotton with polyester), always select the ironing temperature for the material with the lowest advised temperature.
Dry ironing
- Stand the iron upright and plug it in.
- Turn the temperature control dial to the setting you want.
- The steam control knob is set to 0.
- The temperature indicator turns off when the temperature you want is reached. The iron is ready for
Steam ironing
- The steam feature can only be used at higher ironing temperatures. Use the following settings.
- Use for moderate steam
- Use for maximum steam
- Open the water inlet cover and fill the iron with water.
- Stand the iron upright and plug it in.
- Turn the temperature control dial to the setting you want.
- The temperature indicator turns off when the temperature you want is reached. The iron is ready for use.
- Turn the steam control to the required position. Steam starts coming from the holes in the sole plate.
Choosing the water
- This iron can be used with normal tap water.
- If the water in your area is particularly hard, use distilled or demineralized water.
- Do not use chemically descaled water or any other liquids.
Filling the iron
- Set the steam control knob to 0 and the temperature control dial to OFF.
- Unplug the iron from the wall outlet and wait for the iron to cool down.
- Pour water into the water inlet up to the MAX level of the water reservoir.
- Plug in your iron and stand it upright.
- Turn the temperature control dial to the desired temperature setting. The temperature indicator turns on.
- When the correct temperature is reached, the temperature indicator turns off. The temperature indicator turns on and off periodically when the iron turns on or off to maintain the set temperature.
Spraying the fabric
You can use the spray feature at any time to help eliminate wrinkles. It does not affect the temperature of the iron.
- Open the water inlet cover and fill the iron with water.
- Aim the spray nozzle at the garment.
- Press the spray pump.
Using the Burst of Steam
This feature provides an extra amount of steam to help remove stubborn wrinkles.
- Open the water inlet cover and fill the iron with water.
- Stand the iron upright and plug it in.
- Turn the temperature control dial to the maximum setting.
- The temperature indicator turns off when the temperature you want is reached. The iron is ready for use.
- Press the Burst of Steam pump. Steam penetrates the garment and removes stubborn wrinkles.
- Press the Burst of Steam pump a second or third time. Usually, all wrinkles can be removed within three steam bursts. For best results, wait three seconds between each burst.
Cleaning and maintaining your iron
- Unplug the iron.
- Set the steam control knob to the self-clean position.
- Open the water inlet cover and fill the iron with water.
- Select the maximum ironing temperature.
- Plug in the iron
- When the temperature indicator turns off, unplug the iron.
- Hold the iron over the sink, then press and hold the self-clean button and gently shake the iron.
- Release the self-clean button as soon as all water in the reservoir has been drained.
- Repeat the self-clean process if the iron still contains a lot of impurities.
Cleaning the exterior of the iron
Turn the temperature control dial to OFF, then unplug the iron and let it cool down completely. The casing may the wiped with a damp cloth and then polished with a dry one.
Storing your iron
- Turn the temperature control dial to OFF and set the steam control knob to 0 (no steam).
- Unplug the iron.
- Pour any remaining water out of the water reservoir.
- Stand the iron upright and let it cool down completely.
- Wind the power cord around the iron.
- Always store the iron in an upright position.
Specifications
- Dimensions (WxDxH): 10.2 x 4.2 x 4.9 inches (25.8 x 10.6 x 12.4 cm)
- Weight: 2 lbs. (875 g)
- Power: 1200 W
Troubleshooting
| Problem | Possible cause | Possible solution |
| The iron won’t heat | The iron may not be plugged in, or the temperature control dial may not be set correctly. | Plug in the iron and turn up the temperature control dial. If the temperature indicator does not come on, does a lamp plugged into the same outlet turn on? If it does, there is a problem with the iron. Contact customer service. |
| Water drips from the holes in the sole plate. | The chosen temperature is too low and does not allow the formation of steam. | Set the temperature control dial in the steam range (from •• to MAX). |
| Brown streaks come through the sole plate and stain the fabric | You are using chemical descaling agents. | Do not add any descaling agents to the water in the water tank. |
| You are not using the right type of water. | Use the self-clean function and refer to “Choosing the water” on page 6. | |
| The sole plate is dirty or brown and can stain the fabric | You are ironing with an inappropriate setting (temperature too high). | Select the appropriate setting. |
| There is little or no steam | The water tank is empty. | Fill it. |
| Your iron has a build-up of scale. | Use the self-clean function. | |
| The sole plate is scratched or damaged. | You have placed your iron flat on a metallic rest-plate or ironed over a zipper. | Always set your iron on its heel. |
| Problem | Possible cause | Possible solution |
| Steam or water comes out of the iron as you finish filling the tank | The steam control is not set to produce steam. | Never overfill the water tank. Empty out the excess water. |
| The spray nozzle does not spray | There is not enough water in the water tank. | Fill up the water tank. |
One Year Warranty
Definitions
The Distributor* of Insignia-branded products warrants to you, the original purchaser of this new Insignia-branded product (“Product”), that the Product shall be free of defects in the original manufacturer of the material or workmanship for one (1) year from the date of your purchase of the Product (“Warranty Period”).
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website, please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. To obtain warranty service, in the United States and Canada, call 1-877-467-4289. Call agents may diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the country where the original purchase was made.
Customer Service
- tel: 1-877-467-4289
- Visit: http://www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2021 Best Buy. All rights reserved.
FAQs
Q: What is the maximum steam output of the Insignia NS-IR10BK6 steam iron?
Ans: The iron is ideal for efficiently eliminating wrinkles because it continuously produces up to 20 grammes of steam per minute.
Q: How do I adjust the temperature settings?
Ans: Choose the proper fabric setting by turning the temperature dial. Cotton and linen require a high setting, while silk and other delicate materials require a low setting.
Q: Does this iron have an automatic shut-off feature?
Ans: If the iron is left upright for 8 minutes or on its soleplate for 30 seconds, it will automatically turn off for safety.
Q: How do I fill the water tank?
Ans: Take off the water tank cap and fill it to the maximum level indicated with cool, clean water. Steer clear of overfilling to stop leaks.
Q: Can I use tap water in the iron?
Ans: To avoid mineral accumulation and prolong the life of the iron, it is advised to use distilled or filtered water.
Q: How do I activate the steam burst function?
Ans: For persistent creases or vertical steaming, press the steam burst button to release an extremely potent blast of steam.
