INSIGNIA NS-WC24BK6 Bottle Beverage Cooler
Important Safety Instructions
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Do not defeat the safety purpose of the polarized or grounding-type plug.
- A polarized plug has two blades with one wider than the other.
- A grounding type plug has two blades and a third grounding prong.
- The wide blade or the third prong is provided for your safety.
- Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the appliance.
- Do not attempt to modify or extend the power cord of this appliance.
- Unplug this appliance during lightning storms or when it will not be used for long periods of time.
- Make sure that the available AC power matches the voltage requirements of this appliance.
- Keep ventilation openings in the wine/beverage cooler clear of obstruction.
- Do not damage the refrigerant tubing when handling, moving, or using the wine/beverage cooler.
- Do not use electrical appliances inside the storage compartment of the wine/beverage cooler, unless they are of the type recommended by the manufacturer.
- Never allow children to play with, operate, or crawl inside the wine/beverage cooler.
Grounding requirement
This wine/beverage cooler must be grounded. This wine/beverage cooler is equipped with a cord having a grounding wire with a grounding plug. The plug must be inserted into an outlet that is properly installed and grounded. Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if doubt exists as to whether the wine/beverage cooler is properly grounded.
Feature
- le a34-bottletle capacity (depending on model purchased)
- Touch Controls with LED Display
- Removable chrome shelves
- Removable chrome basket
- Interior LED light
- Adjustable legs (2)
Package contents
- 24 or 34 bottle wine/beverage cooler
- User Guide

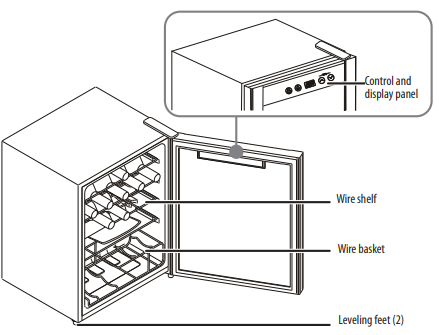

Components
Control and display panel
When you plug in your cooler for the first time, the display turns on for three seconds, followed by a start-up tone. You can now operate the control panel. When locked, the display turns off if no key is pressed for 30 seconds. The display turns on again when any key is pressed.
Setting
- Remove the exterior and interior packing.
- Let the wine/beverage cooler stand upright for approximately one-half hour before connecting it to power. This reduces the possibility of a malfunction in the cooling system from improper handling during transportation.
- Clean the interior surface with lukewarm water using a soft cloth.
Finding a suitable location
- This wine/beverage cooler is designed to be free-standing only, and should not be recessed or built-in.
- Place your wine/beverage cooler on a floor, countertop, or cabinet that is strong enough to support the wine/beverage cooler when it is fully loaded.
- Allow five inches of space between the back and sides of the wine/beverage cooler and any surrounding walls. This allows proper air ventilation. Adjust the feet to keep the wine/beverage cooler level.
- Locate the wine/beverage cooler away from direct sunlight and sources of heat (stove, heater, radiator, and so on).
- Direct sunlight may affect the acrylic coating, and heat sources may increase electrical consumption.
- Ambient temperature below 50°F (10°C) or above 85°F (29.4°C) will hinder the performance of this wine/beverage cooler.
- This wine/beverage cooler is not designed for use in a garage or any other outside installation.
- Avoid locating the wine/beverage cooler in moist areas.
Leveling your wine/beverage
- The wine/beverage cooler needs to be level to function properly. If the wine/beverage cooler is not leveled during installation, the door may not close or seal properly, causing cooling, frost, or moisture problems.
- To level your wine/beverage cooler, you may either turn the leveling foot clockwise to raise that side of the wine/beverage cooler or turn it counter-clockwise to lower that side.
Providing proper ventilation
Place the wine/beverage cooler at least five inches from the wall to ensure proper airflow to the compressor. Do not place the wine/beverage cooler near any heat sources, such as a heater or stove, as this may put a strain on the compressor.
Providing a proper power supply
Check your local power source. This wine/beverage cooler requires a 110V-120V, 60 Hz power supply. Use a receptacle that accepts the grounding prong. The power cord is equipped with a 3-prong (grounding) plug, which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this wine/beverage cooler.
3-prong plug and outlet
Grounding adapter
Use
- Plug in and run your wine/beverage cooler for two to three hours before making any temperature adjustments and before adding wine. This allows your cooler to reach a stable temperature.
- Press the temperature up and temperature down buttons at the same time to switch between Celsius and Fahrenheit.
- Adjust the temperature to the setting appropriate to the wine you want to cool, by pressing the temperature up or temperature down buttons. Each press of the button raises or lowers the temperature by one degree between 41°F to 65°F (5°C to 18°C).
Locking and unlocking your cooler
- Press and hold the lock button for three seconds to lock or unlock the control panel.
Lighting your cooler
- Press the light button to turn the interior light on and off.
Memory function
- If you experience a power outage, when your INSIGNIA NS-WC24BK6 Bottle Beverage Cooler cooler is turned on again, it resumes the same temperature that was set when the power went off.
Arranging your wine
In order to maintain good air circulation in the cooler, do not let the bottles touch the back of the cooler. Different temperature zones are generated within the cooler due to air circulation. The upper area’s temperature is the highest, while the lower area the lowest. It is best to store different types of wine within the cooler, in the following sequence, from top to bottom:
- Strong red wine
- Pink and mild red wine
- White wine
- Champagne and spritzer

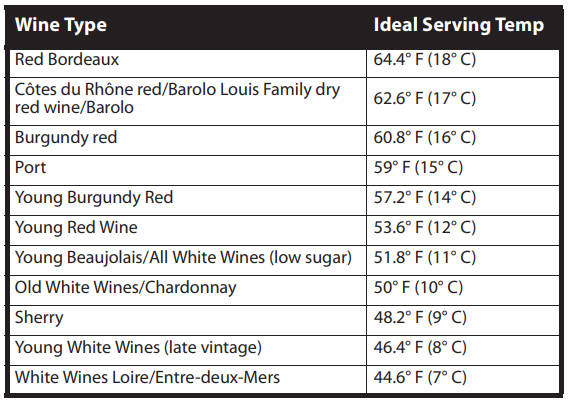

Serving
We suggest that you pour wine at a temperature below the ideal serving temperature, because the wine warms up quickly after it’s been poured into a glass.
Do not store bottled wine in a box or case in the cooler. We suggest that you put pink/rose type wines onto the table two to five hours before drinking, and red INSIGNIA NS-WC24BK6 Bottle Beverage Cooler wine four to five hours before drinking. That also allows them to reach the suitable serving temperature.
Maintainance
Your wine/beverage cooler is designed for year-round use with only minimal cleaning and maintenance. When you first receive it, wipe the case with a mild detergent and warm water, then wipe dry with a dry cloth. Do this periodically to keep your wine/beverage cooler looking new.
Cleaning the interior of your wine/beverage cooler
- Turn off the wine/beverage cooler and unplug it from the wall outlet.
- Remove all wine/beverages.
- Wash the inside with a da, mp warm cloth soaked in a solution of one quart er lukewarm water to two tablespoons of baking soda solution.
- Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
- Dry the interior and exterior with a soft cloth.
Storage
- Turn off the wine/beverage cooler and unplug it from the wall outlet.
- Remove all wine/beverages.
- Clean the wine/beverage cooler.
- Leave the door open slightly to avoid the possible formation of condensation, mold, or odor.
Moving your wine/beverage cooler
- Turn off the wine/beverage cooler and unplug it from the wall outlet.
- Remove all wine/beverages.
- Securely tape down all loose items inside your wine/beverage cooler.
- Tape the door shut.
Specifications
24-bottle wine/beverage cooler
- Dimensions (WxDxH): 25.3 x 18.9 x 17.3 in. (64.2 x 48.0 x 44.0 cm)
- Weight: 54 lbs (24.5 kg)
- Power requirements: 115V ~ 60 Hz
- Current: 0.8 A
36-bottle wine/beverage cooler
- Dimensions (WxDxH): 33.3 x 18.9 x 17.3 in. (84.2 x 48.0 x 44.0 cm)
- Weight: 66.1 lbs (30.0 kg)
- Power requirements: 115V ~ 60 Hz
- Current: 0.8 A
Troubleshooting
- E1: Temperature sensor fault.
- E4: Defrost sensor fault.
If either of these error codes appears on the display, please contact your local dealer or service center. Do not try to repair the cooler yourself.
| Problem | Possible cause | Possible solution |
| The wine/beverage cooler does not operate | The wine/beverage cooler is unplugged. | Make sure that the wine/beverage cooler is plugged in and that the plug is pushed completely into the outlet. |
| The fuse on the circuit is blown, or the circuit breaker is tripped. | Check the house fuse/circuit breaker box and replace the fuse or reset the circuit breaker. | |
| Power failure. | If a power failure occurs, the wine/beverage cooler turns off. Wait until the power is restored, then turn it on again. | |
| The cooler door does not close completely | The shelf is out of position. | Adjust the shelf properly. |
| The door gaskets are dirty. | Clean the door gaskets. | |
| The cooler is not level. | Level the cooler with the leveling feet. | |
| The cooler is not cold enough | The door has been opened too often or was not closed properly. | Make sure that the door is closed properly. |
| You have just added a large amount of warm beverage to the cooler. | Allow time for the new beverage to cool, then check again. | |
| The temperature control is set too warm. | Set the control to a colder setting. |
One-Year Warranty
Definitions
The Distributor* of Insignia-branded products warrants to INSIGNIA NS-WC24BK6 Bottle Beverage Cooler you, the original purchaser of this new Insignia-branded product (“Product”), that the Product shall be free of defects in the original manufacturer of the material or workmanship for one (1) year from the date of your purchase of the Product (“Warranty Period”).
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store INSIGNIA NS-WC24BK6 Bottle Beverage Cooler location or from a Best Buy online website, please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. To obtain warranty service, in the United States and Canada, call 1-877-467-4289. Call agents may diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the country where the original purchase was made.
Customer Support
- Ph: 1-877-467-4289
- Website: www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2021 Best Buy. All rights reserved.
