    JABLOTRON JA-123E Bus Outdoor keypad Instruction Manual

    By Gabriel SmithOctober 12, 2025Updated:October 13, 2025No Comments4 Mins Read
    Facebook Twitter Pinterest LinkedIn Tumblr WhatsApp Telegram Email

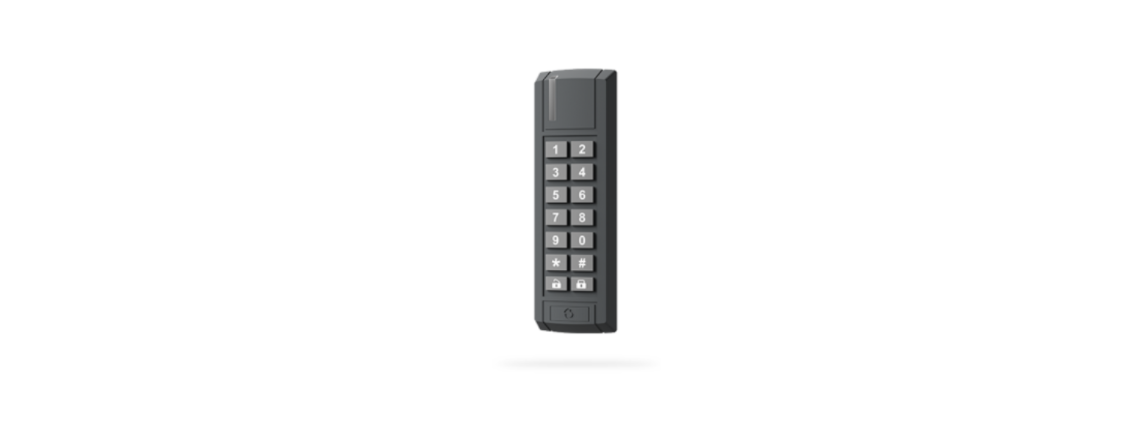

    JABLOTRON-JA-123E-Bus-Outdoor-keypad-featured
    Share
    Facebook Twitter LinkedIn Pinterest Email

    Jablotron logo

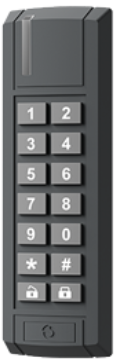

    JABLOTRON JA-123E Bus Outdoor keypadJABLOTRON-JA-123E-Bus-Outdoor-keypad-product

    Installation

    1. Remove the locking screw (6) and open the keypad cover.
    2. Pull the keypad cable through the hole in the plastic base.
    3. Connect the bus cable into the terminal blocks according to the colours and markings – red terminal +U, yellow A, green B, black GND.
    4. For connection outside the armed area, we recommend using the JA-110T isolator.
    5. Follow the instructions stated in the control panel installation manual. Basic procedure.
    6. Open the F-Link software, select an unused position in the Devices tab and click on the Enrol button to enter the Enrolment mode.
    7. Press the tamper, this action enrols the keypad and the yellow LED turns off.
    8. Close the product cover and secure it with the locking screw (6).

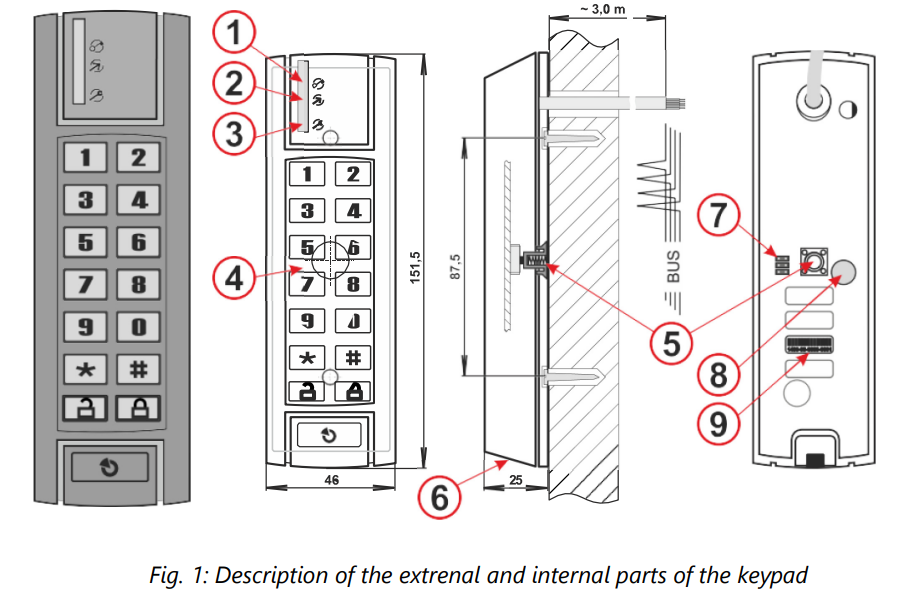

    JABLOTRON-JA-123E-Bus-Outdoor-keypad-figure-1

    1 – red LED – indicates armed section; 2 – green LED – indicates disarmed section; 3 – yellow LED – indicates fault/service/not assigning to the system; 4 – keypad and reading surface; 5 – tamper; 6 – locking screw; 7 – programmable pins; 8 – piezo; 9 – serial number;

    Setting the properties

    To set the properties, use the F-Link program, select the Devices tab. At the product/keypad position, click the Enter prompt in the Internal settings column.

    Optical indication shows the status of a function assigned to the segment. Red LED indicates an armed/turned on PG. Green LED indicates a disarmed section/turned off PG. The yellow LED indicates a fault by permanent light. The asterisk symbol * signifies the factory default setting.

    Segment function (section/PG selection)

    • Alarm: *On/Off: Signals an ongoing alarm in an assigned section.
    • Entrance delay: *On/Off: Signalizes entry delay in a section to which it is assigned.
    • Exit delay when partially set: On/*Off

    Properties and indication

    • Indicates permanently – LED 1 or LED 2 lights up permanently/signals the status of the PG/section.

    Authorised action

    If the section, in which the reader is assigned, is in an armed state, authorisation by means of reading a card induces an entry delay. Simultaneously, it activates a PG. It simultaneously activates the PG marked by the Controls PG option.

    Technical Specifications

    • Power from the control panel bus, 12 V, DC (8-15 V)
    • Quiescent current consumption 15 mA
    • Maximal current consumption 80 mA
    • Type of control device A
    • NFC frequency 13.56 MHz
    • Maximum RFID magnetic field strength 10.37 dBuA/m (3 m)
    • Compatible RFID card NFC, Mifare® Classic, Mifare® DESFire® 4, 7 Byte UID
    • Dimensions 46 x 151.5 x 25 mm
    • Weight 196 g
    • Connection cable length 3.0 m
    • Operating temperature range -25 °C to +60 °C
    • Relative humidity 75% RH, non-condensation
    • Environment according to IV. outdoor general
    • Classification Grade 2 according to EN 50131-1, EN 50131-3
    • Additionally, in compliance with ETSI EN 300 330, EN 50130-4, EN 55032, EN IEC 62368-1, EN IEC 63000
    • Recommended screw 3 x ø 3.5 x 40 mm (flat head)

    Dear Customer

    JABLOTRON a.s. Hereby declare that product 1KPAD2318LU complies with the relevant Union harmonisation legislation: Directives No: 2014/53/EU, 2014/35/EU, 2014/30/EU, 2011/65/EU.

    Customer Service

    • Website: www.jablotron.com – Section

    FAQs

    Q: What is the JABLOTRON JA-123E Bus Outdoor Keypad used for?

    Ans: It is an outdoor keypad that enables customers to arm, disable, and adjust Jablotron security systems by controlling and managing access through PIN codes.

    Q: How does the JA-123E connect to the security system?

    Ans: It ensures dependable and secure data flow by connecting to the central Jablotron control panel via a wired BUS communication line.

    Q: Can the keypad be installed outdoors?

    Ans: Indeed, the JA-123E is weatherproof and made especially for outside installation, offering defence against dust, rain, and temperature changes.

    Q: Does the keypad support multiple user codes?

    Ans: Indeed, it offers PIN codes for many users, giving each user unique access privileges and logging capabilities.

    Q: What kind of feedback does the keypad provide?

    Ans: To verify user input, system status, and error alerts, the keypad has LED indicators, lighted keys, and audio beeps.

    Q: Is the keypad compatible with all Jablotron control panels?

    Ans: The majority of the Jablotron 100 series and more recent control panels that allow BUS keypad connections can use it.
