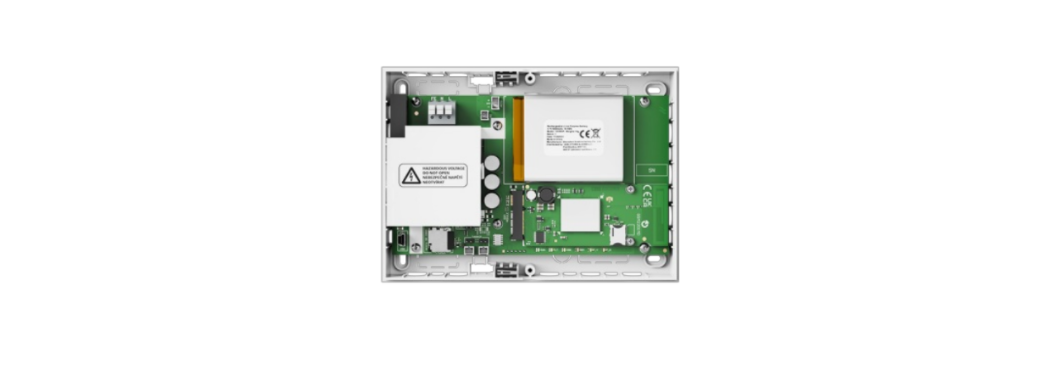

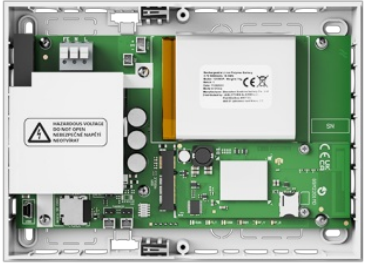

JABLOTRON JA-152KRY Control panel
Installation
The module is to be installed directly on the control panel’s motherboard using a flat connector labelled GSM Module (see the control panel installation manual).
- Prepare a suitable SIM card (nano SIM). It must be activated (test is using a mobile phone), and DATA (GPRS, LTE) services must be enabled. If the SIM card requires a PIN code, deactivate it using the mobile phone.
- Insert the SIM card into the SIM card slot.
- Disconnect the control panel from its power supply (backup battery, USB, and mains electricity)
- Insert the communicator module into the system connector on the control panel and use two screws (1) to fix it to the motherboard.
- Attach the GSM antenna to the connector (2) on the communicator module (included with the JA-194Y-LITE). When installing the antenna, follow the orientation shown in Fig. 1.
Description
- safety screws;
- GSM antenna SMA connector;
- system connector;
- SIM card slot;
- SIM card
Communicator Activation
- Before connecting the power supply, check JABLOTRON JA-152KRY Control panel whether the communicator is properly fixed to the motherboard, the antenna is attached, and the SIM card is inserted into the SIM card slot.
- Removing the communicator module to insert the SIM card is not necessary.
- Connect the control panel’s power supply (backup battery and then the mains electricity).
- A flashing red communicator LED indicates connecting to a GSM network and will stop flashing within 1 minute = connected.
- Disconnect the power supply if the red LED indicator keeps flashing.
- Insert the SIM card into a mobile phone to make sure the SIM card works correctly and does not require a PIN code.
- Remain in Service mode and close the control panel box.
- Configure the communicator settings using the F-Link software (see the Control panel installation manual).
Communication to ARC and Communication Monitoring
- The communicator periodically checks the status of the connection to the ARC, and if there is a problem in communication with the ARC, a fault is triggered.
- The communicator works in the Forward mode – it receives a message from the control panel and forwards it immediately; events are not buffered and sent later.
Technical specifications
- Installation type: Fixed installation
- Control panel power supply ~ 110 – 230 V/50 – 60 Hz, max. 0.28 A with F1.6 A/250 V fuse, security grade II
- Electrical power / current Max. 23 VA / 0.1 A
- Protection class II.
- Back-up battery 3.7V, 5000 mAh, Li-Polymer
- Low battery backup voltage (fault indication) ≤3.5V
- Maximum battery recharge time (80% capacity) 72 h
- Maximum number of sections 4
- Maximum number of devices: 31 devices + 31 remote controllers
- Maximum number of use: R.ss 32
- Max. number of PG outputs 2
- Alarm connections Wireless connection– unspecified wireless connection, Jablotron wireless protocol
Classification Environment Grade II
- @ According to standards EN50131-1, EN 50131-3, EN 50131-6, EN 50131-5-3, EN 50131 10, EN 50136 1, EN 50136- 2
- @ operational temperature range / humidity range -10 °C to +40 °C / 75% RH without condensation
- @ power supply Type A – primary mains power supply with a powered back-up battery.
- @ event memory capacity approx. 7 million events, including sources and timestamps.
- @ system reaction to loss of device communication: Fault or Tamper – Dependent on selected profile
- @ wireless communication within 2h (from last communication)
- @ Wireless communication within20-minuten blocks section setting
- Dimension 182 x 132 x 58 mm
- Weight with battery / without battery 510 g/430 g
- Based parameters of the JA 111R module 868.1 MHz, <25 mW, GFSK <80 kHz
- Radio emissions ETSI EN 300 220-1,2
- EMC EN 50130-4, EN 55032, ETSI EN 301 489-1, ETSI EN 301 489-3
- Safety conformity EN IEC 62368-1
- Conditions of operation ERC REC 70-03
- Certification body TREZOR TEST (no. 3025)
Customer Service
- Tel.: +420 483 559 999
- Fax: +420 483 559 993
- Website: www.jablotron.com
- Address: Pod Skalkou 4567/33 46601 Jablonec nad Nisou, Czech Republic
Hereby, Jablotron Ltd. declares that this TP-98 complies with the essential requirements and other relevant provisions of Directive 1999/5/EC.
FAQs
How do I install the JA-152KRY control panel?
A qualified technician should install the panel. It must be firmly installed in a secure location with communication and power lines available.
Can the panel be connected to both wired and wireless devices?
Indeed, the JA-152KRY allows for versatile system design by integrating with both wired and wireless Jablotron devices.
How do I arm and disarm the system using this control panel?
Depending on your setup, you can use Jablotron’s mobile app, remote controls, or linked keypads to arm or disarm the system.
Does the panel support multiple user codes and access levels?
Indeed, it enables the creation of numerous user profiles with unique notifications and access privileges.
Can the panel send alerts to multiple recipients?
Yes, several users can get alarm notifications at once by SMS, voice calls, or app notifications.
