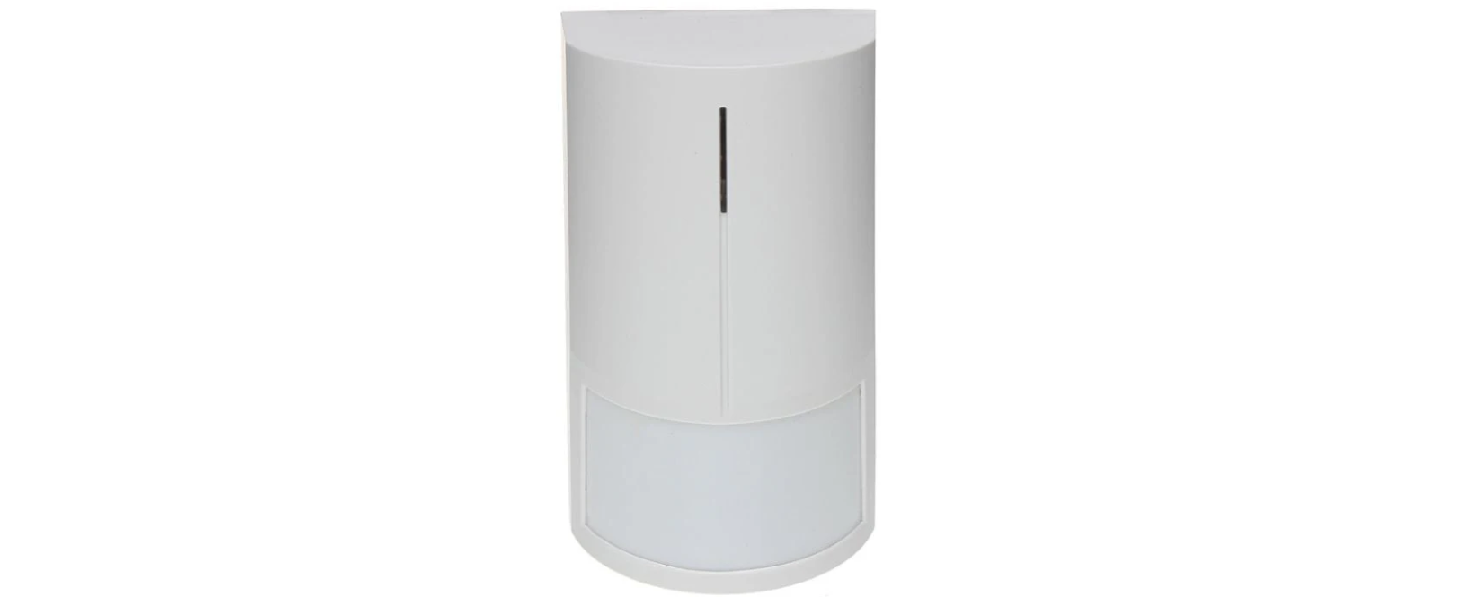

JABLOTRON JA-180W Wireless Combined PIR Detector
Introduction
The JA-180W is a component of the JABLOTRON alarm system. The detector guards like a usual PIR detector.
Installation
The detector can be mounted on a wall or in a corner of a room. There should be no obstacles blocking the detector’s “view” of the protected area. Keep the detector away from metal objects, which could interfere with radio communication and the MW field.
- Description of internal parts of the product: 1 – DIP-switch; 2 – MW part connector; 3 – PCB tab; 4 – tamper-switch; 5 – PIR sensor; 6 – front cover tab; 7 – MW sensitivity setting; 8 – MW detector
- Open the detector cover by pressing the tab (6). Avoid touching the internal PIR element (5) – otherwise it can be damaged.
- Remove the PCB, which is held by a PCB tab (3). Leave the MW connector (2) of the MW part.
- Punch screw holes through the rear plastic cover. Screw the rear cover to the wall. At least one screw should penetrate the tamper-sensitive section.
- Put the PCB back till the tab (3) clicks. Insert a battery (mind the correct polarity) and follow the instructions below. After installing a low battery in the detector, the LED is lit for 1 minute.
- Close the detector cover till the tab (6) clicks. To comply with EN 50131-2-4, the tab (6) must be secured by the supplied screw.
Setting the DIP switch
- Switch no. 2: PIR NORM / HIGH: selection of immunity to false alarms.
- The OFF (NORM) position combines very good immunity with fast sensor reactions.
- Switch no. 3: MW NORM / HIGH sets the time period after PIR detection in which the MW detection is active.
- Switch no. 4: MW NORM / TEST. The position OFF is for the standard function of the detector.
- The MW detection is triggered by the PIR detection part for one or two seconds according to switch no. 3. The position ON – MW detection works continuously for testing purposes (walk test).
Testing the detector
15 minutes after closing the detector cover, the LED indicators show detector activation. A short flash of the red LED indicates PIR detection, and a long flash (2 sec) indicates MW confirmation of the movement. The MW detector reaction span is from 1 m to 15 m. In some cases, the detector can detect movement outside the room when obstacles are not metal (such as a thin wall, door, glass, flowing water in plastic pipes, etc.).
Generally, the MW detection field should be the same as the PIR detection one. For setting up, switch the fourth DIP switch to the TEST position. The RF range of the MW part is adjustable by the trimmer (7).
Detection characteristics
Detection characteristics of PIR and MW JABLOTRON JA-180W Wireless Combined PIR Detector coverage in an open area and
Technical parameters
- Power supply Lithium battery type CR14500 (AA) 3.6 V / 2.45 Ah.
- Quiescent current consumption 21 μA
- Maximal current consumption 38 mA
- Low battery voltage ≤2.6 V
- Typical battery lifetime approx. 2 years (DIP no. 3 to NORM)
- Communication frequency 868.1 MHz, Jablotron protocol
- Communication range approx. 300 m (open area)
- Maximum radiofrequency power (ERP) <25 mW
- Recommended installation height 2.5 m above floor level
- PIR detection angle/detection range 110° / 12 m (with basic lens)
- MW detection angle/detection range 24° / 15 m (open area without reflections)
- MW detection range/frequency 9.35 GHz
- Dimensions 110 x 60 x 51 mm
- Weight 114 g
- Classification security grade 2 / environmental class II
- Operational environment Indoor general according to EN 50131-1
- Operational temperature range -10 °C to +40 °C
- Average humidity 75% RH, non-condensation
- Certification body Trezor Test s.r.o. (no. 3025) Complies with EN 50131-1, EN 50131-2-4, EN 50131-5-3,
- ETSI EN 300 220-2, ETSI EN 300 440-1, EN 50131-6, EN 50130-4, EN 55032, EN 62368-1 Can be
- operated according to ERC REC 70-03
- Recommended screw 2x ø 3.5 x 40 mm (countersunk head)
Disposing of this product
Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please return the product to the dealer or contact your local authority for further details of your nearest designated collection point.
