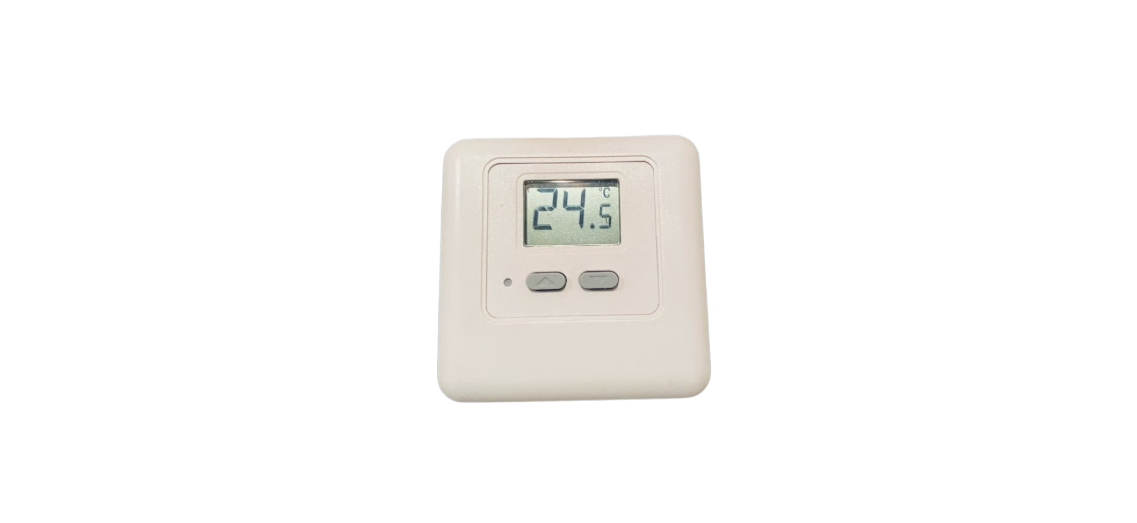

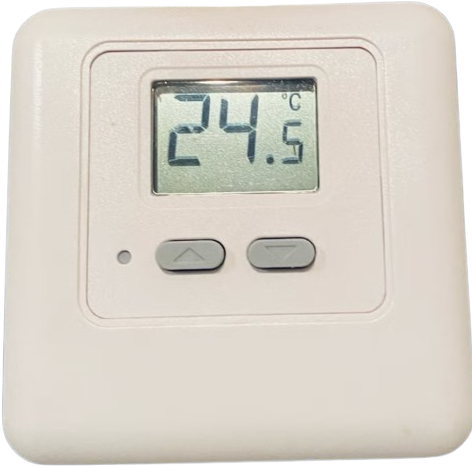

JABLOTRON TP-98TX Wireless Thermostat
Introduction
This thermostat can replace a common indoor residential thermostat and is designed to be used with electric, gas, or oil heating systems. Easy-to-read display shows the current room Temperature, and temperature adjustment is very simple. The TP-98TX wireless thermostat is compatible with Jablotron’s wireless receivers UC-222, UC-241, and UC-242. Radio communication provides high reliability and allows for very easy installation as well.
Installation
The TP-98TX should be mounted in a dry indoor location. This thermostat has been designed for easy installation. Choose a mounting location about 1.5 meters above the floor, in an area with good air circulation. Avoid places with drafts, dead air spots, and radiant heat from the sun or appliances. It should not be installed close to any metal structure or other objects that may obstruct radio signal transmissions.
- Remove completely the front housing of the thermostat. (using a screwdriver)
- Drill two holes and insert the plastic dowels.
- Attach the thermostat to the wall with the two screws.
Reciver
- Slide the battery cover upward to open it.
- Remove the batteries from the thermostat if there are any.
- Enter the enrolling mode of the JABLOTRON TP-98TX Wireless Thermostat receiver unit (UC-222, UC-241, UC-242) – See corresponding instruction manual
- Place the batteries into the thermostat. Ensure the correct polarity of the batteries.
- The receiver will confirm successful enrollment
- Push and slide the cover down to close it.
Temperature Setting
In the normal operation mode, the thermostat shows the room temperature. To set a desired temperature:
- Press or button to view the previous temperature, which was set last time.
- Hold or button for about 3 seconds, and the temperature indicator will flash once.
- Press or button to increase or decrease the temperature setting.
- The programmed temperature range is from 5°C to 35°C.
- The temperature span between the turn ON and OFF is 1°C.
For example, if the control temperature setting is 20°C, the heater will operate when the room temperature drops to 19.5°C and will be turned off when the temperature rises to 20.5°C.
Specifications
- Power Source: two AAA 1.5V Alkaline batteries
- Temperature Measurement: 0 – 40°C
- Temperature Accuracy: ±1.0°C
- Temperature Control: 5 – 35°C
- Temperature Control Span: 1°C
- Output On Delay: 20 seconds
- Working frequency 433,92 MHz
- Working distance up to 100 m (open area)
- Coding: digital, each thermostat has a unique floating code
- Operating Temperature: -10°C to 50°C (non-condensing)
- Storage Temperature: -30°C to 60°C
- Size: 73.5 X 28.0 X 73.5 mm
- Material: Polycarbonate (PC)
- Weight: 90 g (battery not included)
Customer Service
- Tel.: +420 483 559 999
- Fax: +420 483 559 993
- Website: www.jablotron.com
- Address: Pod Skalkou 4567/33 46601 Jablonec nad Nisou, Czech Republic
Hereby, Jablotron Ltd. declares that this TP-98 complies with the essential requirements and other relevant provisions of Directive 1999/5/EC.
FAQs
Is this thermostat compatible with all heating systems?
The majority of common heating systems that allow wireless thermostat control can use it. Verify compatibility by consulting the specifications of your heating system.
How do I install the TP-98TX thermostat?
The thermostat is easy to install because it is cordless and battery-operated. Place it on an interior wall away from heat sources, drafts, and direct sunshine. As directed in the user manual, pair it with your Jablotron control panel.
How do I set the desired temperature?
You may manually modify the temperature using the touchscreen interface, or you can program it to change automatically throughout the day.
Does the TP-98TX support programmable schedules?
Yes, you may set up weekly or daily heating plans to maximise energy savings and comfort.
Is there a battery life indicator?
Indeed, the thermostat will notify you when your battery is low, so you may replace it promptly.
