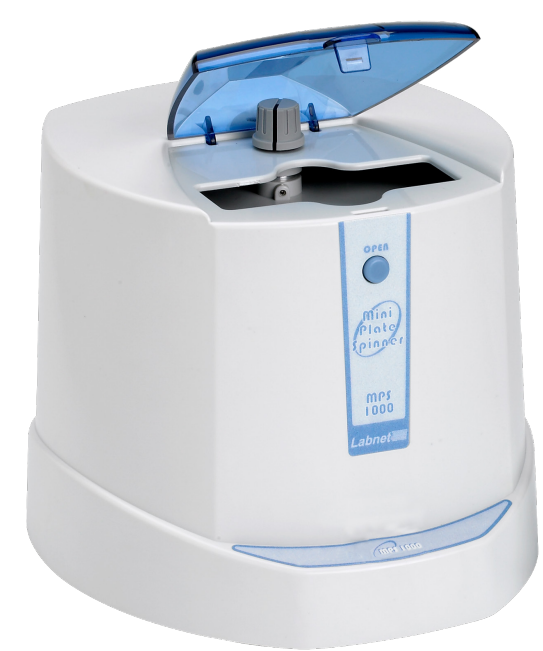

Labnet C1000 MPS 1000 Mini Plate Spinner
Introduction
Primarily designed for use with 96- or 384-well plates and small volumes, it will accommodate skirted, non-skirted, and semi-skirted styles. With the use of the adapter, you may spin half plates, 8 or 12 x 0.2 μL strips, and individual PCR tubes. Before using any cleaning or decontamination methods except those recommended by the manufacturer, check with the manufacturer that the proposed method will not damage the equipment.
Safety Information
- Never use the centrifuge in any manner not specified in these instructions.
- Never move the centrifuge while the rotor is spinning.
- Never use solvents or flammables near this or other electrical equipment.
- Never centrifuge flammable, explosive, or corrosive materials.
- Never centrifuge hazardous materials outside of a hood or proper containment facility.
- Never continue to operate a centrifuge that is vibrating excessively.
- Always load the rotor symmetrically.
- Always locate the centrifuge within easy access to an electrical outlet.
Installation
The Labnet MPS-1000 Mini Plate Spinner should be placed on a clean, flat surface with sufficient space around it for ventilation. Be sure that both the bench and the unit’s rubber feet are clean. Plug the power cord into the back of the unit and turn the power switch knob (on the back of the unit) to the On position.
Operation
To avoid spillage of samples, only plates that have been heat or tape-sealed should be placed in the centrifuge. Plates are loaded into the rotor in a vertical position.

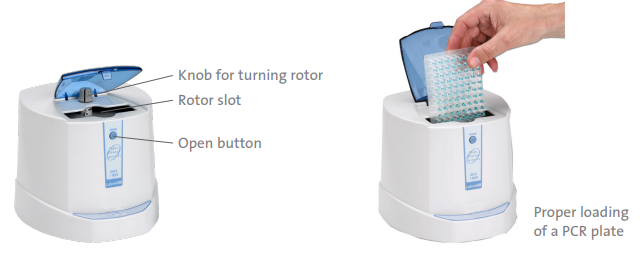

- Using the knob on the top of the unit, turn the rotor until the rotor slot lines up with the opening. Carefully, slide the first plate into position so that the sealed side faces the center of the rotor and the bottom of the plate faces out.
- Line up the second slot like the first, using the knob on the top of the unit.
- Load the second plate in the same manner as the first, making sure that it is all the way down in the rotor slot.
- To begin a run, close the lid of the centrifuge. The centrifuge will quickly ramp up to speed. Allow the unit to run for 15-20 seconds. This is sufficient time to spin the samples down to the bottoms of the wells.
- To stop, press the Open button. Once the rotor has stopped, fully open the lid to gain access to your samples. To remove the plates, turn the knob on the top of the unit until the rotor slot lines up with the opening.
Cleaning
The outside of the centrifuge may be wiped down Labnet C1000 MPS 1000 Mini Plate Spinner with a clean, soft cloth. The rotor slots may be cleaned with a sponge. Do not pour liquids in or over the centrifuge. Do not immerse the centrifuge in liquid.
Specifications
- Capacity: 2 PCR plates
- Dimensions: 7.5 x 8.2 x 7.2 in. (19 x 21 x 18.3 cm)
- Electrical: 100, 120, or 230V, 50/60 Hz
- Max Speed: 2,500 rpm ±10%
- Max RCF: 500 x g
- Electrical: 100V, 50/60Hz, 0.6A (Fuse 1.0 AT) 120V, 50/60Hz, 0.6A (Fuse 1.0 AT) 230V, 50/60Hz, 0.3A (Fuse 0.5 AT)
Limited Warranty
Corning’s Customer Service team will help arrange local service where available or coordinate a return authorization number and shipping instructions. Corning may elect for on-site service for larger equipment. This warranty gives you specific legal rights. You may have other rights that vary from state to state.
Warranty/Disclaimer
Unless otherwise specified, all products are for research use or general laboratory use only.* Not intended for use in diagnostic or therapeutic procedures. Not for use in humans. Corning Life Sciences makes no claims regarding the performance of these products for clinical or diagnostic applications. *For a listing of US medical devices, regulatory classifications, or specific information on claims, visit www.corning.com/resources.</p>
Equipment Disposal
Consequently, the buyer shall follow the instructions for reuse and recycling of waste electronic and electrical equipment (WEEE) provided with the products and available at www.corning.com/weee.</p>
Customer Service
- Website: www.labnetlink.com.
- Visit: www.corning.com/lifesciencs
- Visit: www.corning.com/resources
- USA/Canada: 1.800.492.1110
- Others: +1.978.442.2200
- North America: 978.442.2200
- Australia/New Zealand: 61 427286832
FAQs
What is the spin speed of the MPS 1000?
>>>With a set speed of 2,500 RPM, the machine produces a relative centrifugal force (RCF) of about 600 x g, which is perfect for rapid spin-downs without causing sample disruption.</p>
Does the Mini Plate Spinner support deep-well plates?
>>>Indeed, it can hold deep-well plates up to 45 mm tall, which makes it appropriate for several uses, such as PCR and sample preparation.</p>
How do I operate the centrifuge?
>>>Just push the momentary spin button, close the lid, and place the plates into the rotor slots (A timed spin mode may also be available in certain models.)</p>
Is the MPS 1000 safe for use with live cultures or sensitive assays?
>>>Yes, it is safe to use with delicate biological materials, such as cell cultures and DNA/RNA tests, due to its sealed design and gentle spin.</p>
Can I use this unit for PCR plates with sealing films or caps?
>>>Yes, as long as the seal is flat and secure to prevent unbalance, the MPS 1000 can work with sealed PCR plates.</p>
