Labnet H5600 Revolver Adjustable Rotator
Symbols and Conventions
The electrical warning indicates the presence of a potential hazard Labnet H5600 Revolver Adjustable Rotator that could result in electrical shock. This symbol identifies a Protective Earth (PE) terminal, which is provided for connection of the supply system’s protective earth (green or green/yellow) conductor.
Safety Information
Misuse or unauthorized modifications may void the warranty. If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
Do not use the rotator near water sources. Be sure that water does not get on the device, especially during cleaning procedures. Do not expose the rotator to aggressive solvents. Hazardous samples should be mixed only in appropriate containment vessels. Do not mix flammable or explosive samples.
Unpacking
Before starting the installation, carefully examine the rotator. Open the box and carefully remove the padding. Check to see that the rotator has not been damaged during transportation. Keep the packing material until you are sure the rotator works properly. Make sure that the rotisserie for 36 x 1.5/2.0 mL tubes is included.
Carefully lift the unit from the box. Be sure that the following information is included on the label located on the bottom of the unit: Serial number, product number, and electrical rating. Check that the power cord has the correct configuration that matches the outlet according to your local standards.
Installation
Place the rotator on a stable, flat surface. Connect the plug into the grounded wall socket. Avoid sockets where powerful electric motors, refrigerators, and similar devices are also connected. Use the On/Off switch to control the rotator. Be careful when you plug the cord into the grounded wall socket. Do not touch the plug with wet hands. Do not pull the plug by the cord.
Loading the Rotisserie

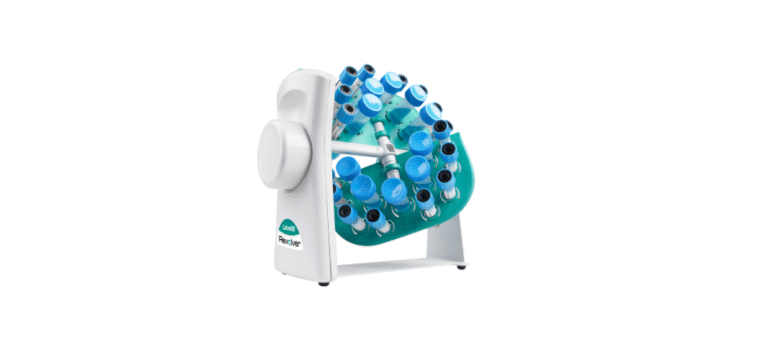

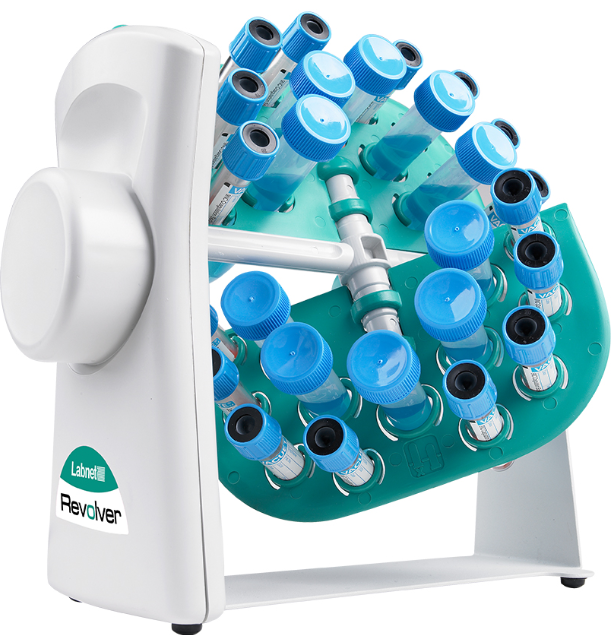

The 36 x 1.5/2.0 mL tube rotisserie supplied with the unit consists of two rotisserie plates attached to an axle that mounts into the motor drive of the apparatus. The Labnet H5600 Revolver Adjustable Rotatorrotisserie plates from the other assemblies are interchangeable on the axles, so you can mix and match the plates and process different tube sizes at one time.
Individual rotisserie plates can be adjusted independently for two distinct types of motion for each plate at the same time. When removing and installing the rotisserie plates from the axle, always remove the axle from the units first. Otherwise, damage may occur to the axle or the unit.
Mount the rotisserie assembly into the unit by inserting one end of the axle into the drive mechanism and the other end into the bushing under the small green handle. The metal frame of the unit is flexible to allow inserting the rotisserie without tools. Be sure to distribute the tubes evenly across the entire rotisserie carrier for a smooth rotating motion.
Cleaning and Maintenance
No routine maintenance or lubrication is required. Keeping the rotator clean will help to maintain it in proper operating condition.
The outside housing can be cleaned with a soft, damp cloth when needed. Do not use any aggressive or abrasive cleaners (acetone, nitro, polish, etc.). This may permanently damage the rotator finish.
Accessories
Cat. No. Description H5600-02 Rotisserie for 36 x 1.5/2.0 mL tubes H5600-15 Rotisserie for 10 x 15 mL tubes or 12 x 5/7 mL tubes H5600-50 Rotisserie for 6 x 50 mL tubes

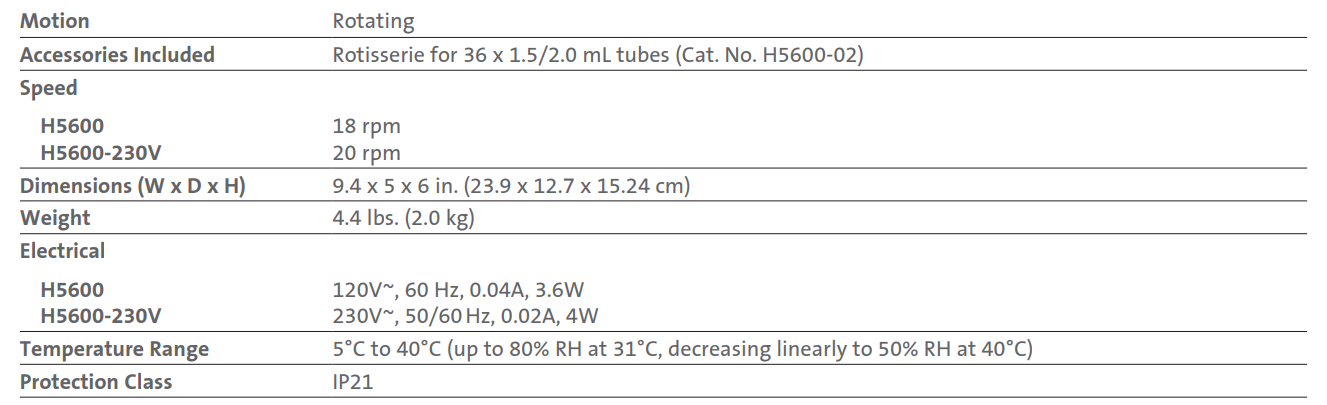

Technical Specifications
The Labnet Revolver™ Rotator is designed to be safe at least when operated under the following conditions:
Indoor use only, altitude up to 2,000 meters, Pollution degree 2
Changes or modifications not expressly approved Labnet H5600 Revolver Adjustable Rotator by the party responsible for compliance could void the user’s authority to operate the equipment.
Limited Warranty
Corning Incorporated (Corning) warrants that this product will be free from defects in material and workmanship for a period of one (1) year from the date of purchase.
Corning’s sole obligation shall be to repair or replace, at its option, any product or part thereof that proves defective in material or workmanship within the warranty period, provided the purchaser notifies Corning of any such defect. Corning is not liable for any incidental or consequential damages, commercial loss, or any other damages from the use of this product.
Corning’s Customer Service team will help arrange local service where available or coordinate a return authorization number and shipping instructions. Corning may elect for on-site service for larger equipment. This warranty gives you specific legal rights. You may have other rights that vary from state to state.
Warranty/Disclaimer
Unless otherwise specified, all products are for research use or general laboratory use only.* Not intended for use in diagnostic or therapeutic procedures. Not for use in humans.
Corning Life Sciences makes no claims regarding the performance of these products for clinical or diagnostic applications. *For a listing of US medical devices, regulatory classifications, or specific information on claims, visit www.corning.com/resources.
Equipment Disposal
According to Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment (WEEE), this product is marked with the crossed-out wheeled bin and must not be disposed of with domestic waste. Consequently, the buyer shall follow the instructions for reuse and recycling of waste electronic and electrical equipment (WEEE) provided with the products and available at www.corning.com/weee.
Customer Service
- Website: www.labnetlink.com.
- Visit: www.corning.com/lifesciencs
- Visit: www.corning.com/resources
- USA/Canada: 1.800.492.1110
- Others: +1.978.442.2200
- North America: 978.442.2200
- Australia/New Zealand: 61 427286832
FAQs
How do I adjust the angle of rotation?
By releasing the angle lock knob and adjusting the platform to the desired angle, it is simple to change the rotation angle from 0° to 90°.
What types of tubes or vessels can I use with this rotator?
Using the supplied tube racks or universal clamps, the H5600 can accommodate standard microcentrifuge tubes, PCR tubes, blood collection tubes, and tiny flasks.
How much weight can the rotator safely hold?
Although the platform can support a maximum load of 3 kg, it is best to uniformly distribute the weight to guarantee smooth rotation
Is the rotator suitable for long-term incubation or only short-term mixing?
Depending on your regimen, the rotator can run constantly for prolonged periods of time, although its primary purpose is mixing and mild agitation.
Does the rotator have a timer function?
Indeed, the H5600 has a built-in timer that can run continuously or for up to 99 minutes.
How do I clean and maintain the rotator?
Wipe the platform and exterior with a gentle, moist cloth. To avoid damage, stay away from abrasive cleansers and solvents.
