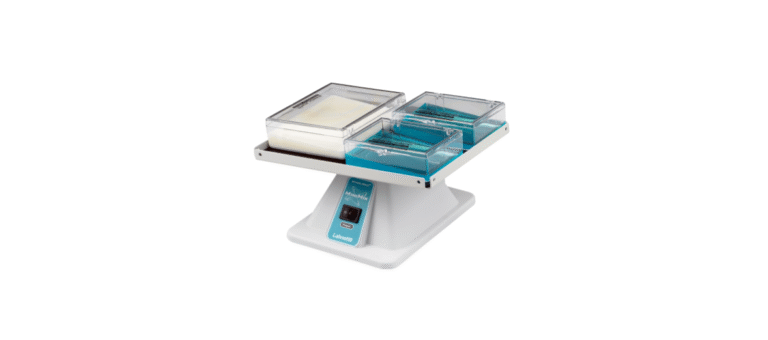

Labnet S0600 Enduro MiniMix Nutating Mixer
Introduction
The Labnet Enduro™ MiniMix is a three-dimensional nutating mixer typically used for maintaining the uniform suspension of liquids over transfer membranes with a minimum volume. The Enduro MiniMix is also ideal for processing Western Blots and staining and destaining PAGE gels.
The Enduro MiniMix achieves its 3-dimensional mixing by combining the rotating motion of an orbital shaker with the rocking motion of a platform rocker.
Symbols and Conventions
- The electrical warning indicates the presence of a potential hazard that could result in electrical shock.
- This symbol refers you to important operating and maintenance (servicing) instructions within this Instruction Manual. Failure to heed this information may present a risk of damage or injury to persons or equipment.
- This symbol identifies a Protective Earth (PE) terminal, which is provided for connection of the supply system’s protective earth (green or green/yellow) conductor.
Installation
The Labnet Enduro™ MiniMix can be used on a bench, in a cold room, or in an incubator up to 40°C. Place the unit on a flat, stable surface, and be sure to leave sufficient room around the unit to allow both the platform and load to move freely. A minimum of 4 inches (10cm) clearance on all sides of the mixer is advised. Plug the unit into a properly grounded outlet of the appropriate voltage as shown on the unit’s data plate label.
Operating Instructions

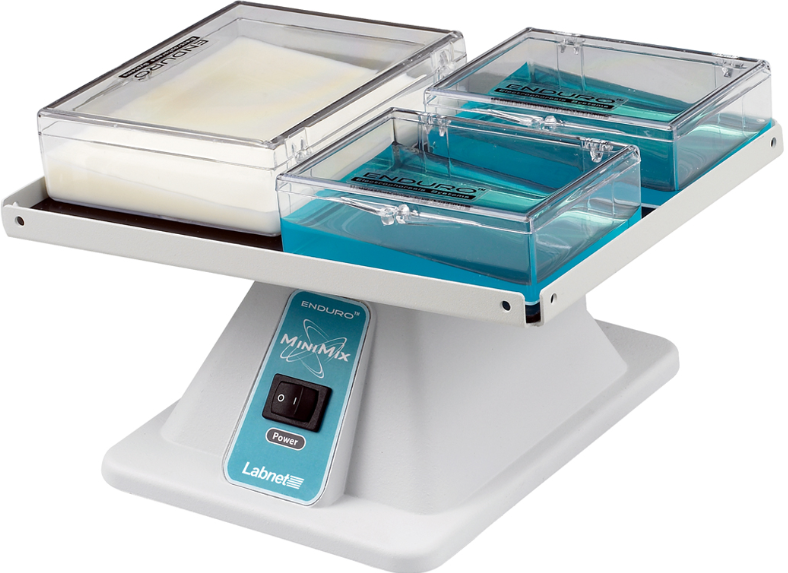

The flat matted pattern is configured to allow four 8 x 10 cm (Bio-Rad, NuSep) or two 10 x 10 cm (Lonza, Invitrogen) blotting boxes to be securely placed on the mat without additional strapping. If blotting boxes are to be stacked, they should be secured with rubber bands.
Holes in the corners of the platform edges are provided for this purpose. Always load the platform in a uniform and balanced fashion. Use the power switch to turn the unit on. The direction of rotation in which the unit starts is random and does not affect mixing.
Cleaning and Maintenance
Always disconnect the cord from the power source before maintaining or servicing. The Labnet Enduro MiniMix requires no maintenance other than occasional cleaning with a damp cloth with mild detergent. The rubber mat may be washed with soap and water.
Technical Specifications
| Speed S0600 S0600-230V | 18 rpm 20 rpm |
| Platform Tilt Angle | 5°, fixed |
| Dimensions (W x D x H) | 9.5 x 5.75 x 6.75 in. (24 x 14.6 x 17 cm) |
| Platform Dimensions | 9.5 x 6.75 in. (20 x 16.5 cm) |
| Weight | 1.88 lbs. (0.85 kg) |
| Platform Load Capacity | 1.75 lbs. (0.8 kg), balanced |
| Platform Capacity without Stacking | Four 8 x 10 cm (Bio-Rad, NuSep) or two 10 x 10 cm (Lonza, Invitrogen) blotting boxes |
| Electrical S0600 S0600-230V | 120V~, 50/60 Hz, 0.03A, 3.6W 230V~, 50/60 Hz, 0.017A, 4W |
| Temperature Range | 5°C to 40°C (up to 80% RH at 31°C, decreasing linearly to 50% RH at 40°C) |
| Protection Class | IP21 |
The Labnet Enduro MiniMix is designed to be safe at least when operated under the following conditions:
- Indoor use only
- Altitude up to 2,000 meters
- Pollution degree 2
Changes or modifications not expressly approved by the Labnet S0600 Enduro MiniMix Nutating Mixer party responsible for compliance could void the user’s authority to operate the equipment.
Troubleshooting
Should you have a question about the operation of the Labnet Enduro MiniMix or if service is required, contact Corning Customer Service. Do not send in a unit for service without first calling to obtain a repair authorization number. Should the unit require service return, it should be properly packed to avoid damage. Any damage resulting from improper packaging shall be the responsibility of the user.
Limited Warranty
Corning Incorporated (Corning) warrants that this product will be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Corning’s sole obligation shall be to repair or replace, at its option, any product or part thereof that proves defective in material or workmanship within the warranty period, provided the purchaser notifies Corning of any such defect. Corning is not liable for any incidental or consequential damages, commercial loss, or any other damages from the use of this product.
Corning’s Customer Service team will help arrange local service where available or coordinate a return authorization number and shipping instructions. Corning may elect for on-site service for larger equipment. Some states do not alllimitationsion on the length of implied warranties or the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights. You may have other rights that vary from state to state. No individual may accept for, or on behalf of Corning, any other obligation of liability, or extend the period of this warranty
Warranty/Disclaimer
Unless otherwise specified, all products are for research use or general laboratory use only.* Not intended for use in diagnostic or therapeutic procedures. Not for use in humans. Corning Life Sciences makes no claims regarding the performance of these products for clinical or diagnostic applications. *For a listing of US medical devices, regulatory classifications, or specific information on claims, visit www.corning.com/resources.
Equipment Disposal
According to Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment (WEEE), this product is marked with the crossed-out wheeled bin and must not be disposed of with domestic waste. Consequently, the buyer shall follow the instructions for reuse and recycling of waste electronic and electrical equipment (WEEE) provided with the products and available at www.corning.com/weee.
Customer Service
- Website: www.labnetlink.com.
- Visit: www.corning.com/lifesciencs
- Visit: www.corning.com/resources
- USA/Canada: 1.800.492.1110
- Others: +1.978.442.2200
- North America: 978.442.2200
- Australia/New Zealand: 61 427286832
FAQs
What is the main function of the Labnet S0600 Enduro MiniMix Nutating Mixer?
For fragile samples including blood, cells, and biochemical reagents, the Enduro MiniMix offers gentle, multidirectional mixing.
How do I adjust the mixing speed?
A rotary dial on the front panel allows you to set the mixing speed, which ranges from 5 to 40 RPM for the best mixing control.
What types of containers are compatible with this mixer?
Microcentrifuge tubes, test tubes, flasks, and tiny bottles up to two litres are among the many types of vessels that the MiniMix can accommodate.
How much weight can the platform safely hold?
Three kilogrammes is the maximum load capacity, which guarantees steady and effective mixing without putting undue strain on the engine.
How do I clean the mixer?
Use a moist towel and a light detergent to clean the platform and its exterior. Do not use harsh chemicals or submerge the unit in liquids.
What power supply does the mixer require?
Depending on your location, the mixer runs on 120V or 230V AC, 50/60 Hz.
