Lenovo ThinkSystem Mixed Use 24Gb SAS SSDs

Product Guide

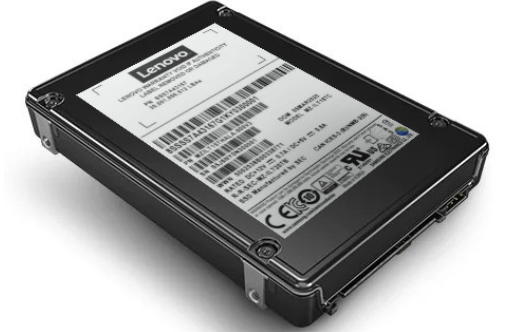

The ThinkSystem Vendor Agnostic Mixed Use 24Gb SAS SSDs are general-purpose SSDs with an endurance of 3 drive writes per day. Vendor-agnostic SSDs are non-vendor-specific drives that can streamline and simplify the ordering and delivery of SAS SSDs. The drives offered in the Vendor Agnostic SSD program consist of readily available SSDsensuring the shortest supply lead time. With SED encryption as standard, Vendor Agnostic SSDs help ensure data security, even when the drive is removed from the server.

SED support:
All drives listed in this product guide include SED drive encryption.

Did you know?
Unlike 6 Gb/s SATA drives, the 24 Gb/s SAS interface on these drives supports full duplex data transfer for higher performance, and enterprise-level error recovery for better availability. Self-encrypting drives (SEDs) provide benefits by encrypting data on-the-fly at the drive level with no performance impact, by providing instant secure erasure, thereby making the data no longer readable, and by enabling auto-locking to secure active data if a drive is misplaced or stolen from a system while in use. These features are essential for many businesses, especially those storing customer data.

Part number information

The following table lists the part numbers and feature codes.
Table 1. Ordering part numbers and feature codes.

The part numbers include the following items:

• One 2.5-inch solid-state drive
• Hot-swap drives include either a 2.5-inch or 2.5-inch ThinkSystem hot-swap tray
• Documentation flyer

Features

The Vendor Agnostic SSDs have the following features:

• Vendor-agnostic SSDs have the following features:
  Mixed-use SSDs fromindustry-leadingg SSD vendors with endurance of more than 3 drive-writes per
  day (3 DWPD)
• 24 Gbps SAS interface
• SED drive encryption (TCG Opal or TCG Enterprise)
• Advanced ECC Engine and End-to-End Data Protection
• TLC V-NAND stacks the vertical NAND layers in three dimensions, solving the cell-to-cell interference that causes data corruption in planar NAND.
• Power Loss Protection (PLP) architecture
• Supports Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T).

SSDs have a huge but finite number of program/erase (P/E) cycles, which affect how long they can perform write operations and thus their life expectancy. Mixed-use SSDs have a higher write endurance compared
to read-intensive SSDs. SSD write endurance is typically measured by the number of program/erase cycles that the drive can incur over its lifetime, which is listed as total bytes written (TBW) in the device specification.

The TBW value that is assigned to a solid-state device is the total bytes of written data that a drive can be
guaranteed to complete. Reaching this limit does not cause the drive to immediately fail; the TBW simply
denotes the maximum number of writes that can be guaranteed. A solid-state device does not fail upon
reaching the specified TBW. However, at some point after surpassing the TBW value (and based on
manufacturing variance margins), the drive reaches the end-of-life point, at which time the drive goes into
read-only mode. Because of such behavior, careful planning must be done to use SSDs in the application
environments to ensure that the TBW of the drive is not exceeded before the required life expectancy.

The benefits of drive encryption

Self-encrypting drives (SEDs) provide benefits in three main ways:

• By encrypting data on-the-fly at the drive level with no performance impact
• By providing instant secure erasure (cryptographic erasure, thereby making the data no longer readable)
• By enabling auto-locking to secure active data if a drive is misplaced or stolen from a system while in use.

The following sections describe the benefits in more detail.

Automatic encryption

A company must keep its data secure. With the threat of data loss due to physical theft or improper
inventory practices, the data must be encrypted. However, challenges with performance, scalability, and complexity have led IT departments to push back against security policies that require the
use of encryption. In addition, encryption has been viewed as risky by those unfamiliar with key management, a process for ensuring a company can always decrypt its data. Self-encrypting drives
comprehensively resolve these issues, making encryption both easy and affordable.

When the self-encrypting drive is in normal use, its owner need not maintain authentication keys (otherwise
known as credentials or passwords) to access the data on the drive. The self-encrypting drive will
encrypt data being written to the drive and decrypt data being read from it, all without requiring an authentication key from the owner.

Drive retirement and disposal.

When hard drives are retired and moved outside the physically protected data center into the hands of others, the data on those drives is put at significant risk. IT departments retire for a variety of reasons, including:

• Returning drives for warranty, repair, or expired lease agreements
• Removal and disposal of drives
• Repurposing drives for other storage duties

Nearly all drives eventually leave the data center and their owners’ control. Corporate data resides on such
drives, and when most leave the data center, the data they contain is still readable. Even data that has been striped across many drives in a RAID array is vulnerable to data theft because just a typical single stripe in today’s high-capacity arrays is large enough to expose, for example, hundreds of names and bank account numbers.

To avoid data breaches and the ensuing customer notifications required by data privacy laws,
companies use different methods to erase the data on retired drives before they leave the premises and
potentially fall into the wrong hands. Current retirement practices that are designed to make data unreadable rely on significant human involvement in the process, and are thus subject to both technical and
human failure. The drawbacks of today’s drive retirement practices include the following: drawbacks of today’s drive retirement practices include the following:

• Overwriting drive data is expensive, tying up valuable system resources for days. No notification of
  completion is generated by the drive, and overwriting won’t cover reallocated sectors, leaving that
  data exposed.
• Methods that include degaussing or physically shredding a drive are expensive. It is difficult to ensure the degauss strength is optimized for the drive type, potentially leaving readable data on the drive. Physically shredding the drive is environmentally hazardous, and neither practice allows the drive to be returned for warranty or an expired lease.
• Some companies have concluded the only way to securely retire drives is to keep them in their control, storing them indefinitely in warehouses. But this is not truly secure because a large volume of drives, coupled with human involvement, inevitably leads to some drives being lost or stolen.
• Professional disposal services are an expensive option and include the cost of reconciling the services, as well as internal reports and auditing. Transporting the drives also has the potential of putting the data at risk.

Self-encrypting drives eliminate the need to overwrite, destroy, or store retired drives. When the drive is to
be retired, it can be cryptographically erased, a process that is nearly instantaneous regardless of the capacity of the drive.

Instant secure erase

The self-encrypting drive provides instant data encryption key destruction via cryptographic erasure. When
it is time to retire or repurpose the drive, the owner sends a command to the drive to perform a
cryptographic erasure. Cryptographic erasure simply replaces the encryption key inside the encrypted
drive, making it impossible to ever decrypt the data encrypted with the deleted key.

Self-encrypting drives reduce IT operating expenses by reducing asset control challenges and disposal
costs. Data security with self-encrypting drives helps ensure compliance with privacy regulations without
hindering IT efficiency.

So-called “Safe Harbor” clauses in government regulations allow companies to not
have to notify customers of occurrences of data theft if that data was encrypted and therefore unreadable.
Furthermore, self-encrypting drives simplify decommissioning and preserve hardware value for returns and
repurposing by

• Eliminating the need to overwrite or destroy the drive
• Securing warranty returns and expired lease returns
• Enabling drives to be repurposed securely

Auto-locking

Insider theft or misplacement is a growing concern for businesses of all sizes; in addition, managers of
branch offices and small businesses without strong physical security face greater vulnerability to external
theft. Self-encrypting drives include a feature called auto-lock mode to help secure active data against theft. Using a self-encrypting drive when auto-lock mode is enabled simply requires securing the drive with an authentication key. When secured in this manner, the drive’s data encryption key is locked whenever the
drive is powered down. In other words, the moment the self-encrypting drive is switched off or unplugged, it
automatically locks down the drive’s data.

When the self-encrypting drive is then powered back on, it requires authentication before being able to
unlock its encryption key and read any data on the drive, thus protecting against misplacement and theft While using self-encrypting drives just for the instant secure erase is an extremely efficient and effective
means to help securely retire a drive, using self-encrypting drives in auto-lock mode provides even more
advantages.

From the moment the drive or system is removed from the data center (with or without
authorization), the drive is locked. No advance thought or action is required from the data center
administrator to protect the data. This helps prevent a breach should the drive be mishandled and helps
secure the data against the threat of insider or outside theft.

Technical specifications

The following tables list the technical specifications for the ThinkSystem Vendor Agnostic Mixed Use 24Gb
SAS SSDs.
Table 2. Technical specifications

Server support

The following tables list the ThinkSystem servers that are compatible.

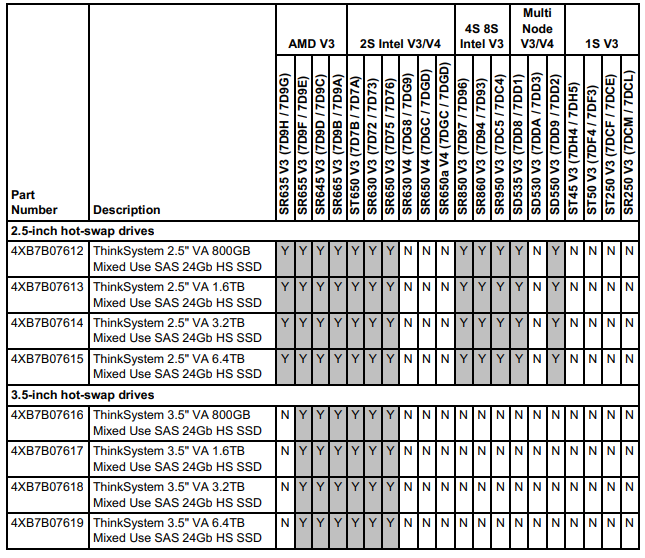

Table 3. Server support (Part 1 of 4)

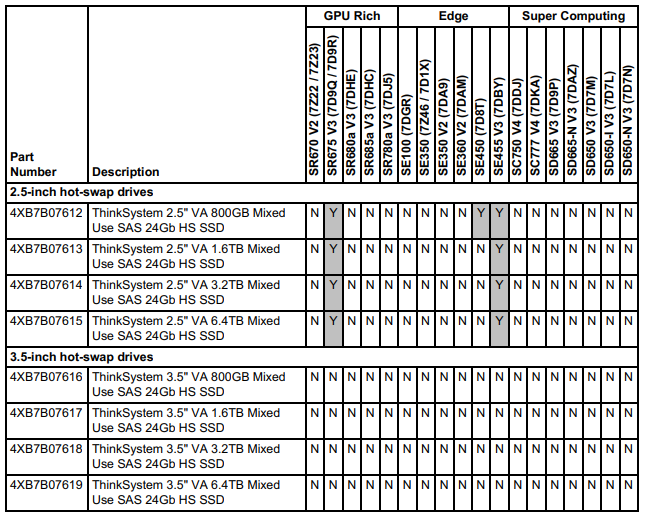

Table 4. Server support (Part 2 of 4)

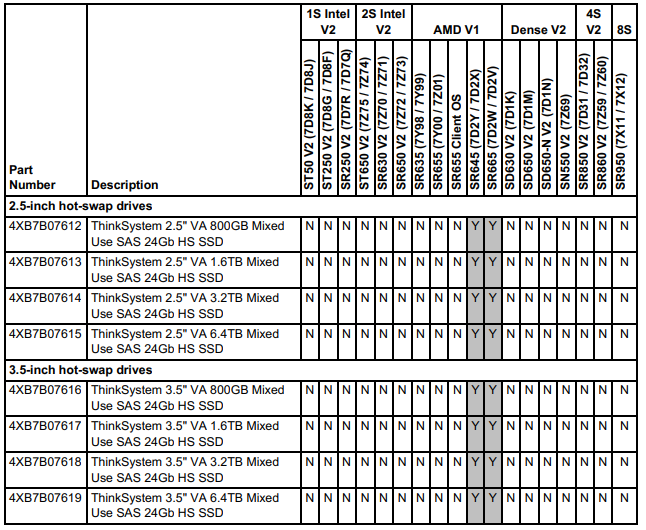

Table 5. Server support (Part 3 of 4)

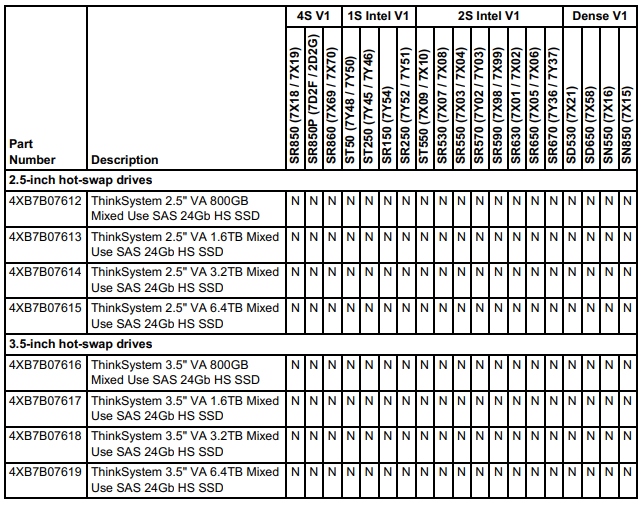

Table 6. Server support (Part 4 of 4)

Operating system support

SAS and SATA SSDs operate transparently to users, storage systems, applications, databases, and operating systems. Operating system support is based on the controller used to connect to the drives. Consult the controller product guide for more information:

• RAID controllers: https://lenovopress.com/servers/options/raid
• SAS HBAs: https://lenovopress.com/servers/options/hba

IBM SKLM Key Management support

To effectively manage a large deployment of SEDs in Lenovo servers, IBM Security Key Lifecycle Manager
(SKLM) offers a centralized key management solution. Certain Lenovo servers support Features on Demand (FoD) license upgrades that enable SKLM support. The following table lists the part numbers and feature codes to enable SKLM support in the management processor of the server.

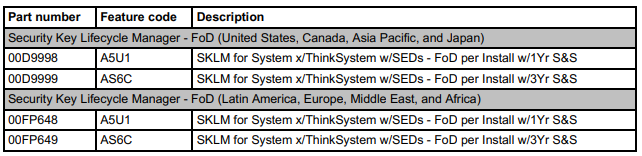

Table 7. FoD upgrades for SKLM support.

The IBM Security Key Lifecycle Manager software is available from Lenovo using the ordering information
listed in the following table.

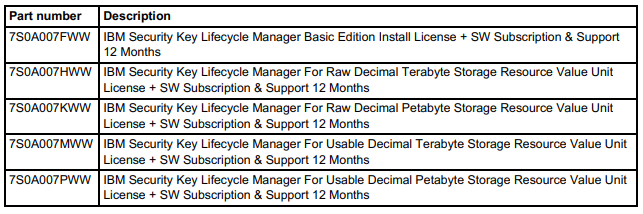

Table 8. IBM Security Key Lifecycle Manager licenses.

Warranty

The ThinkSystem Vendor Agnostic Mixed Use 24Gb SAS SSDs carry a one-year, customer-replaceable
unit (CRU) limited warranty. When the SSDs are installed in a supported server, these drives assume the
system’s base warranty and any warranty upgrades. Solid State Memory cells have an intrinsic, finite number of program/erase cycles that each cell can incur. As a result, each solid-state device has a maximum number of program/erase cycles to which it can be subjected. The warranty for Lenovo solid state drives (SSDs) is limited to drives that have not reached the maximum guaranteed number of program/erase cycles, as documented in the Official Published Specifications for the SSD product. A drive that reaches this limit may fail to operate according to its Specifications.

Physical specifications

The Vendor Agnostic SSDs have the following dimensions (without the hot-swap tray):

• Height: 15 mm (0.6 in.)
• Width: 70 mm (2.8 in.)
• Depth: 100 mm (4.0 in.)

Operating environment

Vendor-agnostic SSDs are supported in the following environments:

• Temperature, operating: 0 – 70 °C (32 – 158 °F)
• Temperature, non-operating: -40 to 85 °C (-40 – 185 °F)
• Relative humidity: 5 – 95% (noncondensing)
• Maximum altitude: -300 – 4,572 m (-1,000 to 15,000 feet)

Agency approvals

Vendor Agnostic SSDs conform to the following regulations:

• UL
• TUV
• FCC
• IC
• CB
• CE Mark
• C-Tick Mark
• BSMI (Taiwan)
• KCC (Korea EMI)
• VCCI
