Meec Tools 018253 40 V Lawn Mower Instructions Manual

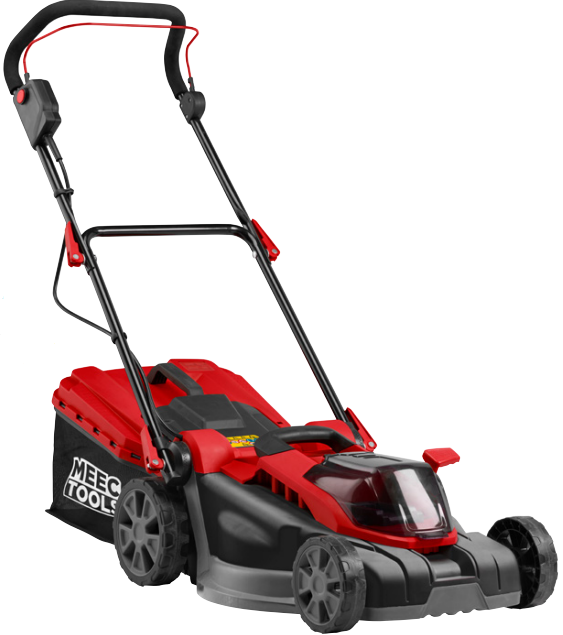

Meec Tools 018253 40 V Lawn Mower

SAFETY INSTRUCTIONS

WARNING! Read all warnings, safety instructions and other instructions carefully before use. Failure to follow all the instructions and safety instructions can result in the risk of electric shock, fire and/or serious personal injury.

• Save these instructions and safety instructions for future reference.
• The term “power tool” in all the warnings below refers to mains-powered (corded) or battery-powered  (cordless) power tools.

WORK AREA

• Keep the work area clean and well-lit. Dark and cluttered work areas increase the risk of accidents and injuries.
• Do not use power tools in explosive environments, such as in the vicinity of flammable liquids, gas or dust. Power tools produce sparks that can ignite dust and fumes.
• Keep onlookers, especially children and pets, at a safe distance when using power tools. You can easily lose control of the product if you are distracted.

ELECTRICAL SAFETY

• Avoid body contact with earthed surfaces such as pipes, radiators, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed.
• Do not expose power tools to rain or moisture. There is a greater risk of electric shock if water gets into a power tool.

USE AND CARE

• Look around the work area for potential risks that you might not notice when the product is in use.
• Do not use the product when other persons, especially children or pets, are in the vicinity.
• Be careful when working on slopes.
• Always maintain a firm footing and good balance, and walk slowly.
• Work across slopes, never up and down.
• Be very careful when changing direction – risk of tripping.
• Do not mow very steep slopes.
• Be very careful when going backwards or pulling the product towards you.
• Do not tilt the product when starting the motor.
• Stand at a safe distance behind the handle.
• Keep your hands and feet away from moving parts when starting the motor.
• Switch off the product before tilting it and before moving it, for example, to and from the lawn or over paths.
• Never cross over gravel surfaces with the motor running – risk of stones flying out.
• Switch off the product and wait until all moving parts have completely stopped before lifting or carrying the product.
• Switch off the product and wait until all moving parts have completely stopped before adjusting the cutting height.
• Never open the ejector flap when the motor is running.
• Switch off the product and wait until all moving parts have completely stopped before removing the grass catcher. Firmly replace the grass catcher after emptying.
• If possible, avoid cutting wet grass.
• Do not use the product in explosive environments, for example, near flammable liquids, gas or dust. The product produces sparks, which can ignite dust and fumes.

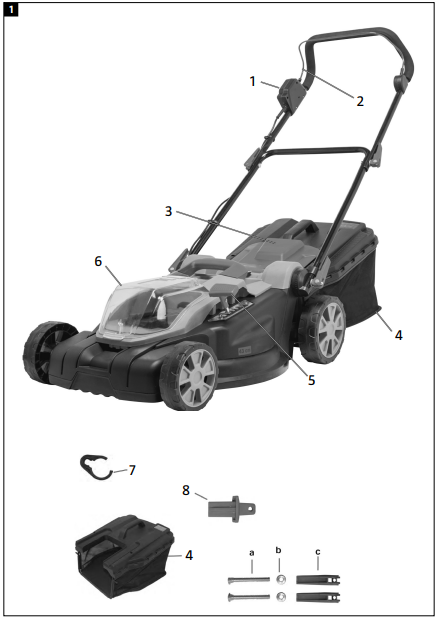

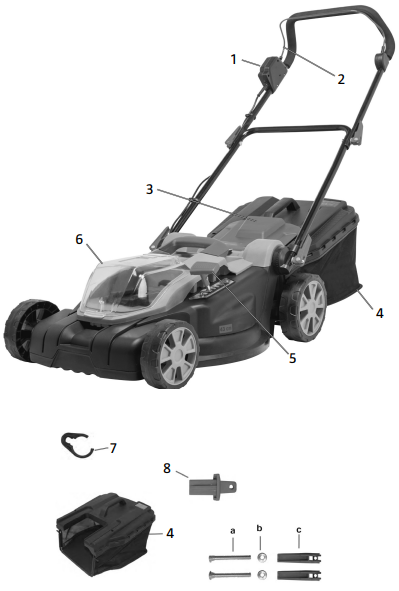

DESCRIPTION

1. Safety catch
2. Drive handle
3. Ejector opening
4. Grass catcher
5. A lever to adjust the mowing height
6. Battery compartment cover
7. Clamp
8. Safety key

ASSEMBLY

UNPACKING

• Remove all parts from the packaging.
• Remove all packaging materials and any transport protection.
• Check that no parts are missing.
• Inspect the product and accessories for damage.
• If possible, save the packaging until the warranty has expired

NOTE: Do not allow children to play with the packaging material. Keep plastic bags, plastic film and small parts out of the reach of children – risk of suffocation.

ASSEMBLY OF THE LAWN MOWER

1. Unpack the product and all the accessories, and check that all the parts are included.
2. Fit the bottom handle on the product with a quick-coupling (c) on each side.
3. Fit the top handle with a screw (a), a washer (b) and a quick-coupling (c) on each side. Make sure that the cords, which are connected later, are not in the way.
4. Fit the cords on the handle with the clips (7).
5. Open the grass catcher (4) and press the plastic clips on the frame.
6. Lift the ejector flap (3) with one hand and hook the grass catcher (4).

INSERTING THE BATTERY

Open the battery compartment (6). Put the battery in the holder.

USE

Battery and charger sold separately in Jula’s department stores and at www.jula.com.

SAFETY KEY

The product can only be started when the safety key (8) is inserted. Remove the safety key from the product after use.

STARTING/SWITCHING OFF

1. Keep the safety catch (1) pressed in.
2. Press in the drive handle (2). The motor starts.
3. Release the drive handle to switch off (2).

ADJUSTING THE HEIGHT OF THE HANDLE

1. Release the quick-couplings on the left and right sides of the handle.
2. Move the handle to the required position and tighten the quick-couplings.

ADJUSTING THE MOWING HEIGHT

WARNING! Switch off the product and remove the safety key before adjusting the mowing height.

1. Push out the adjusting lever for mowing height (6).
2. Check that the lever (6) clicks in place in one of the slots.

LAWN MOWING

• A lawn consists of different types of grass. Mowing a lawn often benefits grass with strong roots and forms a thick and firm lawn.
• The normal height for a lawn is about 4–5 cm. Do not cut more than about 1/3 of the height at one go, i.e. from 7–8 cm to normal height.
• Do not mow the lawn shorter than 4 cm; this can cause it to dry out.
• Cut high grass in steps.
• Overlap each row a little when mowing.
• If possible, avoid cutting wet grass. Cut the grass when it is dry.
• Be very careful when changing direction on slopes. Always maintain a firm footing and good balance. Work across slopes, never up and down.
• Do not mow slopes with a gradient of more than 15° – risk of personal injury.

GRASS CATCHER

The grass catcher has a level indicator. It is held open by the flow of air produced by the product when in use. When the flap closes during mowing, this means that the grass catcher is full and must be emptied. Check that the opening under the flap is clean and lets through air; otherwise, the level indicator will not work properly. Empty the grass catcher if grass cuttings are left on the ground.

WARNING! Switch off the product, wait until all moving parts have completely stopped and remove the safety key before removing the grass catcher.

Emptying the grass catcher

1. To remove the grass catcher, lift the flap with one hand, grip the grass catcher handle with the other, and lift out the grass catcher.
2. When the grass catcher is removed, the flap falls and covers the ejector opening.
3. If there is grass left in the opening, pull the lawnmower backwards about 1 metre to make it easier to start the motor.
4. Never clear the mower deck or blade with your hands or feet – use a brush or other suitable tool. Clean the grass catcher after it has been used for best functionality, especially the air grille.
5. Lift the ejector flap with one hand and hook the grass catcher from above with the other hand. Only fit the grass catcher when the product is switched off and the moving parts are not moving.

TECHNICAL DATA

• Rated voltage 40 V
• Speed 3500 rpm
• Protection rating IPX1
• Mowing width 43 cm
• Catcher 45 l
• Height adjustment 20–70 mm
• Sound pressure level, LpA 82.9 dB(A), K=3 dB
• Sound power level, LwA* 93.7 dB(A), K=1.8 dB
• Sound power level, LwA** 96 dB(A)
• Vibration level 2.78 m/s², K=1.5 m/s²
• Weight 13.8 kg

MAINTENANCE

Clean the product after it has been used.

1. Remove the battery.
2. Remove the grass catcher.
3. Clean the product with a brush after use.
4. Carefully remove residual grass from underneath the mower deck with a wooden stick or something similar.
5. Keep the ventilation openings free from dust and dirt. Never pour or swill water on the product.
6. Clean the motor casing with a damp cloth. Do not use detergents or solvents. This can damage the plastic parts on the product. Wipe the engine casing all over.
7. Check the condition of the blade.

GRASS CATCHER

The grass catcher can be rinsed with water when removed from the lawn mower.

REMOVING AND SHARPENING THE BLADE

When the blade becomes blunt, it can be removed and sharpened.

1.  Undo the screw holding the blade.
2. Release the blade and carefully clean the contact surfaces. If the blade is very worn, it should be replaced with a new one.
3. Sharpen the blade.
4. Fit the blade on the lawnmower and firmly tighten the screw.
5. Only use spare parts recommended by the manufacturer.

STORAGE

NOTE: Remove the safety key before putting it into storage.

• Store the lawn mower in a dry place and frost-free place (10–25°C).
• Store the battery and lawn mower separately.
• Charge the battery before putting it into storage if it is not going to be used for some time.
• Never let brake fluid, petrol, oil-based products, penetrating oils, etc., come into contact with plastic parts.
• Store the lawnmower away from corrosive substances, such as salt and fertiliser.

TRANSPORT

• Remove the battery from the lawn mower before transport.
• Undo the two quick-couplings and fold down the top handle.
• Use the carry handle to transport the lawn mower.

TROUBLESHOOTING

Problem

• The product does not work.
• The motor stops when in use.
• Reduced performance.
• Heavy vibration.
• Inadequate grass catching.
• The lawn is mown unevenly.

Action

• Charge the battery. Insert the battery correctly. Clean the terminals, replace them with a new battery of the same type.
• Charge the battery. Charge the battery. Cut in steps.
• Check the blade. Unblock the blade. Replace the blade.
• Empty the grass catcher. Clear the ejector opening. Adjust to a suitable mowing height.
• Sharpen or replace the blade. Cut in steps.
